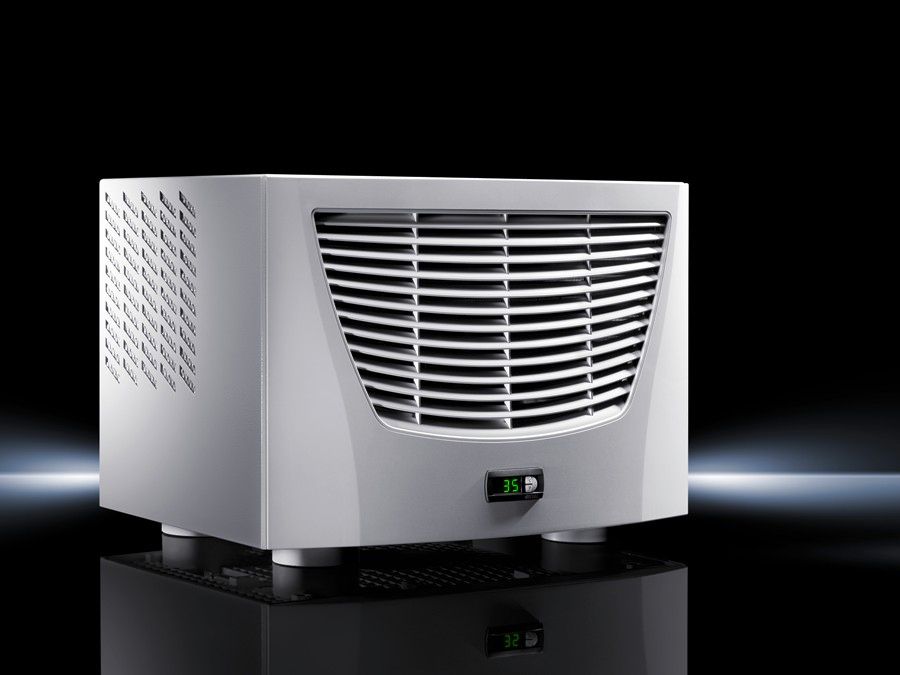

Rittal 3384600 RTT Blue e cooling unit in stainless steel roof mount 1500 W
|
2.093,00 EUR 2.176,72 EUR |
|
|
( 2.490,67 EUR incl. VAT ) ≈ £1,774.86 | ≈ $2,346.25 plus delivery charges |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 426660 |
| Mfg Part No: | 3384600 |
| UPC/EAN: | 4028177380134 |
| Weight: | 47 kg |
| Type: | SK 3384600 |
Further Rack-Climatization from RittalFurther products in category Rack-Climatization
All products of Rittal
Product information for Rittal 3384600:
Material: Stainless steel
Protection category IP to IEC 60 529: External circuit IP 34
Internal circuit IP 34
Supply includes: Nano-coated condenser
Integral electric condensate evaporation
Fully wired ready for connection (plug-in terminal strip)
Drilling template
Assembly parts
Note: Thanks to their low noise level, the roof-mounted cooling units 3273.500 and 3273.515 are also suitable for use in office applications
Note on Model No.: Extended delivery times.
Packs of: 1 pc(s).
EAN: 4028177380134
Customs tariff number: 84158200
eCl@ss 5.1: 27180704
eCl@ss 7.0: 27180704
ETIM 6.0: EC000855
Total cooling output to DIN EN 14511: L 35 L 35 at 50 Hz: 1.5 kW
L 35 L 35 at 60 Hz: 1.65 kW
L 35 L 50 at 50 Hz: 1.15 kW
L 35 L 50 at 60 Hz: 1.3 kW
Air throughput (unimpeded air flow): External circuit: 1600 m³/h
Internal circuit: 491 m³/h
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 597 mm
Height: 417 mm
Depth: 475 mm
Temperature control: e-Comfort controller (factory setting +35°C)
Temperature range: Operation (environment): +10°C...+55°C
Setting range: +20°C...+55°C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 700 g
Type of electrical connection: Plug-in terminal strip
Duty cycle: 100 %
Power consumption Pel: L 35 L 35 at 50 Hz: 0.67 kW
L 35 L 35 at 60 Hz: 0.77 kW
L 35 L 50 at 50 Hz: 0.79 kW
L 35 L 50 at 60 Hz: 0.91 kW
Rated current (max.): At 50 Hz: 3.9 A
At 60 Hz: 4.8 A
Start-up current max.: At 50 Hz: 14.8 A
At 60 Hz: 16 A
Pre-fuse: Miniature circuit-breaker/fuse: 10 A
Permissible operating pressure (p. max.): 28 bar
Energy efficiency ratio (EER) 50 Hz L35 L35 to DIN EN 14511: 2.24
Weight/pack: 41 kg
Protection category IP to IEC 60 529: External circuit IP 34
Internal circuit IP 34
Supply includes: Nano-coated condenser
Integral electric condensate evaporation
Fully wired ready for connection (plug-in terminal strip)
Drilling template
Assembly parts
Note: Thanks to their low noise level, the roof-mounted cooling units 3273.500 and 3273.515 are also suitable for use in office applications
Note on Model No.: Extended delivery times.
Packs of: 1 pc(s).
EAN: 4028177380134
Customs tariff number: 84158200
eCl@ss 5.1: 27180704
eCl@ss 7.0: 27180704
ETIM 6.0: EC000855
Total cooling output to DIN EN 14511: L 35 L 35 at 50 Hz: 1.5 kW
L 35 L 35 at 60 Hz: 1.65 kW
L 35 L 50 at 50 Hz: 1.15 kW
L 35 L 50 at 60 Hz: 1.3 kW
Air throughput (unimpeded air flow): External circuit: 1600 m³/h
Internal circuit: 491 m³/h
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 597 mm
Height: 417 mm
Depth: 475 mm
Temperature control: e-Comfort controller (factory setting +35°C)
Temperature range: Operation (environment): +10°C...+55°C
Setting range: +20°C...+55°C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 700 g
Type of electrical connection: Plug-in terminal strip
Duty cycle: 100 %
Power consumption Pel: L 35 L 35 at 50 Hz: 0.67 kW
L 35 L 35 at 60 Hz: 0.77 kW
L 35 L 50 at 50 Hz: 0.79 kW
L 35 L 50 at 60 Hz: 0.91 kW
Rated current (max.): At 50 Hz: 3.9 A
At 60 Hz: 4.8 A
Start-up current max.: At 50 Hz: 14.8 A
At 60 Hz: 16 A
Pre-fuse: Miniature circuit-breaker/fuse: 10 A
Permissible operating pressure (p. max.): 28 bar
Energy efficiency ratio (EER) 50 Hz L35 L35 to DIN EN 14511: 2.24
Weight/pack: 41 kg
Please note...
This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect.
Though, there will be corresponding surcharges after you send us your order.
Questions & answers
What is the delivery time of Rittal 3384600 RTT Blue e cooling unit in stainless steel roof mount 1500 W?
The article Rittal 3384600 RTT Blue e cooling unit in stainless steel roof mount 1500 W is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3384600 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 3384600 RTT Blue e cooling unit in stainless steel roof mount 1500 W always at the best possible price. We can give you a discount of 2% on Rittal 3384600 RTT Blue e cooling unit in stainless steel roof mount 1500 W if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
