Rittal 3245800 Blue e+ filter fan EMV 931 m³/h, 200 V–240 V, RAL

Your rating:
Average rating
product review for Rittal 3245800 Blue e+ filter fan EMV 931 m³/h, 200 V–240 V, RAL
( 4.5 / 5 ) 2 ratings

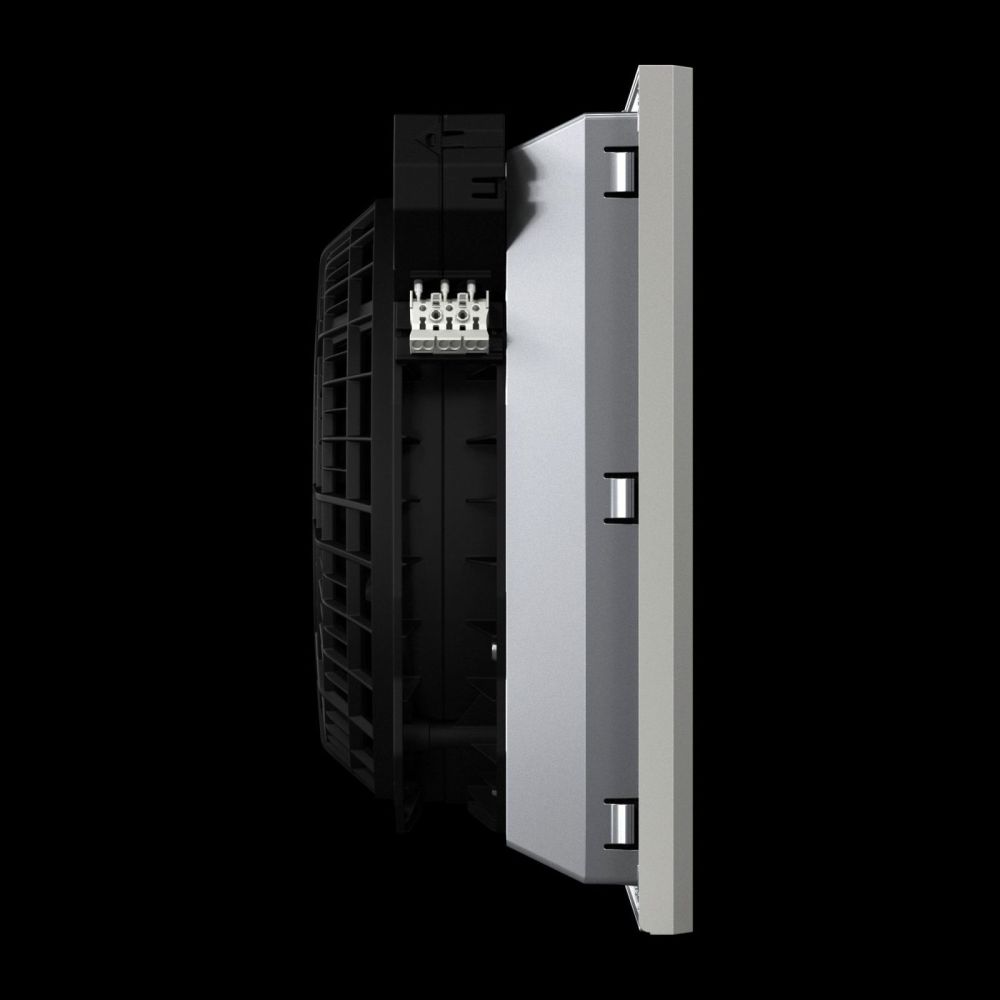

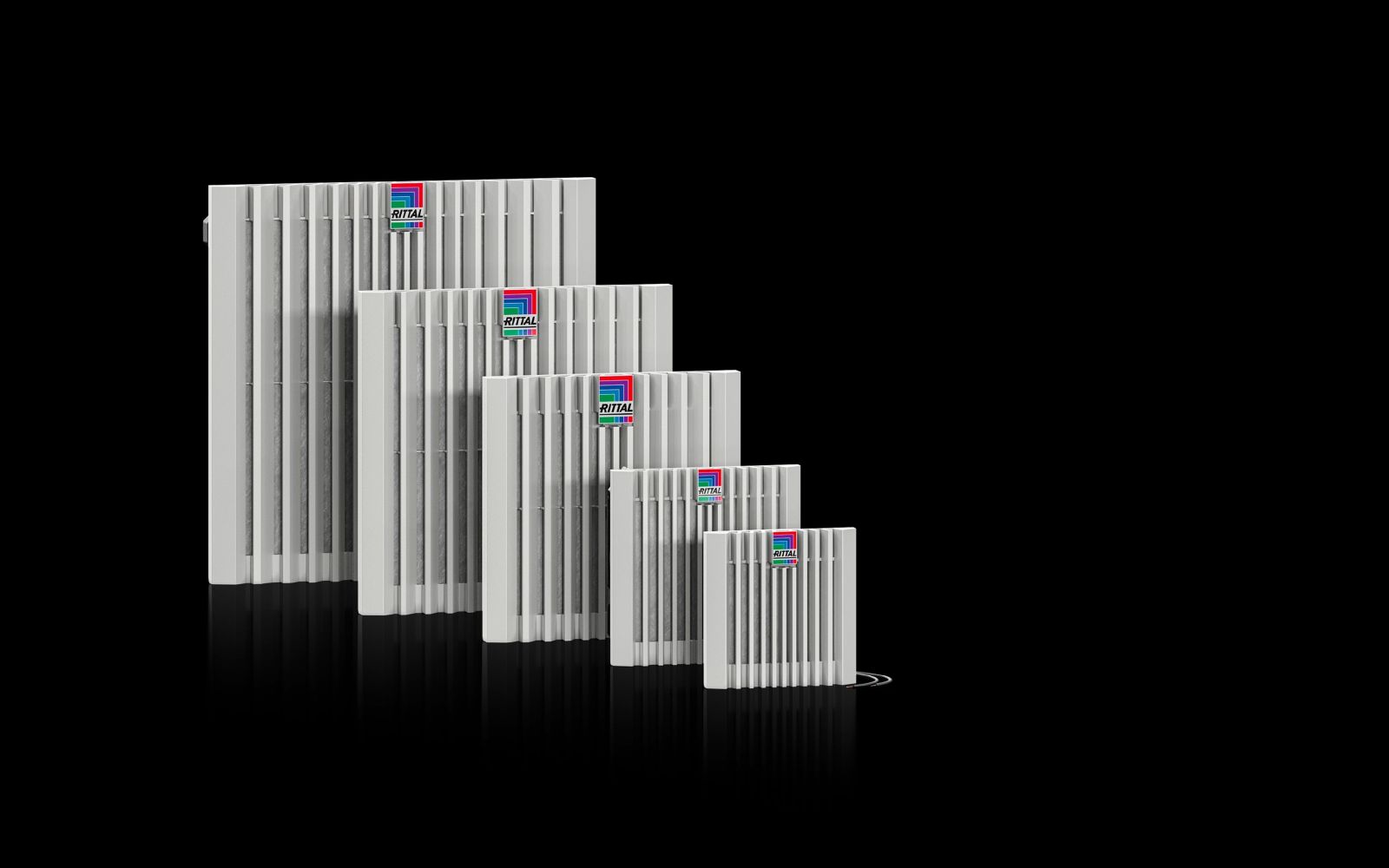

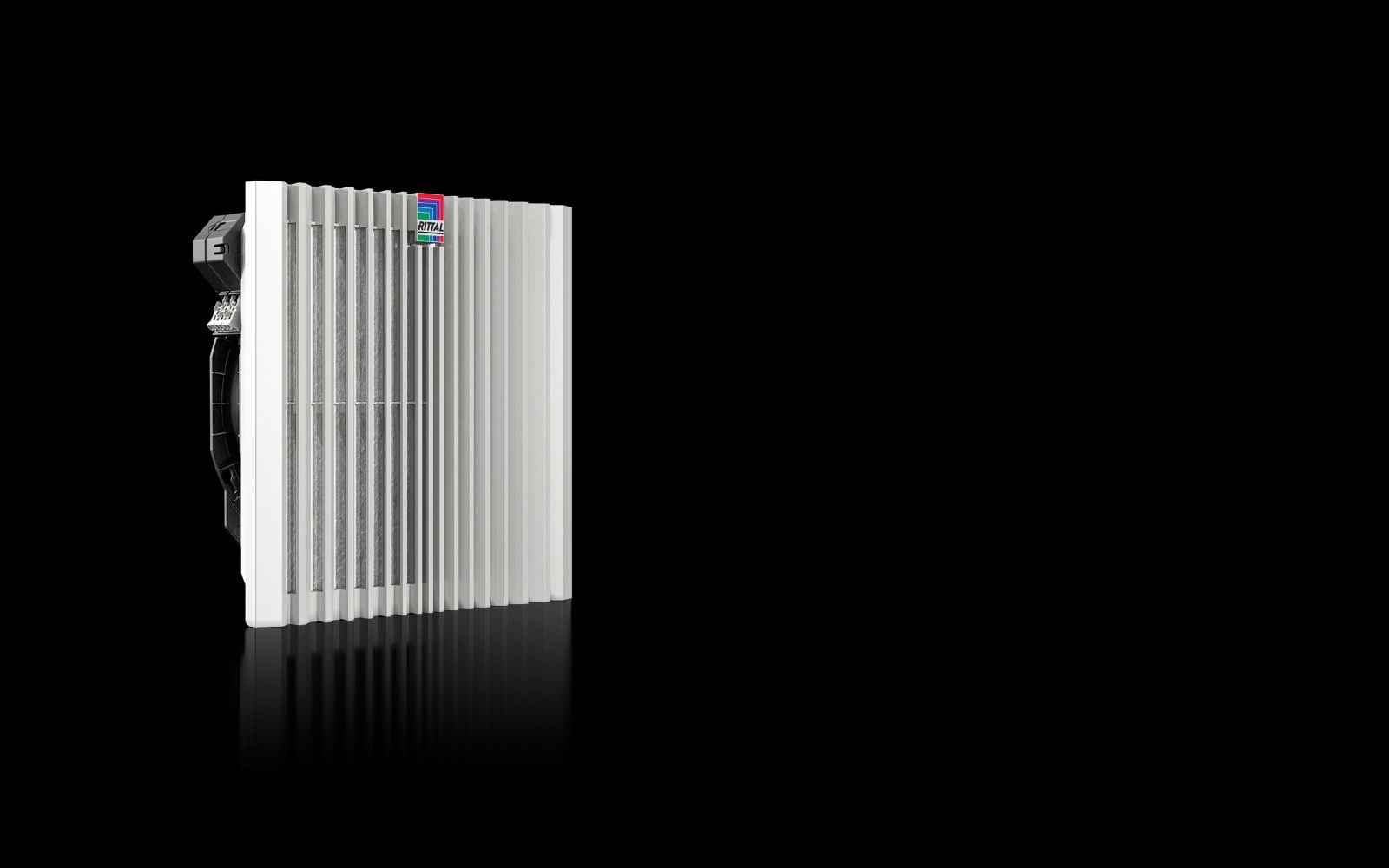

Rittal 3245800
This image may differ from the desired article.
Rittal 3245800Rittal 3245800Rittal 3245800Rittal 3245800Rittal 3245800Rittal 3245800Rittal 3245800
552,81 EUR
( 657,84 EUR incl. VAT )
≈ £462.70  |  ≈ $607.54
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 3245800 Blue e+ filter fan EMV 931 m³/h, 200 V–240 V, RAL
Datasheet:file_download Download
Lieske Part No.:683882
Mfg Part No: 3245800
UPC/EAN: 4028177997837
Weight:4.218 kg
Type:SK 3245.800

Product information for Rittal 3245800:

The Rittal SK 3245.800 is an EMV filter fan for enclosure climate control, designed as a wall-mounted unit. It provides controlled ventilation for enclosures and prevents the ingress of dust and particles through integrated filters, thereby increasing the service life of installed electronic components. The unit is made of plastic and is available in the colour RAL 7035. It is delivered as a fully ready-to-install unit, including EMV filter mat, and allows tool-free mounting on enclosure surfaces. The diagonal fan technology ensures more uniform and consistent air circulation within the enclosure due to higher pressure stability, optimising cooling performance.

Applications

The filter fan is designed for use in industrial environments where controlled air circulation and protection against dust and moisture are required. It is particularly suitable for enclosures in production plants, automation systems, or process industries. The EMV shielding meets requirement level 2 according to EN 61587-3, ensuring high attenuation of electromagnetic interference. This is especially important in environments with strong electromagnetic fields to ensure the functionality of sensitive electronic devices.

Functions and Equipment in Detail

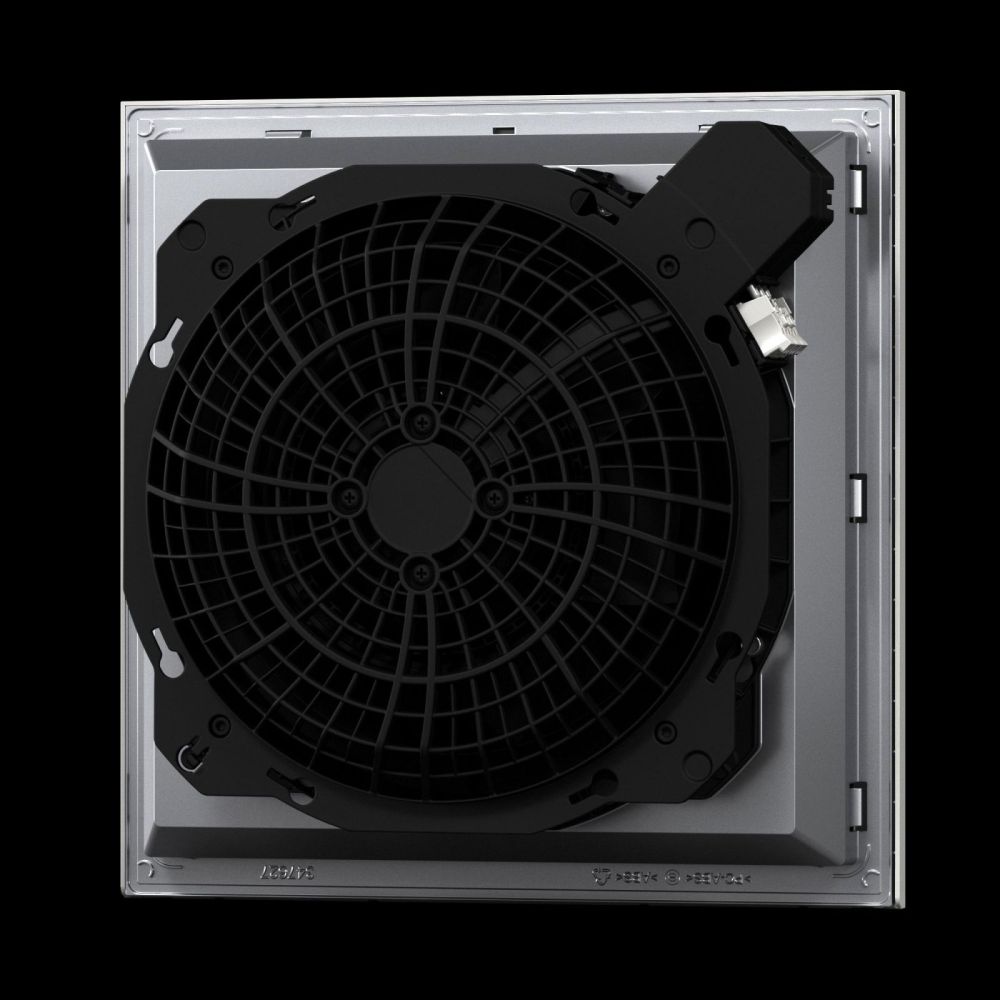

The fan features an EC motor, which ensures high energy efficiency and long service life. The air performance is 931 m³/h under free blowing operation (with non-woven filter) and 728 m³/h when operating with the corresponding outlet filter including non-woven filter. The rated operating voltage is 200 V – 240 V, 1~, 50 Hz/60 Hz, enabling universal use in various power networks. The rated power is 173.5 W at 50 Hz, and the rated current is up to 1.38 A. The installation depth is 141 mm, with the mounting cutout having a cutout width and height of 292 mm each. The dimensions of the unit are 323 mm (W) × 323 mm (H) × 161 mm (D).

Technology Explained Simply

The EC motor (Electronically Commutated Motor) enables precise speed control and reduces energy consumption compared to conventional motors. The diagonal fan technology ensures even air distribution within the enclosure, improving cooling performance and avoiding hotspots. The integrated EMV filter mat protects against electromagnetic interference and provides high shielding effectiveness. The sound pressure level is 72 dB(A) at 50 Hz, which is acceptable for industrial applications. The operating temperature ranges from -25 °C to 55 °C, and the storage temperature ranges from -25 °C to 70 °C.

Compatibility and Accessories

The fan is compatible with various accessories that extend its functionality. These include Blue e+ outlet filter EMV, EC speed controller sensor, thermostat enclosure internal temperature controller, digital temperature display and control, SK ModBus adapter, hygrostat, spray water hood for SK 3243/3244.xx stainless steel, SK EMV filter mat for SK 3243/44/45.6xx, SK 3235460 control unit for Blue e+ EC filter fans, and an IoT interface. These components enable intelligent control, monitoring, and adjustment of fan performance according to specific operating conditions.

Mounting and Installation

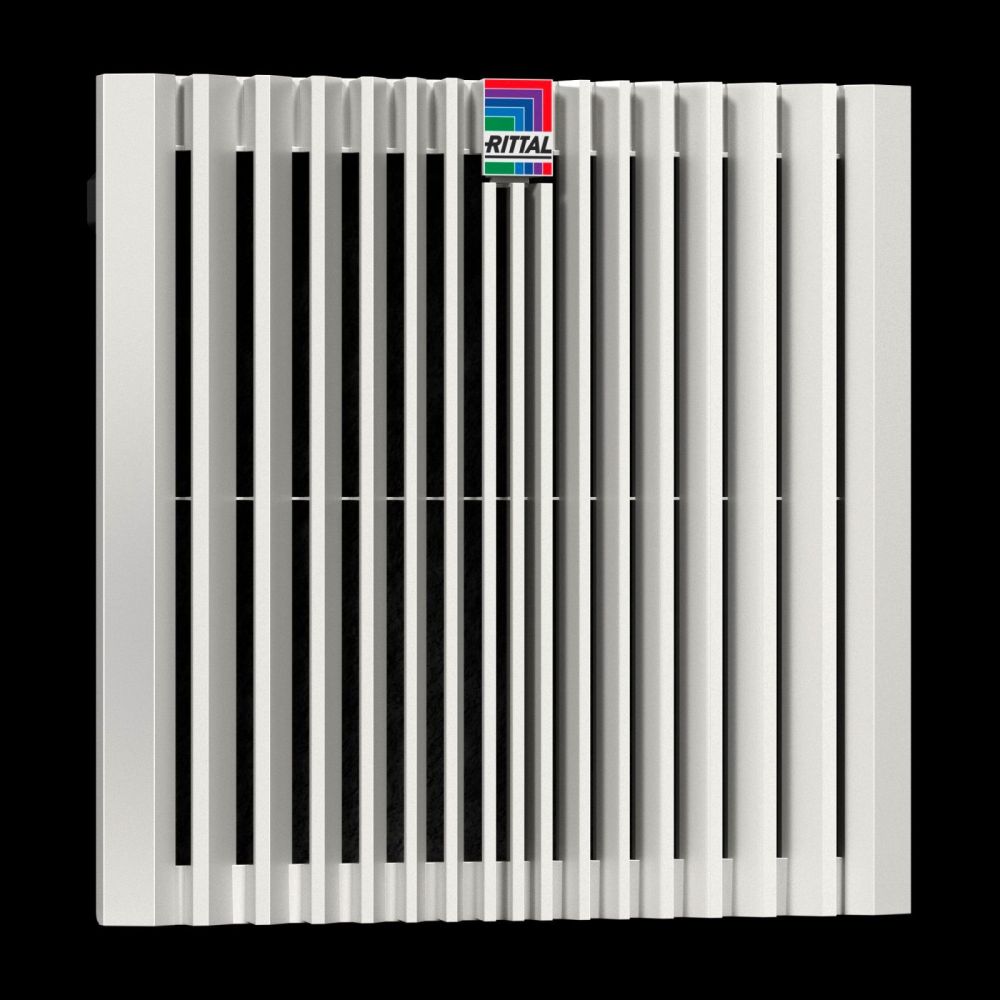

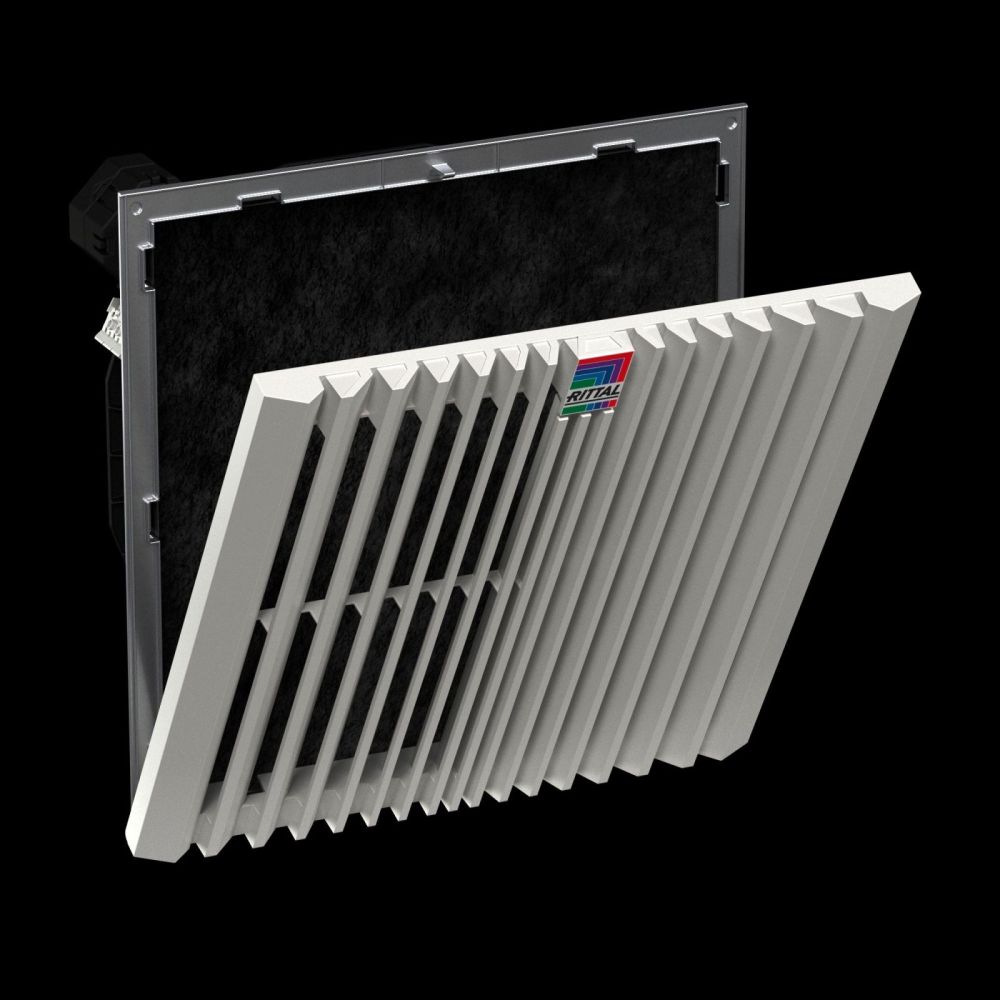

Mounting is tool-free to the enclosure wall. Optimised latching hooks allow faster and more secure fastening. The new opening mechanism on the louver grille simplifies filter replacement, making maintenance easier. The unit is designed for enclosures with a mounting cutout of 292 mm × 292 mm.

Operational Advantages

Using the Rittal SK 3245.800 leads to improved cooling performance and extended service life of enclosure components. The EMV shielding protects against interference that could impair the functionality of electronic devices. Integrated interfaces such as 0–10 V/PWM input, speed output, potential-free fault alarm contact, and RS485 (ModBus) enable flexible integration into existing control and monitoring systems. The recommendation to use temperature controllers or displays serves to further optimise energy efficiency and device service life.

Protection Rating and Environmental Conditions

The protection rating is IP51 with non-woven filter and IP56 with non-woven filter and spray water hood according to IEC 60 529. According to NEMA standards, the unit corresponds to Type 12 with non-woven filter and Type 3, 3R with non-woven filter and spray water hood. These protection ratings make the fan suitable for use in indoor and outdoor environments, especially when additional protective measures such as the spray water hood are used.

Interfaces and Control

The unit features multiple interfaces that enable flexible control and monitoring. The 0–10 V/PWM input allows external speed control, and the speed output enables feedback of the current speed. The potential-free fault alarm contact signals faults, and the RS485 interface (ModBus) enables integration into higher-level control systems. These interfaces are particularly useful in networked industrial environments, where fan performance can be adjusted to actual conditions.

Recommendations for Use

To improve energy efficiency and extend the service life of the fan unit, the use of temperature controllers or displays is recommended. These enable adaptive control of fan performance, saving energy and reducing component stress. Combining with a hygrostat or an IoT interface extends functionality and enables intelligent monitoring of enclosure climate conditions.

General
ModelWall mounting, EMC
MaterialPlastic
ColourRAL 7035
Scope of deliveryComplete ready-to-install unit, including EMI filter mat
Fandiagonal, EC motor
Airflow free-blowing (with filter)At 50 Hz: 931 m³/h
Airflow with associated exhaust filter including felt filterAt 50 Hz: 728 m³/h
Rated operating voltage200 V - 240 V, 1~, 50 Hz/60 Hz
Rated power PelAt 50 Hz: 173.5 W
Rated current max.At 50 Hz: 1.38 A
Width323 mm
Height323 mm
Depth161 mm
Built-in depth141 mm
Mounting cutoutCutout width: 292 mm, Cutout height: 292 mm
Degree of protection IP according to IEC 60 529IP51 with felt filter, IP 56 with felt filter and spray hood
NEMA degree of protectionType 12 with felt filter, Type 3, 3R with felt filter and spray water hood
NoteTo improve energy efficiency and increase device lifespan, use of temperature controllers or indicators is recommended.
Operating temperature range-25 °C...55 °C
Storage temperature range-25 °C...70 °C
Sound pressure levelAt 50 Hz: 72 dB(A)
Interfaces0 - 10 V/PWM input, speed output, potential-free fault alarm contact, RS485 (ModBus)


Product data sheet
Datasheet for Rittal 3245800, EAN: 4028177997837
