Rittal 3243400 Blue e+ outlet filter EMV, RAL 7035

Your rating:
Average rating
product review for Rittal 3243400 Blue e+ outlet filter EMV, RAL 7035
( 4.7 / 5 ) 3 ratings
Rittal 3243400
This image may differ from the desired article.
Rittal 3243400Rittal 3243400Rittal 3243400Rittal 3243400Rittal 3243400Rittal 3243400Rittal 3243400
119,37 EUR
( 142,05 EUR incl. VAT )
≈ £99.91  |  ≈ $131.19
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 3243400 Blue e+ outlet filter EMV, RAL 7035
Datasheet:file_download Download
Lieske Part No.:683859
Mfg Part No: 3243400
UPC/EAN: 4028177998315
Weight:0.941 kg
Type:SK 3243.400

Product information for Rittal 3243400:

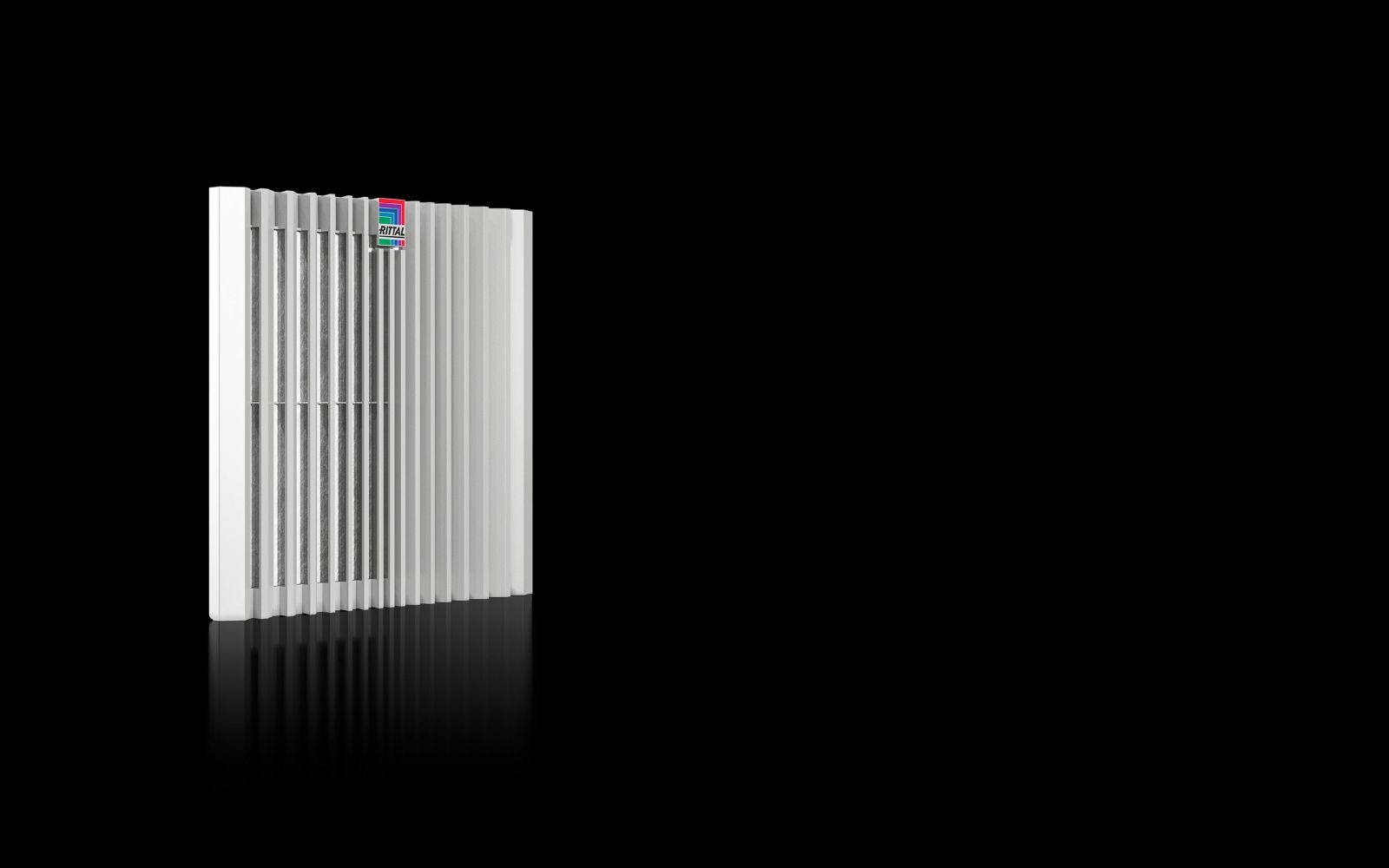

The Rittal SK 3243.400 is an outlet filter for enclosure climate control, specifically designed for use with filter fans of types SK 3243.8xx, SK 3244.8xx and SK 3245.8xx. The device serves to dissipate waste heat from enclosures, ventilate the interior space, and protect temperature-sensitive components. Cooling is achieved by direct supply of ambient air, the temperature of which must be below the permissible enclosure internal temperature. The unit is designed for wall mounting with integrated EMC protection function, thereby reducing electromagnetic interference. The filter colour is RAL 7035, a grey-beige standard tone that blends well in industrial environments.

Applications

The outlet filter is intended for use in industrial enclosures, particularly in environments requiring continuous cooling and ventilation. It is suitable for applications in production plants, automation technology, power supply systems, and other areas where electronic components must be protected from overheating. The integrated EMC protection function makes it especially suitable for environments with high electromagnetic interference levels, such as those near motors, transformers, or frequency converters.

Functions and Equipment in Detail

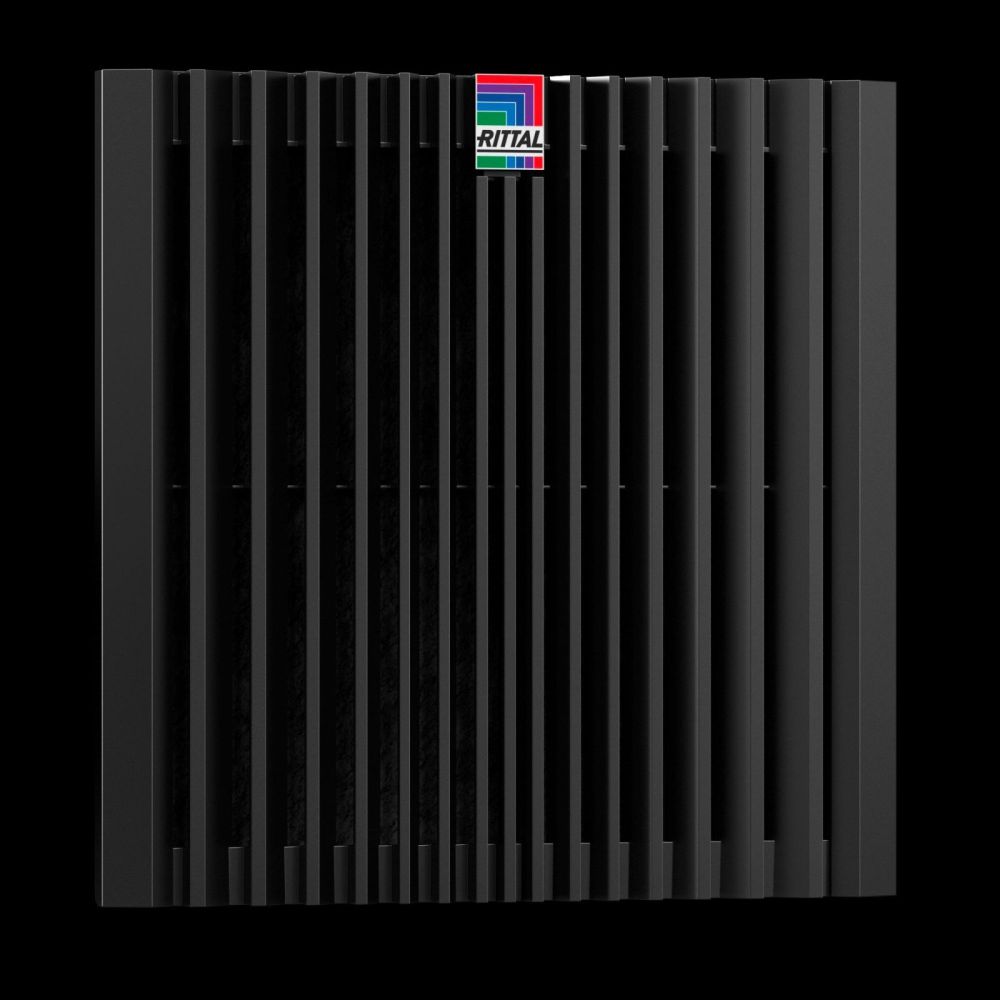

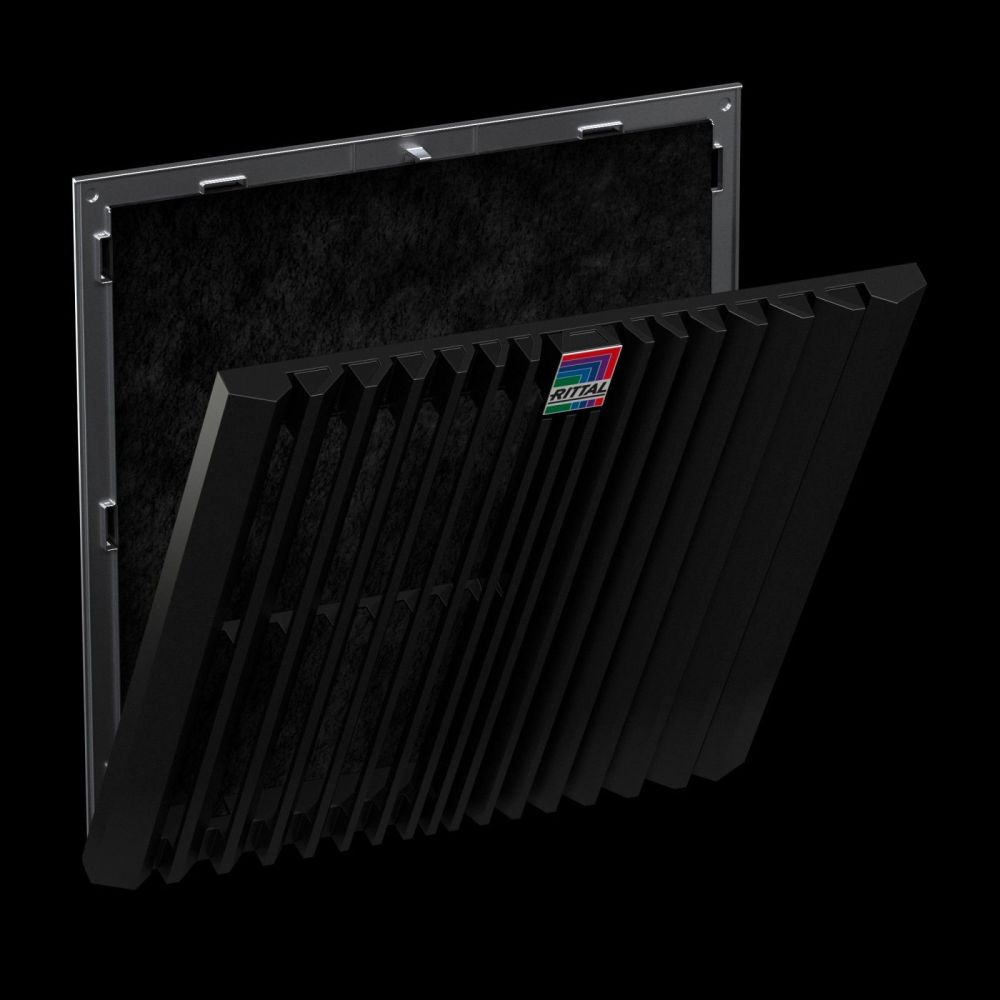

The filter features a new opening mechanism on the louver grille, simplifying filter replacement. Mounting to the enclosure is tool-free and accelerated by optimised snap hooks. This design reduces installation time and minimises the need for auxiliary tools. The delivery scope includes the outlet filter and an EMC filter mat, which contributes to shielding against electromagnetic interference. The filter dimensions are 323 mm width and 323 mm height, requiring a mounting cutout of 292 mm width and 292 mm height.

Technology Explained Simply

The function of the outlet filter is based on controlled air supply into the enclosure, where the air passes through the filter to reduce dust and particles. The EMC filter mat ensures that electromagnetic interference generated by electrical devices operating inside the enclosure is not radiated outward. Protection rating IP 54 is achieved when the filter is operated with a non-woven filter. When used with a non-woven filter and a spray water hood, the protection rating increases to IP 54. According to NEMA standards, the filter provides protection according to Type 12 with a non-woven filter, and Type 3, 3R, 4, 4X when additionally equipped with a spray water hood. These protection ratings are suitable for use in damp or dusty environments, including outdoor areas.

Compatibility and Accessories

The outlet filter is specifically designed for filter fan models SK 3243.8xx, SK 3244.8xx and SK 3245.8xx. As suitable accessories, a spray water hood for SK 3243, 3244.xx stainless steel is offered, which increases the protection rating. Additionally, an SK EMC filter mat for SK 3243/44/45.6xx is available, which complements the EMC protection function. The combination with these accessories extends the application possibilities of the filter in more demanding environments.

Mounting and Installation

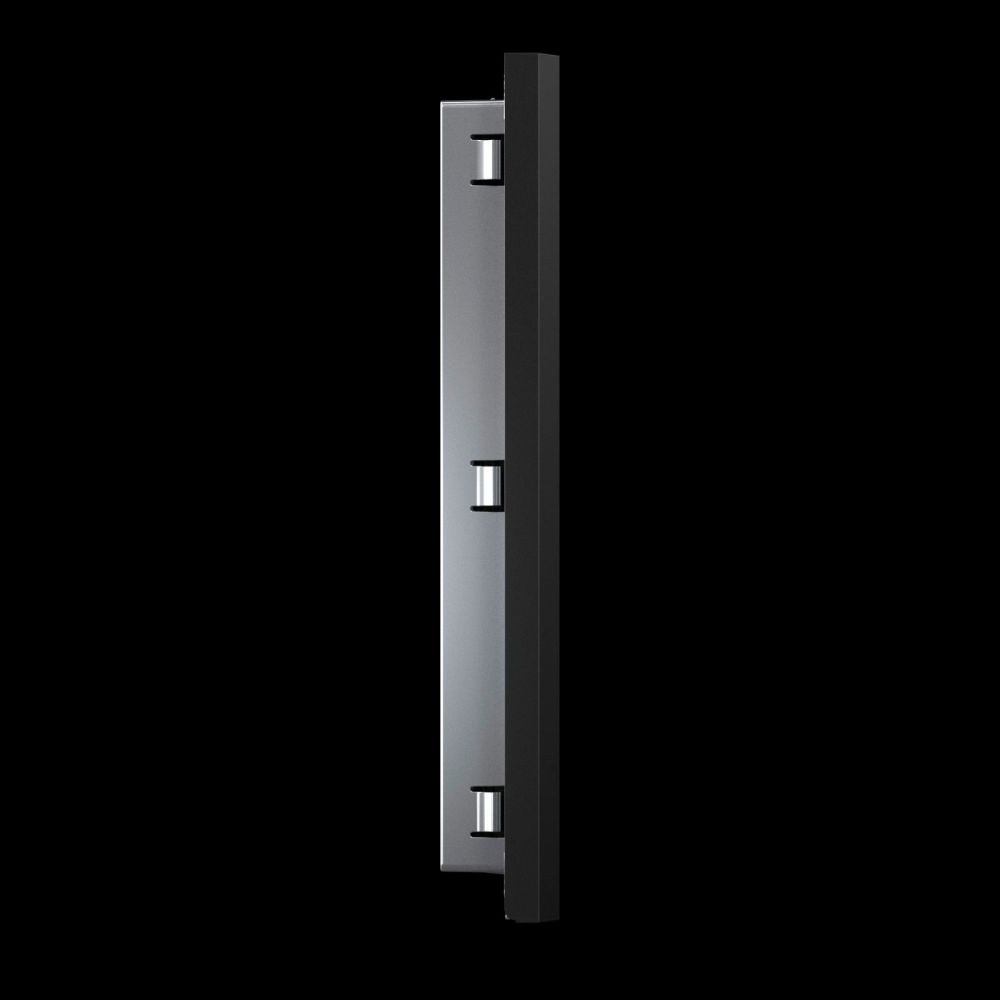

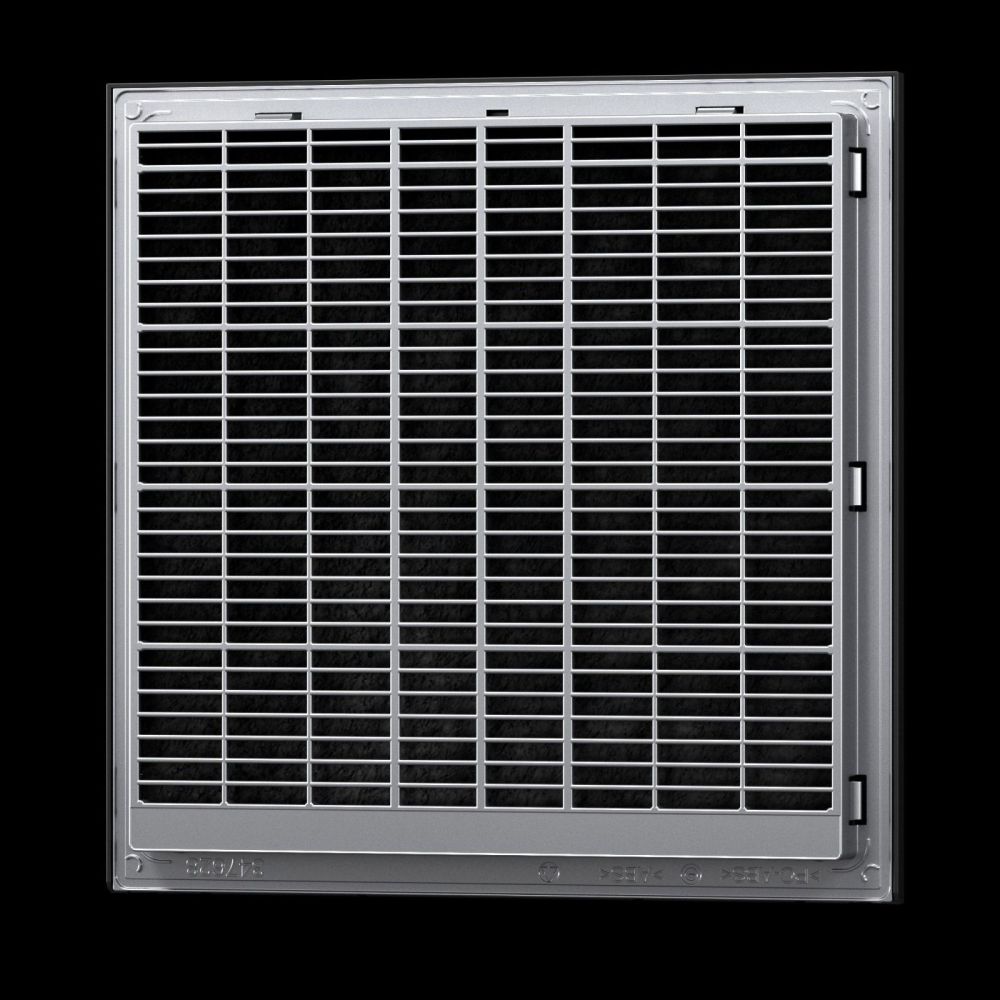

Installation is tool-free and facilitated by optimised snap hooks. The filter is inserted into a pre-defined cutout of 292 mm width and 292 mm height in the enclosure. The filter dimensions themselves are 323 mm width and 323 mm height, with a depth of 44.7 mm. The tool-free mounting reduces installation time and decreases the likelihood of errors during installation.

Operational Advantages

The use of the Rittal SK 3243.400 provides reliable cooling and ventilation of enclosures, thereby extending the service life of installed electronic components. The tool-free mounting and simple filter replacement reduce maintenance time. The integrated EMC protection function ensures lower interference impact on the surrounding environment. Protection ratings IP 54 and IP 54, along with NEMA classifications, enable use in a wide range of industrial environments, including damp or dusty areas.

General
ModelWall mounting, EMC
ColourRAL 7035
Scope of deliveryExhaust filter, EMI filter mat
Mounting cutoutCutout width: 292 mm, Cutout height: 292 mm
Suitable for part no.SK 3243.8xx/3244.8xx/3245.8xx
Width323 mm
Height323 mm
Depth44,7 mm
NEMA degree of protectionType 12 with felt filter, Type 3, 3R, 4, 4X with felt filter and spray shield
Degree of protection IP according to IEC 60 529IP 54 with felt filter, IP 56 with felt filter and spray hood


Product data sheet
Datasheet for Rittal 3243400, EAN: 4028177998315
