Rittal 3243800 Blue e+ filter fan EMV 540/590 m³/h, 230 V, RAL 703

Your rating:
Average rating
product review for Rittal 3243800 Blue e+ filter fan EMV 540/590 m³/h, 230 V, RAL 703
( 4.8 / 5 ) 6 ratings
Rittal 3243800
This image may differ from the desired article.
Rittal 3243800Rittal 3243800Rittal 3243800Rittal 3243800Rittal 3243800Rittal 3243800Rittal 3243800
273,59 EUR
( 325,57 EUR incl. VAT )
≈ £228.99  |  ≈ $300.68
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 3243800 Blue e+ filter fan EMV 540/590 m³/h, 230 V, RAL 703
Datasheet:file_download Download
Lieske Part No.:683867
Mfg Part No: 3243800
UPC/EAN: 4028177997943
Weight:4.248 kg
Type:SK 3243.800

Product information for Rittal 3243800:

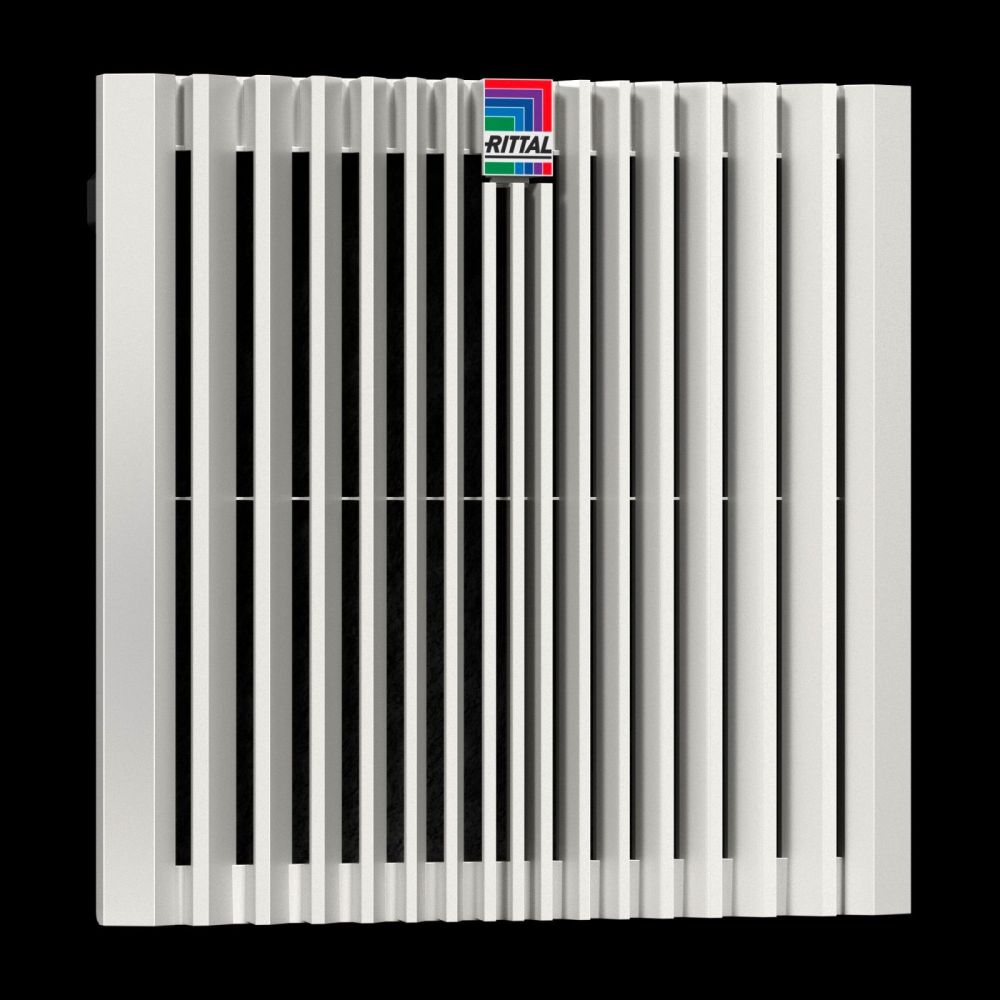

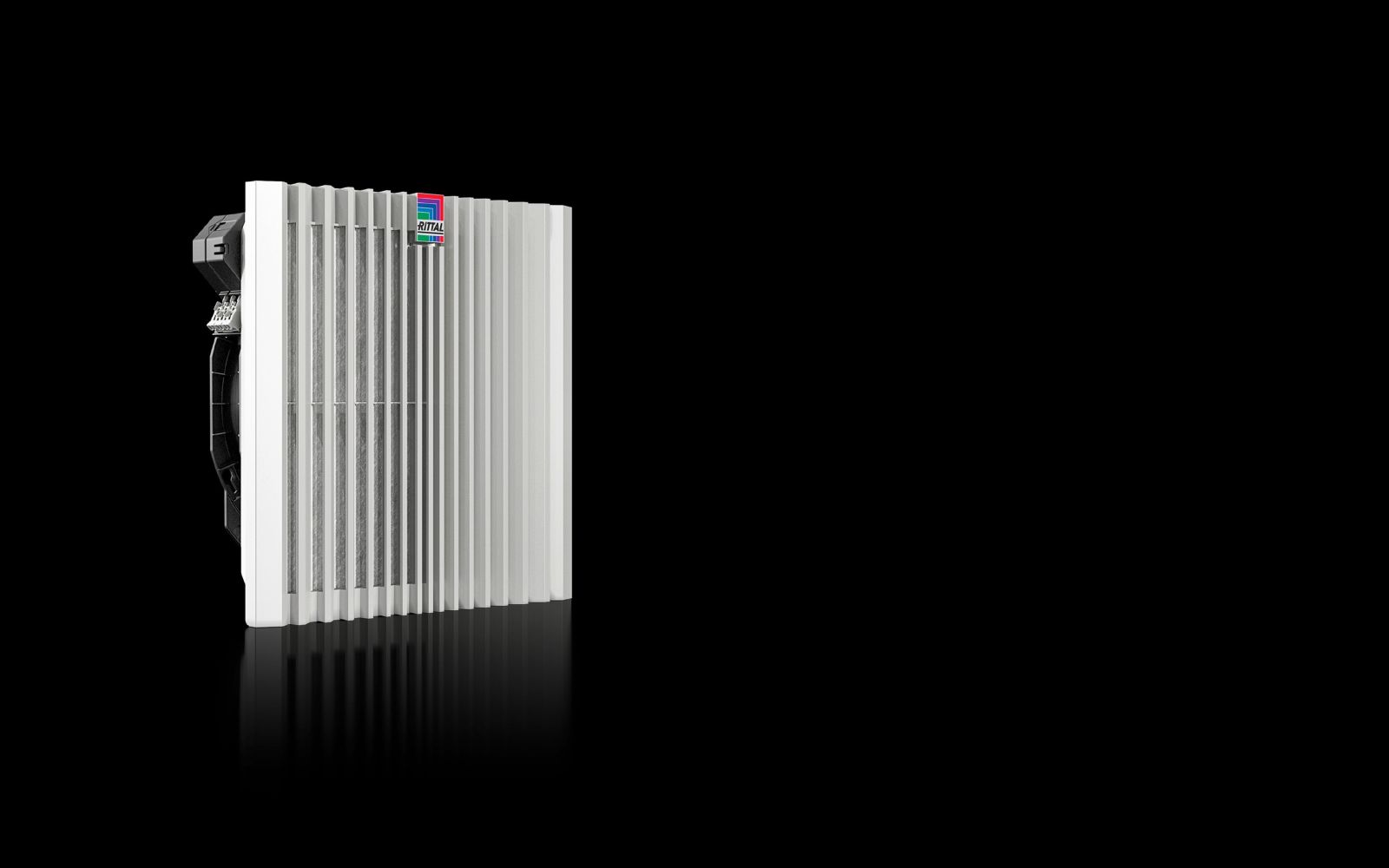

The Rittal SK 3243.800 is an EMV filter fan for enclosure climate control, designed for wall mounting and ventilation of enclosures in industrial applications. The unit features a plastic housing construction in the colour RAL 7035 and is delivered as a fully ready-to-install unit, including an EMV filter mat. It is used for controlled air circulation to regulate internal temperature within the enclosure and ensure the operational reliability of electronic components.

Applications

The filter fan is designed for use in industrial environments where efficient and reliable ventilation is required. It is particularly suitable for enclosures in production plants, automation systems, or process industries, where EMV shielding is necessary to minimise electromagnetic interference. The unit is suitable for operation in both indoor and outdoor environments, provided the appropriate protection ratings are achieved using additional components such as a spray water hood.

Functions and Equipment in Detail

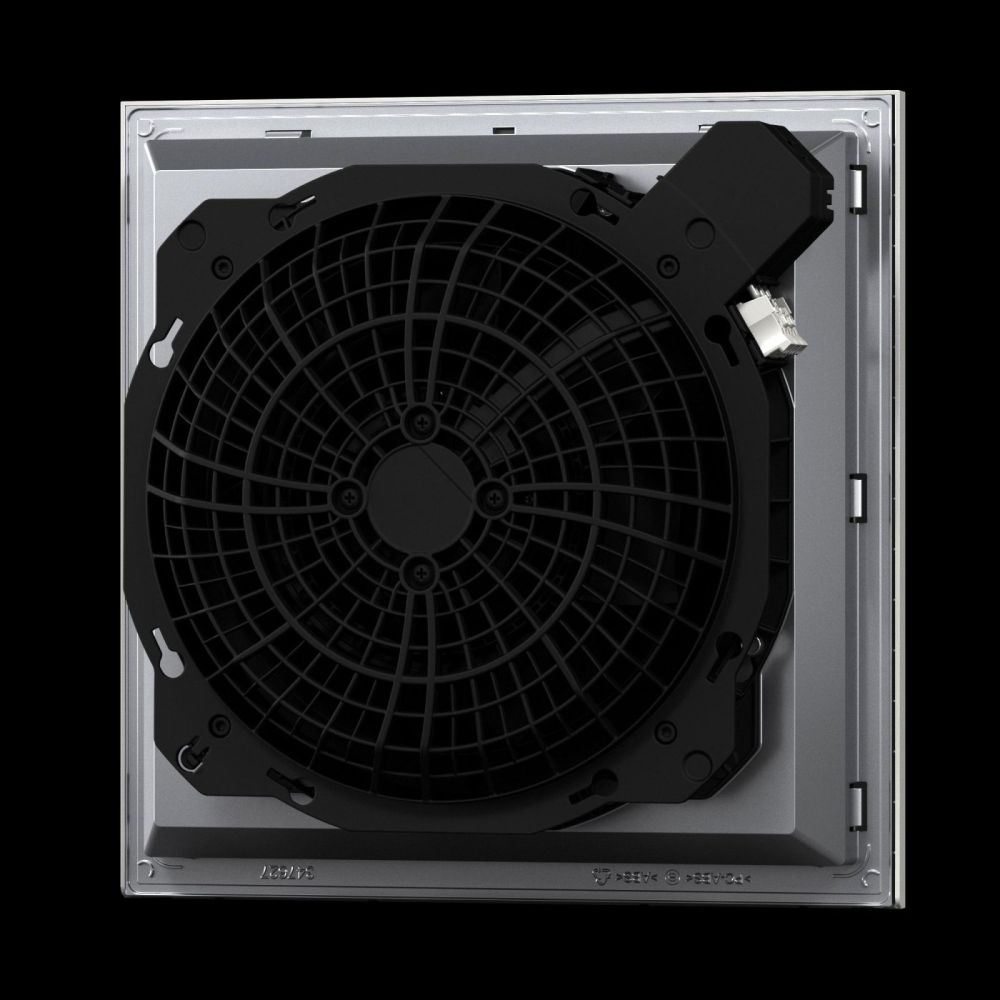

The fan operates using diagonal fan technology, which enables more uniform and consistent air circulation within the enclosure due to higher pressure stability. The air performance is 540 m³/h at 50 Hz and 590 m³/h at 60 Hz in free-blowing operation with a non-woven filter. When an additional outlet filter is used, the air performance reduces to 444 m³/h (50 Hz) and 498 m³/h (60 Hz). The unit is equipped with a 1~ capacitor motor with a rated power of 77.7 W (50 Hz) or 106.4 W (60 Hz). The rated operating voltage is 230 V, 1~, 50 Hz/60 Hz. The maximum rated current draw is 0.39 A (50 Hz) and 0.47 A (60 Hz). The unit is tool-free to install and features optimised latching hooks for faster mounting onto the enclosure. A new opening mechanism on the louver grille simplifies filter replacement.

Technology Explained Simply

The EMV shielding of the fan meets requirement level 2 according to EN 61587-3, ensuring high attenuation of electromagnetic interference. The protection rating IP 54 is achieved when the fan is operated with a non-woven filter. When used with a spray water hood, the protection rating increases to IP 56, making it suitable for more humid environments. According to NEMA standards, the unit corresponds to Type 12 with a non-woven filter and Type 3, 3R, 4, 4X with a non-woven filter and spray water hood. The installation depth is 124 mm, and the mounting cutout measures 292 mm (width) × 292 mm (height). The sound pressure level is 62 dB(A) (50 Hz) and 65 dB(A) (60 Hz). The operating temperature range extends from -30 °C to 55 °C, and the storage temperature range is -30 °C to 70 °C. A fuse with 4 A is provided.

Compatibility and Accessories

To extend functionality and adapt to specific requirements, various accessories can be combined. These include a Blue e+ outlet filter EMV in RAL 7035, a thermostat for internal temperature control, a speed controller for filter fans, a digital temperature display and control, a hygrostat, and a spray water hood for use in humid or wet environments. The spray water hood increases the protection rating and enables outdoor use. The EMV filter mat is included in the delivery scope.

Installation and Mounting

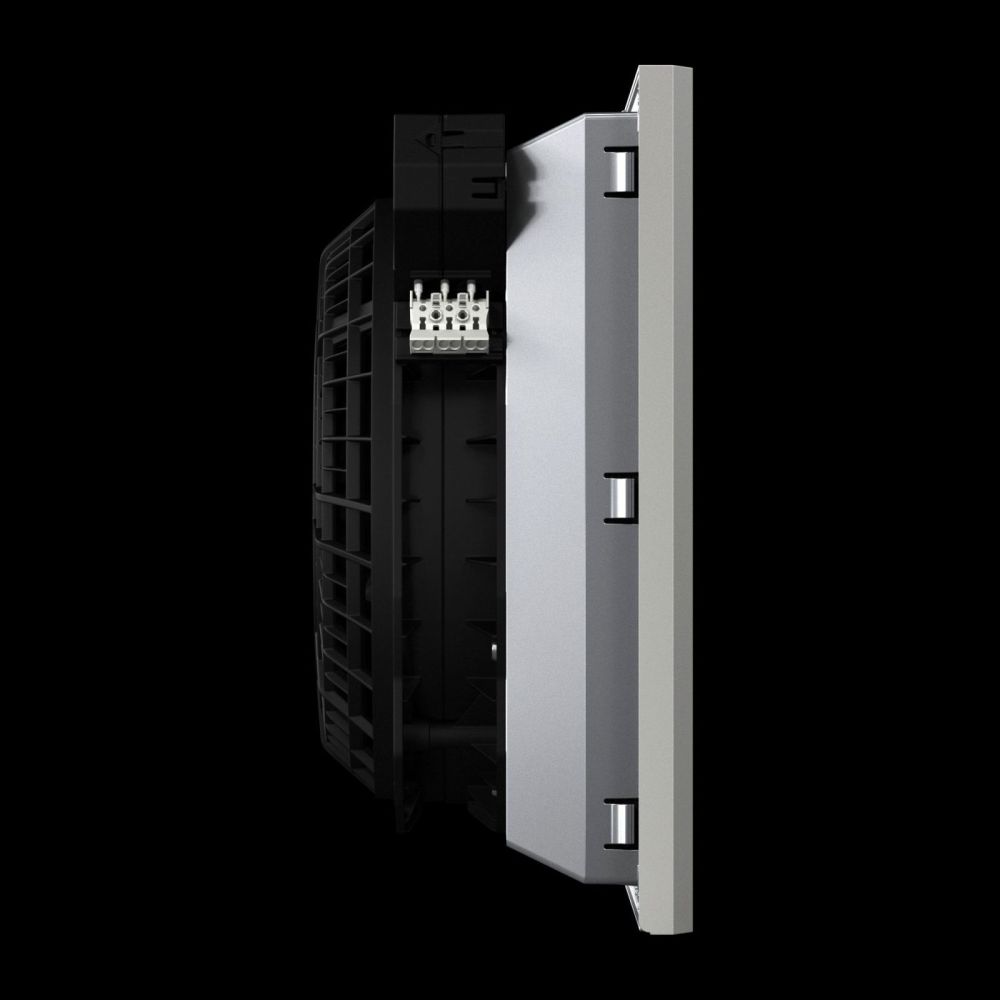

Mounting is tool-free onto the enclosure wall. The unit is inserted into the designated mounting cutout (292 mm × 292 mm) and secured using the integrated latching hooks. The installation depth of 124 mm must be considered within the enclosure. No additional tools are required for installation, reducing mounting time.

Operational Advantages

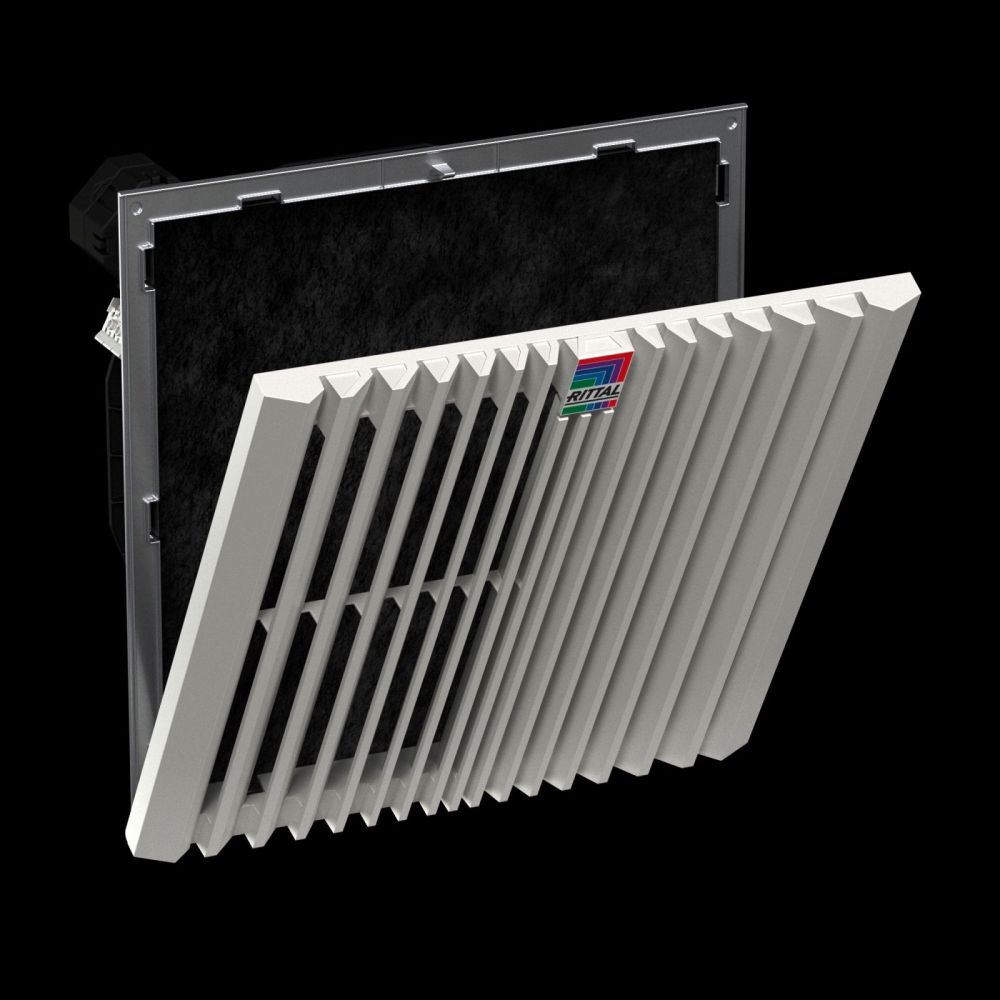

The use of the Rittal SK 3243.800 provides a reliable and maintenance-friendly ventilation solution. The EMV shielding protects sensitive electronic components from interference. The diagonal fan technology ensures uniform air distribution, optimising cooling performance. The tool-free mounting and easy filter replacement reduce maintenance time. The recommendation to use temperature controllers or displays supports energy efficiency and extends the service life of the device.

General
ModelWall mounting, EMC
MaterialPlastic
ColourRAL 7035
Scope of deliveryComplete ready-to-install unit, including EMI filter mat
FanDiagonal, 1~ capacitor motor
Airflow free-blowing (with filter)At 50 Hz: 540 m³/h, At 60 Hz: 590 m³/h
Airflow with associated exhaust filter including felt filterAt 50 Hz: 444 m³/h, At 60 Hz: 498 m³/h
Rated operating voltage230 V, 1~, 50 Hz/60 Hz
Rated power PelAt 50 Hz: 77.7 W, At 60 Hz: 106.4 W
Rated current max.At 50 Hz: 0.39 A, At 60 Hz: 0.47 A
Width323 mm
Height323 mm
Depth144,5 mm
Built-in depth124 mm
Mounting cutoutCutout width: 292 mm, Cutout height: 292 mm
Degree of protection IP according to IEC 60 529IP 54 with felt filter, IP 56 with felt filter and spray hood
NEMA degree of protectionType 12 with felt filter, Type 3, 3R, 4, 4X with felt filter and spray shield
FuseCircuit breaker/fuse: 4 A
NoteTo improve energy efficiency and increase device lifespan, use of temperature controllers or indicators is recommended.
Operating temperature range-30 °C...55 °C
Storage temperature range-30 °C...70 °C
Sound pressure levelAt 50 Hz: 62 dB(A), At 60 Hz: 65 dB(A)


Product data sheet
Datasheet for Rittal 3243800, EAN: 4028177997943
