Rittal 3243810 Blue e+ filter fan EMV 540/590 m³/h, 115 V, RAL 70

Your rating:
Average rating
product review for Rittal 3243810 Blue e+ filter fan EMV 540/590 m³/h, 115 V, RAL 70
( 4.5 / 5 ) 2 ratings
Rittal 3243810
This image may differ from the desired article.
Rittal 3243810Rittal 3243810Rittal 3243810Rittal 3243810Rittal 3243810Rittal 3243810Rittal 3243810
-8% 330,05 EUR 357,45 EUR
( 392,76 EUR incl. VAT )
≈ £276.25  |  ≈ $362.72
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 3243810 Blue e+ filter fan EMV 540/590 m³/h, 115 V, RAL 70
Datasheet:file_download Download
Lieske Part No.:683868
Mfg Part No: 3243810
UPC/EAN: 4028177997936
Weight:4.248 kg
Type:SK 3243.810

Product information for Rittal 3243810:

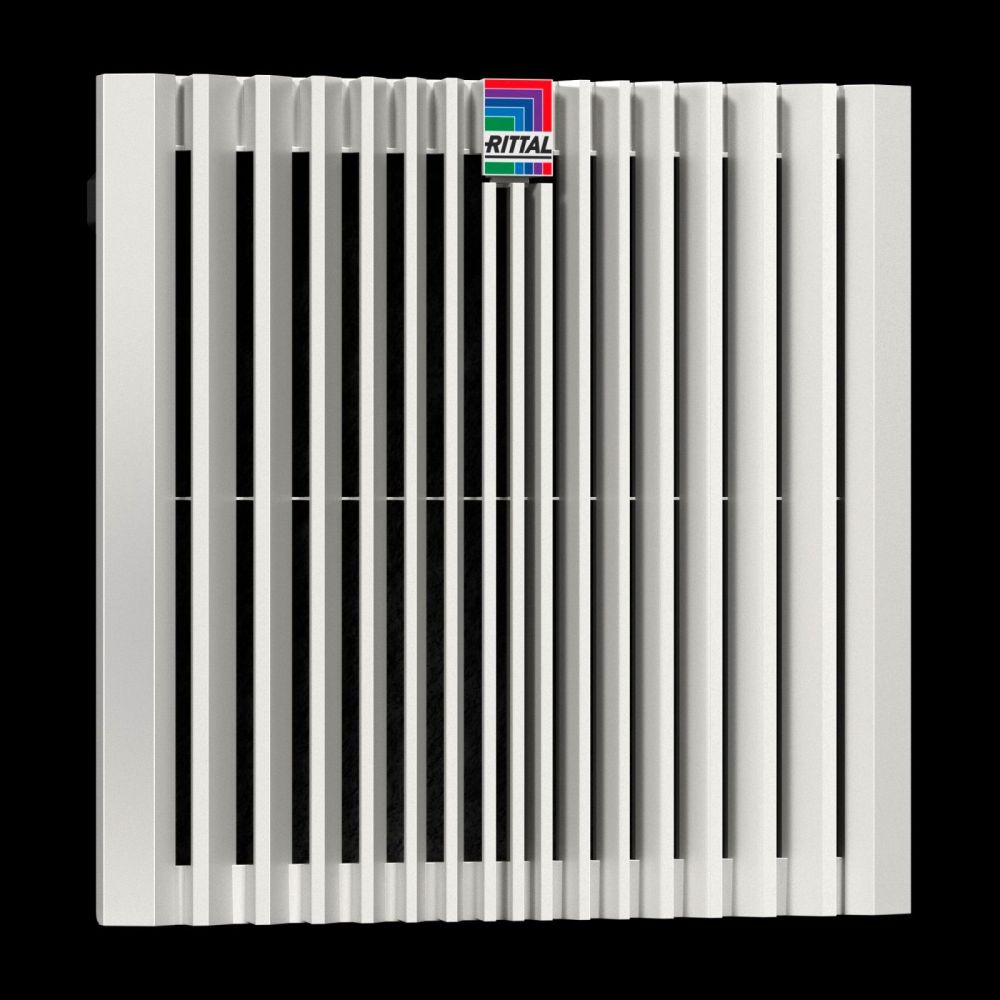

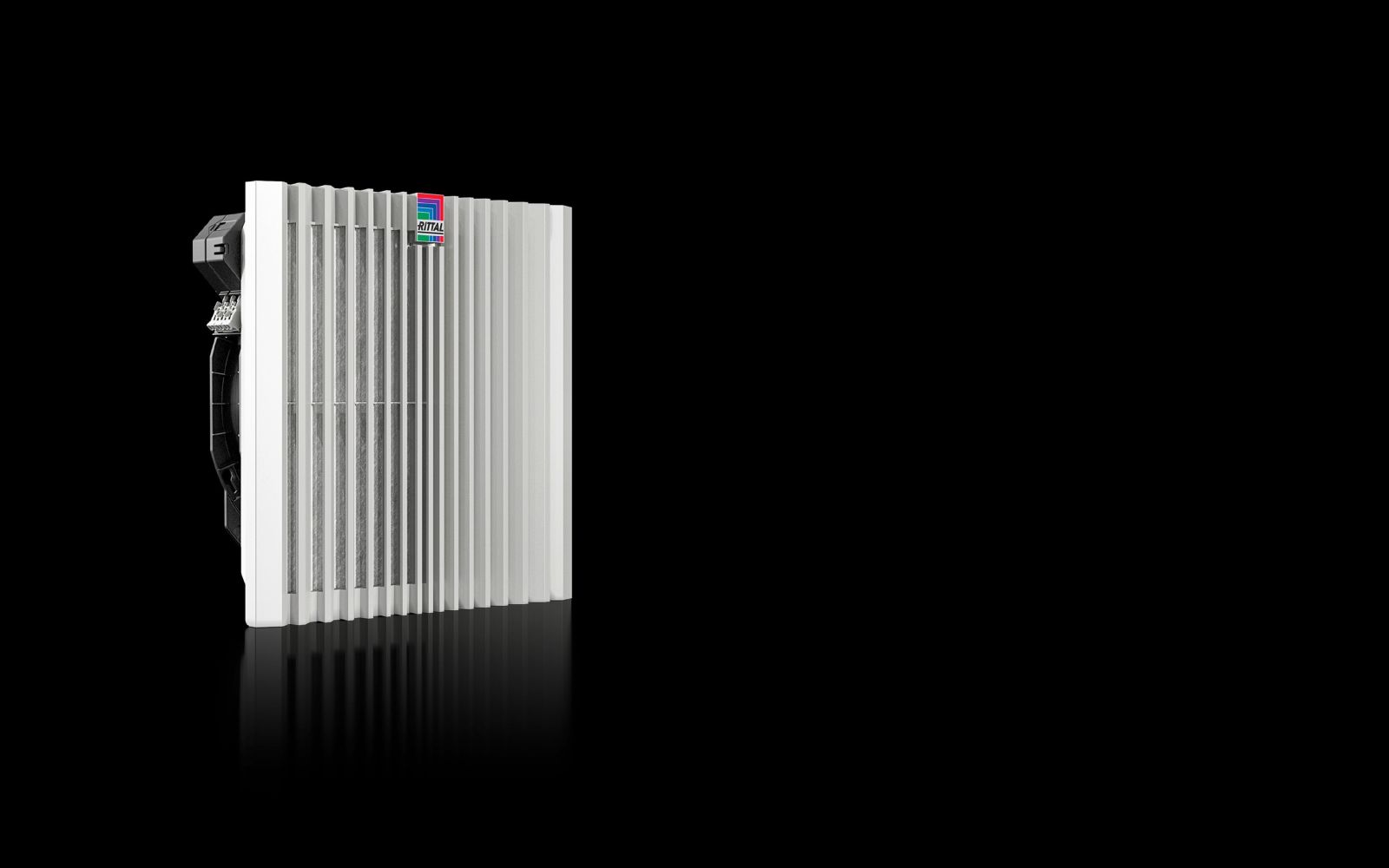

The Rittal SK 3243.810 is an EMV filter fan for enclosure climate control, designed for wall mounting and operation in industrial environments. The unit features a plastic housing in the colour RAL 7035 and is delivered as a complete, ready-to-install unit, including an EMV filter mat. It is used for controlled ventilation of enclosures to regulate internal temperature and ensure the proper function of electronic components.

Applications
This filter fan is designed for use in industrial plants where efficient and reliable climate control of enclosures is required. It is particularly suitable for environments with high dust loads or electromagnetic compatibility (EMV) requirements, as it meets requirement level 2 according to EN 61587-3. The integrated EMV shielding provides high attenuation of electromagnetic interference, supporting the stability of sensitive electronic devices within the enclosure.

Functions and Equipment in Detail

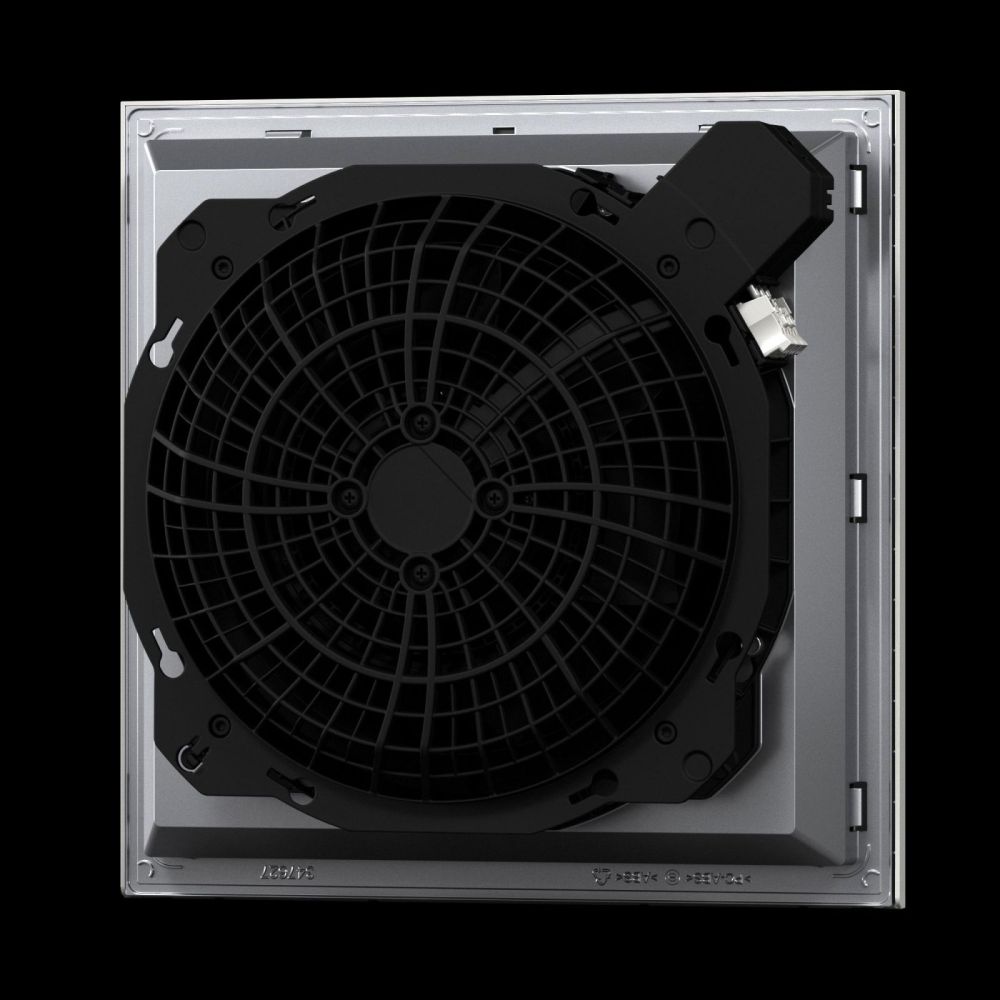

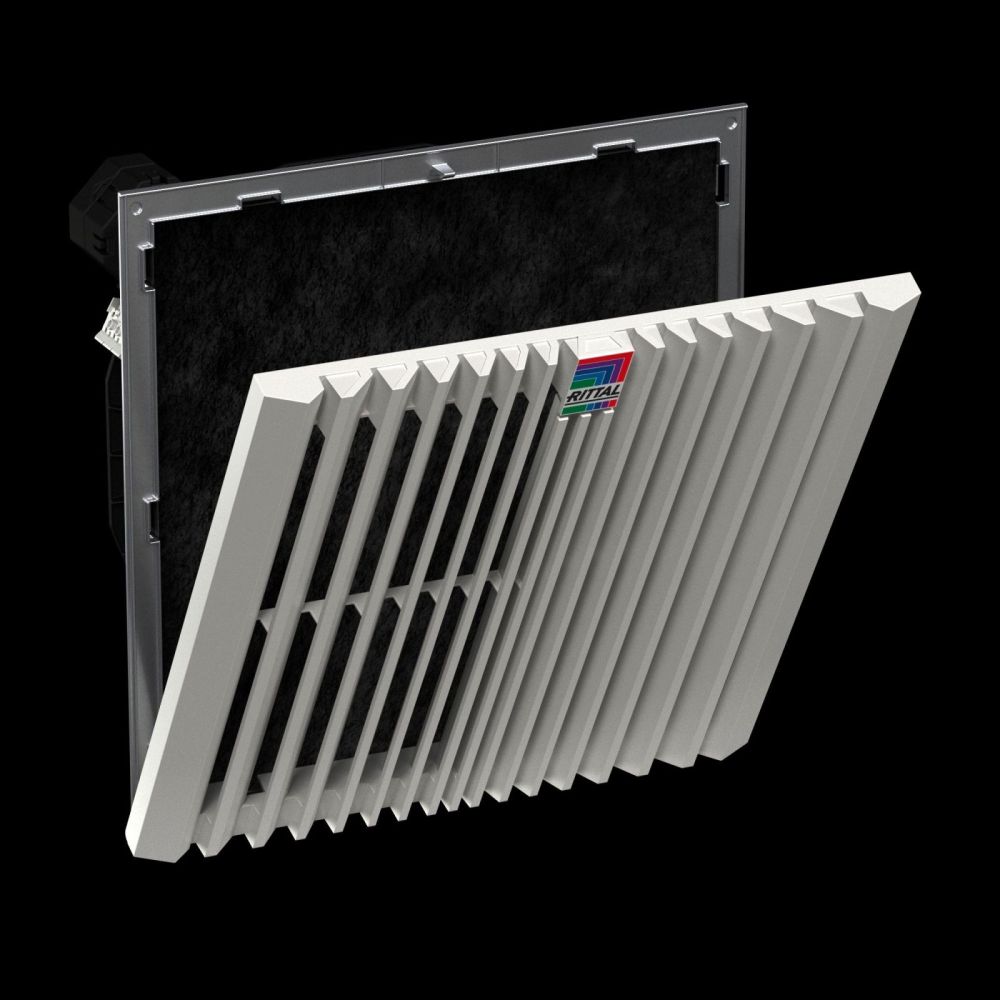

The unit operates with a diagonal fan based on a 1~ capacitor motor. The air flow rate is 540 m³/h at 50 Hz and 590 m³/h at 60 Hz when operating freely with a non-woven filter. When using an additional outlet filter, the air flow rate reduces to 444 m³/h (50 Hz) or 498 m³/h (60 Hz). Tool-free mounting is achieved via optimised latching hooks, enabling faster installation on the enclosure. A new opening mechanism on the louver grille facilitates filter replacement.

Technology Explained Simply
The diagonal fan technology ensures more uniform and consistent ventilation of the enclosure due to higher pressure stability. This prevents local overheating and ensures homogeneous air circulation. The rated operating voltage is 115 V, 1~, and is designed for frequencies of 50 Hz and 60 Hz. The rated power is 78.7 W (50 Hz) or 102.8 W (60 Hz), with a maximum rated current of 0.81 A (50 Hz) or 0.9 A (60 Hz). The fuse is rated for 6 A to protect the fan from overloads.

Compatibility and Accessories
The fan is equipped with a non-woven filter, providing protection class IP 54. With an additional spray hood, it achieves IP 56. According to NEMA standards, it corresponds to Type 12 with non-woven filter, and Type 3, 3R, 4, 4X with non-woven filter and spray hood. Compatible accessories include the Blue e+ outlet filter EMV, RAL 7035, which can be used to enhance air purification and protection class.

Mounting and Installation

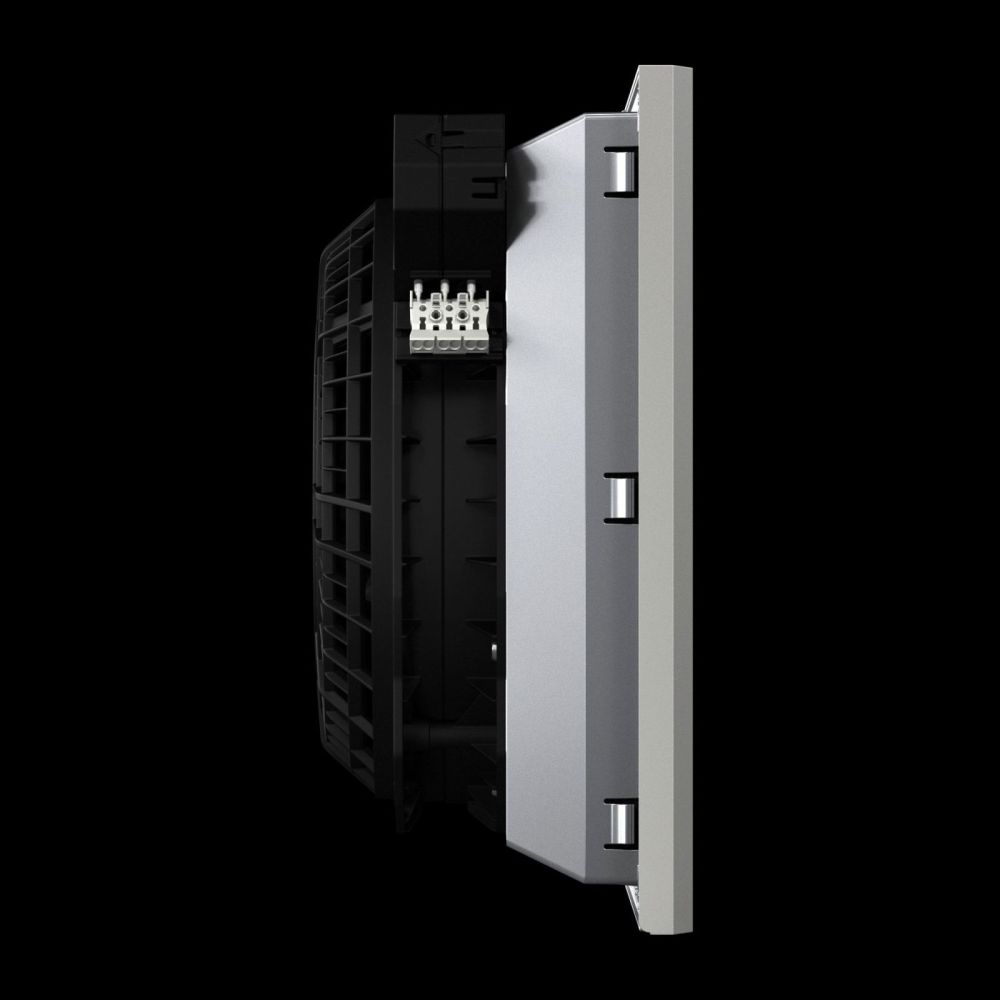

The installation dimensions are 323 mm (width) × 323 mm (height) × 144.5 mm (depth), with an installation depth of 124 mm. The mounting cutout requires a hole of 292 mm (width) × 292 mm (height). The tool-free mounting allows for quick and secure installation on the enclosure wall.

Operational Advantages
The operating temperature range is from -30 °C to +55 °C, and the storage temperature range is from -30 °C to +70 °C. The sound pressure level is 62 dB(A) at 50 Hz and 65 dB(A) at 60 Hz, representing acceptable noise emissions for industrial applications. The recommendation to use temperature controllers or indicators supports energy efficiency and extends the service life of the device through targeted operation control.

General
ModelWall mounting, EMC
MaterialPlastic
ColourRAL 7035
Scope of deliveryComplete ready-to-install unit, including EMI filter mat
FanDiagonal, 1~ capacitor motor
Airflow free-blowing (with filter)At 50 Hz: 540 m³/h, At 60 Hz: 590 m³/h
Airflow with associated exhaust filter including felt filterAt 50 Hz: 444 m³/h, At 60 Hz: 498 m³/h
Rated operating voltage115 V, 1~, 50 Hz/60 Hz
Rated power PelAt 50 Hz: 78.7 W, At 60 Hz: 102.8 W
Rated current max.At 50 Hz: 0.81 A, At 60 Hz: 0.9 A
Width323 mm
Height323 mm
Depth144,5 mm
Built-in depth124 mm
Mounting cutoutCutout width: 292 mm, Cutout height: 292 mm
Degree of protection IP according to IEC 60 529IP 54 with felt filter, IP 56 with felt filter and spray hood
NEMA degree of protectionType 12 with felt filter, Type 3, 3R, 4, 4X with felt filter and spray shield
FuseCircuit breaker/fuse: 6 A
NoteTo improve energy efficiency and increase device lifespan, use of temperature controllers or indicators is recommended.
Operating temperature range-30 °C...55 °C
Storage temperature range-30 °C...70 °C
Sound pressure levelAt 50 Hz: 62 dB(A), At 60 Hz: 65 dB(A)


Product data sheet
Datasheet for Rittal 3243810, EAN: 4028177997936
