Rittal 3245810 Blue e+ filter fan EMV 931 m³/h, 100 V–130 V, RAL

Your rating:
Average rating
product review for Rittal 3245810 Blue e+ filter fan EMV 931 m³/h, 100 V–130 V, RAL
( 4.5 / 5 ) 2 ratings
Rittal 3245810
This image may differ from the desired article.
Rittal 3245810Rittal 3245810Rittal 3245810Rittal 3245810Rittal 3245810Rittal 3245810Rittal 3245810
-8% 723,35 EUR 783,41 EUR
( 860,79 EUR incl. VAT )
≈ £605.44  |  ≈ $794.96
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 3245810 Blue e+ filter fan EMV 931 m³/h, 100 V–130 V, RAL
Datasheet:file_download Download
Lieske Part No.:683883
Mfg Part No: 3245810
UPC/EAN: 4028177997820
Weight:4.218 kg
Type:SK 3245.810

Product information for Rittal 3245810:

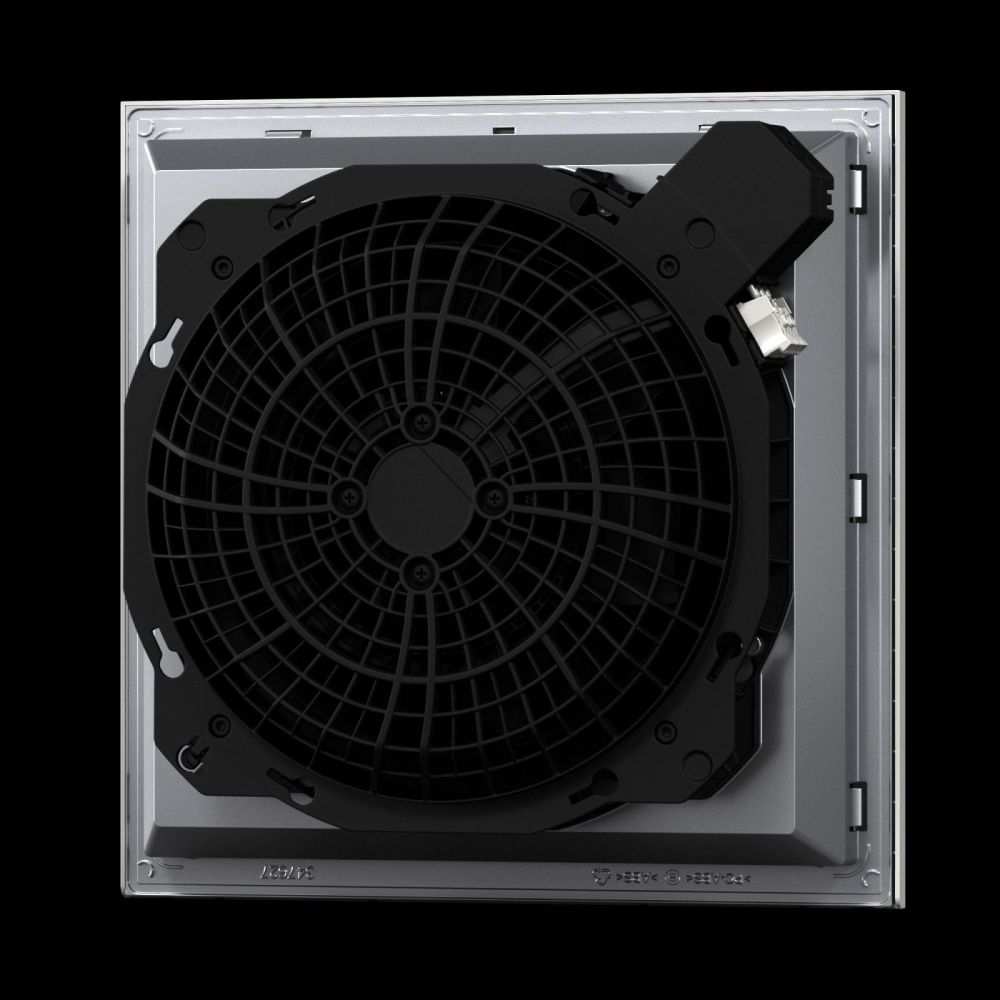

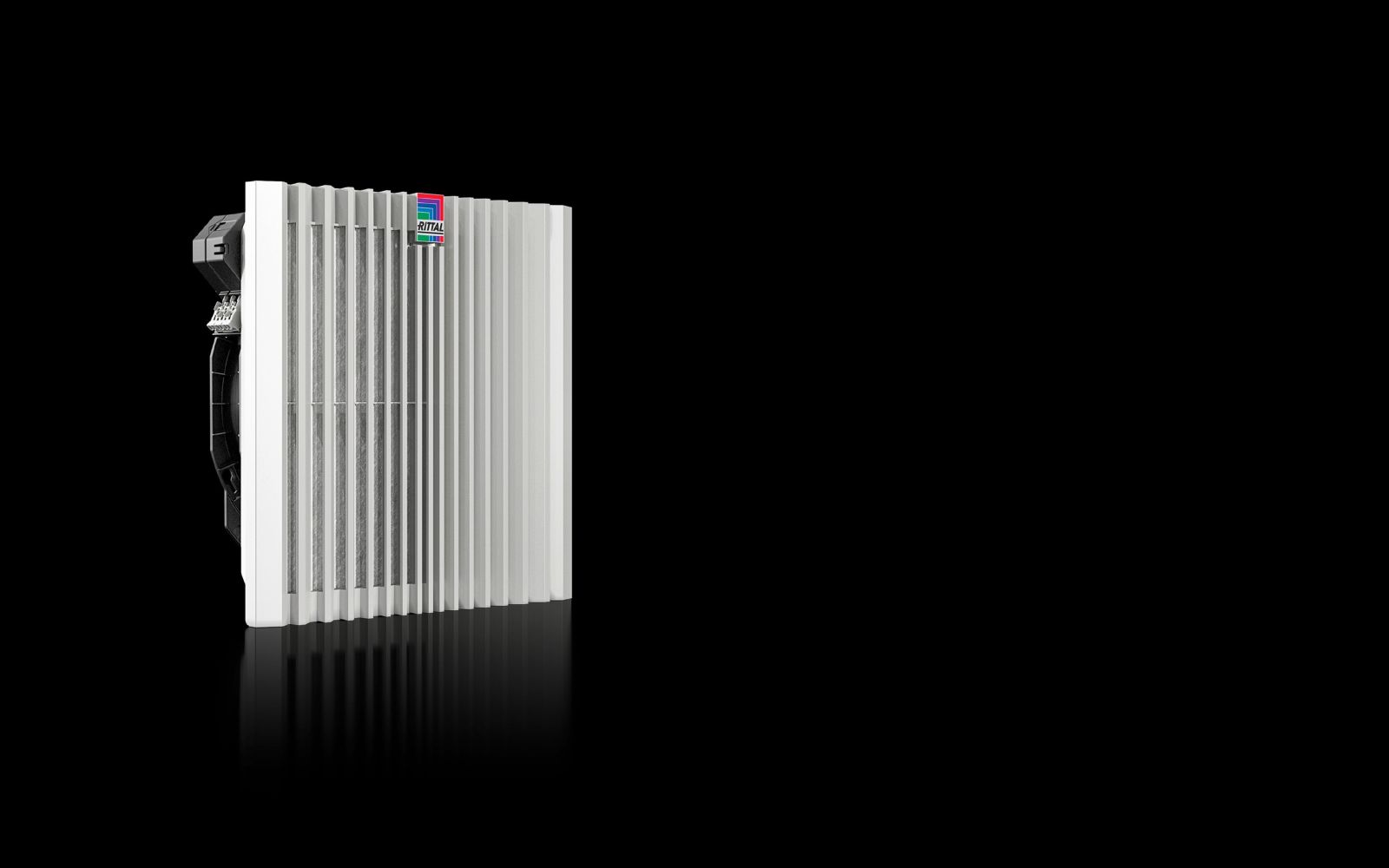

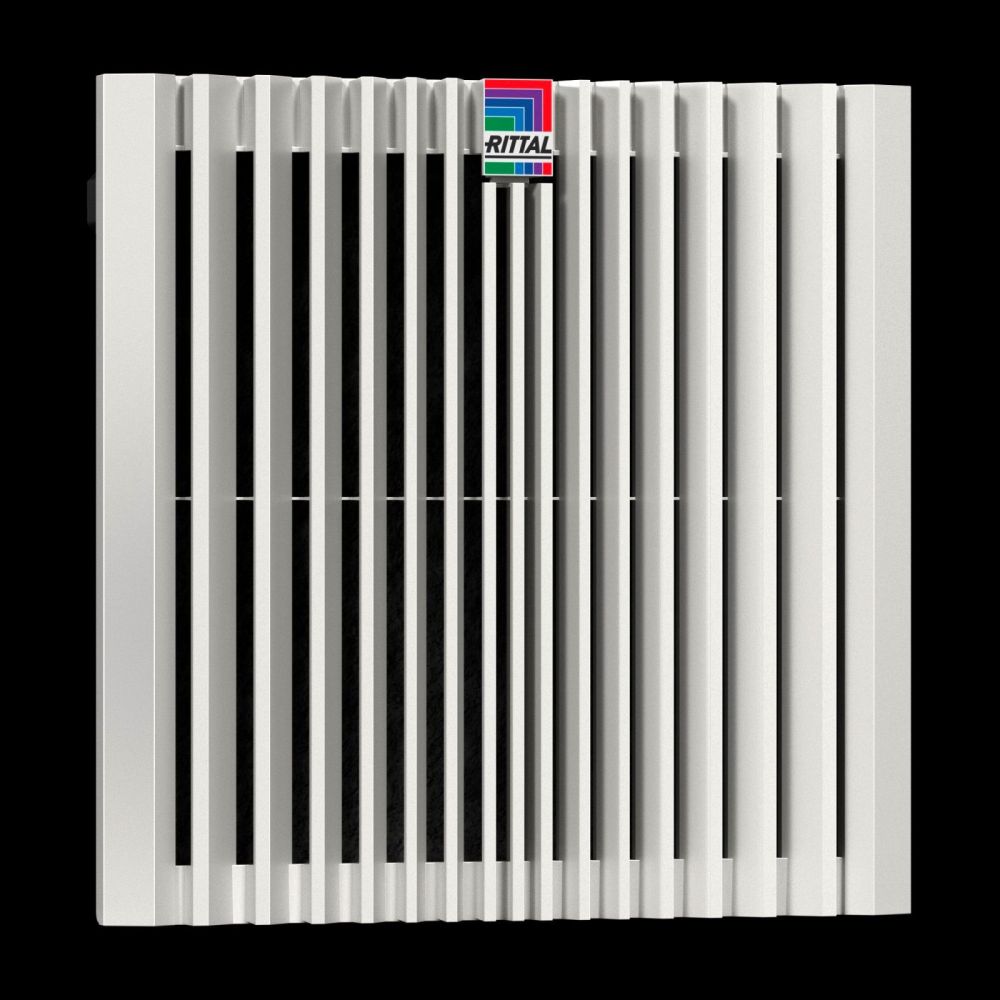

The Rittal SK 3245.810 is a filter fan with EMC shielding, specifically designed for the climate control of enclosures. The unit is mounted as a wall-mounted installation and features an EC motor with diagonal fan technology, ensuring more uniform and consistent ventilation of the enclosure. The airflow rate is 931 m³/h at 50 Hz free blowing with a nonwoven filter and 728 m³/h with the corresponding outlet filter including nonwoven filter. The rated operating voltage is 100 V to 130 V, 1~, 50 Hz/60 Hz, with a nominal power of 174.6 W. The unit is finished in the colour RAL 7035 and is made of plastic. Dimensions are 323 mm (width) × 323 mm (height) × 156 mm (depth), with an installation depth of 136 mm. The mounting cutout requires a hole of 292 mm (width) × 292 mm (height). The unit is tool-free to install and features optimised latching hooks for faster mounting on the enclosure. Filter replacement is facilitated by a new opening mechanism on the louver grille, simplifying the exchange process.

Applications

The filter fan is intended for use in industrial environments where controlled ventilation of enclosures is required. It is particularly suitable for applications where electromagnetic compatibility (EMC) is important. The unit meets requirement level 2 according to EN 61587-3, ensuring high shielding and attenuation performance. The operating temperature range is -25 °C to 55 °C, and the storage temperature range is -25 °C to 70 °C. The protection rating IP51 is achieved when the nonwoven filter is installed, and IP51 when an additional spray water hood is used. According to NEMA standards, the unit corresponds to Type 12 with nonwoven filter and Type 3, 3R when the spray water hood is added.

Functions and Equipment in Detail

The unit is delivered as a fully ready-to-install unit and includes the EMC filter mat. The EC motor enables energy-efficient operation. The diagonal airflow ensures higher pressure stability and thus more uniform air distribution within the enclosure. The unit features a 0–10 V/PWM input and a speed output, enabling integration into control systems. The sound pressure level is 72 dB(A) at 50 Hz, which is acceptable for industrial applications.

Technology Explained Simply

The EC motor (electronically commutated motor) is an energy-efficient DC motor operated via electronic control. Compared to conventional motors, it consumes less energy and offers more precise speed control. The diagonal fan technology ensures that air is evenly distributed across the entire cross-section of the enclosure, resulting in improved cooling performance. The EMC shielding protects electronic components within the enclosure from electromagnetic interference.

Compatibility and Accessories

Various accessories are available to extend functionality. These include the Blue e+ outlet filter EMC in RAL 7035, the EC speed controller sensor for speed regulation, a thermostat for internal temperature control, a digital temperature display and control for 100–230 V, a hygrostat for humidity control, and a spray water hood for the SK 3243/3244.xx stainless steel series. Additionally, the SK EMC filter mat is available for SK 3243/44/45.6xx, as well as the SK 3235460 control unit for Blue e+ EC filter fans. These components enable adaptable and efficient climate control of the enclosure.

Installation and Mounting

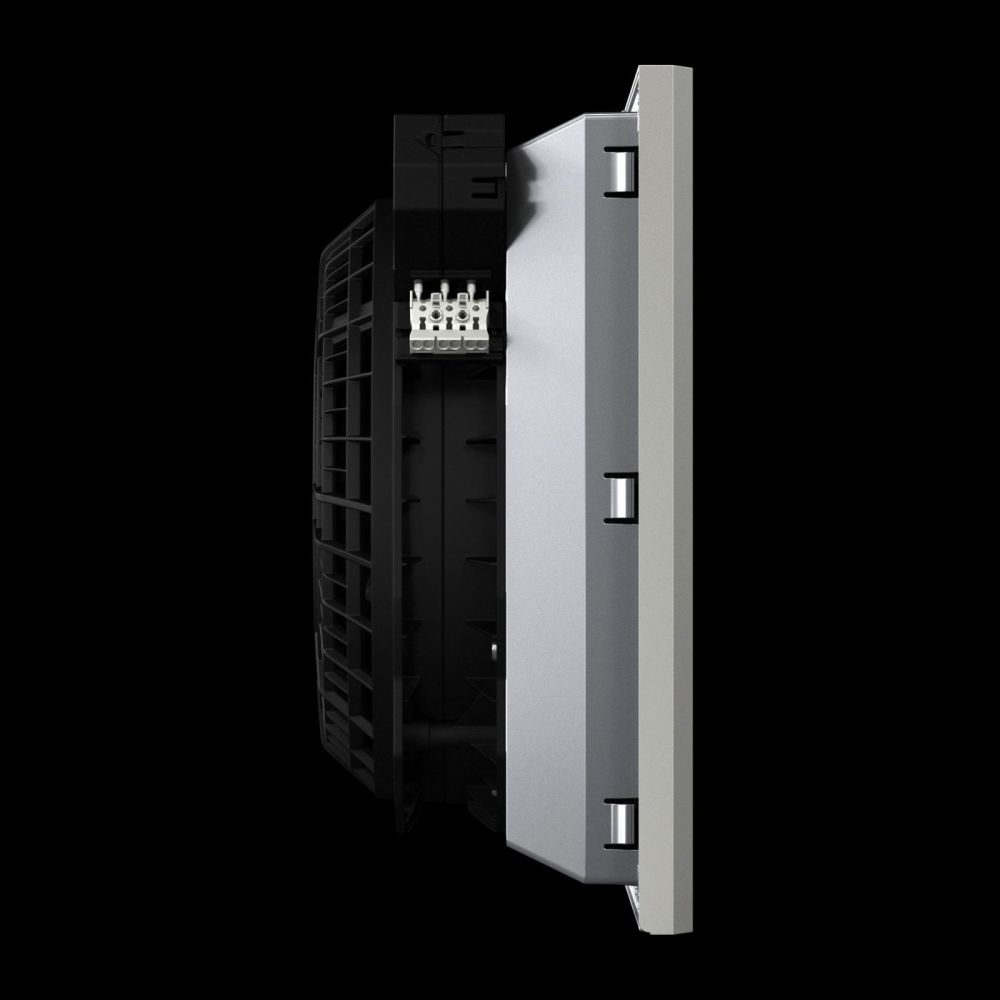

Installation is tool-free onto the enclosure wall. The optimised latching hooks allow for quick and secure fastening. The mounting cutout measures 292 mm (width) × 292 mm (height). The installation depth of 136 mm must be considered within the enclosure. The unit is designed for use in flat areas, with wall mounting on the enclosure being typical.

Operational Advantages

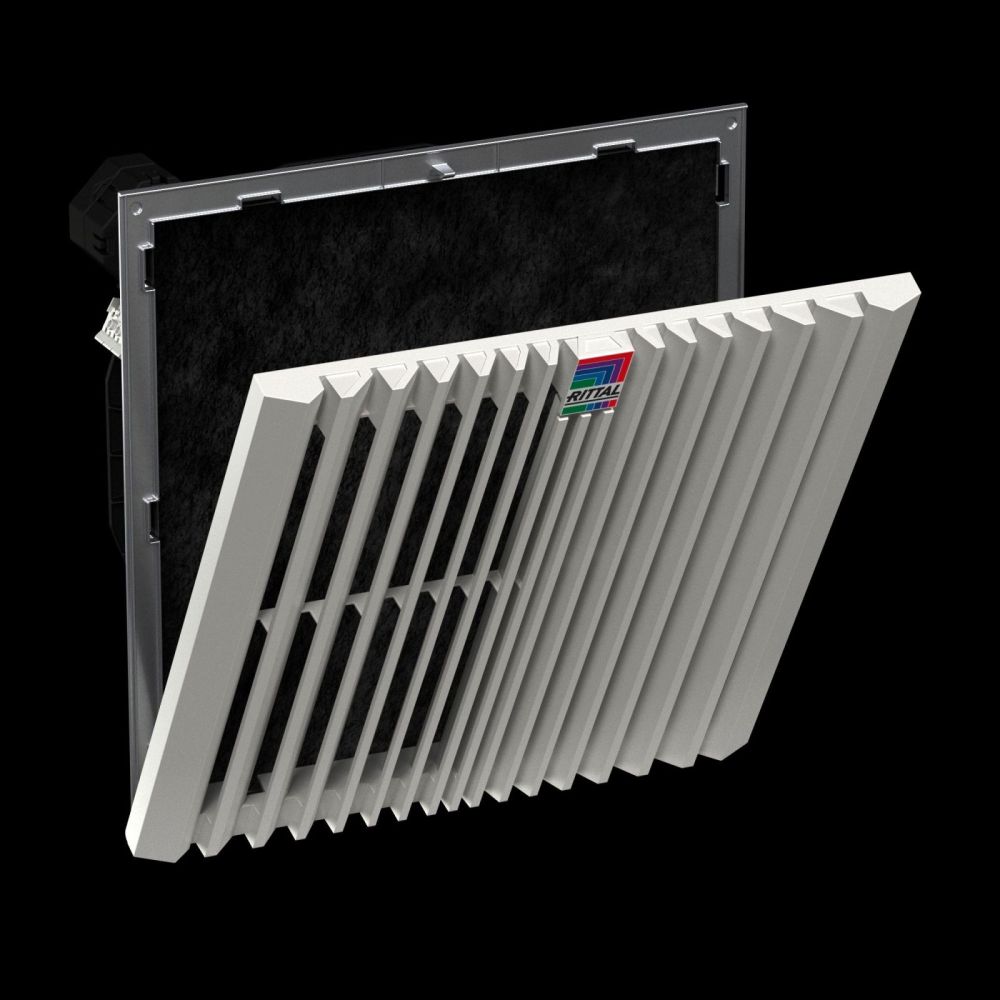

The combination of EMC shielding, EC motor, and diagonal fan technology ensures reliable and energy-efficient ventilation. Tool-free installation and easy filter replacement reduce maintenance time. The integrated interfaces enable flexible control. The recommendation to use temperature controllers or displays supports energy efficiency and extends the service life of the device.

General
ModelWall mounting, EMC
MaterialPlastic
ColourRAL 7035
Scope of deliveryComplete ready-to-install unit, including EMI filter mat
Fandiagonal, EC motor
Airflow free-blowing (with filter)At 50 Hz: 931 m³/h
Airflow with associated exhaust filter including felt filterAt 50 Hz: 728 m³/h
Rated operating voltage100 V - 130 V, 1~, 50 Hz/60 Hz
Rated power PelAt 50 Hz: 174.6 W
Rated current max.At 50 Hz: 2.52 A
Width323 mm
Height323 mm
Depth156 mm
Built-in depth136 mm
Mounting cutoutCutout width: 292 mm, Cutout height: 292 mm
Degree of protection IP according to IEC 60 529IP51 with felt filter, IP 56 with felt filter and spray hood
NEMA degree of protectionType 12 with felt filter, Type 3, 3R with felt filter and spray water hood
NoteTo improve energy efficiency and increase device lifespan, use of temperature controllers or indicators is recommended.
Operating temperature range-25 °C...55 °C
Storage temperature range-25 °C...70 °C
Sound pressure levelAt 50 Hz: 72 dB(A)
Interfaces0 - 10 V/PWM input, speed output


Product data sheet
Datasheet for Rittal 3245810, EAN: 4028177997820
