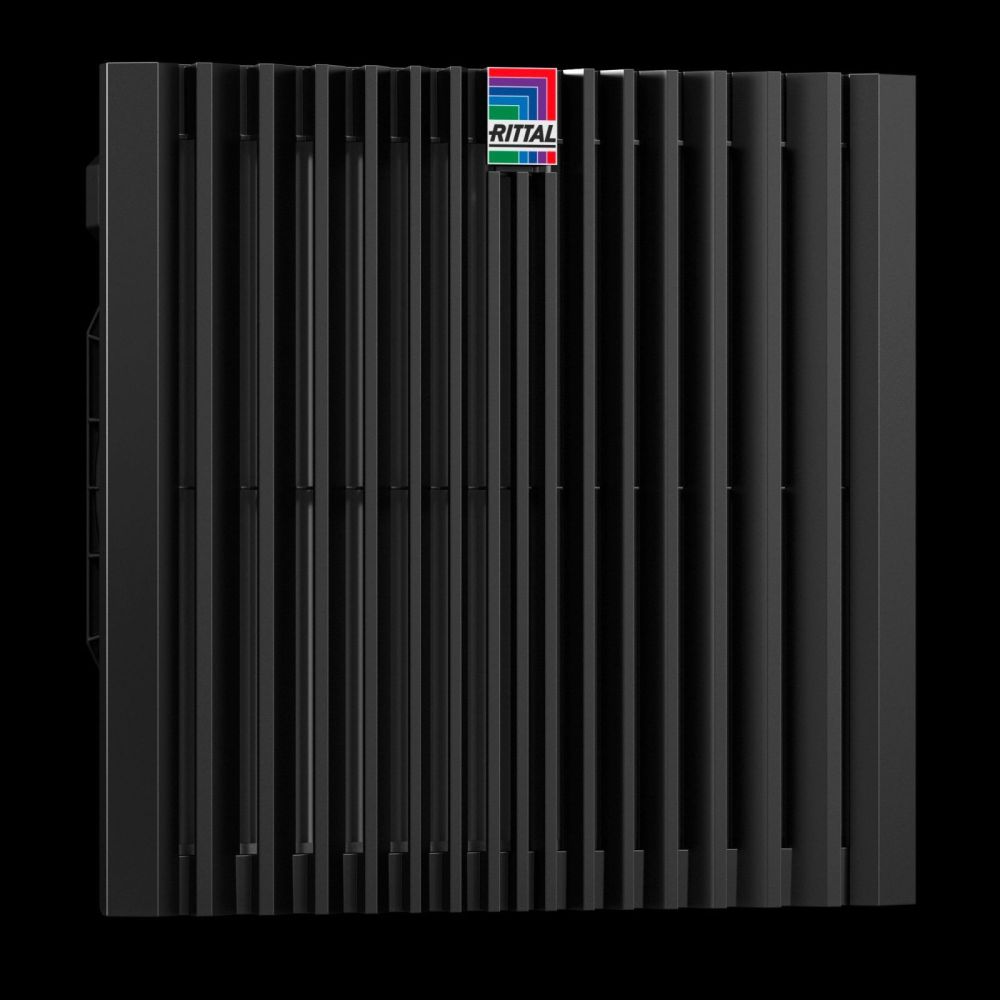

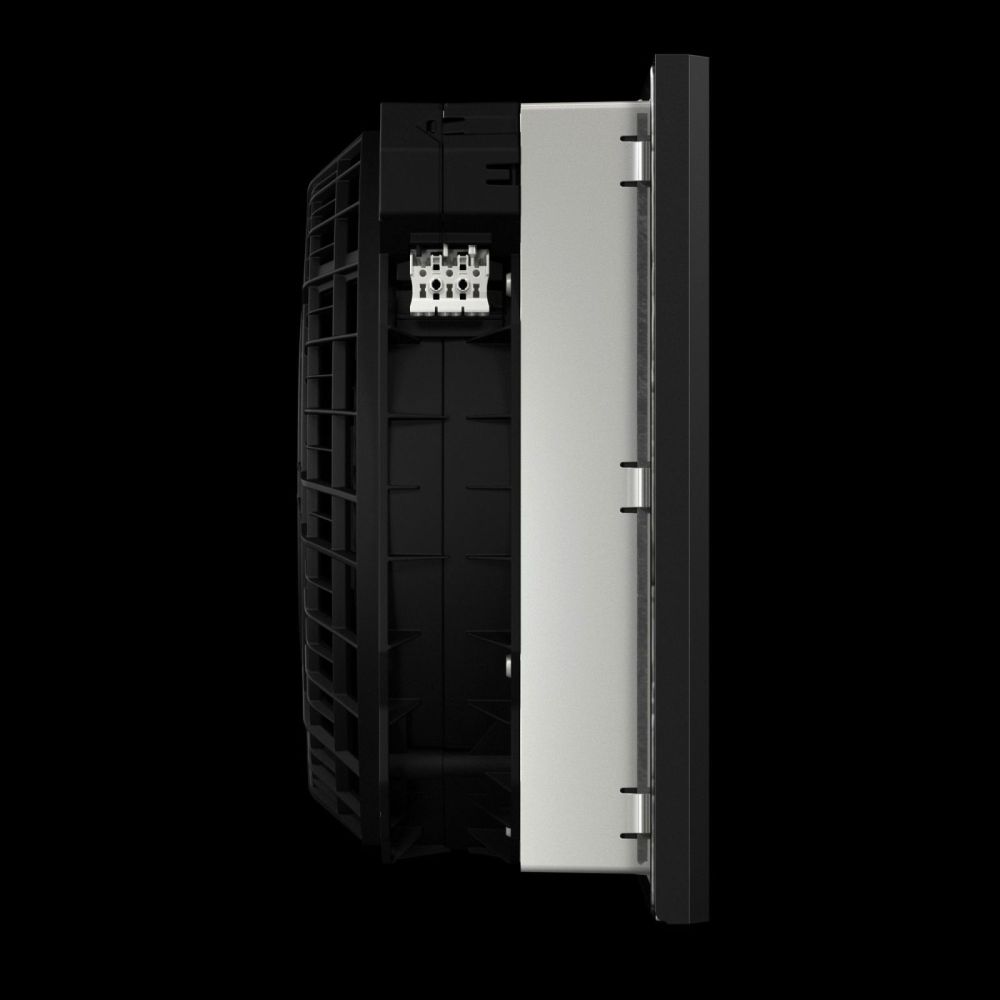

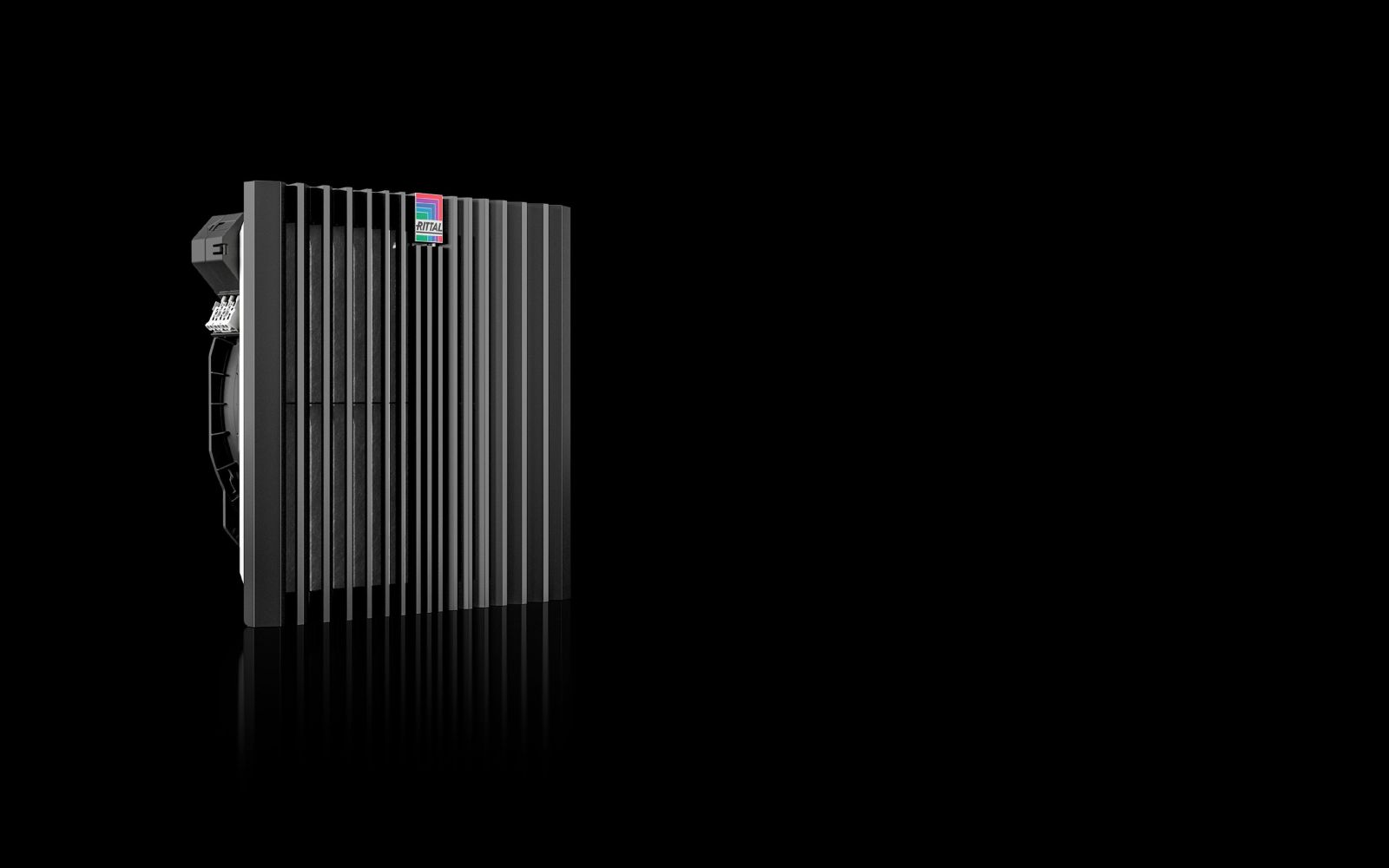

Rittal 3245908 Blue e+ filter fan EC 1161 m³/h, 200 V–240 V, RAL

Your rating:
Average rating
product review for Rittal 3245908 Blue e+ filter fan EC 1161 m³/h, 200 V–240 V, RAL
( 4.7 / 5 ) 3 ratings
Rittal 3245908
This image may differ from the desired article.
Rittal 3245908Rittal 3245908Rittal 3245908Rittal 3245908Rittal 3245908Rittal 3245908
369,50 EUR
( 439,71 EUR incl. VAT )
≈ £309.27  |  ≈ $406.08
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 3245908 Blue e+ filter fan EC 1161 m³/h, 200 V–240 V, RAL
Datasheet:file_download Download
Lieske Part No.:683889
Mfg Part No: 3245908
UPC/EAN: 4028177997806
Weight:4.248 kg
Type:SK 3245.908

Product information for Rittal 3245908:

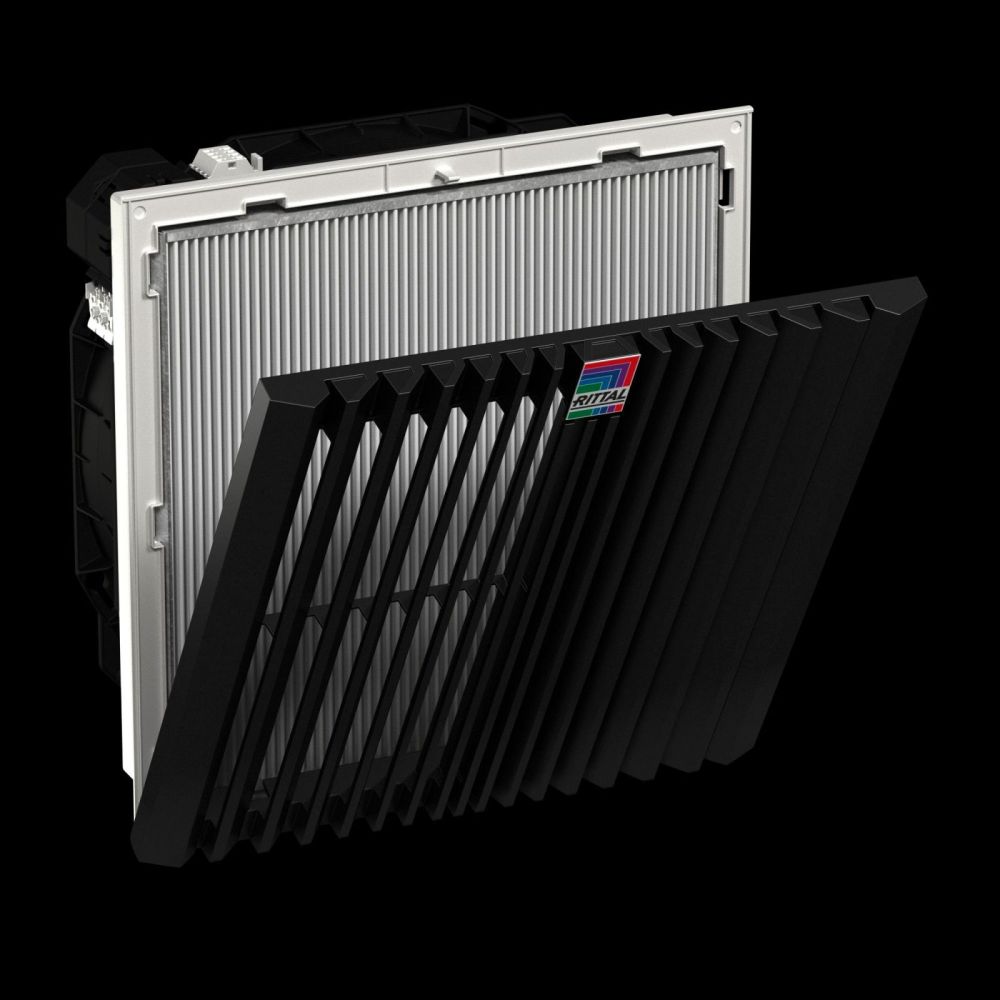

The Rittal SK 3245.908 is a filter fan with EC technology, specifically designed for climate control in enclosures. It serves for controlled ventilation and cooling of electronic components in industrial environments, with the integrated filter function keeping dust and particles out of the incoming air. The device is designed for wall mounting and is made of plastic in the colour RAL 9005.

Applications
This filter fan is suitable for use in industrial enclosures where continuous cooling and simultaneous filtration of incoming air are required. It is particularly suitable for installations in production environments where dust, fine particles, or other contaminants could affect electronics. The integrated filter technology ensures that the air entering the enclosure is cleaned, extending the service life of installed components. The protection rating IP 51 with fleece or pleated filter, and IP 56 when used with a spray water hood, makes it suitable for locations with increased contamination risk or spray water exposure. The corresponding NEMA protection ratings Type 1, 12 and Type 3, 3R highlight its suitability for industrial applications.

Functions and equipment in detail

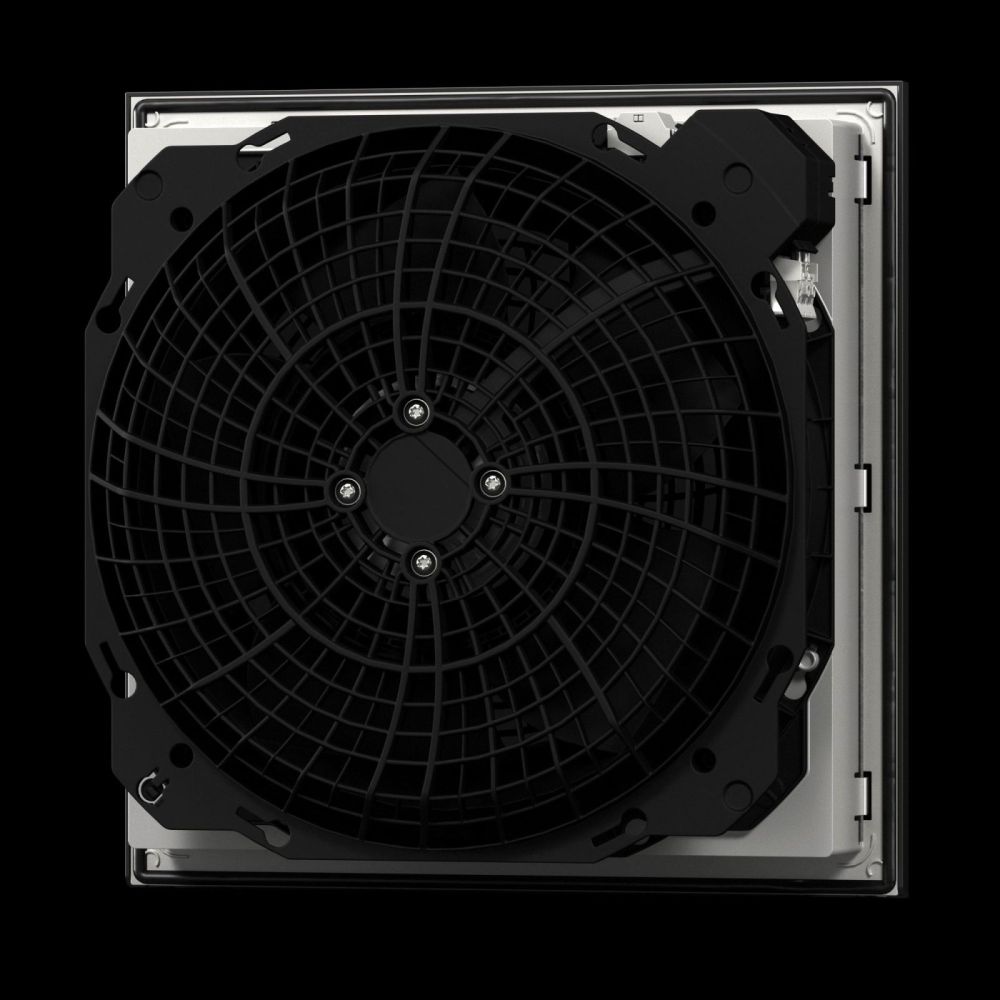

The fan operates with a diagonal fan and an EC motor, which ensures high energy efficiency and low operating noise. The air performance is 1,161 m³/h free blowing at 50 Hz and 60 Hz, while the performance drops to 969 m³/h when an outlet filter is used. With a fleece filter, the free blowing air performance is 931 m³/h, and with an outlet filter, it is 728 m³/h. The rated operating voltage is 200 V – 240 V, 1~, 50 Hz/60 Hz, enabling universal use in various power networks. The rated power is 173.5 W at 50 Hz, with a maximum rated current of 1.38 A. The operating temperature range extends from -25 °C to 55 °C, allowing use in environments with varying climatic conditions.

Technology explained simply
The EC technology (External Commutator) enables precise speed control and higher energy efficiency compared to conventional fans. The diagonal fan technology ensures higher pressure stability, resulting in more uniform and consistent air circulation within the enclosure. The integrated ModBus interface (RS485) allows for control and monitoring of the device, enabling functions such as automatic filter cleaning, filter maintenance indication, or emergency cooling. Additionally, the fan features a 0–10 V/PWM input, a speed output, and a potential-free fault alarm contact, allowing flexible integration into existing control systems. The sound pressure level is 72 dB(A) at 50 Hz, which is acceptable for industrial applications.

Compatibility and accessories
The filter fan is compatible with various accessories that extend its functionality. These include outlet filters in RAL 9005, EC speed controller sensor, thermostats, digital temperature display and control, replacement filter mats (5 or 50 pieces), SK ModBus adapter, hygrostat, spray water hood for increased protection rating, blanking plates, pleated filters IP 51 IP 51, absorber mats, and an IoT interface. These components allow individual adaptation to specific requirements such as air purification, temperature control, or network integration.

Mounting and installation
Mounting is tool-free and accelerated by optimised snap hooks. The mounting cutout measures 292 mm (width) × 292 mm (height), with an installation depth of 141 mm. The device dimensions are 323 mm (width) × 323 mm (height) × 161 mm (depth). The tool-free mounting and the new opening mechanism on the louver grille facilitate filter replacement and reduce maintenance time.

Operational advantages
The use of the Rittal SK 3245.908 provides high air performance due to the standard-integrated pleated filter, ensuring efficient cooling. The EC technology ensures lower energy consumption and longer service life. The ModBus interface enables intelligent control and monitoring, simplifying maintenance and increasing operational reliability. The high protection rating and availability of additional components make the device flexible for various industrial scenarios.

General
Modelwall mounting, EC
MaterialPlastic
ColourRAL 9005
Scope of deliveryComplete ready-to-install unit, including pleated filter
Fandiagonal, EC motor
Airflow free blowing (with pleated filter)At 50 Hz: 1,161 m³/h, At 60 Hz: 1,161 m³/h
Airflow with associated exhaust filter including pleated filterAt 50 Hz: 969 m³/h
Airflow free-blowing (with filter)At 50 Hz: 931 m³/h
Airflow with associated exhaust filter including felt filterAt 50 Hz: 728 m³/h
Rated operating voltage200 V - 240 V, 1~, 50 Hz/60 Hz
Rated power PelAt 50 Hz: 173.5 W
Rated current max.At 50 Hz: 1.38 A
Width323 mm
Height323 mm
Depth161 mm
Built-in depth141 mm
Mounting cutoutCutout width: 292 mm, Cutout height: 292 mm
Degree of protection IP according to IEC 60 529IP 51 with non-woven filter/pleated filter, IP 52 with pleated filter and absorber mat, IP 56 with non-woven filter/pleated filter and spray hood
NEMA degree of protectionType 1, 12 with felt filter/pleated filter, Type 3, 3R with felt filter/pleated filter and spray water hood
FuseCircuit breaker/fuse: 6 A
Operating temperature range-25 °C...55 °C
Storage temperature range-25 °C...70 °C
Sound pressure levelAt 50 Hz: 72 dB(A)
Interfaces0 - 10 V/PWM input, speed output, potential-free fault alarm contact, RS485 (ModBus)


Product data sheet
Datasheet for Rittal 3245908, EAN: 4028177997806
