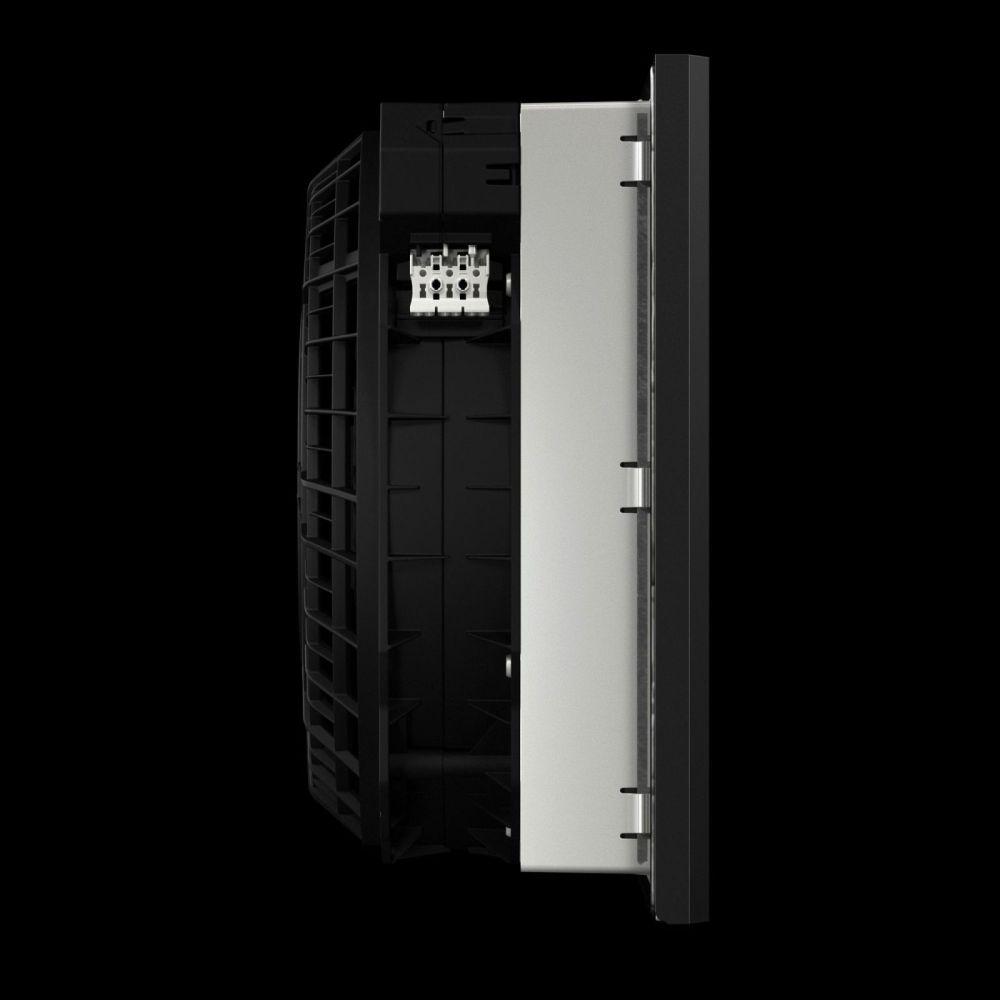

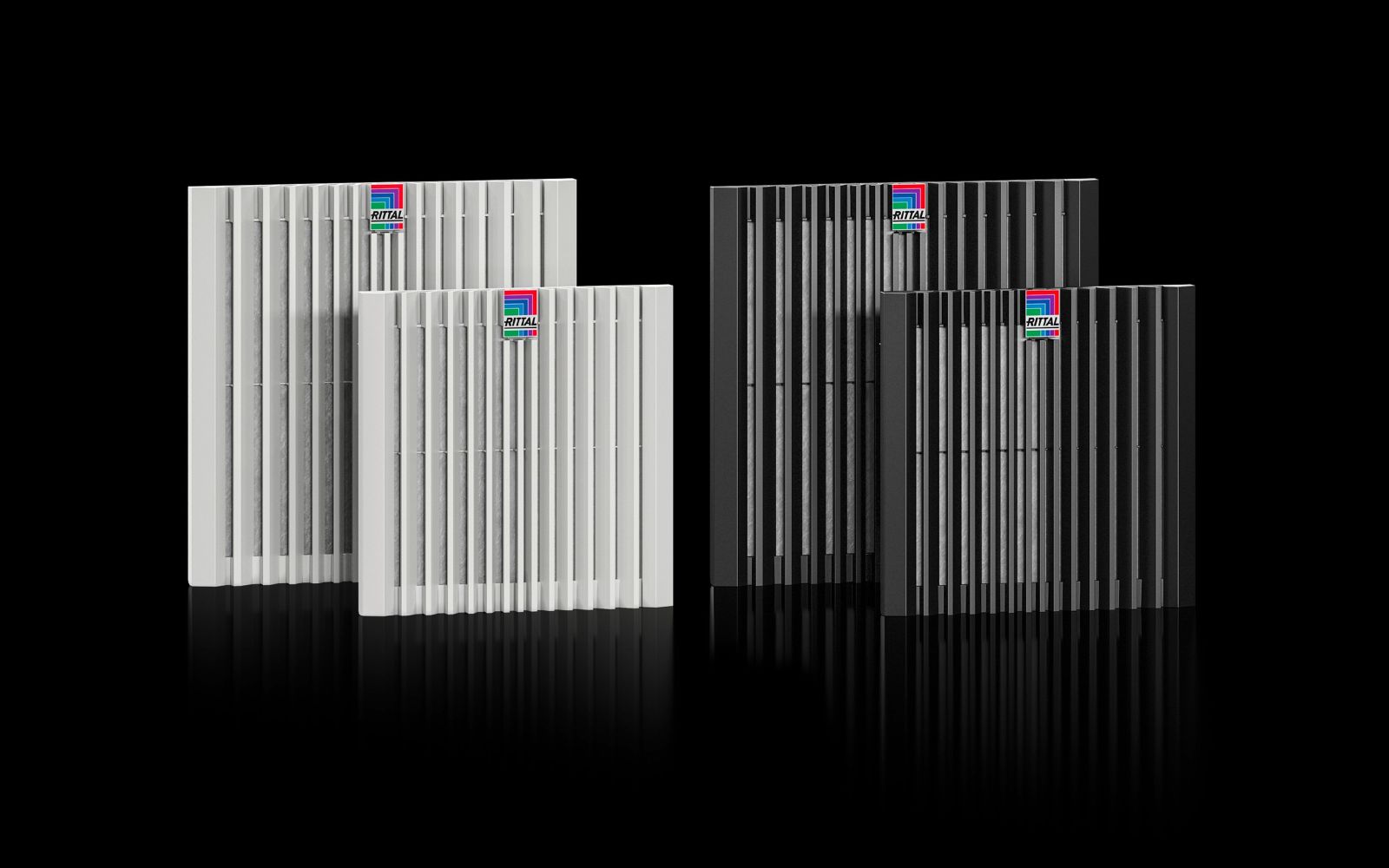

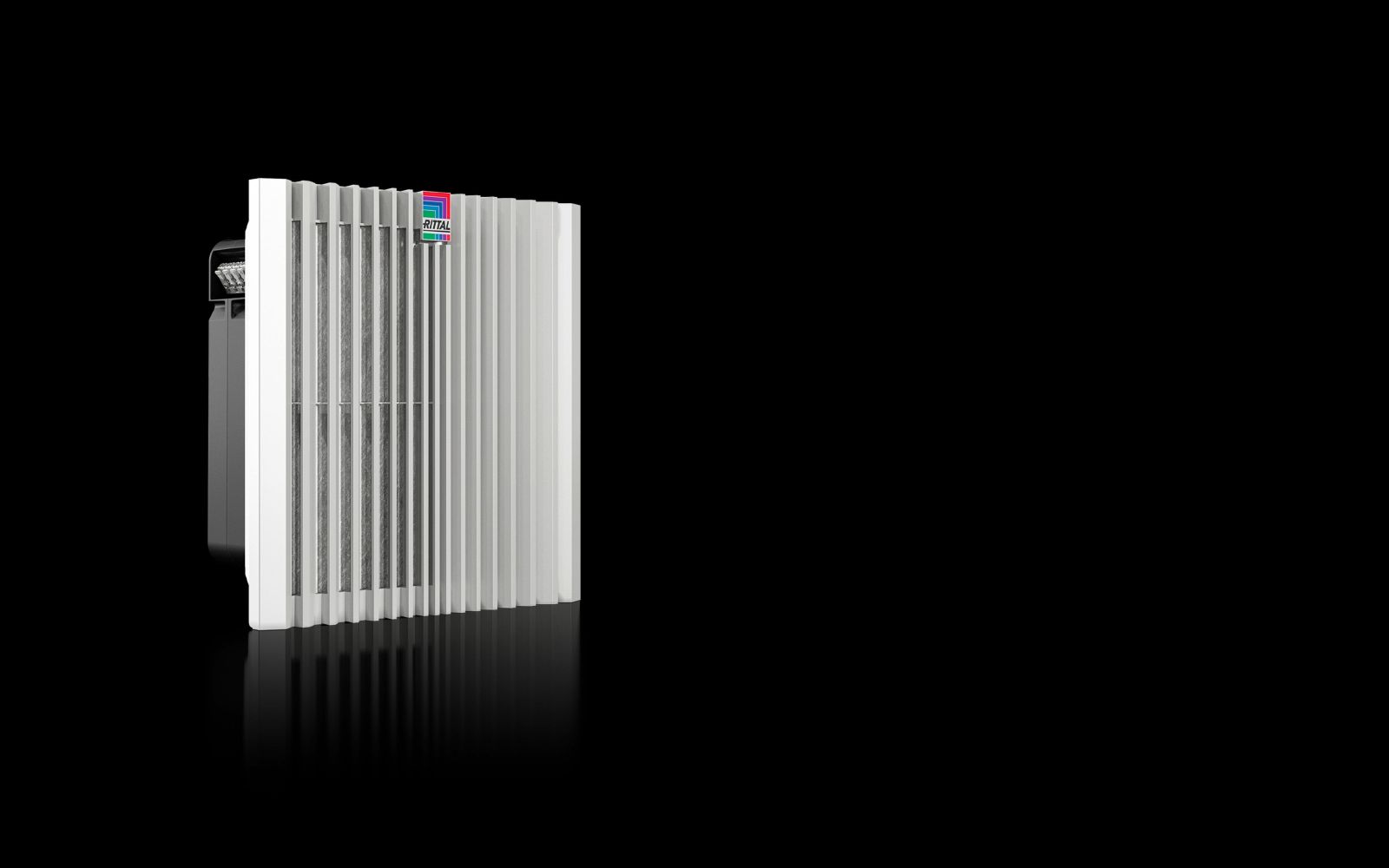

Rittal 3243900 Blue e+ filter fan EC 625 m³/h, 100 V–240 V, RAL 7035

Your rating:
Average rating
product review for Rittal 3243900 Blue e+ filter fan EC 625 m³/h, 100 V–240 V, RAL 7035
( 5 / 5 ) 2 ratings
Rittal 3243900
This image may differ from the desired article.
Rittal 3243900Rittal 3243900Rittal 3243900Rittal 3243900Rittal 3243900Rittal 3243900Rittal 3243900
-10% 227,13 EUR 253,37 EUR
( 270,28 EUR incl. VAT )
≈ £190.11  |  ≈ $249.62
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 3243900 Blue e+ filter fan EC 625 m³/h, 100 V–240 V, RAL 7035
Datasheet:file_download Download
Lieske Part No.:683869
Mfg Part No: 3243900
UPC/EAN: 4028177997929
Weight:3.763 kg
Type:SK 3243.900

Product information for Rittal 3243900:

The Rittal SK 3243.900 is a filter fan with EC technology, specifically designed for climate control in enclosures. It provides controlled ventilation and cooling for electronic components in industrial applications, with the integrated filter function keeping dust and particles out of the incoming air. The unit is designed for wall mounting and is installed directly into the enclosure, with tool-free mounting. Dimensions are 323 mm width, 323 mm height, and 156.5 mm depth, with an installation depth of 136.5 mm. The mounting cutout in the enclosure requires a cutout size of 292 mm width and 292 mm height.

Applications

The filter fan is intended for use in industrial environments where continuous cooling and air filtration are required. It is suitable for enclosures in production plants, automation systems, machine building, and other areas where electronic components must be protected from overheating and contamination. The operating temperature ranges from -25 °C to 55 °C, ensuring reliable operation even in cooler or warmer environments.

Functions and Equipment in Detail

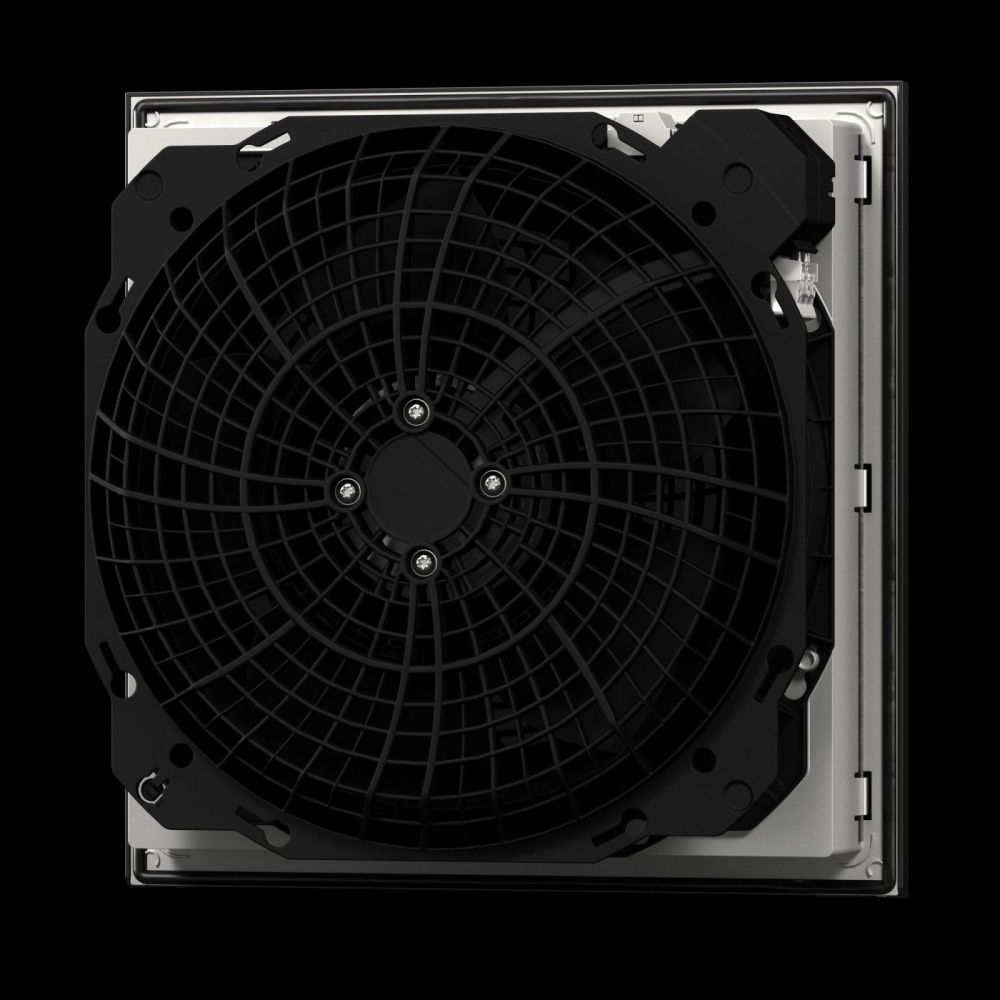

The fan features a diagonal fan with an EC motor, enabling high air performance at low energy consumption. The free-blowing air performance is 625 m³/h at 50 Hz and 625 m³/h at 60 Hz when equipped with a pleated filter. When using a nonwoven filter, the free-blowing air performance drops to 540 m³/h. With an associated outlet filter, the air performance is 565 m³/h (with pleated filter) or 444 m³/h (with nonwoven filter). The rated power is 55.1 W at 50 Hz, with a maximum rated current of 0.88 A. The unit is delivered with a pleated filter, which is already installed at time of shipment.

Technology Explained Simply

The EC technology (Electronically Commutated Motors) enables precise speed control and higher energy efficiency compared to conventional motors. The diagonal fan technology ensures more uniform and consistent air distribution within the enclosure, as it provides higher pressure stability. The IoT capability via RS485 interface (ModBus) allows for control and monitoring of the fan, for example, for automatic filter cleaning, filter maintenance indication, or emergency cooling function. The interfaces also include a 0–10 V/PWM input, a speed output, and a potential-free fault alarm contact.

Compatibility and Accessories

The fan can be combined with various accessories to increase protection class or expand functionality. These include, for example, outlet filters in RAL 7035, spray water hoods for increased protection class, absorber mats for IP 55, EC speed controllers with sensor, thermostats, hygrostats, ModBus adapters, and digital temperature display and control units. Using these components allows adaptation to specific environmental conditions and requirements.

Mounting and Installation

Installation is tool-free at the designated location in the enclosure. Optimized latching hooks enable faster and more secure fastening. The opening mechanism on the louver grille facilitates filter replacement. The unit is delivered as a fully ready-to-install unit, including pleated filter.

Operational Advantages

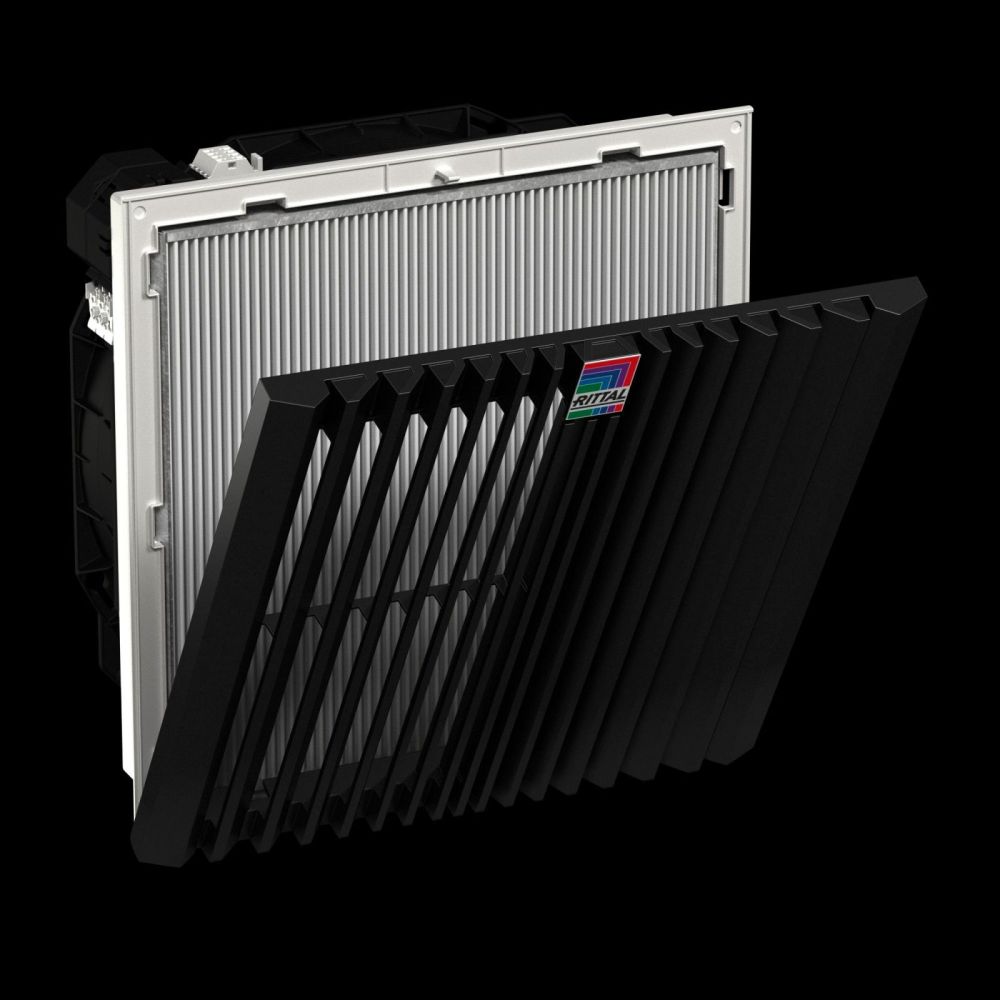

The fan offers high air performance due to the standard use of pleated filters, which ensure efficient particle separation. The wide voltage input (100–240 V, 50/60 Hz) enables worldwide use. Protection class IP 55 is achieved with nonwoven or pleated filter, IP 55 with pleated filter and absorber mat, and IP 55 with nonwoven or pleated filter and spray water hood. According to NEMA standards, the unit achieves Type 12 with nonwoven or pleated filter, and Type 3, 3R, 4, 4X with nonwoven or pleated filter and spray water hood. The sound pressure level is 65 dB(A) at 50 Hz. The fuse is rated at 6 A.

Protection Class and Environmental Conditions

Protection classes IP 55 to IP 55 and NEMA classes Type 12 to Type 4X make the fan suitable for various environments, including humid or dusty rooms. The operating temperature of -25 °C to 55 °C and storage temperature of -25 °C to 70 °C ensure use in a wide range of industrial applications. The unit is made of plastic and is available in the color RAL 7035.

General
Modelwall mounting, EC
MaterialPlastic
ColourRAL 7035
Scope of deliveryComplete ready-to-install unit, including pleated filter
Fandiagonal, EC motor
Airflow free blowing (with pleated filter)At 50 Hz: 625 m³/h, At 60 Hz: 625 m³/h
Airflow with associated exhaust filter including pleated filterAt 50 Hz: 565 m³/h
Airflow free-blowing (with filter)At 50 Hz: 540 m³/h
Airflow with associated exhaust filter including felt filterAt 50 Hz: 444 m³/h
Rated operating voltage100 V - 240 V, 1~, 50 Hz/60 Hz
Rated power PelAt 50 Hz: 55.1 W
Rated current max.At 50 Hz: 0.88 A
Width323 mm
Height323 mm
Depth156,5 mm
Built-in depth136,5 mm
Mounting cutoutCutout width: 292 mm, Cutout height: 292 mm
Degree of protection IP according to IEC 60 529IP 54 with nonwoven filter/pleated filter, IP 55 with pleated filter and absorber mat, IP 56 with nonwoven filter/pleated filter and spray water hood
NEMA degree of protectionType 12 with felt filter/pleated filter, Type 3, 3R, 4, 4X with felt filter/pleated filter and spray water hood
FuseCircuit breaker/fuse: 6 A
Operating temperature range-25 °C...55 °C
Storage temperature range-25 °C...70 °C
Sound pressure levelAt 50 Hz: 65 dB(A)
Interfaces0 - 10 V/PWM input, speed output, potential-free fault alarm contact, RS485 (ModBus)


Product data sheet
Datasheet for Rittal 3243900, EAN: 4028177997929
