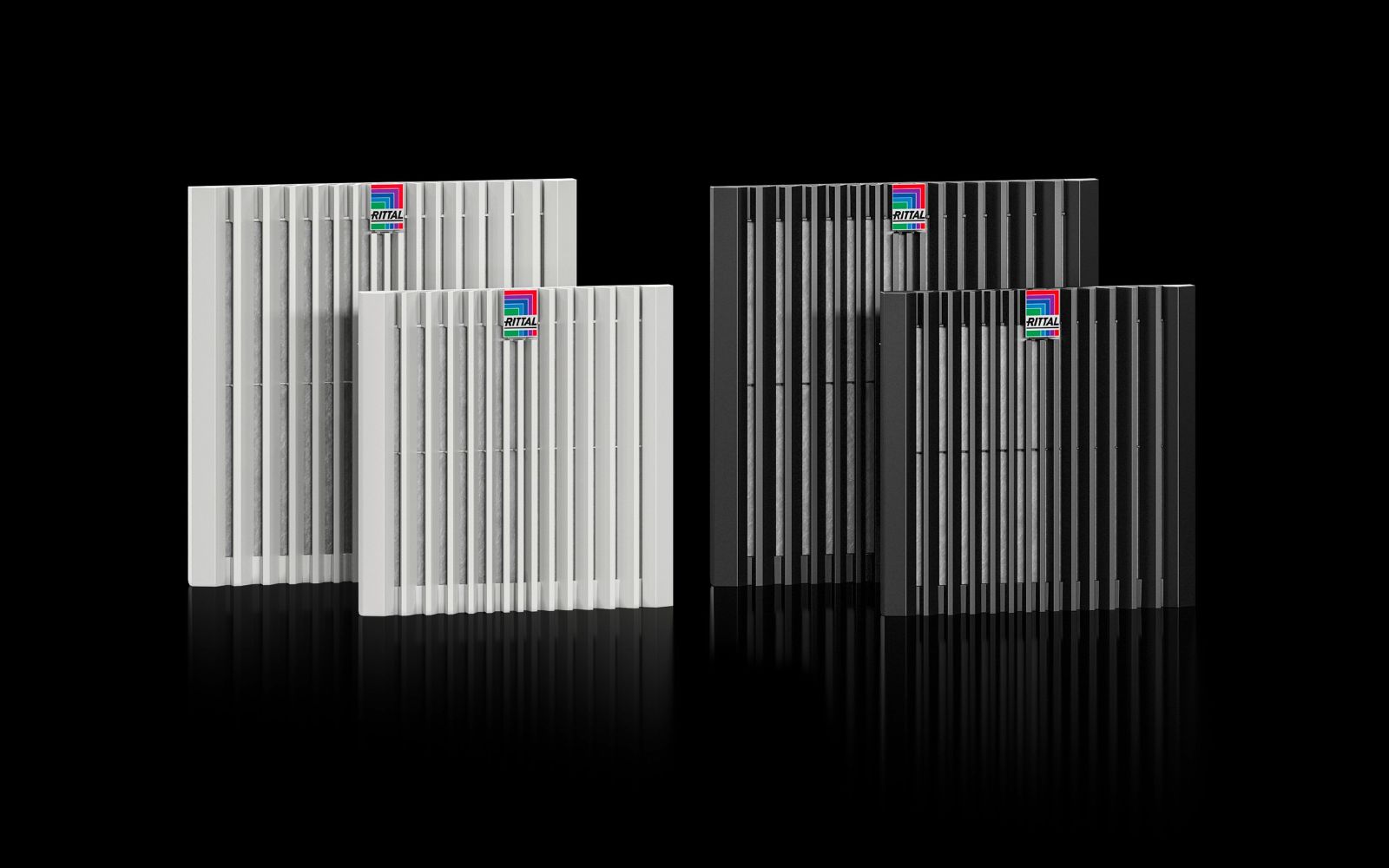

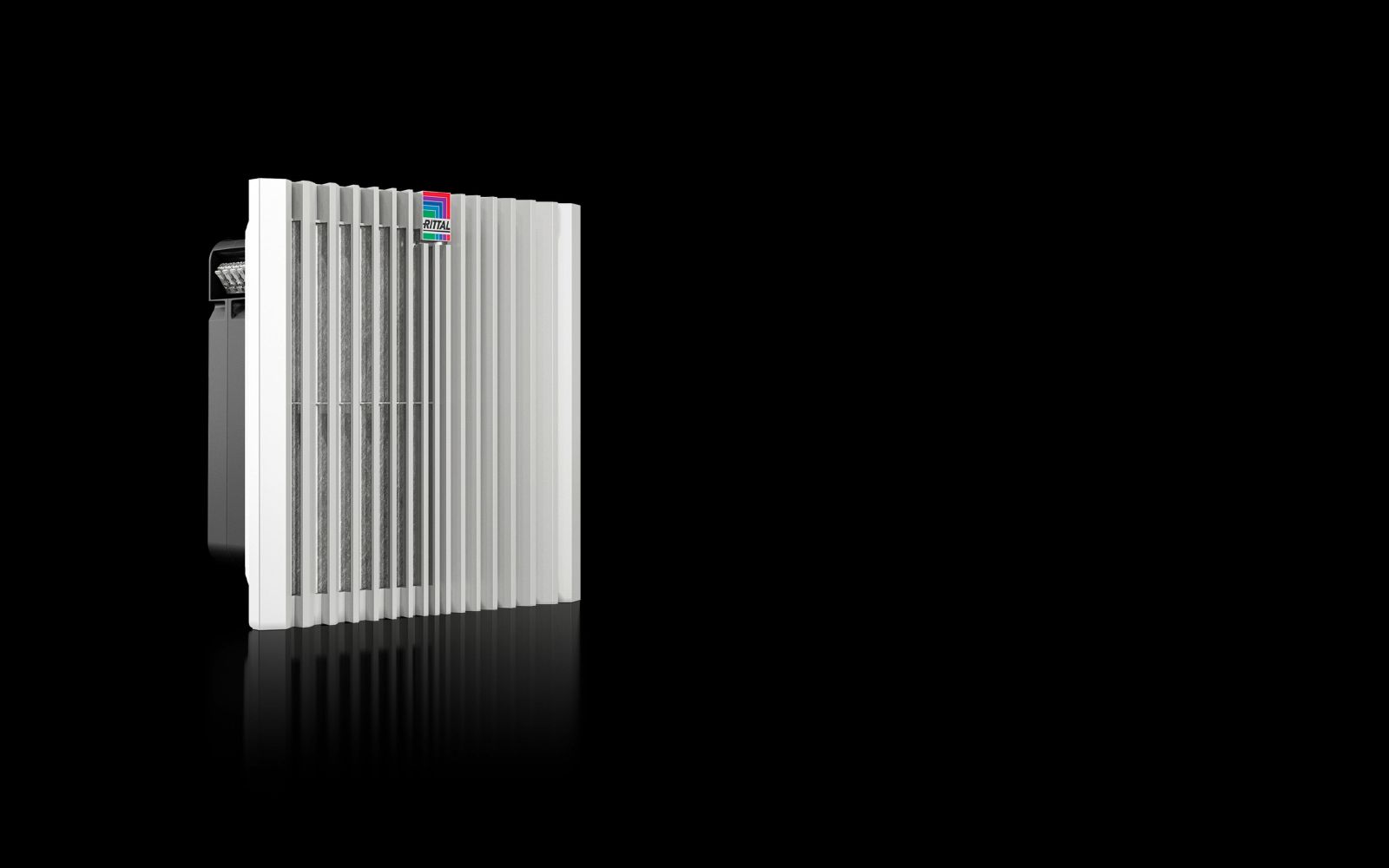

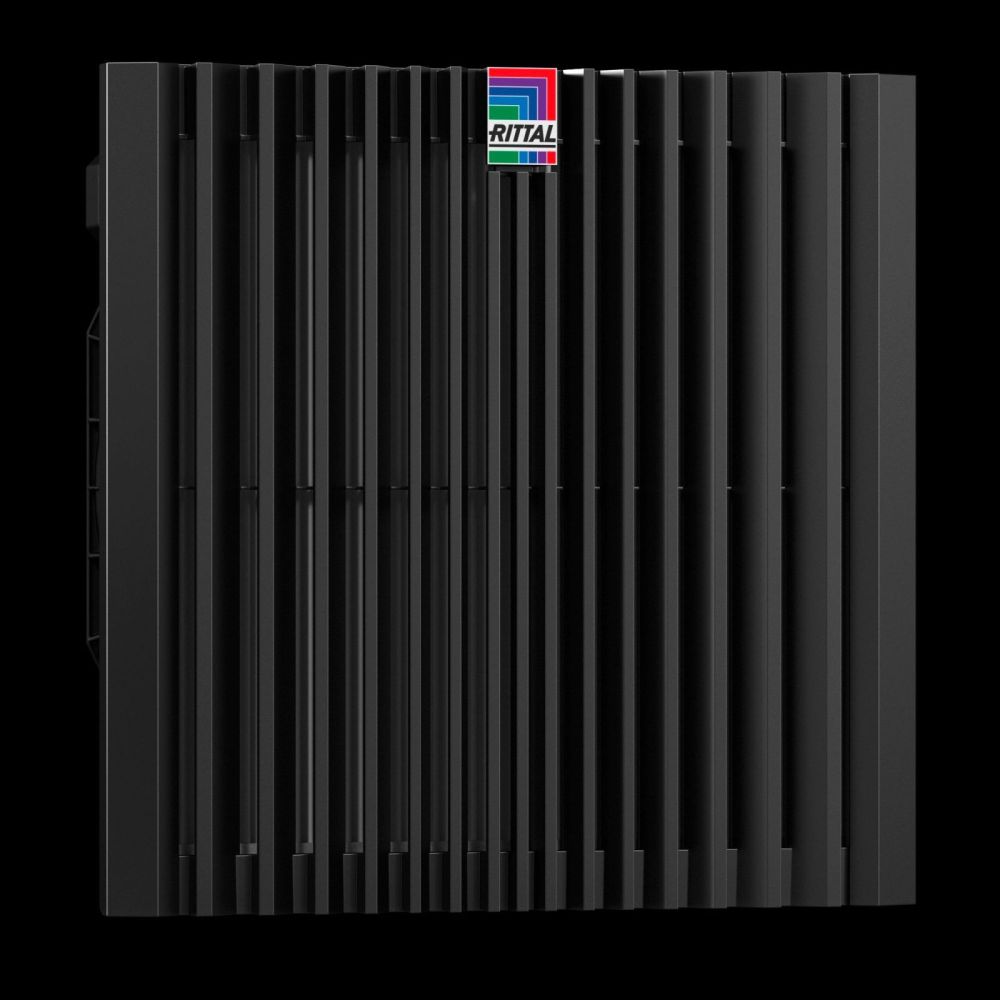

Rittal 3244900 Blue e+ filter fan EC 867 m³/h, 100 V–240 V, RAL 7035

Your rating:
Average rating
product review for Rittal 3244900 Blue e+ filter fan EC 867 m³/h, 100 V–240 V, RAL 7035
( 4.7 / 5 ) 3 ratings
Rittal 3244900
This image may differ from the desired article.
Rittal 3244900Rittal 3244900Rittal 3244900Rittal 3244900Rittal 3244900Rittal 3244900Rittal 3244900
258,64 EUR
( 307,78 EUR incl. VAT )
≈ £216.48  |  ≈ $284.25
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 3244900 Blue e+ filter fan EC 867 m³/h, 100 V–240 V, RAL 7035
Datasheet:file_download Download
Lieske Part No.:683881
Mfg Part No: 3244900
UPC/EAN: 4028177997844
Weight:4.248 kg
Type:SK 3244.900

Product information for Rittal 3244900:

The Rittal SK 3244.900 is a filter fan with EC technology, designed for enclosure climate control. It serves for controlled ventilation of enclosures, regulating internal temperature and extending the service life of installed electronic components. The unit is designed for wall mounting and is directly installed into a pre-cut mounting opening in the enclosure. The housing is made of plastic and is finished in RAL 7035, enabling visual harmonization with standard enclosure fronts. The delivery includes a fully ready-to-install unit including pleated filter, so the fan is operational immediately after installation.

Applications

The filter fan is designed for use in industrial environments where continuous and reliable cooling of enclosures is required. It is particularly suitable for applications in manufacturing, energy supply, transport infrastructure, and automation technology. The integrated filter technology ensures that dust, particles, and other contaminants are filtered from the incoming air, maintaining cleanliness inside the enclosure. The protection rating IP 54 (with nonwoven or pleated filter) provides protection against dust and splashing water, while upgrading to IP 55 (with pleated filter and absorber mat) or IP 56 (with spray water hood) offers additional protection against spray water. According to NEMA standards, the unit corresponds to Type 12 (with nonwoven or pleated filter) and Type 3, 3R, 4, 4X (with spray water hood), enabling worldwide use in various environments.

Functions and Equipment in Detail

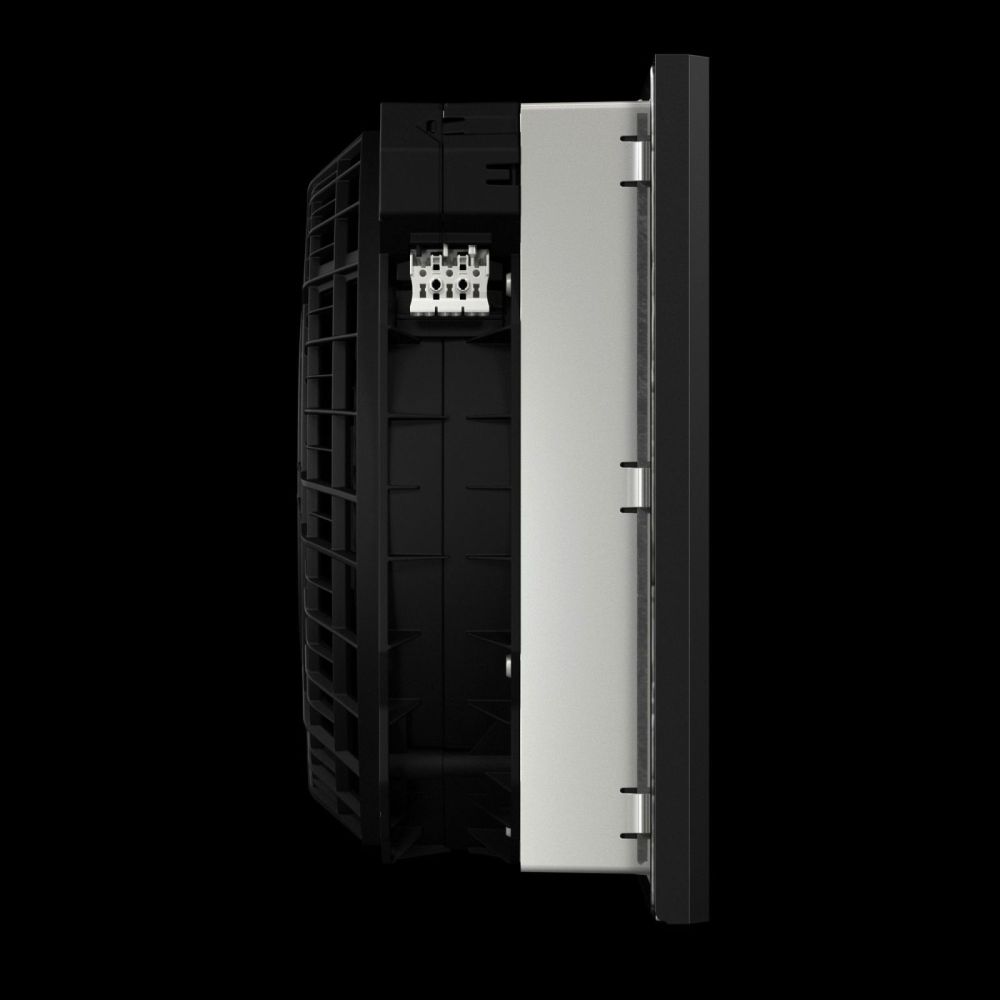

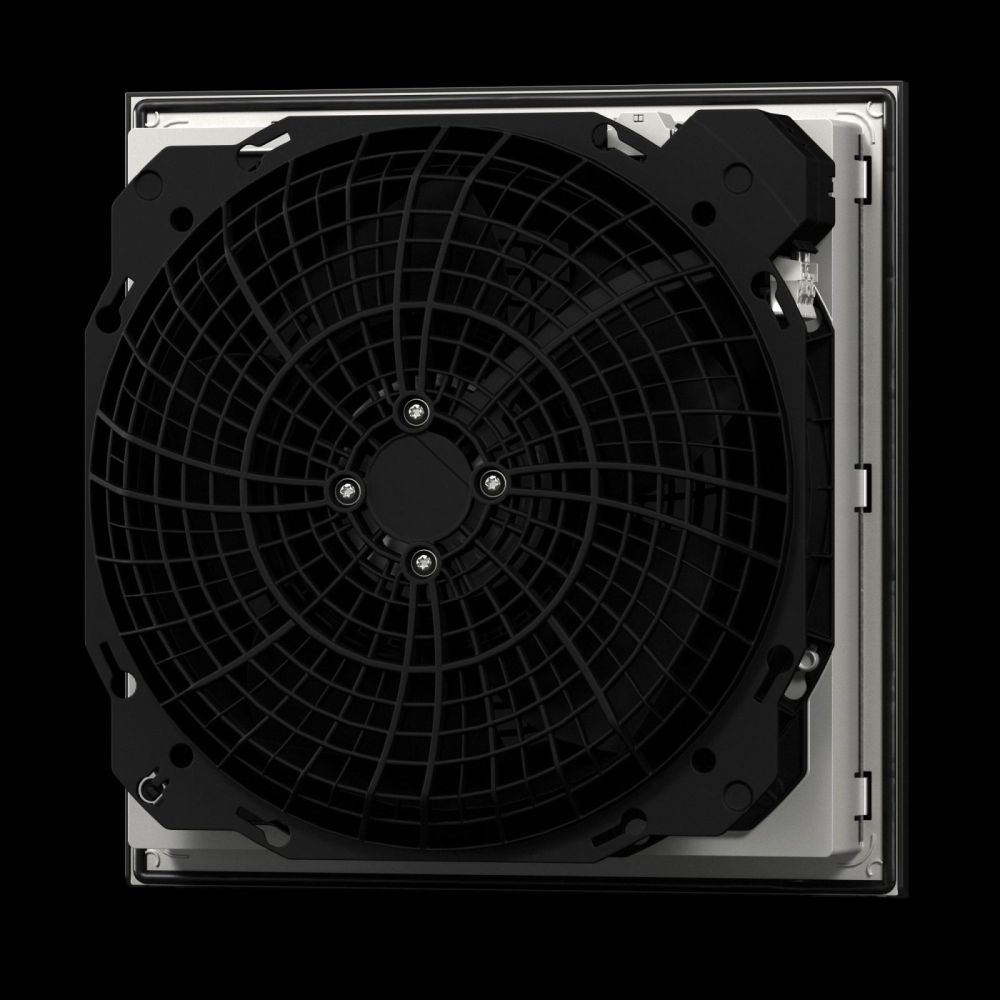

The fan features a diagonal fan with EC motor, ensuring high pressure stability and providing more uniform, consistent ventilation of the enclosure. The air performance is 867 m³/h free blowing at 50 Hz and 60 Hz, decreasing to 715 m³/h when an outlet filter is used. With a nonwoven filter, the free blowing air performance drops to 700 m³/h, and with an outlet filter, it reduces to 535 m³/h. The rated operating voltage is in the wide range of 100 V to 240 V, 1~, 50 Hz/60 Hz, enabling worldwide use. The rated power is 116.4 W at 50 Hz, and the rated current is max. 1.97 A. The operating temperature ranges from -25 °C to 55 °C, and the storage temperature from -25 °C to 70 °C. The sound pressure level is 66 dB(A) at 50 Hz, representing an acoustically acceptable operating noise level.

Technology Explained Simply

The EC technology (External Commutator) enables energy-efficient and precise speed control of the fan. Unlike conventional motors, the speed is electronically regulated rather than mechanically, resulting in higher efficiency and longer service life. The integrated ModBus interface (RS485) allows remote control and monitoring of the fan via a network. This enables functions such as automatic filter cleaning, filter maintenance indication, and emergency cooling function, which activates in case of faults or filter contamination. Additionally, the fan features a 0-10 V/PWM input for speed control, a speed output, and a potential-free fault alarm contact that signals errors or failures. Tool-free mounting is achieved via optimized snap hooks, enabling faster installation on the enclosure. A new opening mechanism on the louver grille simplifies filter replacement.

Compatibility and Accessories

The fan is compatible with various accessories that extend its functionality. These include outlet filters in RAL 7035, EC speed controller sensor, thermostat for internal temperature control, replacement filter mats (5 or 50 pieces), digital temperature display and control, SK ModBus adapter, hygrostat, spray water hood made of stainless steel, blind cover for mounting opening, pleated filter IP 54 IP 54, absorber mat IP 54, and an IoT interface. These components can be added as required to optimize protection rating, control, or monitoring functions.

Mounting and Installation

Installation is done by fitting into a pre-cut mounting opening with dimensions 292 mm (width) x 292 mm (height). The installation depth is 141 mm, and the overall dimensions of the unit are 323 mm (width) x 323 mm (height) x 161 mm (depth). Tool-free mounting via snap hooks reduces installation time and simplifies maintenance. The unit is designed for use in enclosures that feature a corresponding mounting opening.

Operational Advantages

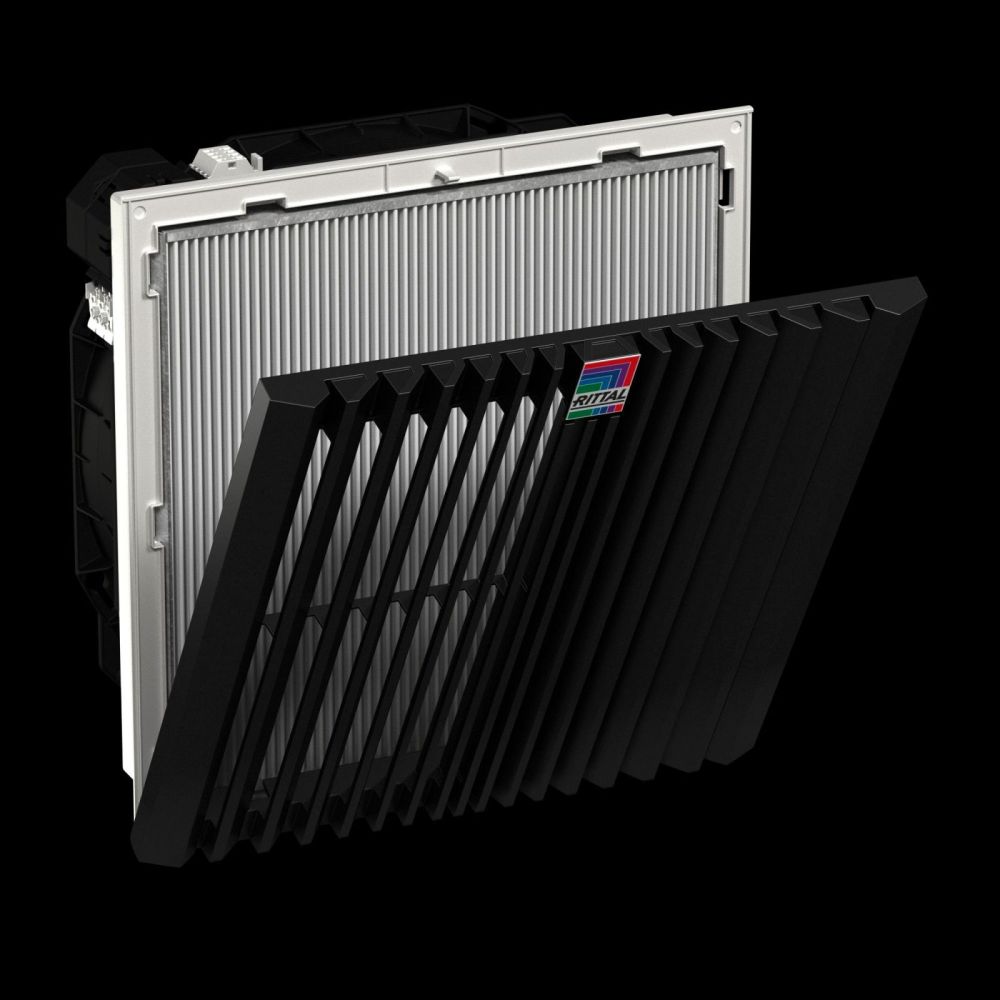

The Rittal SK 3244.900 offers high air performance due to the standard use of pleated filters, ensuring efficient cooling. The EC technology ensures low energy consumption and long service life. The ModBus interface enables integrated monitoring and control, simplifying maintenance and increasing operational reliability. Tool-free mounting and easy filter replacement reduce maintenance time. The worldwide usability due to the wide voltage input (100–240 V) makes the fan suitable for international projects. The integrated filter technology protects the enclosure interior from contamination, increasing the reliability of installed devices.

General
Modelwall mounting, EC
MaterialPlastic
ColourRAL 7035
Scope of deliveryComplete ready-to-install unit, including pleated filter
Fandiagonal, EC motor
Airflow free blowing (with pleated filter)At 50 Hz: 867 m³/h, At 60 Hz: 867 m³/h
Airflow with associated exhaust filter including pleated filterAt 50 Hz: 715 m³/h
Airflow free-blowing (with filter)At 50 Hz: 700 m³/h
Airflow with associated exhaust filter including felt filterAt 50 Hz: 535 m³/h
Rated operating voltage100 V - 240 V, 1~, 50 Hz/60 Hz
Rated power PelAt 50 Hz: 116.4 W
Rated current max.At 50 Hz: 1.97 A
Width323 mm
Height323 mm
Depth161 mm
Built-in depth141 mm
Mounting cutoutCutout width: 292 mm, Cutout height: 292 mm
Degree of protection IP according to IEC 60 529IP 54 with nonwoven filter/pleated filter, IP 55 with pleated filter and absorber mat, IP 56 with nonwoven filter/pleated filter and spray water hood
NEMA degree of protectionType 12 with felt filter/pleated filter, Type 3, 3R, 4, 4X with felt filter/pleated filter and spray water hood
FuseCircuit breaker/fuse: 6 A
Operating temperature range-25 °C...55 °C
Storage temperature range-25 °C...70 °C
Sound pressure levelAt 50 Hz: 66 dB(A)
Interfaces0 - 10 V/PWM input, speed output, potential-free fault alarm contact, RS485 (ModBus)


Product data sheet
Datasheet for Rittal 3244900, EAN: 4028177997844
