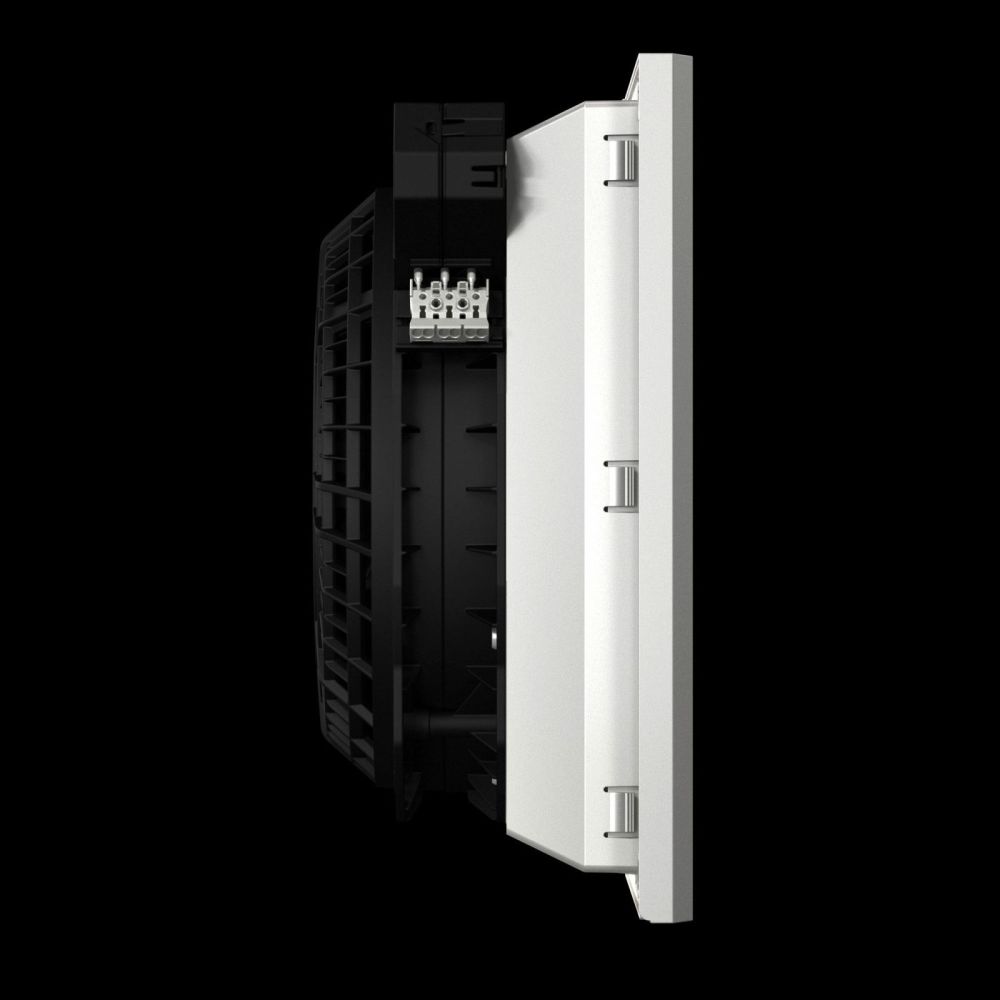

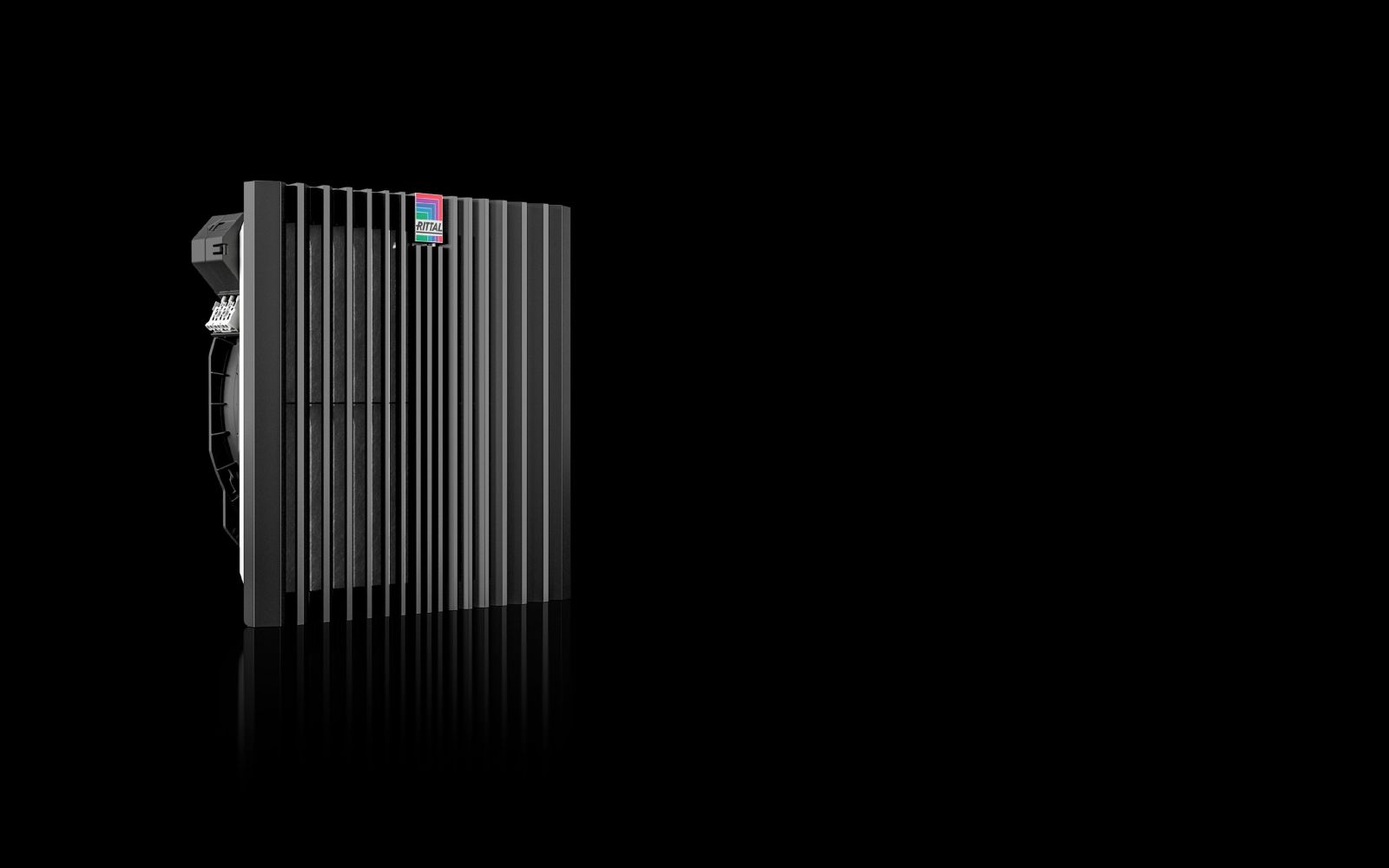

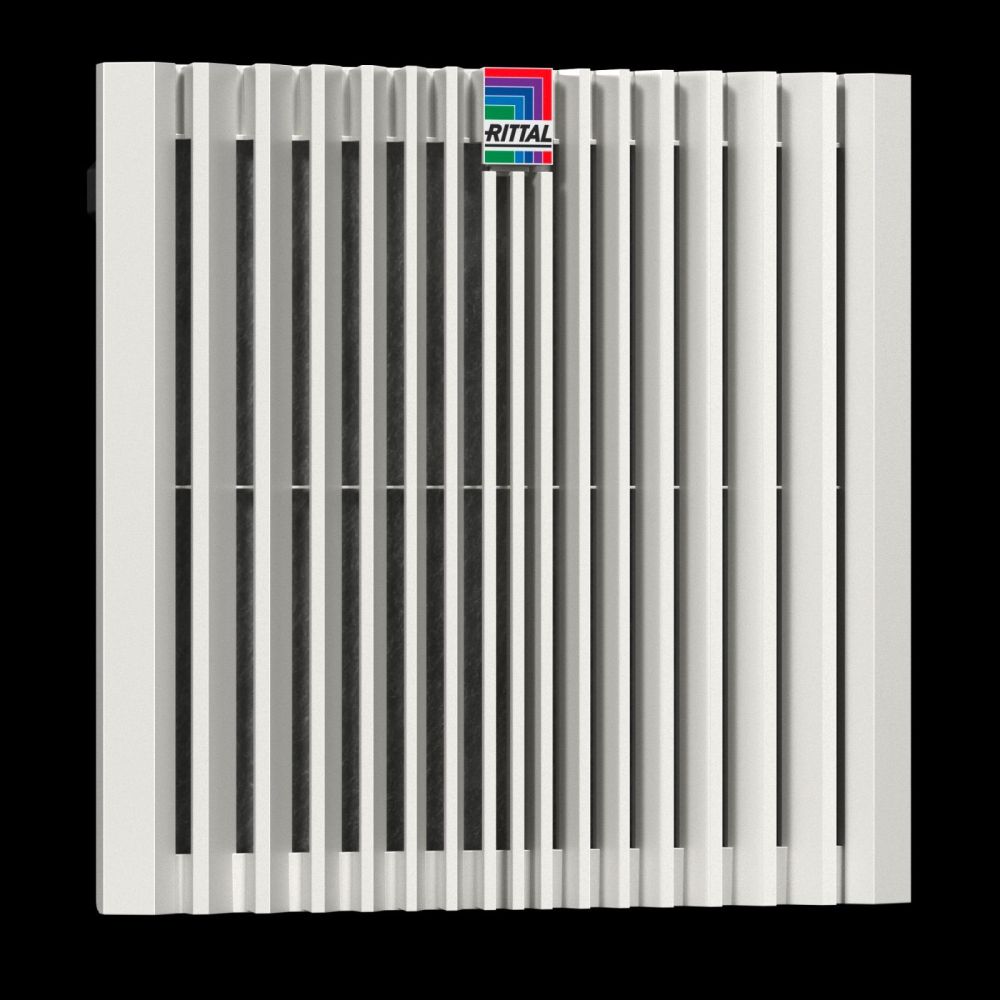

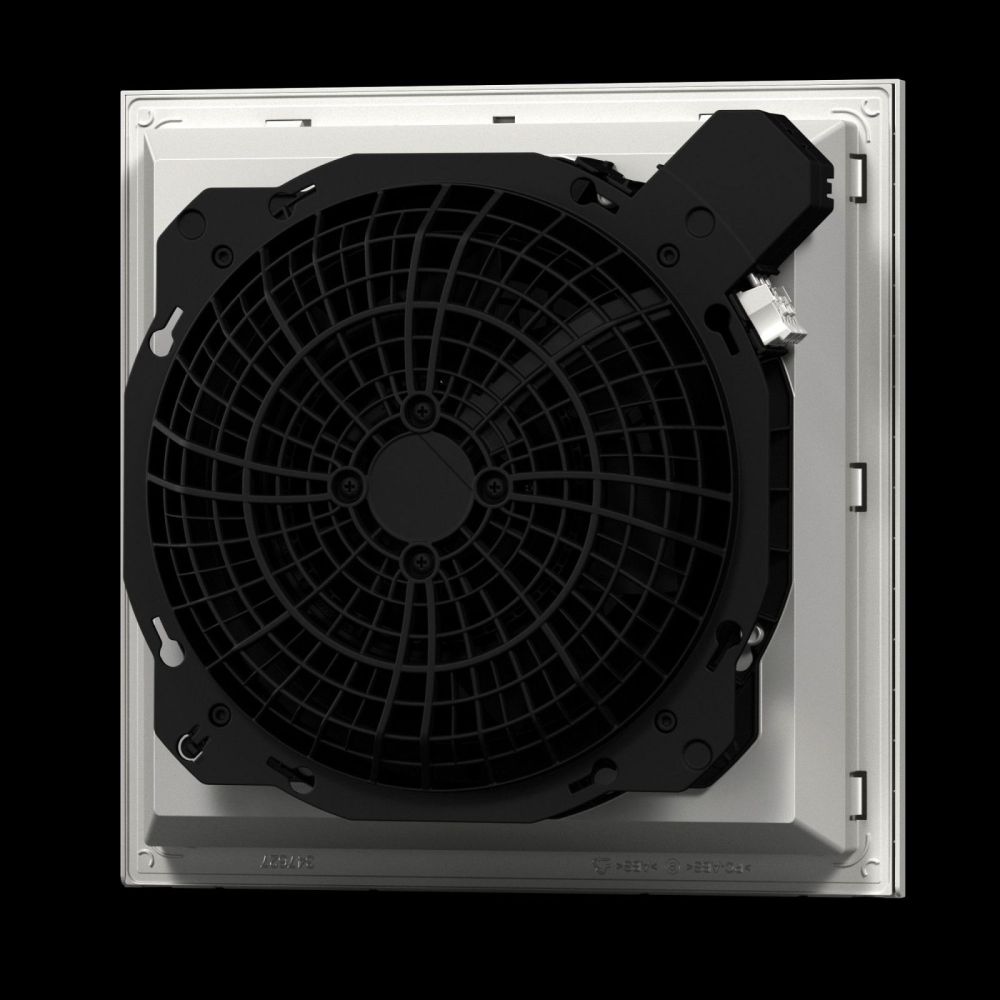

Rittal 3244718 Blue e+ filter fan 867/910 m³/h, 115 V, RAL 9005

Your rating:
Average rating
product review for Rittal 3244718 Blue e+ filter fan 867/910 m³/h, 115 V, RAL 9005
( 4.3 / 5 ) 3 ratings
Rittal 3244718
This image may differ from the desired article.
Rittal 3244718Rittal 3244718Rittal 3244718Rittal 3244718Rittal 3244718
192,74 EUR 196,31 EUR
( 229,36 EUR incl. VAT )
≈ £161.32  |  ≈ $211.82
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 3244718 Blue e+ filter fan 867/910 m³/h, 115 V, RAL 9005
Datasheet:file_download Download
Lieske Part No.:683877
Mfg Part No: 3244718
UPC/EAN: 4028177997882
Weight:4.88 kg
Type:SK 3244.718

Product information for Rittal 3244718:

The Rittal SK 3244.718 is a filter fan of the Blue e+ series, designed for enclosure climate control in industrial applications. The device is mounted as a wall-mounted installation and serves for controlled ventilation of enclosures, ensuring constant cooling and protection against dust and humid air. It features diagonal fan technology, which provides higher pressure stability and thus enables more uniform and consistent air circulation within the enclosure. The diagonal exhaust direction also ensures even cooling of electronic components.

Applications

The filter fan is designed for use in industrial environments where continuous ventilation is required to regulate operating temperature within the enclosure. It is particularly suitable for systems operating in rooms with high dust levels or humid air. The integrated filter technology protects internal components from contamination and contributes to extending the service life of electronic modules. The protection rating IP 54 is standard, while higher protection ratings such as IP 54 or IP 54 can be achieved using additional components like an absorber mat or a spray water hood.

Functions and Equipment in Detail

The device is delivered as a fully ready-to-install unit and includes a pleated filter. The air performance is 867 m³/h at 50 Hz and 910 m³/h at 60 Hz when measured free-blowing. When used with a matching outlet filter, the performance drops to 720 m³/h (50 Hz) or 745 m³/h (60 Hz). The rated operating voltage is 115 V, 1~, designed for frequencies of 50 Hz and 60 Hz. The rated power is 120.7 W (50 Hz) or 166.1 W (60 Hz), with a maximum rated current of 1.06 A (50 Hz) or 1.47 A (60 Hz). The sound pressure levels are 64 dB(A) (50 Hz) and 66 dB(A) (60 Hz), representing an acoustically acceptable operating noise level.

Technology Explained Simply

The fan operates with a diagonal fan and a 1~ capacitor motor, ensuring stable rotational speed and high efficiency. The pleated filter technology allows for high air performance while simultaneously filtering particles. Filter replacement is simplified by a new opening mechanism on the louver grille. Installation is tool-free thanks to optimized snap hooks, accelerating mounting on the enclosure. The installation depth is 136 mm, and the mounting cutout measures 292 mm (width) × 292 mm (height). The device dimensions are 323 mm (width) × 323 mm (height) × 156 mm (depth).

Compatibility and Accessories

To increase the protection rating, additional components such as a spray water hood or an absorber mat can be used, enabling protection ratings IP 54 and IP 54. Matching outlet filters in RAL 9005 are available, as well as replacement filter mats for maintenance. For precise temperature control, a thermostat or digital temperature display and control can be combined. A speed controller allows adjustment of air performance according to operating conditions. The fuse is rated at 6 A, and the use of a fuse switch or a fuse is recommended.

Installation and Mounting

Mounting is tool-free onto a surface, with optimized snap hooks ensuring quick and secure fastening. Electrical connection is made via spring clamp terminals, whereas other models (e.g. 3237.XXX) provide connection via individual wires. Installation dimensions and mounting cutout are clearly defined to enable seamless integration into existing enclosure constructions.

Operational Advantages

The filter fan offers high air performance at low noise levels and is designed for operating temperatures from -30 °C to 55 °C. Tool-free mounting and easy filter replacement reduce maintenance time. The integrated filter technology ensures clean air circulation and protects electronic components from contamination. The use of pleated filters in the standard delivery guarantees maximum airflow performance from the start. The protection rating IP 54 is standard, and higher protection ratings can be achieved with additional components, expanding the range of possible applications in various environments.

General
ModelWall surface mounted
MaterialPlastic
ColourRAL 9005
Scope of deliveryComplete ready-to-install unit, including pleated filter
FanDiagonal, 1~ capacitor motor
Airflow free blowing (with pleated filter)At 50 Hz: 867 m³/h, At 60 Hz: 910 m³/h
Airflow with associated exhaust filter including pleated filterAt 50 Hz: 720 m³/h, At 60 Hz: 745 m³/h
Airflow free-blowing (with filter)At 50 Hz: 700 m³/h, At 60 Hz: 770 m³/h
Airflow with associated exhaust filter including felt filterAt 50 Hz: 537 m³/h, At 60 Hz: 587 m³/h
Rated operating voltage115 V, 1~, 50 Hz/60 Hz
Rated power PelAt 50 Hz: 120.7 W, At 60 Hz: 166.1 W
Rated current max.At 50 Hz: 1.06 A, At 60 Hz: 1.47 A
Width323 mm
Height323 mm
Depth156 mm
Built-in depth136 mm
Mounting cutoutCutout width: 292 mm, Cutout height: 292 mm
Degree of protection IP according to IEC 60 529IP 54 with nonwoven filter/pleated filter, IP 55 with pleated filter and absorber mat, IP 56 with nonwoven filter/pleated filter and spray water hood
NEMA degree of protectionType 12 with felt filter/pleated filter, Type 3, 3R, 4, 4X with felt filter/pleated filter and spray water hood
FuseCircuit breaker/fuse: 6 A
NoteFor the filter fan 3237.XXX, the electrical connection is made via 2 individual wires (approx. 300 mm length) on the device; for all other filter fans, via spring clamp terminal.
Operating temperature range-30 °C...55 °C
Storage temperature range-30 °C...70 °C
Sound pressure levelAt 50 Hz: 64 dB(A), At 60 Hz: 66 dB(A)


Product data sheet
Datasheet for Rittal 3244718, EAN: 4028177997882
