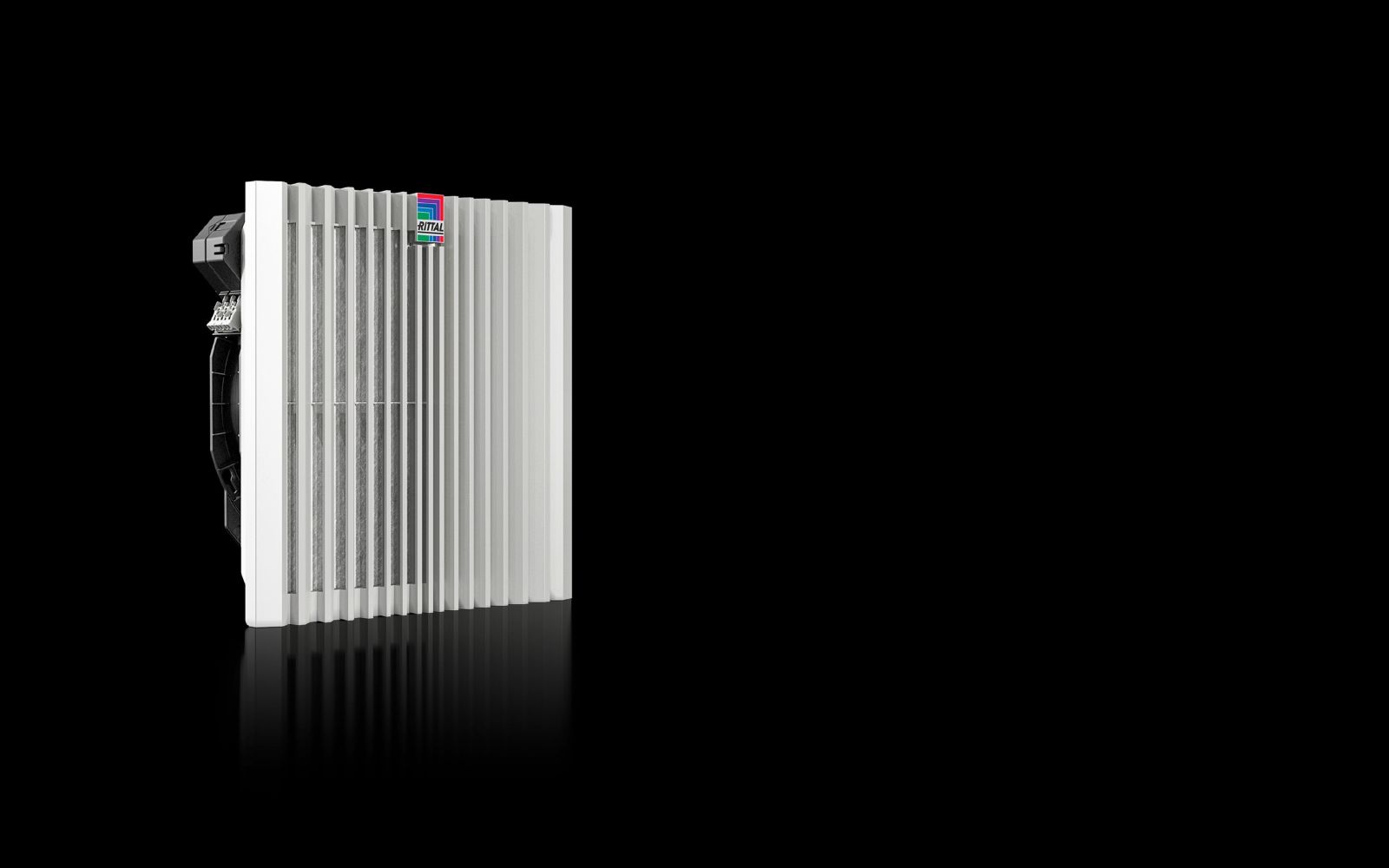

Rittal 3244740 Blue e+ filter fan 867/910 m³/h, 400 V, RAL 7035
|
245,99 EUR |
|
|
( 292,73 EUR incl. VAT ) ≈ £205.89 | ≈ $270.34 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 683878 |
| Mfg Part No: | 3244740 |
| UPC/EAN: | 4028177997875 |
| Weight: | 4.82 kg |
| Type: | SK 3244.740 |
Product information for Rittal 3244740:
Applications
This filter fan is intended for use in industrial environments where continuous and reliable ventilation of enclosures is required. It is particularly suitable for installations operating in rooms with increased dust or moisture exposure. The integrated filter technology ensures that only cleaned air enters the enclosure, minimizing contamination of internal components. The protection rating IP 54 (with felt filter/pleated filter) provides protection against dust and splashing water, enabling safe operation in damp or dusty environments. Higher protection ratings such as IP 54 or IP 54 can be achieved by using additional components like an absorber mat or spray water hood.
Functions and Equipment in Detail

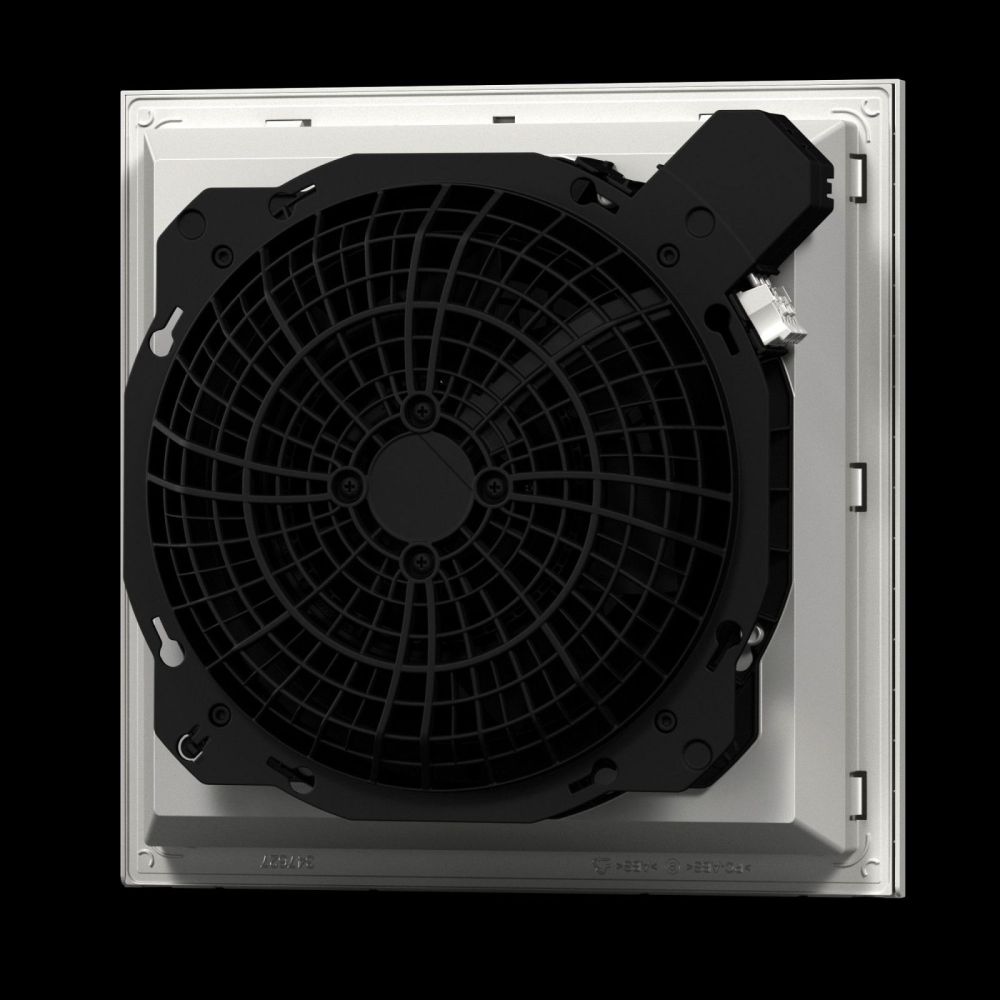

The fan features a diagonal fan with three-phase motor, ensuring more uniform and consistent airflow within the enclosure. The diagonal exhaust direction improves air distribution and prevents local overheating. Airflow performance is 867 m³/h at 50 Hz and 910 m³/h at 60 Hz when the pleated filter is installed. With a felt filter, airflow reduces to 700 m³/h (50 Hz) or 770 m³/h (60 Hz). Airflow further decreases when an outlet filter is mounted — to 720 m³/h (50 Hz) with pleated filter or 537 m³/h (50 Hz) with felt filter. The rated power is 116.9 W at 50 Hz and 165.6 W at 60 Hz, with a rated current of max. 0.22 A (50 Hz) or 0.28 A (60 Hz). The operating temperature range is from -30 °C to +55 °C, enabling use in various climatic regions.
Technology Explained Simply
The diagonal fan technology provides higher pressure stability compared to radial fans, resulting in more consistent airflow. This is especially important in enclosures where uniform cooling of all components is required. The pleated filters included in the delivery filter fine particles from incoming air and prevent dust accumulation on electronic components. The opening mechanism on the louver grille allows for easy and quick filter replacement without tools. Tool-free mounting is enabled by optimized snap hooks, ensuring fast and secure attachment to the enclosure.
Compatibility and Accessories
The filter fan can be combined with various accessories to adjust protection rating or filtration performance. These include outlet filters in RAL 7035, replacement filter mats (in packs of 5 or 50), spray water hoods made of stainless steel, and absorber mats. Using these components allows achieving protection ratings of IP 54 or IP 54, depending on configuration. The spray water hood increases protection to IP 54 and meets NEMA requirements Type 3, 3R, 4, and 4X. The absorber mat in combination with the pleated filter enables achieving IP 54.
Mounting and Installation
Mounting is tool-free to the enclosure wall. The required mounting cutout is 292 mm in width and height. The installation depth of the device is 136 mm, with total depth of 156 mm. Electrical connection is made via spring clamp terminals, with sources explicitly indicating this applies to all filter fans except the 3237.XXX series. The rated operating voltage is 400 V, 3~, 50 Hz/60 Hz, as well as 460 V, 3~, 60 Hz.
Operational Advantages
The Rittal SK 3244.740 offers high airflow performance with low energy consumption. The integrated filter technology reduces maintenance frequency, as filters can be easily replaced. Tool-free mounting and simple filter replacement reduce installation and maintenance times. The sound pressure level is 64 dB(A) at 50 Hz and 66 dB(A) at 60 Hz, ensuring an acoustically acceptable operating noise level. The storage temperature range of -30 °C to +70 °C allows flexible storage before installation.
| General | |
| Model | Wall surface mounted |
| Material | Plastic |
| Colour | RAL 7035 |
| Scope of delivery | Complete ready-to-install unit, including pleated filter |
| Fan | Diagonal, three-phase motor |
| Airflow free blowing (with pleated filter) | At 50 Hz: 867 m³/h, At 60 Hz: 910 m³/h |
| Airflow with associated exhaust filter including pleated filter | At 50 Hz: 720 m³/h, At 60 Hz: 745 m³/h |
| Airflow free-blowing (with filter) | At 50 Hz: 700 m³/h, At 60 Hz: 770 m³/h |
| Airflow with associated exhaust filter including felt filter | At 50 Hz: 537 m³/h, At 60 Hz: 587 m³/h |
| Rated operating voltage | 400 V, 3~, 50 Hz/60 Hz, 460 V, 3~, 60 Hz |
| Rated power Pel | At 50 Hz: 116.9 W, At 60 Hz: 165.6 W |
| Rated current max. | At 50 Hz: 0.22 A, At 60 Hz: 0.28 A |
| Width | 323 mm |
| Height | 323 mm |
| Depth | 156 mm |
| Built-in depth | 136 mm |
| Mounting cutout | Cutout width: 292 mm, Cutout height: 292 mm |
| Degree of protection IP according to IEC 60 529 | IP 54 with nonwoven filter/pleated filter, IP 55 with pleated filter and absorber mat, IP 56 with nonwoven filter/pleated filter and spray water hood |
| NEMA degree of protection | Type 12 with felt filter/pleated filter, Type 3, 3R, 4, 4X with felt filter/pleated filter and spray water hood |
| Note | For the filter fan 3237.XXX, the electrical connection is made via 2 individual wires (approx. 300 mm length) on the device; for all other filter fans, via spring clamp terminal. |
| Operating temperature range | -30 °C...55 °C |
| Storage temperature range | -30 °C...70 °C |
| Sound pressure level | At 50 Hz: 64 dB(A), At 60 Hz: 66 dB(A) |
