Rittal 3244700 Blue e+ Filter fan 867/910 m³/h, 230 V, RAL 7035,
|
176,53 EUR 184,20 EUR |
|
|
( 210,07 EUR incl. VAT ) ≈ £151.46 | ≈ $204.60 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: 5 pieces | |
| Lieske Part No.: | 683870 |
|---|---|
| Mfg Part No: | 3244700 |
| UPC/EAN: | 4028177997912 |
| Weight: | 4.8 kg |
Further Rack-Climatization from RittalFurther products in category Rack-Climatization
All products of Rittal
Product information for Rittal 3244700:

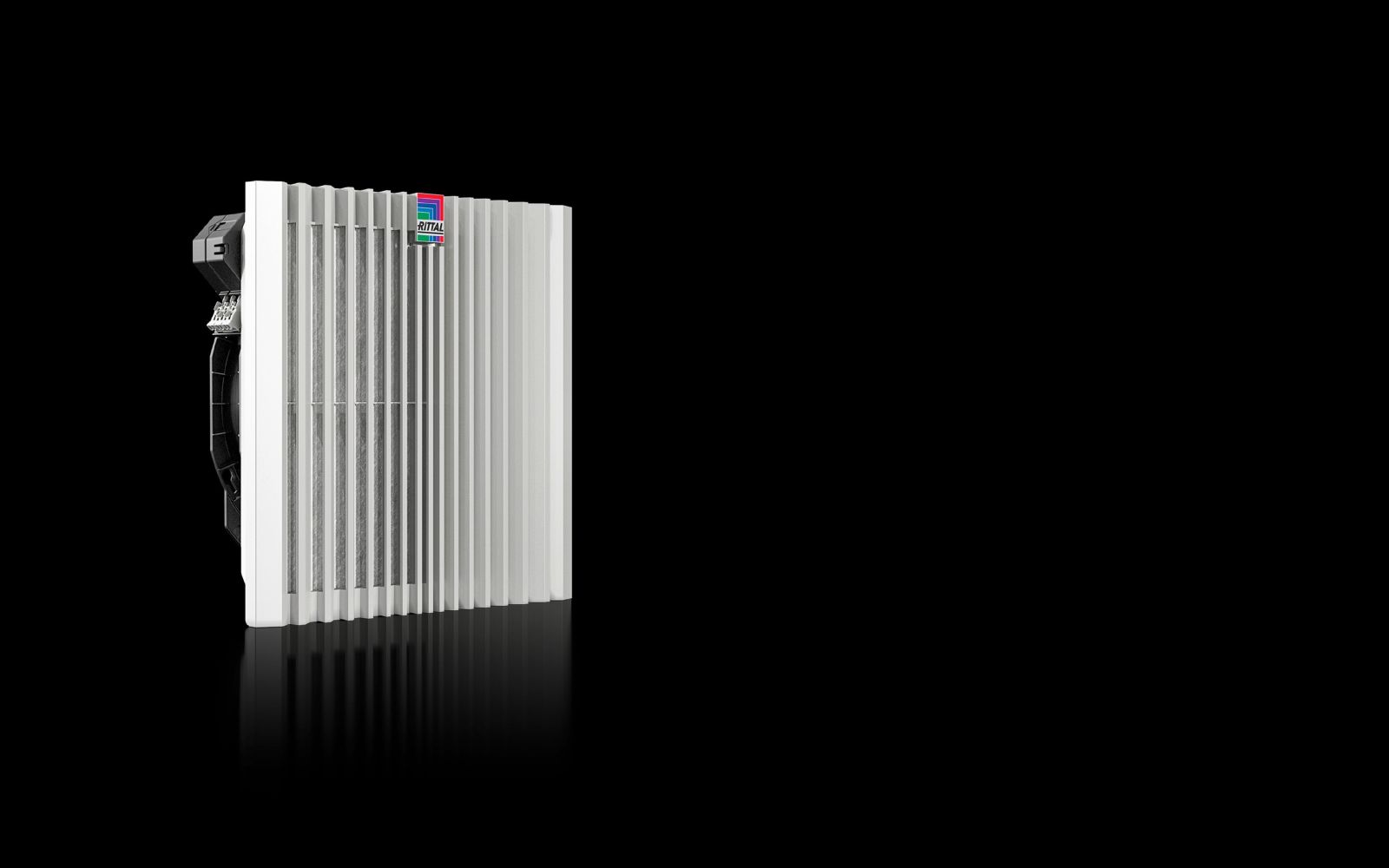

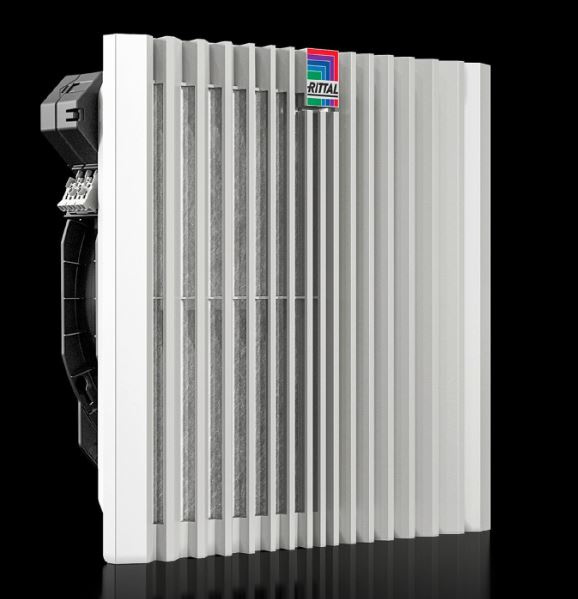

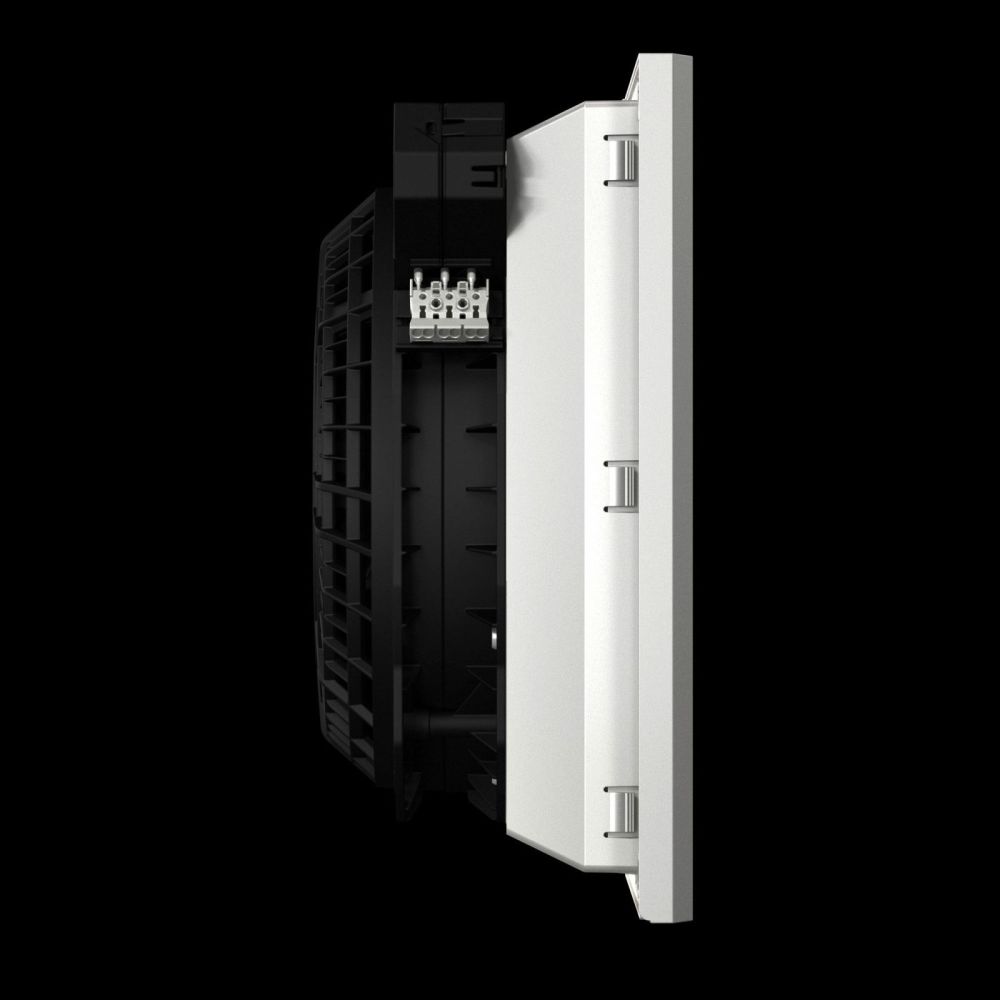

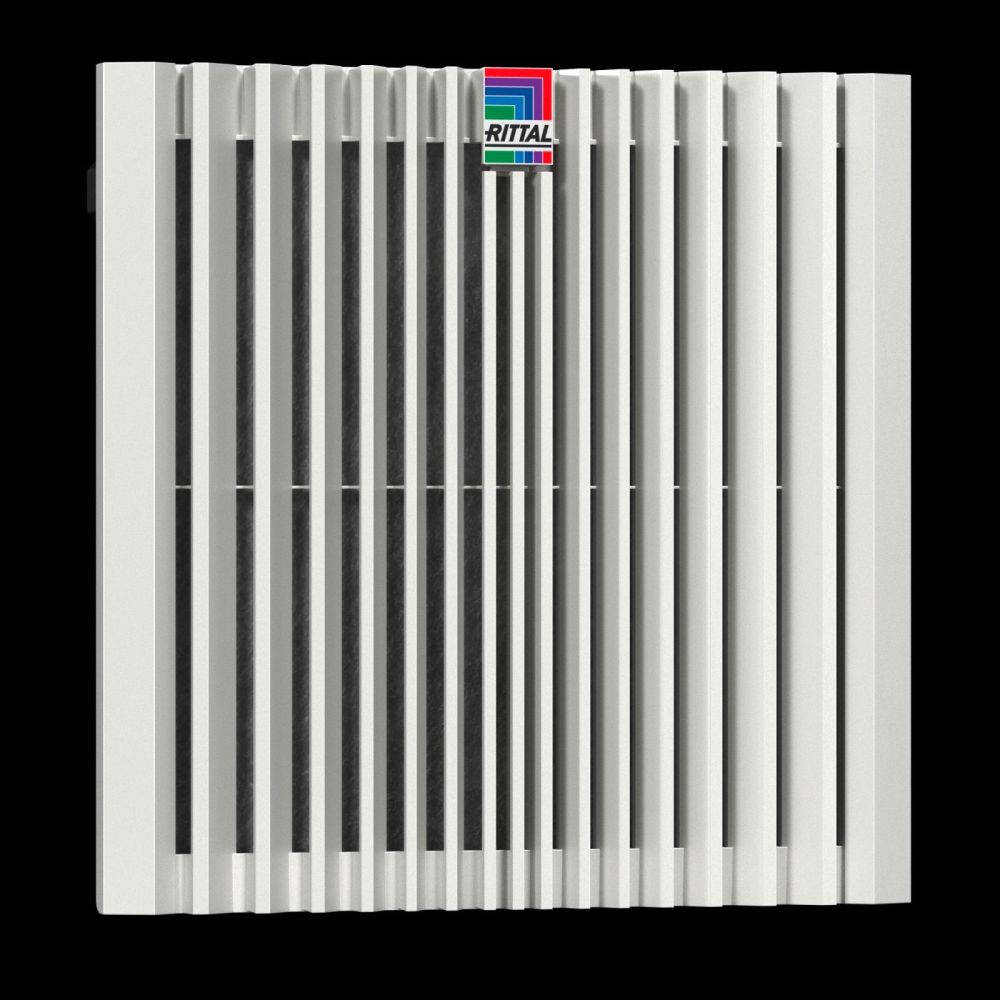

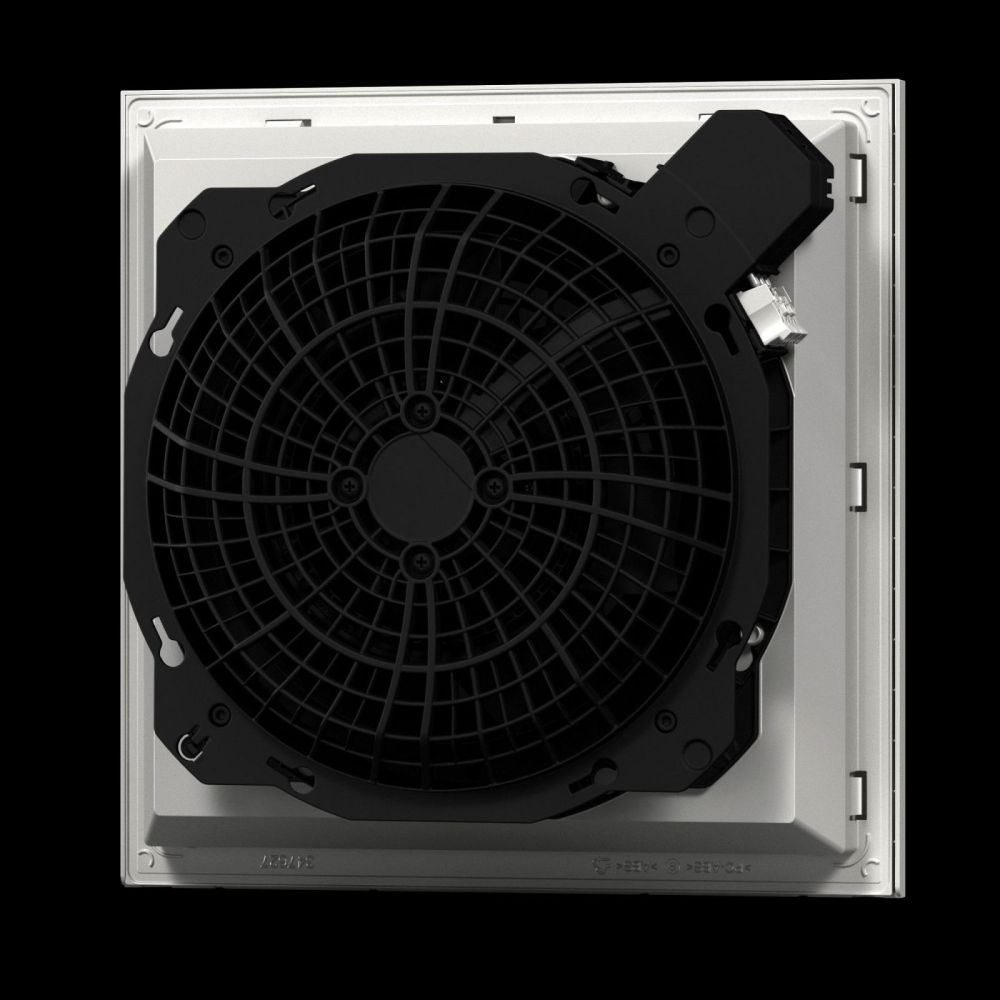

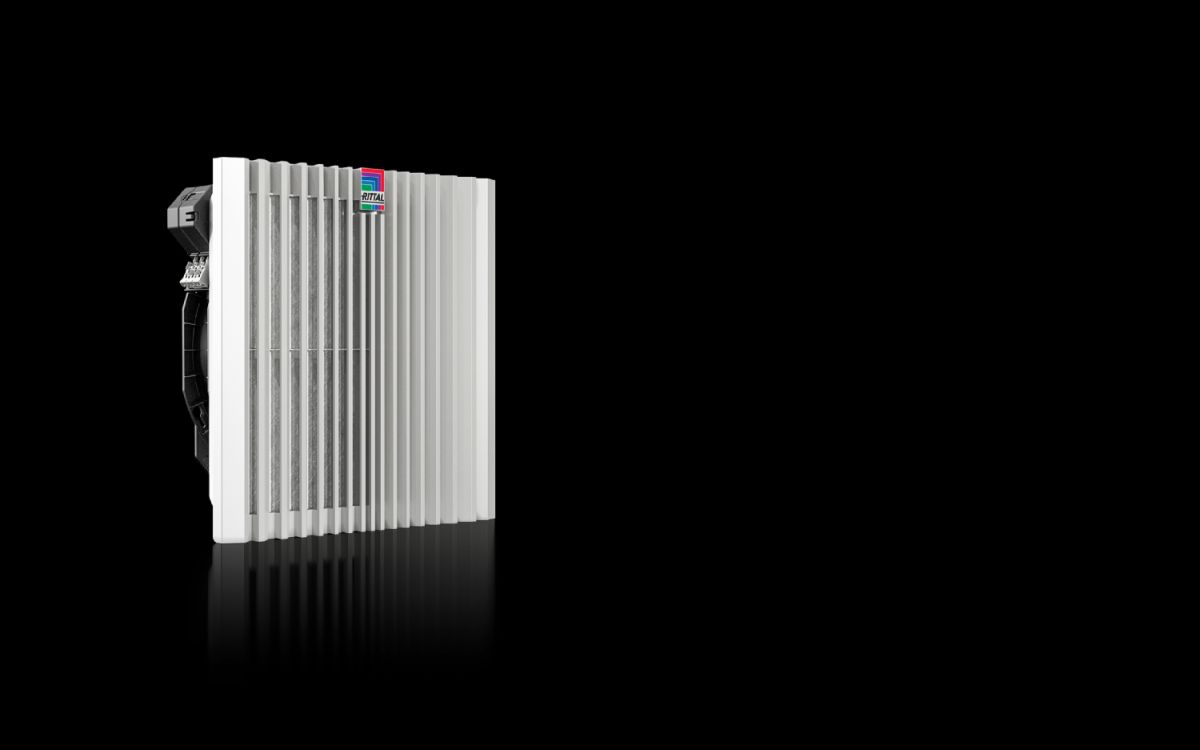

The Rittal SK 3244.700 is a Blue e+ filter fan, specifically designed for efficient and reliable ventilation of control cabinets in industrial applications. With an airflow rate of 867 m³/h at 50 Hz and 910 m³/h at 60 Hz, the fan ensures constant and pressure-stable air circulation, which is particularly advantageous under varying operating conditions. The integrated filter technology with a pleated filter protects the interior of the control cabinet from dust and particles, thereby increasing the lifespan of the installed electronics. The diagonal fan technology ensures even air distribution and minimizes vibrations, positively affecting operational safety and noise levels.
The fan is designed for a rated operating voltage of 230 V, 1~, 50 Hz/60 Hz, making it suitable for use in various international power grids. The tool-free mounting via snap fastening allows for quick and easy installation on surfaces, reducing maintenance and installation times. The robust construction with protection class IP54 (dust-tight, splash-proof) and NEMA 12 makes the fan suitable for use in industrial environments where high requirements for environmental resistance are placed. The color RAL 7035 (gray) ensures harmonious integration into existing control cabinet systems.
Technical Data
Type: SK 3244.700
The fan is designed for a rated operating voltage of 230 V, 1~, 50 Hz/60 Hz, making it suitable for use in various international power grids. The tool-free mounting via snap fastening allows for quick and easy installation on surfaces, reducing maintenance and installation times. The robust construction with protection class IP54 (dust-tight, splash-proof) and NEMA 12 makes the fan suitable for use in industrial environments where high requirements for environmental resistance are placed. The color RAL 7035 (gray) ensures harmonious integration into existing control cabinet systems.
Technical Data
- Product name: Blue e+ filter fan
- Airflow rate: 867 m³/h (50 Hz), 910 m³/h (60 Hz)
- Free airflow (with pleated filter): 700 m³/h (50 Hz), 770 m³/h (60 Hz)
- Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
- Protection class (IP): IP54
- Protection class (NEMA): 12
- Mounting type: Snap fastening
- Color: RAL 7035, gray
- Dimensions (W x H x D): 323 x 323 x 156 mm
- Weight (net): 4.8 kg
- Country of origin: Germany
Type: SK 3244.700
Questions & answers
What is the delivery time of Rittal 3244700 Blue e+ Filter fan 867/910 m³/h, 230 V, RAL 7035, ?
The article Rittal 3244700 Blue e+ Filter fan 867/910 m³/h, 230 V, RAL 7035, is currently in stock
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3244700 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 3244700 Blue e+ Filter fan 867/910 m³/h, 230 V, RAL 7035, always at the best possible price. We can give you a discount of 2% on Rittal 3244700 Blue e+ Filter fan 867/910 m³/h, 230 V, RAL 7035, if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
