Rittal 3243208 SK outlet filter for 3243/44/45.xxx

Your rating:
Average rating
product review for Rittal 3243208 SK outlet filter for 3243/44/45.xxx
( 4.3 / 5 ) 3 ratings
Rittal 3243208
This image may differ from the desired article.
Rittal 3243208Rittal 3243208Rittal 3243208Rittal 3243208
41,43 EUR 43,23 EUR
( 49,30 EUR incl. VAT )
≈ £34.68  |  ≈ $45.53
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 3243208 SK outlet filter for 3243/44/45.xxx
Datasheet:file_download Download
Lieske Part No.:1884586
Mfg Part No: 3243208
UPC/EAN: 4028177663879
Weight:0.811 kg
Type:SK 3243208

Product information for Rittal 3243208:

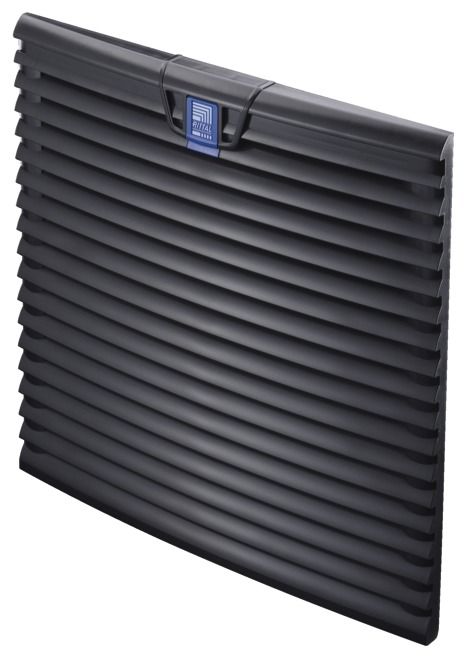

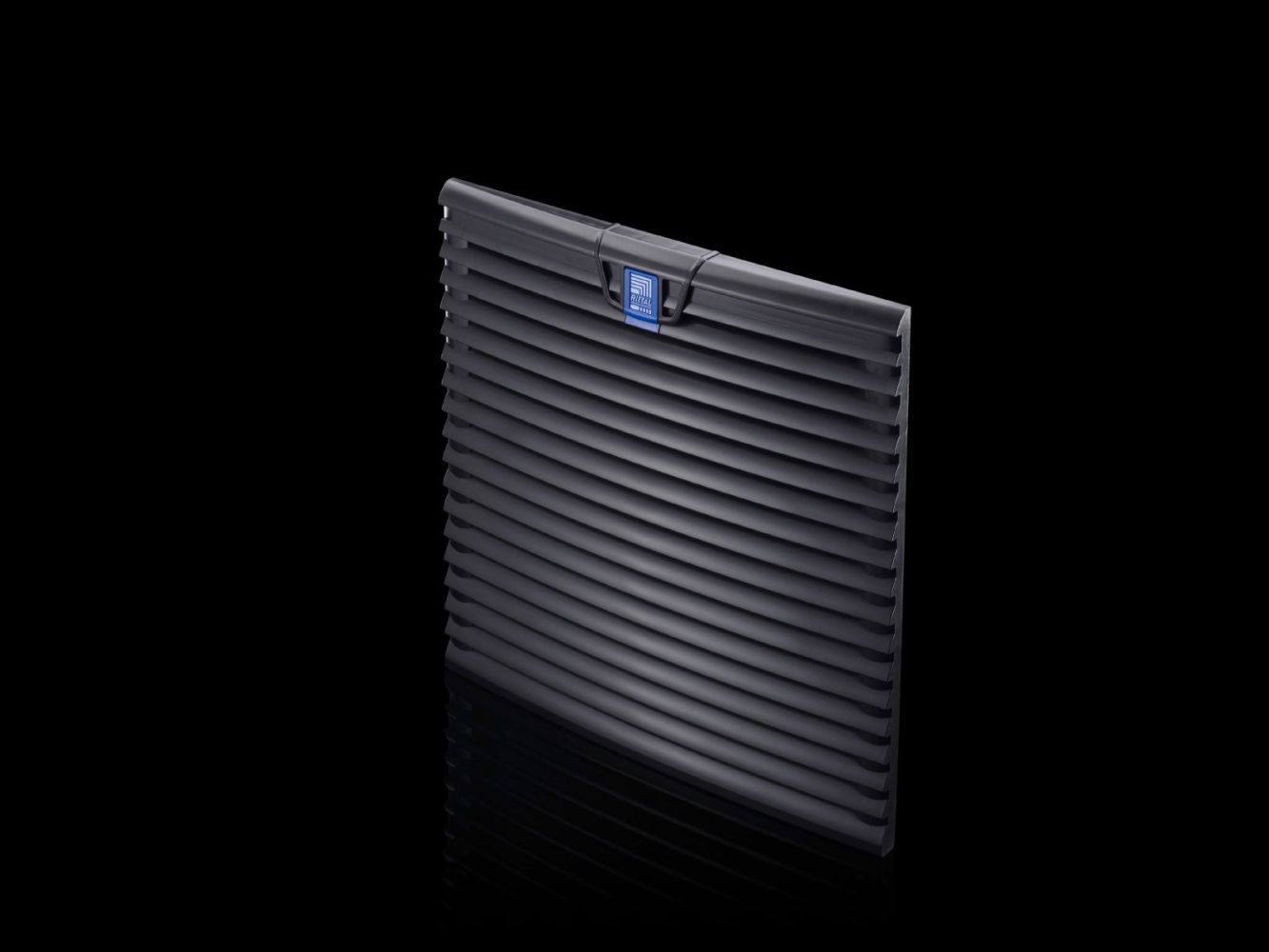

The Rittal SK 3243208 is an outlet filter for the ventilation of enclosures via convection. It is mounted in the upper or lower section of the enclosure to enable controlled air exhaust, while simultaneously preventing the ingress of dust and foreign objects. The device is made of ABS and is finished in RAL 9005, enabling visual harmonization with standard enclosure fronts. Dimensions are 323 mm width, 323 mm height, and 25 mm depth, with the mounting cutout requiring a breakout of 292 mm width and 292 mm height.

Applications

The outlet filter is intended for enclosures of the SK 3243.1xx, 3243.5xx, 3244.1xx, 3244.5xx, and 3245.5xx series. It serves natural ventilation via thermal convection, where warm air is expelled from the enclosure without requiring additional fans or external drives. This is particularly useful in systems with low heat generation or in environments with limited space.

Functions and Equipment in Detail

The product is supplied with an outlet filter and a nonwoven filter mat. The nonwoven filter mat acts as a protective filter, retaining dust and fine particles. The combination of filter and housing enables efficient airflow, with the filter mat being easily replaceable to ensure continuous air quality within the enclosure.

Technology Explained Simply

The filter is designed for various protection ratings. With a nonwoven filter or pleated filter, it achieves IP 54 protection according to IEC 60 529, meaning it is dust-tight and protected against splashing water from all directions. When used with a pleated filter and an absorber mat, the protection rating reaches IP 54, offering additional protection against water jets from limited directions. With a nonwoven/pleated filter and a spray hood, the filter achieves IP 54, providing high protection against heavy splashing and water jets from all directions. In terms of NEMA protection ratings, the device supports Type 3, Type 3R, Type 4, Type 4X, and Type 12, with higher NEMA classes achievable when using additional components such as spray hoods.

Compatibility and Accessories

The outlet filter is specifically designed for the mentioned enclosure models. As compatible accessory, the Blue e+ outlet filter in RAL 9005 is offered, which is technically compatible and represents an alternative version. The use of additional components such as spray hoods or absorber mats can increase the protection rating, with exact combinations specified in the technical features.

Mounting and Installation

Installation is performed by fitting into a pre-defined breakout of 292 mm width and 292 mm height in the enclosure. Precise positioning in the upper or lower section of the enclosure depends on the airflow concept. Installation requires no additional tools or components, as the device is directly inserted into the designated cutout.

Operational Advantages

Using the outlet filter enables passive ventilation that requires no additional power supply. The filter mat can be replaced when soiled, simplifying maintenance. The high protection rating of IP 54 and compatibility with various NEMA classes make the device suitable for applications with demanding environmental conditions, such as in industrial facilities or outdoor use.

General
MaterialABS
ColourRAL 9005
Scope of deliveryexhaust filter, non-woven filter mat
Mounting cutoutCutout width: 292 mm, Cutout height: 292 mm
Suitable for part no.SK 3243.1xx/3243.5xx/3244.1xx/3244.5xx/3245.5xx
Width323 mm
Height323 mm
Depth25 mm
NEMA degree of protectionType 12 with felt filter/pleated filter, Type 3, Type 3R, Type 4, Type 4X with felt filter/pleated filter and spray hood
Degree of protection IP according to IEC 60 529IP 54 with nonwoven filter/pleated filter, IP 55 with pleated filter and absorber mat, IP 56 with nonwoven filter/pleated filter and spray water hood


Product data sheet
Datasheet for Rittal 3243208, EAN: 4028177663879

Questions & answers

What is the delivery time of Rittal 3243208 SK outlet filter for 3243/44/45.xxx?

The article Rittal 3243208 SK outlet filter for 3243/44/45.xxx is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3243208 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3243208 SK outlet filter for 3243/44/45.xxx always at the best possible price. We can give you a discount of 2% on Rittal 3243208 SK outlet filter for 3243/44/45.xxx if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
