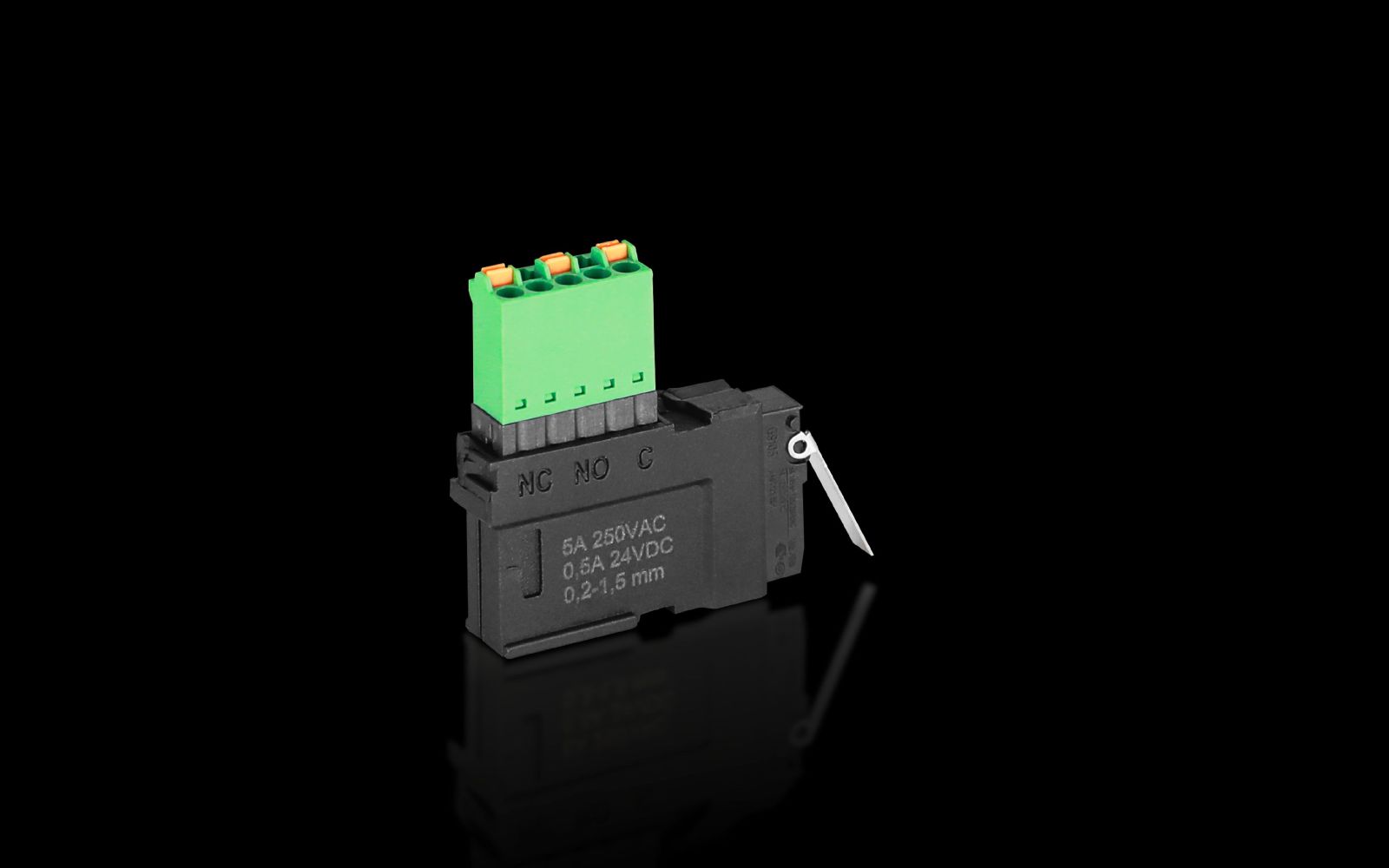

Rittal 9365505 RX microswitch 1=5 for NH disconnector size 00-3

Your rating:
Average rating
product review for Rittal 9365505 RX microswitch 1=5 for NH disconnector size 00-3
( 4.5 / 5 ) 2 ratings
Rittal 9365505
This image may differ from the desired article.
-6% 13,80 EUR 14,75 EUR
( 16,42 EUR incl. VAT )
≈ £11.54  |  ≈ $15.25
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 2 pieces
1x Rittal 9365505 RX microswitch 1=5 for NH disconnector size 00-3
Datasheet:file_download Download
Lieske Part No.:612149
Mfg Part No: 9365505
UPC/EAN: 4069196010466
Weight:0.08 kg
Type:RX 9365505

Product information for Rittal 9365505:

The Rittal RX 9365505 is a microswitch for NH fuse switch disconnectors of sizes 00 to 3. It serves the signalling of switching position and was specifically developed for Rittal’s RiLineX series to visually or electrically transmit the operating status of switch disconnectors in enclosures. The component is part of power distribution components and supports safe and reliable operational monitoring in industrial electrical installations.

Applications
The microswitch is used in industrial enclosures where NH fuse switch disconnectors of sizes 00, 1, 2, and 3 are installed. It enables monitoring whether the switch disconnector is in the On" or "Off position, which is important for maintenance, servicing, and operational safety. The signalling can be integrated with light signals, alarm systems, or control systems to document the status of power supply.

Functions and Equipment in Detail
The microswitch is designed for mounting on NH fuse switch disconnectors with article numbers 9362000 to 9362350 and 9363000 to 9363315. It is available in a packaging unit of 2 pcs. Signalling occurs through mechanical contact engagement when the switch disconnector is moved into a specific position.

Technology Explained Simply
The microswitch operates mechanically and responds to the movement of the switch disconnector. When the switch disconnector is moved to the On position, the switch is actuated and closes an electrical contact. This contact can be integrated into a control system or signalling device to indicate the status. The technology is passive and requires no additional power supply—the signal transmission occurs via mechanical movement. The microswitch is used in conjunction with the specified switch disconnectors, which are installed in enclosures for power distribution.

Compatibility and Accessories
The microswitch is specifically designed for RiLineX NH fuse switch disconnectors of sizes 00 to 3. It is compatible with article numbers 9362000 to 9362350 and 9363000 to 9363315. Use is exclusively in conjunction with the specified switch disconnectors.

Mounting and Installation
Mounting is done directly onto the switch disconnector, with the exact mounting instructions not described in the datasheet. Installation is performed by mechanical fastening at the designated location on the switch disconnector. No additional tools or mounting aids are required, as the microswitch is specifically designed for the mentioned models. Connection is achieved via the integrated mechanics of the switch disconnector.

Operational Advantages
Signalling the switching position increases transparency in the operation of enclosures. Technicians and maintenance personnel can quickly determine whether a switch disconnector is turned on, improving safety during maintenance work. Integration into control systems enables automated status monitoring, which is particularly beneficial in automated production environments. The reliability of mechanical signal transmission ensures stable and low-maintenance operation.

General
For size00 - 3
Suitable for part no.9362000 - 9362350, 9363000 - 9363315
PCF/VE (Cradle-to-Gate)0,99


Product data sheet
Datasheet for Rittal 9365505, EAN: 4069196010466

Questions & answers

What is the delivery time of Rittal 9365505 RX microswitch 1=5 for NH disconnector size 00-3?

The article Rittal 9365505 RX microswitch 1=5 for NH disconnector size 00-3 is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9365505 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9365505 RX microswitch 1=5 for NH disconnector size 00-3 always at the best possible price. We can give you a discount of 2% on Rittal 9365505 RX microswitch 1=5 for NH disconnector size 00-3 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
