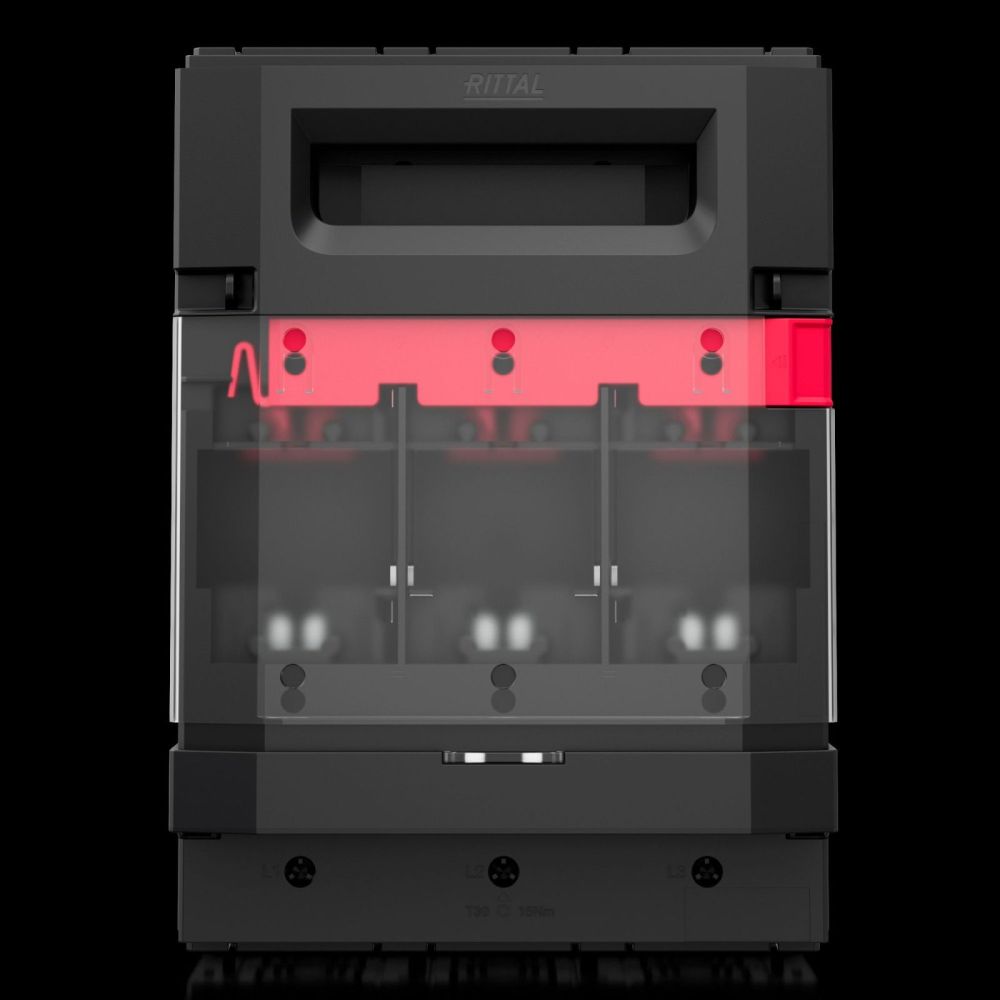

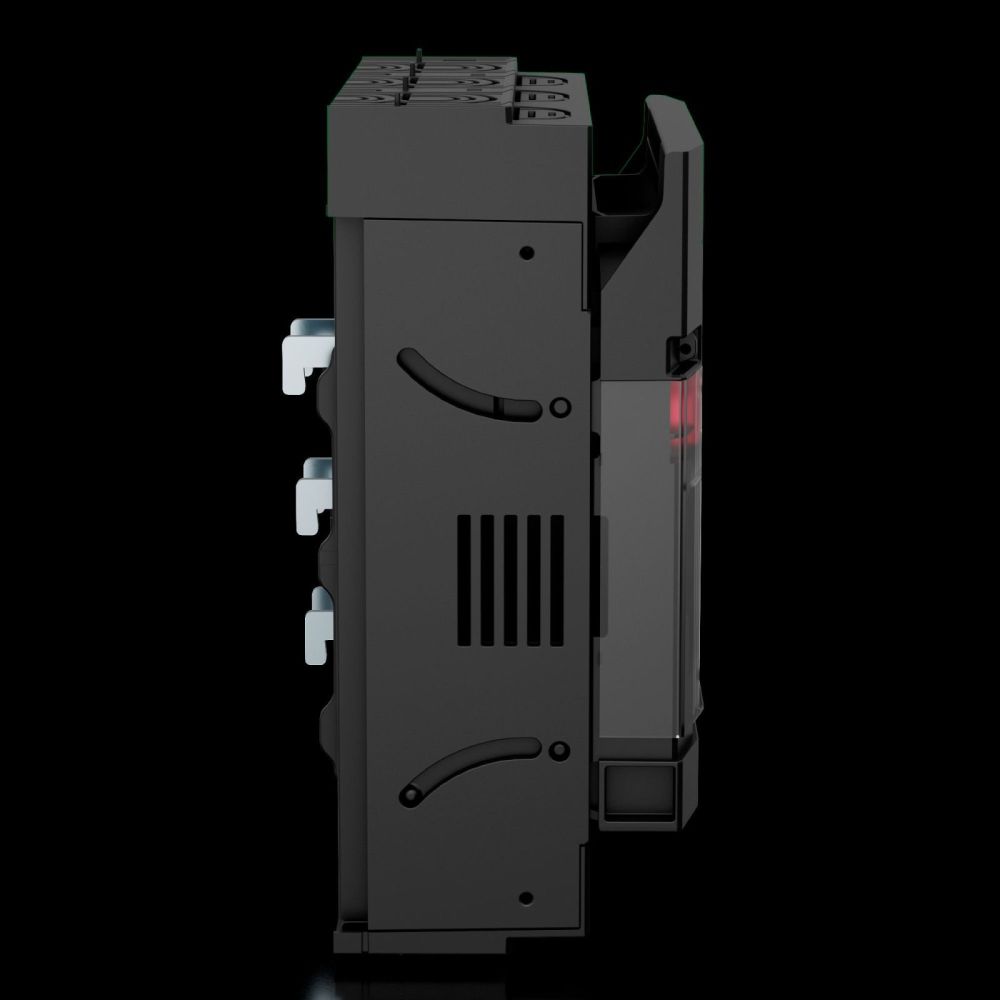

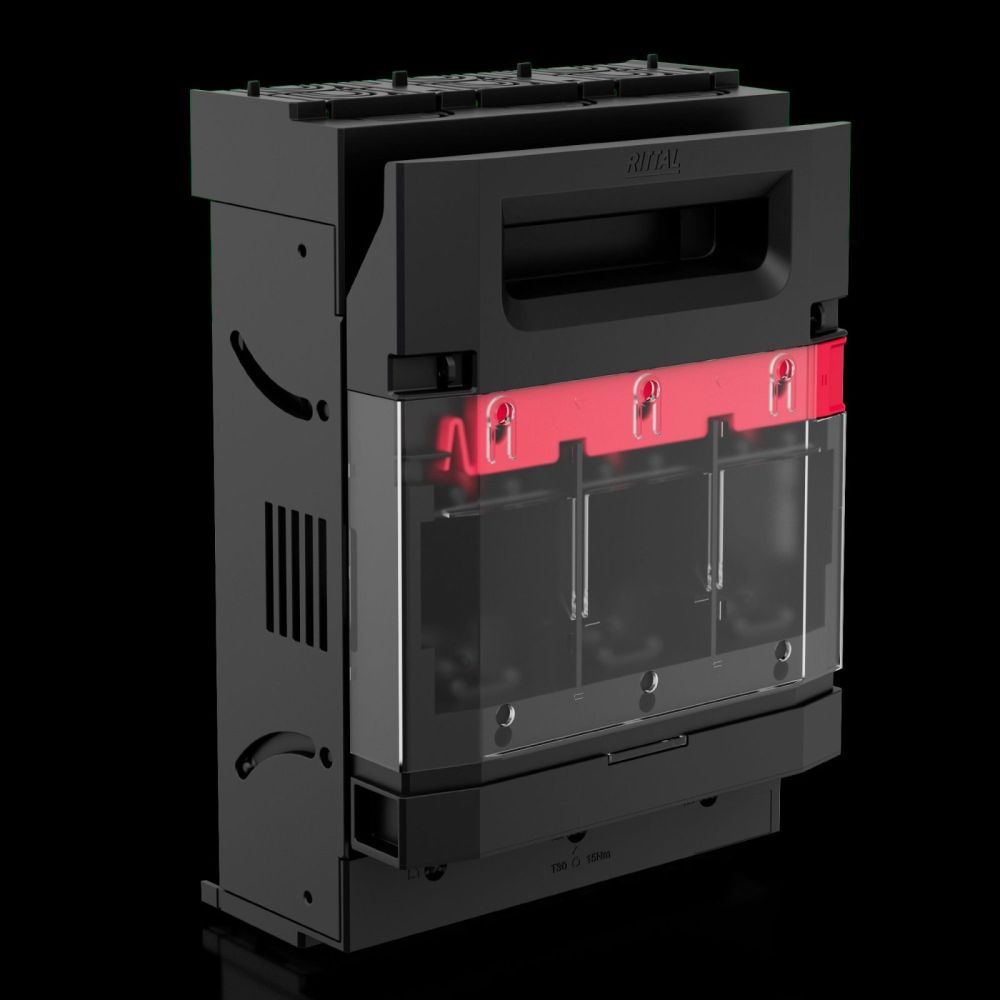

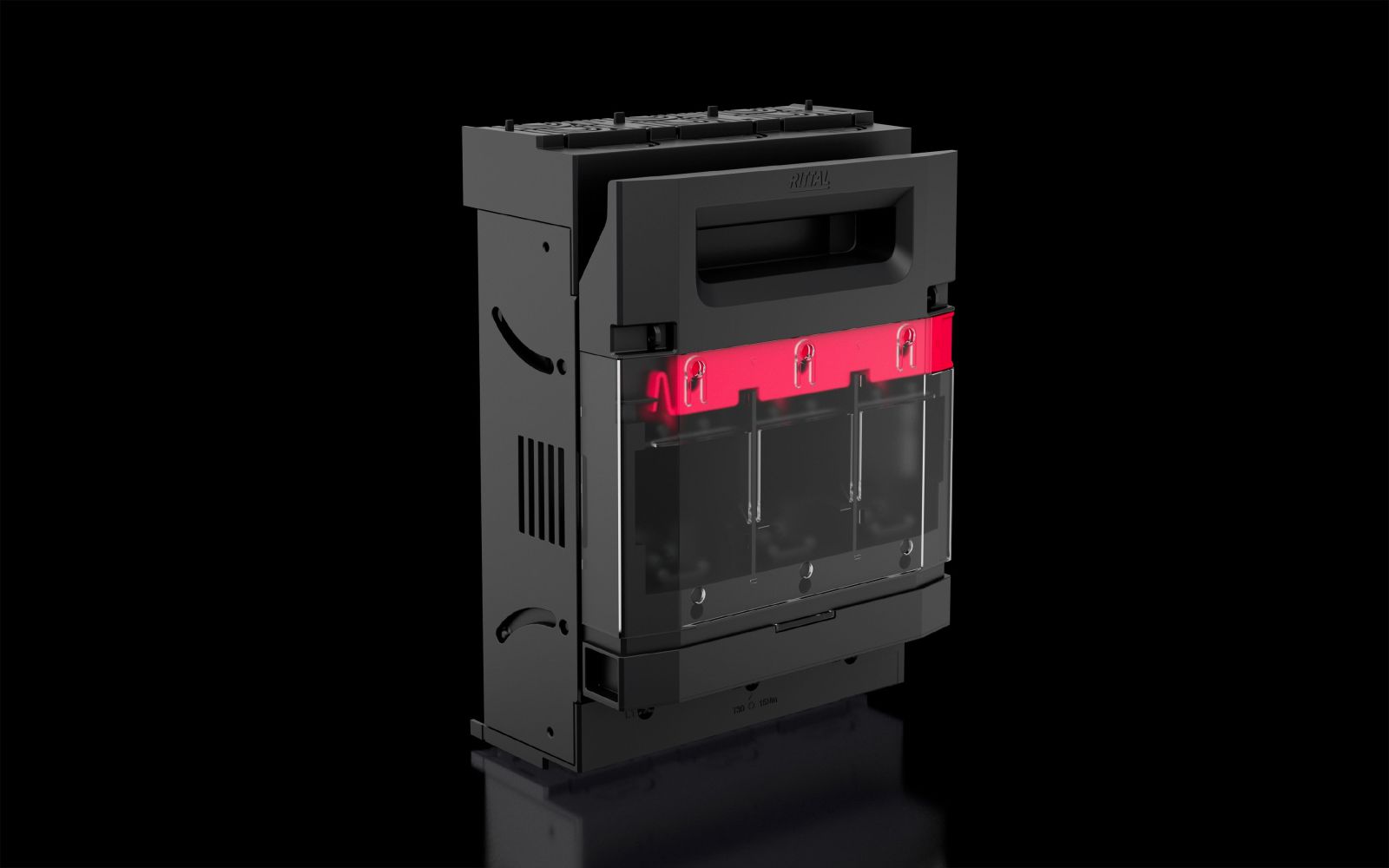

Rittal 9362210 RX NH fuse switch disconnector size 2, 400 A, 3-pole, screw

Your rating:
Average rating
product review for Rittal 9362210 RX NH fuse switch disconnector size 2, 400 A, 3-pole, screw
( 4 / 5 ) 2 ratings
Rittal 9362210
This image may differ from the desired article.
Rittal 9362210Rittal 9362210Rittal 9362210Rittal 9362210Rittal 9362210Rittal 9362210Rittal 9362210Rittal 9362210
207,00 EUR 215,28 EUR
( 246,33 EUR incl. VAT )
≈ £173.05  |  ≈ $228.73
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 9362210 RX NH fuse switch disconnector size 2, 400 A, 3-pole, screw
Datasheet:file_download Download
Lieske Part No.:1571897
Mfg Part No: 9362210
UPC/EAN: 4069196001587
Weight:3.942 kg
Type:RX 9362210

Product information for Rittal 9362210:

The Rittal RX 9362210 is an NH fuse switch disconnector in size 2, specifically designed for 60 mm busbar systems. It serves as a switching and disconnecting device in industrial electrical installations, where secure disconnection and visual monitoring of the fuse are required. The device is designed for use in switchgear with a rated operational voltage of 690 V AC and features a 3-pole configuration. The construction allows for direct mounting on RiLineX or RiLine60 busbar systems with a center-to-center spacing of 60 mm, accommodating busbar thicknesses of 15 x 5/10 mm, 20 x 5/10 mm, and 30 x 5/10 mm.

Applications
This fuse switch disconnector is intended for industrial applications in switchgear, distribution boxes, and machine controls, where reliable disconnection of power supply and visual inspection of the fuse status are necessary. It is particularly suitable for installations tested according to IEC/DIN EN 60 947-3 and DIN EN 60 269-2 (fuse inserts). The protection rating IP 2XB ensures protection against finger contact and solid foreign objects, although the device is not designed for outdoor use or in damp environments.

Functions and Equipment in Detail
The disconnector’s cover is lockable and sealable, enabling secure and documentable disconnection. Visual fuse monitoring allows the status of the installed NH fuse (size 2) to be directly observed on the device. Secure voltage testing is performed via integrated test points on the cover, enabling inspection without direct access to the contacts. An integrated parking position system facilitates maintenance work, as the cover can be held in a stable, open position. The cable exit can be toollessly reconfigured between top and bottom, allowing flexible installation at various locations within the enclosure.

Technology Explained Simply
The electrical connection is made via a screw connection M10, suitable for connecting cables. The contact strips are made of electrolytic copper, silver-plated, ensuring high electrical conductivity and corrosion resistance. The housing is made of polyamide (PA 6), which meets UL 94 flammability requirements. The operating temperature range is between -5 °C and 35 °C, while the storage temperature range extends from -25 °C to 70 °C. The maximum power loss is 98 W, indicating the thermal load during operation. Pollution degree 3 indicates that the device is designed for environments with increased risk of contamination.

Compatibility and Accessories
The disconnector is compatible with RiLineX and RiLine60 busbar systems. Various accessories are available to extend functionality: The frame terminal RX 9365543 serves as a connection terminal for NH disconnectors in sizes 2 and 3. The enclosure protection profile RX 9365025 (length 1200 mm) and the mounting clip RX 9365027 enable secure mounting and covering. The microswitch RX 9365505 can be used to signal the disconnector’s status, and the connection space cover RX 9365532 protects the connection area.

Mounting and Installation

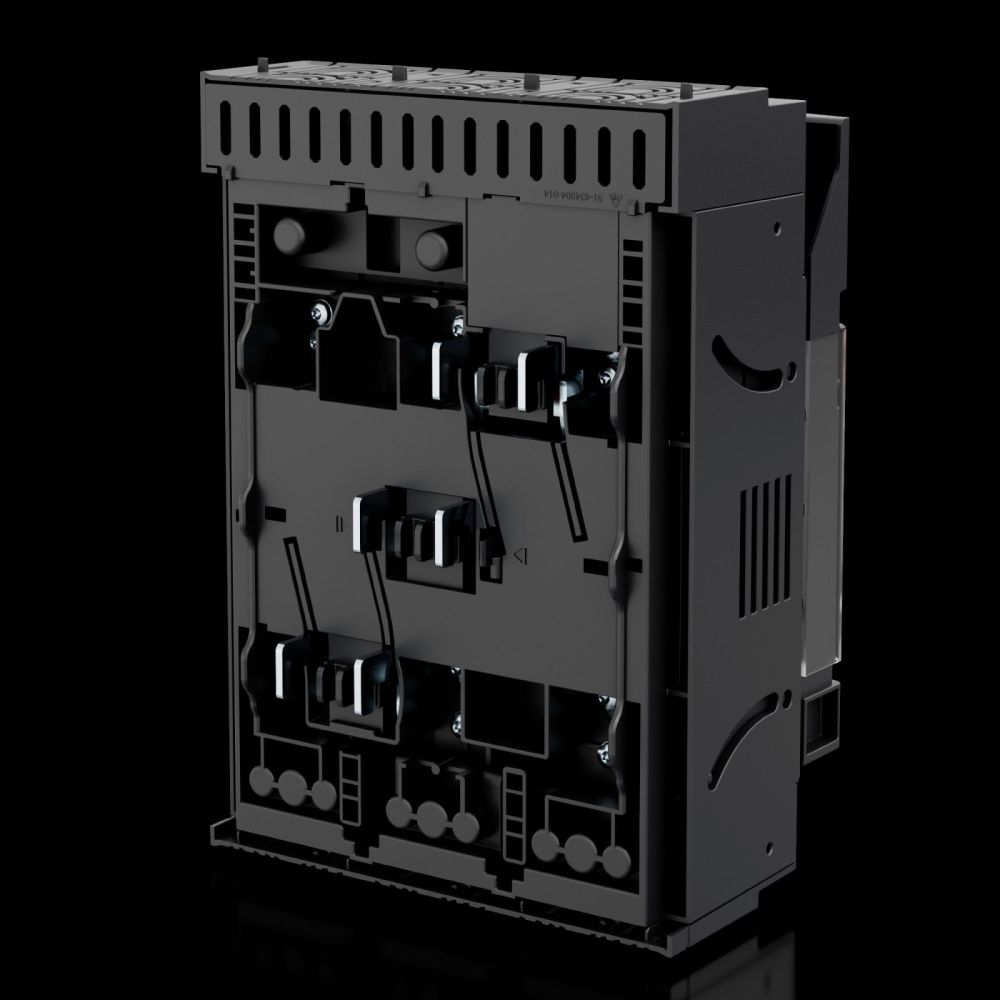

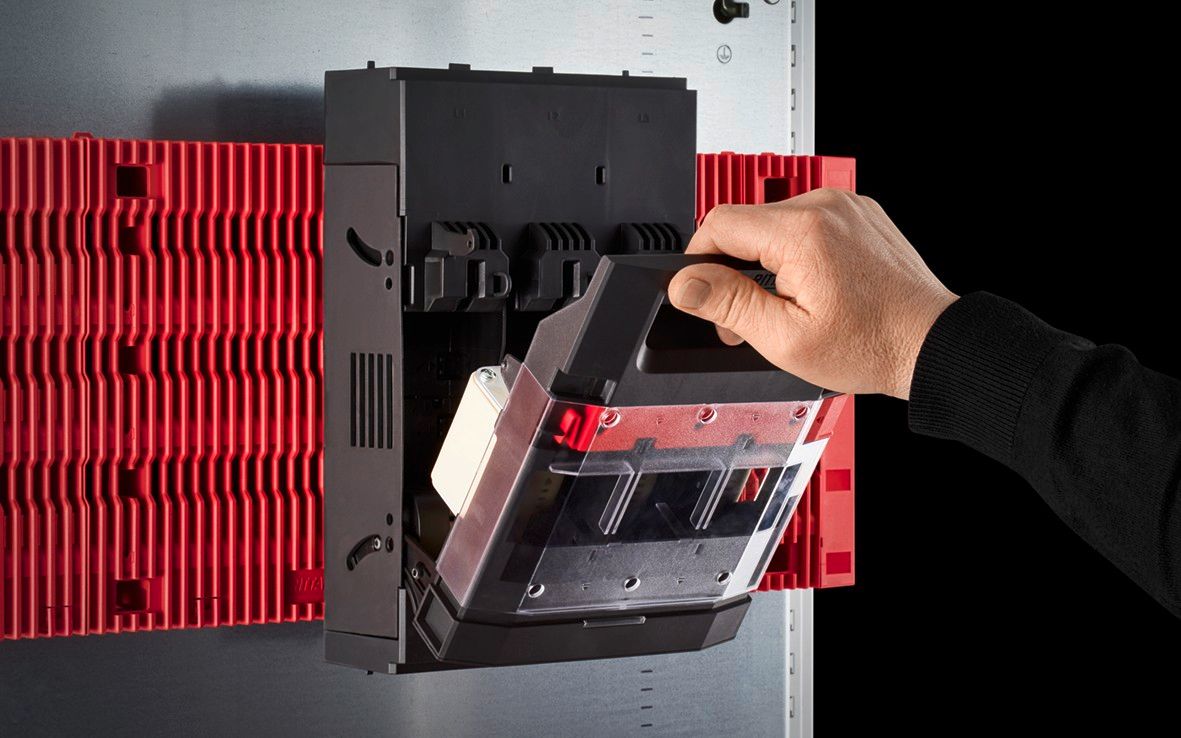

Mounting is done directly onto the 60 mm busbar system. The tool-free reconfiguration of the cable exit allows flexible installation without additional tools. Dimensions are 208.5 mm (width) × 298.6 mm (height) × 134.6 mm (depth). Installation requires no additional components, as the device is designed for direct mounting.

Operational Advantages
The disconnector provides high operational safety through its lockable and sealable cover and visual fuse monitoring. The integrated test points for voltage testing increase safety during maintenance. The parking position simplifies work on the device, and the tool-free reconfiguration of the cable exit reduces installation time. The use of polyamide and silver-plated copper ensures long service life and high reliability in industrial applications.

General
ModelFor 60 mm busbar systems
MaterialPolyamide (PA 6), flammability rating according to UL 94, contact strips: electrolytic copper, silver-plated
ColourRAL 9005, RAL 35745
For rail systems with centre spacing60 mm
Cable exitAbove/under
Electrical connection typeM10 screw
Fuse linksNH 2
Rated operating voltage690 V AC
For NH size2
Test basisIEC/DIN EN 60 947-3, DIN EN 60 269-2 (fuse inserts)
Width208,5 mm
Height298,6 mm
Depth134,6 mm
Operating temperature range-5 °C...35 °C
Storage temperature range-25 °C...70 °C
Suitable for busbars15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Suitable for busbar systemRiLineX, RiLine60
Number of poles3-pole
Pollution degree3
Degree of protection IP according to IEC 60 529IP 2XB
Fire load46,16 MJ/m²
Maximum power dissipation98 W
Copper content (kg/piece)1,75
PCF/VE (Cradle-to-Gate)26,35


Product data sheet
Datasheet for Rittal 9362210, EAN: 4069196001587
