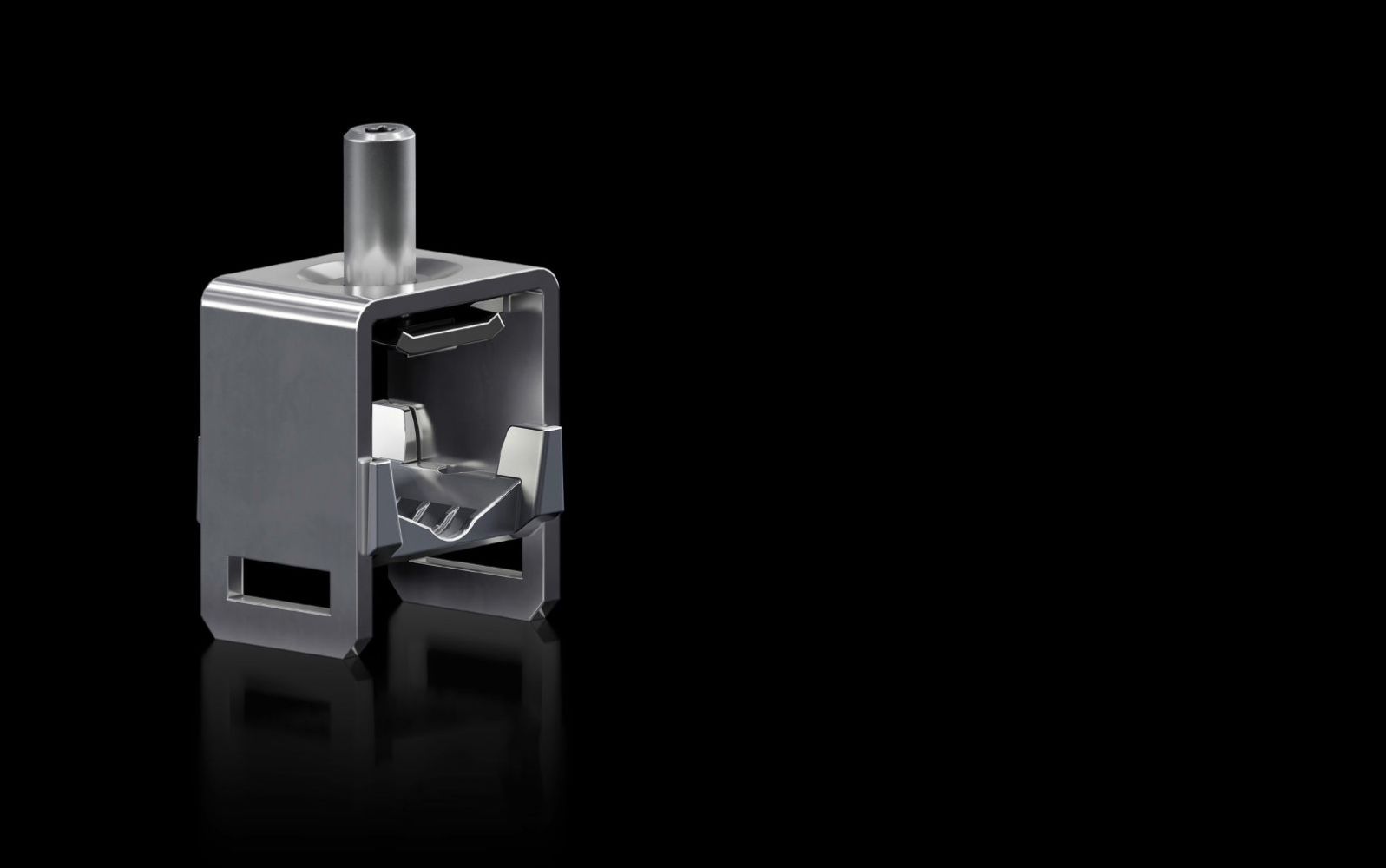

Rittal 9365543 RX frame terminal 1=3 for NH disconnector size 2/3

Your rating:
Average rating
product review for Rittal 9365543 RX frame terminal 1=3 for NH disconnector size 2/3
( 4 / 5 ) 1 ratings
Rittal 9365543
This image may differ from the desired article.
-6% 23,40 EUR 25,01 EUR
( 27,85 EUR incl. VAT )
≈ £19.56  |  ≈ $25.86
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9365543 RX frame terminal 1=3 for NH disconnector size 2/3
Datasheet:file_download Download
Lieske Part No.:612123
Mfg Part No: 9365543
UPC/EAN: 4069196010497
Weight:0.578 kg
Type:RX 9365543

Product information for Rittal 9365543:

The Rittal RX 9365543 is a frame terminal for NH fuse switch disconnectors of sizes 2 and 3, specifically developed for use in industrial power distribution systems. The product serves as a frame terminal set for secure and reliable connection of cables to RiLineX NH fuse switch disconnectors. It enables the installation of cables with a cross-section of 35 to 240 mm², where the terminals are directly inserted into the designated mounting elements of the disconnectors. The frame terminal is part of the RiLineX system and ensures a structured and standardized installation in enclosures.

Applications
The frame terminal is used in industrial electrical engineering, particularly in enclosures where NH fuse switch disconnectors are installed for power distribution and protection functions. It is suitable for applications in the manufacturing industry, energy supply, machine building, and other areas where a safe and durable electrical connection is required. The terminals are designed for use with RiLineX NH fuse switch disconnectors with article numbers 9362.210, 9362.215, 9362.310, 9362.315, 9363.210, 9363.215, 9363.310, and 9363.315. The product is used in switchgear systems where clear cable assignment and easy installation are important.

Functions and Equipment in Detail
The set consists of three individual terminals, each inserted into the mounting elements of the NH fuse switch disconnectors. The terminals are designed for cable cross-sections of 35 to 240 mm², enabling broad applicability across various current ratings and power classes. The construction ensures a stable and correct connection, resulting in a reliable electrical contact and minimal contact resistance. The frame terminal is designed as a replacement or supplementary component for existing RiLineX systems.

Technology Explained Simply
The frame terminal functions as a mechanical and electrical connection point between the NH fuse switch disconnector and the connected cables. It is inserted into the designated openings of the disconnector and enables secure cable fixation. The connection is made using a clamping technique that ensures a firm and durable bond. The terminals are made from metallic materials suitable for industrial use. The stated PCF value of 1.49 per packaging unit (Cradle-to-Gate) refers to the environmental impact of the product, with the exact meaning of the value lying within the context of the production chain.

Compatibility and Accessories
The frame terminal is exclusively intended for RiLineX NH fuse switch disconnectors of sizes 2 and 3. The compatible article numbers are 9362.210, 9362.215, 9362.310, 9362.315, 9363.210, 9363.215, 9363.310, and 9363.315. It is a set delivered in a packaging unit of three pieces. The terminals are not suitable for other disconnector models or systems. Use with other products is not intended and may lead to malfunctions.

Installation and Mounting
Mounting is done by inserting the frame terminal into the designated mounting elements of the NH fuse switch disconnector. Cables are placed into the terminal and secured using the designated fastening system. Installation is carried out as part of the overall RiLineX system assembly and requires no additional tools or components. The terminals are designed to integrate easily and securely into the disconnectors. Installation is typically performed by qualified personnel in the field of electrical installation.

Operational Advantages
The use of the frame terminal ensures structured and clear cabling in enclosures. The terminals allow for quick and secure installation, reducing installation time. The connection is durable and resistant to mechanical stress and electrical loads. Compatibility with RiLineX systems ensures uniform and standardized installation, simplifying maintenance and replacement. The terminals are designed for industrial use and offer high reliability in demanding environments.

General
Suitable for part no.9362.210, 9362.215, 9362.310, 9362.315, 9363.210, 9363.215, 9363.310, 9363.315
PCF/VE (Cradle-to-Gate)1,49
