Rittal 9362350 RX NH fuse switch disconnector size 3 630 A 3-pole

Your rating:
Average rating
product review for Rittal 9362350 RX NH fuse switch disconnector size 3 630 A 3-pole
( 0 / 5 ) 0 ratings
Rittal 9362350
This image may differ from the desired article.
Rittal 9362350Rittal 9362350Rittal 9362350Rittal 9362350Rittal 9362350Rittal 9362350Rittal 9362350Rittal 9362350
287,50 EUR 299,00 EUR
( 342,13 EUR incl. VAT )
≈ £240.35  |  ≈ $317.69
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9362350 RX NH fuse switch disconnector size 3 630 A 3-pole
Datasheet:file_download Download
Lieske Part No.:611761
Mfg Part No: 9362350
UPC/EAN: 4069196001655
Weight:4.9 kg
Type:RX 9362350

Product information for Rittal 9362350:

The Rittal RX 9362350 is an NH fuse switch disconnector in size 3, specifically designed for 60 mm busbar systems. It serves as a power disconnector in industrial electrical installations, where secure disconnection of power supply and integration of fuse inserts are required. The device is designed for use in enclosures and distributions connected to RiLineX or RiLine60 busbar systems, enabling reliable power disconnection and monitoring of fuse conditions.

Applications

The fuse switch disconnector is intended for industrial applications, particularly in machine building, manufacturing systems, and distribution systems, where high operational safety and serviceability are required. It is designed for a rated operational voltage of 690 V AC and is suitable for switchgear with pollution degree 3, indicating use in environments with increased risk of contamination. The protection rating IP 2XB protects against finger contact and solid foreign objects, but not against water or dust – thus it is intended for indoor use.

Functions and Equipment in Detail

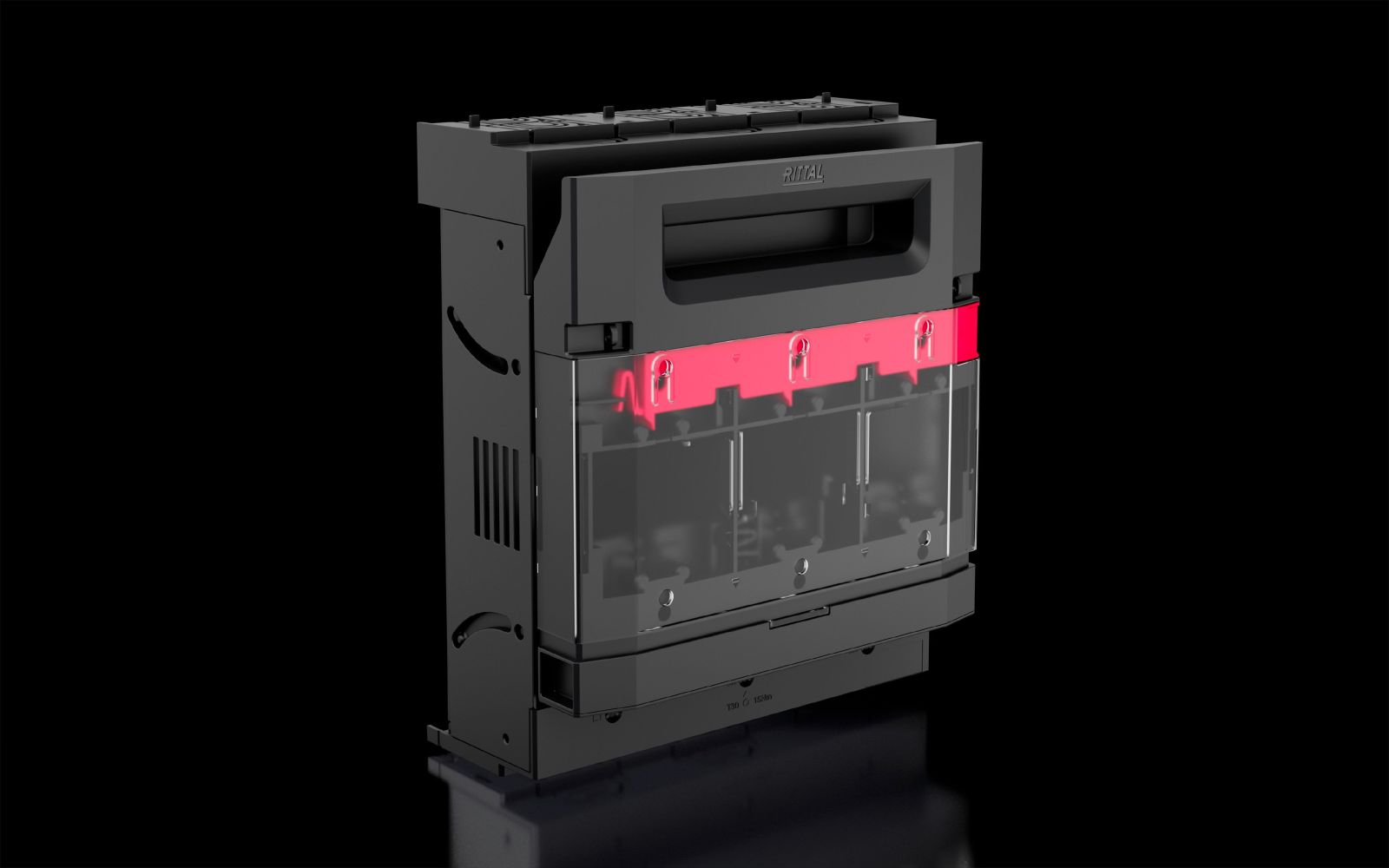

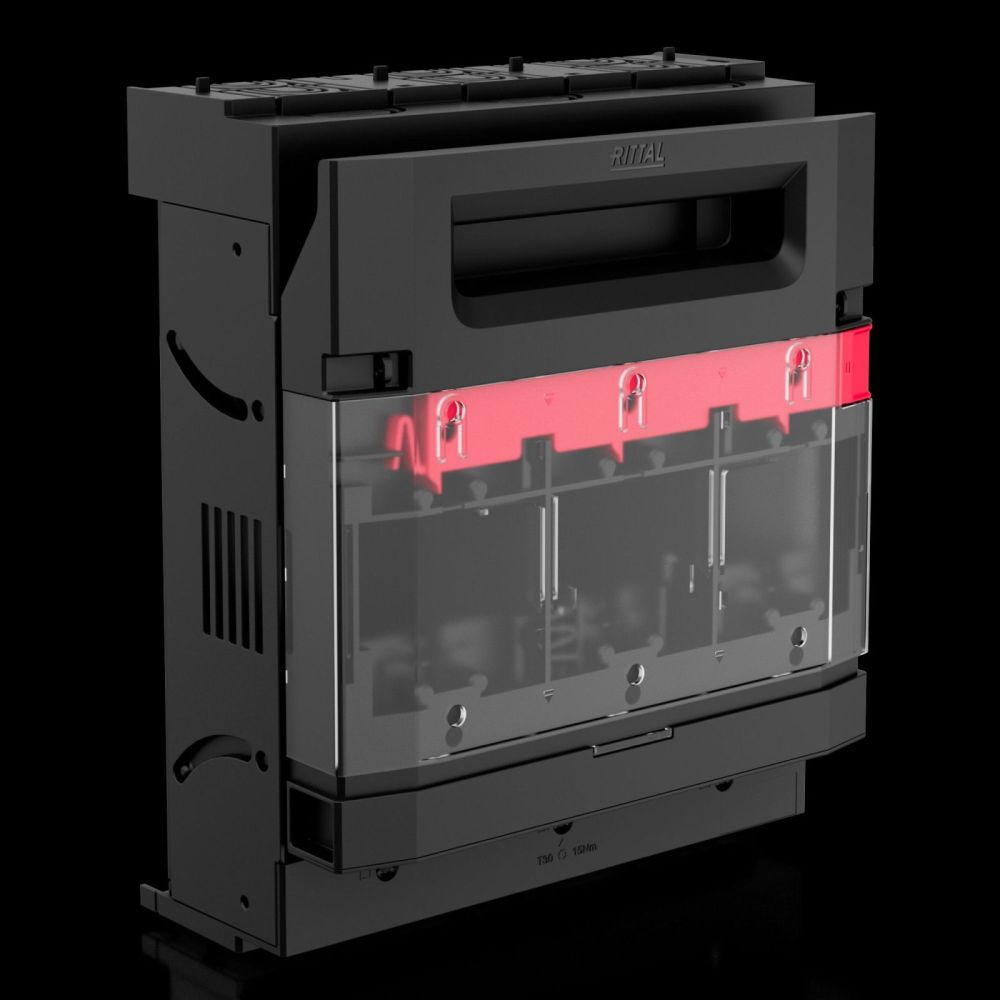

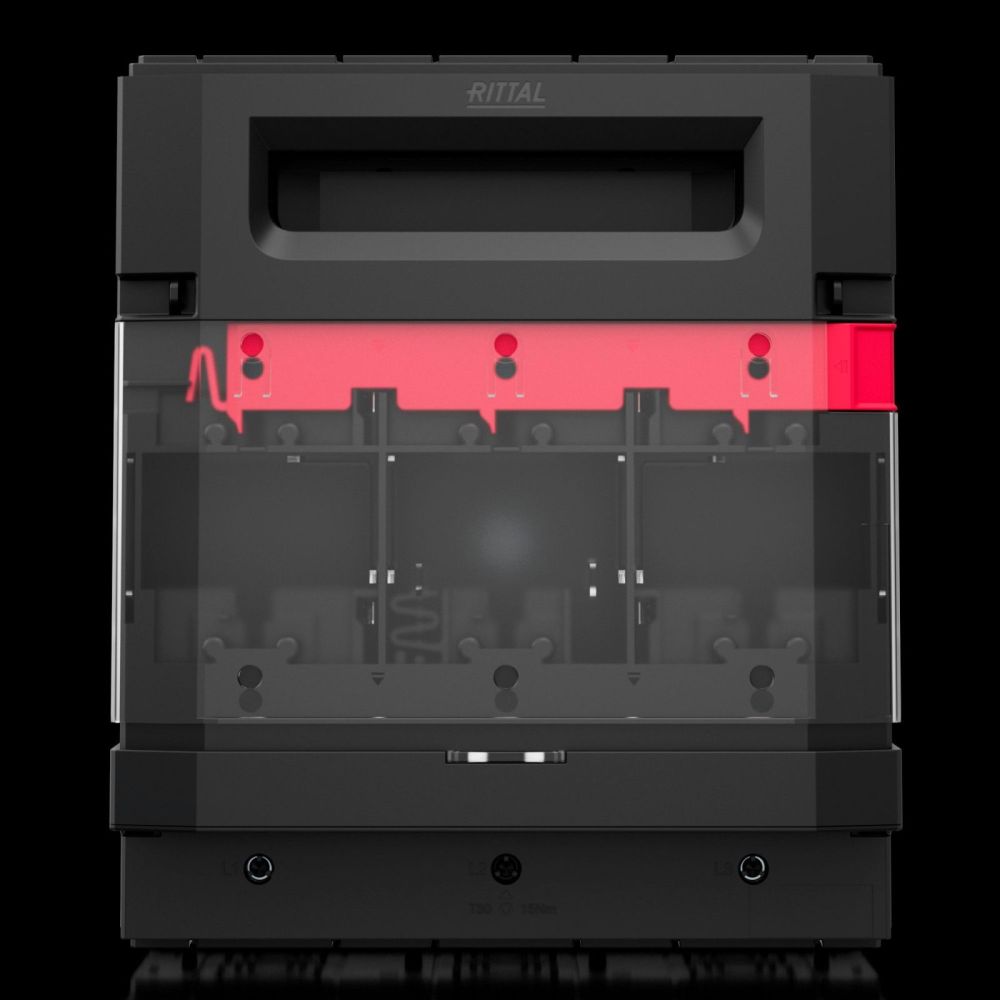

The disconnector’s cover is lockable and sealable, enabling secure and documentable monitoring of operational status. A visual fuse monitoring feature allows direct observation of the status of installed NH fuse inserts (size 3). Secure voltage testing is performed via integrated test points on the cover, enabling testing without direct contact with live parts. A parking position for the cover facilitates maintenance work, as the cover can be held in a stable, open position.

Technology Explained Simply

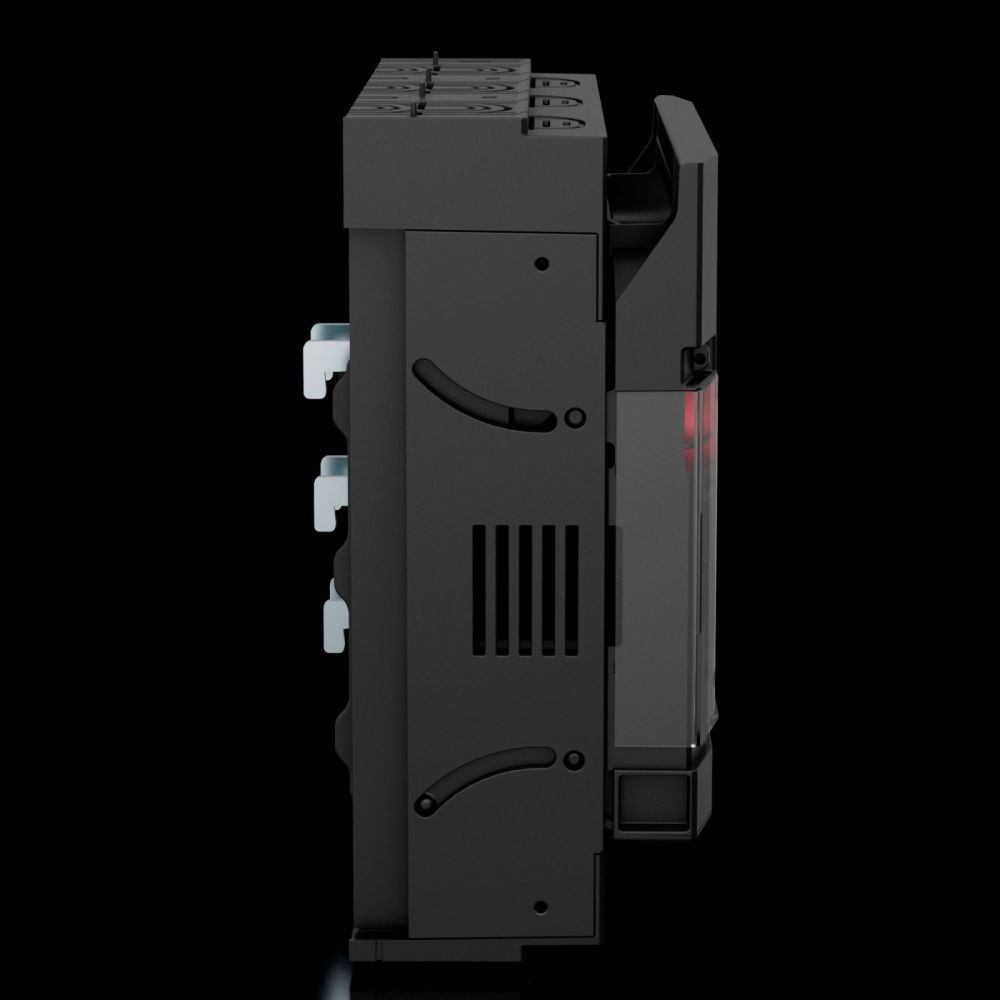

Electrical connection is made via a frame terminal, designed for connecting round conductors with a cross-section of at least 120 mm² up to a maximum of 300 mm². The contact strips are made of electrolytic copper, silver-plated, ensuring high conductivity and corrosion resistance. The housing is made of polyamide (PA 6) with flame resistance according to UL 94, providing good fire resistance. The cable exits are tool-free and individually convertible to top or bottom, enabling flexible installation on different busbar configurations.

Compatibility and Accessories

The disconnector is suitable for busbars with dimensions 15 x 5/10 mm, 20 x 5/10 mm, and 30 x 5/10 mm, and adapts to different busbar thicknesses without tools. It is designed for mounting on RiLineX and RiLine60 busbar systems. Available accessories include, among others, a connection space cover for NH disconnector size 3 (RX 9365533), a frame terminal 1=3 (RX 9365543), an enclosure protection profile (RX 9365025), mounting clips (RX 9365027), and a microswitch (RX 9365505), which enhance installation and safety.

Mounting and Installation

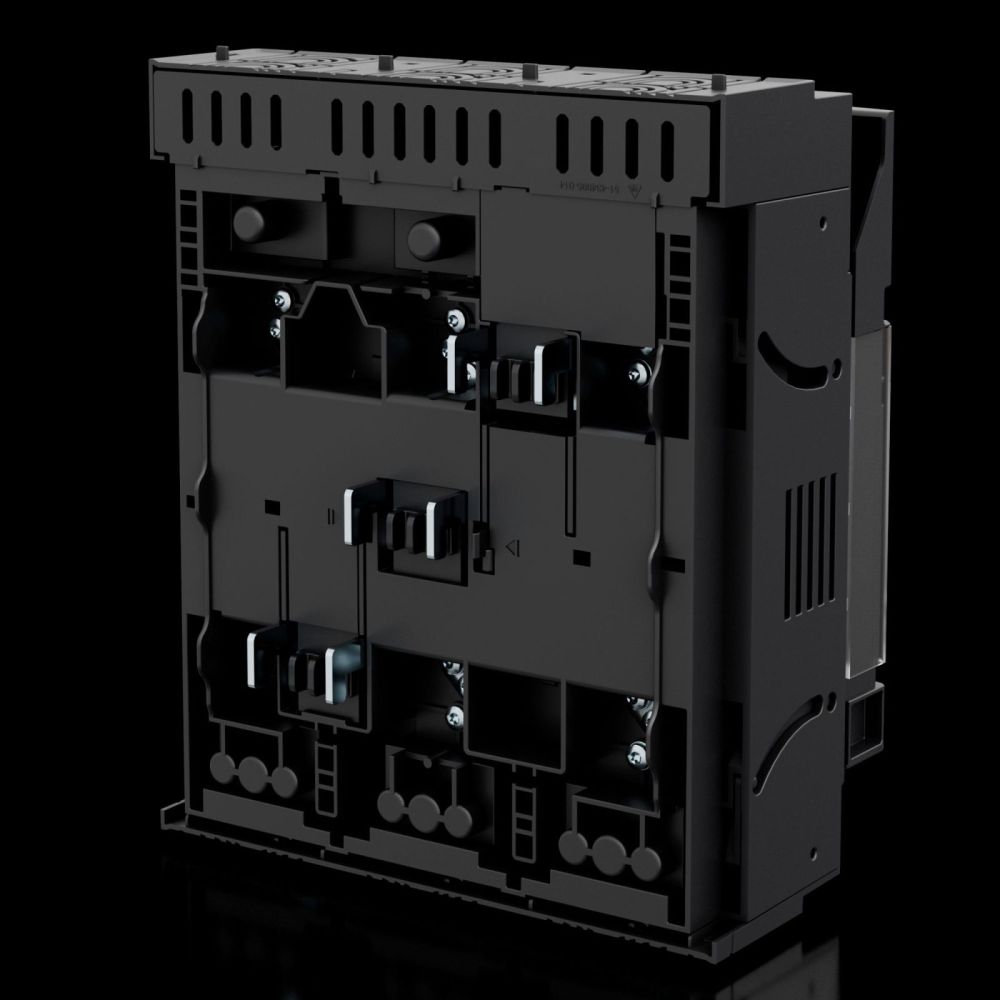

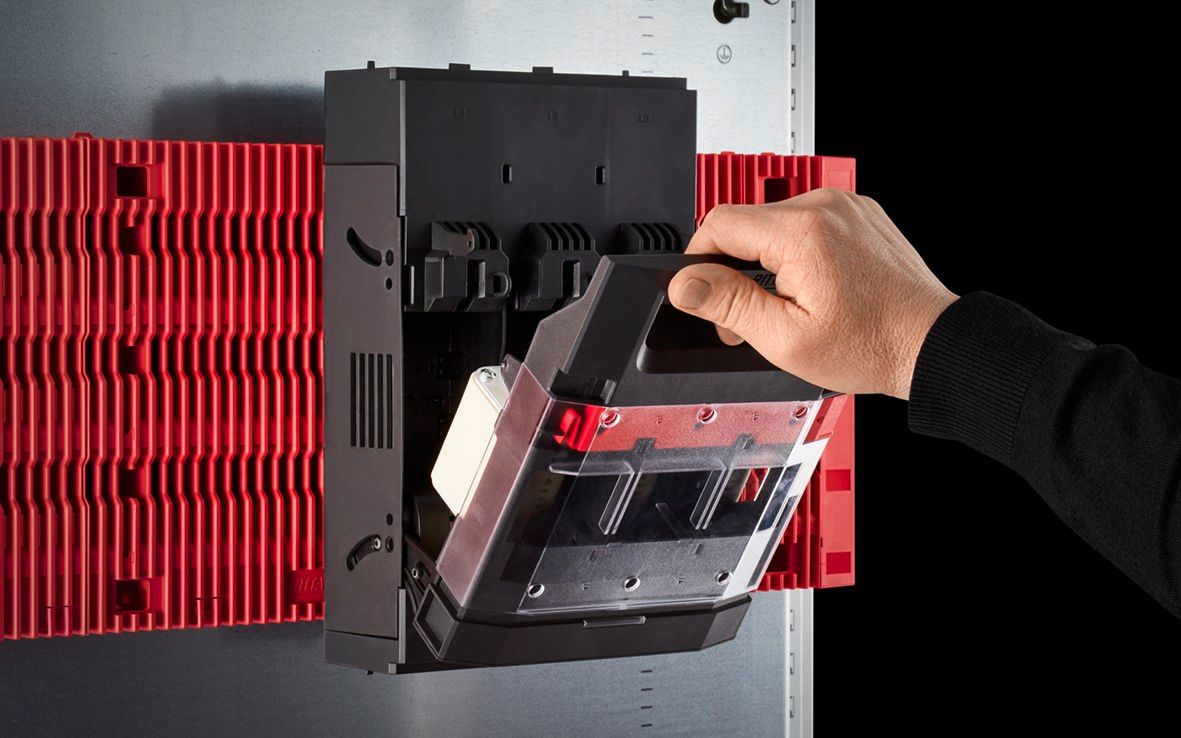

Mounting is done directly onto the 60 mm busbar system. The tool-free conversion of the cable exit allows flexible adaptation to the specific installation. Fixing is achieved via integrated mounting points on the device. Dimensions are 250 mm (width) × 298.4 mm (height) × 134.9 mm (depth), with an operating temperature range of -5 °C to 35 °C. Storage temperature can vary between -25 °C and 70 °C.

Advantages in Operation

The disconnector provides high operational safety through integrated voltage testing and visual fuse monitoring. The parking position and sealable closure support maintenance and documentation. The use of silver-plated copper ensures long-term conductivity, while the polyamide housing offers high mechanical and thermal stability. Compatibility with various busbar thicknesses and tool-free conversion increase flexibility during installation.

General
ModelFor 60 mm busbar systems
MaterialPolyamide (PA 6), flammability rating according to UL 94, contact strips: electrolytic copper, silver-plated
ColourRAL 9005, RAL 35745
For rail systems with centre spacing60 mm
Cable exitAbove/under
Electrical connection typeFrame clamp
Fuse linksNH 3
Rated operating voltage690 V AC
For NH size3
Test basisIEC/DIN EN 60 947-3, DIN EN 60 269-2 (fuse inserts)
Width250 mm
Height298,4 mm
Depth134,9 mm
Operating temperature range-5 °C...35 °C
Storage temperature range-25 °C...70 °C
Suitable for busbars15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Suitable for busbar systemRiLineX, RiLine60
Number of poles3-pole
Pollution degree3
Degree of protection IP according to IEC 60 529IP 2XB
Fire load52,86 MJ/m²
Maximum power dissipation101 W
Copper content (kg/piece)2,255
PCF/VE (Cradle-to-Gate)32,06


Product data sheet
Datasheet for Rittal 9362350, EAN: 4069196001655

Questions & answers

What is the delivery time of Rittal 9362350 RX NH fuse switch disconnector size 3 630 A 3-pole?

The article Rittal 9362350 RX NH fuse switch disconnector size 3 630 A 3-pole is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9362350 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9362350 RX NH fuse switch disconnector size 3 630 A 3-pole always at the best possible price. We can give you a discount of 2% on Rittal 9362350 RX NH fuse switch disconnector size 3 630 A 3-pole if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
