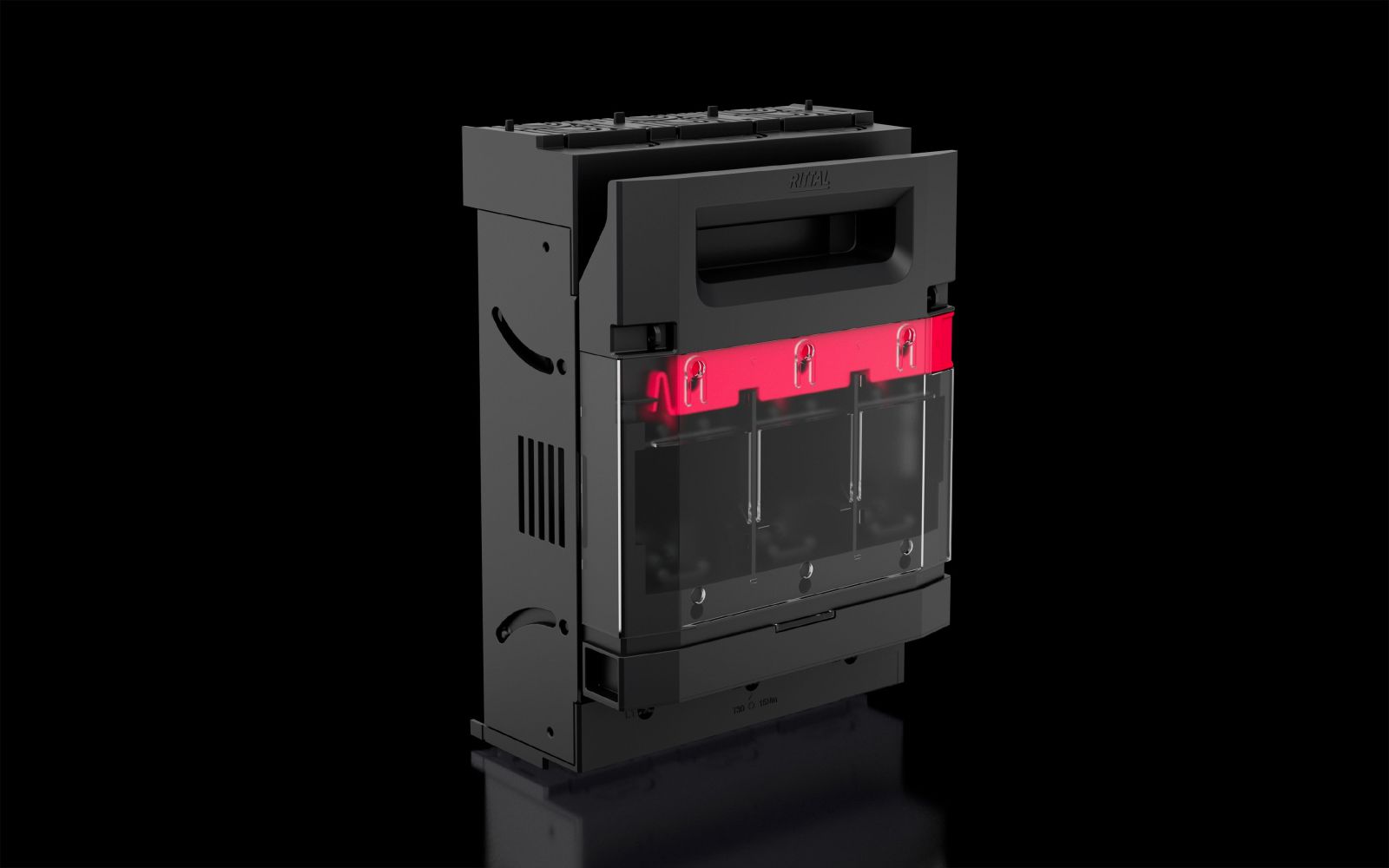

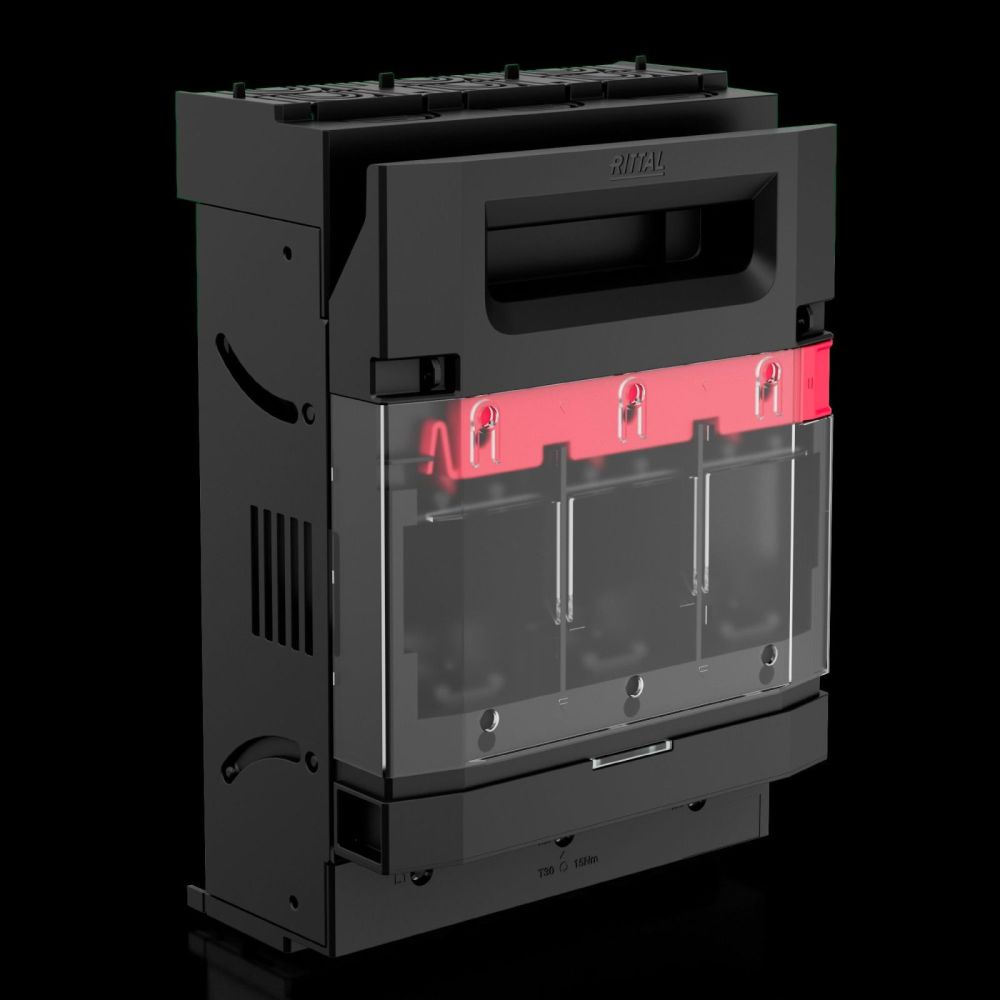

Rittal 9362250 RX NH fuse switch disconnector size 2, 400 A, 3-pole, terminal

Your rating:
Average rating
product review for Rittal 9362250 RX NH fuse switch disconnector size 2, 400 A, 3-pole, terminal
( 5 / 5 ) 1 ratings
Rittal 9362250
This image may differ from the desired article.
Rittal 9362250Rittal 9362250Rittal 9362250Rittal 9362250Rittal 9362250Rittal 9362250Rittal 9362250Rittal 9362250
235,75 EUR 245,18 EUR
( 280,54 EUR incl. VAT )
≈ £197.09  |  ≈ $260.50
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: 5 pieces
1x Rittal 9362250 RX NH fuse switch disconnector size 2, 400 A, 3-pole, terminal
Datasheet:file_download Download
Lieske Part No.:1571899
Mfg Part No: 9362250
UPC/EAN: 4069196001617
Weight:4.355 kg
Type:RX 9362250

Product information for Rittal 9362250:

Rittal RX 9362250 is a NH fuse switch disconnector in size 2, specifically designed for 60 mm busbar systems. It serves as a power disconnector in industrial electrical installations and enables safe disconnection of circuits under load conditions. The device is intended for use in switchgear and distributors where reliable current interruption and monitoring are required. The design is compatible with RiLineX and RiLine60 busbar systems, with direct mounting onto rails with a center spacing of 60 mm. The 3-pole construction ensures coverage of three-phase circuits.

Applications
This disconnector is intended for industrial applications in the field of power distribution, particularly in machine building, manufacturing plants, and distribution switchgear. It is suitable for operating voltages up to 690 V AC and supports mounting on busbars with cross-sections of 15 x 5/10 mm, 20 x 5/10 mm, and 30 x 5/10 mm. The rated operating voltage of 690 V AC makes it suitable for medium to high voltage levels in industrial environments. The operating temperature range of -5 °C to 35 °C ensures stable operation in typical industrial conditions.

Functions and Equipment in Detail

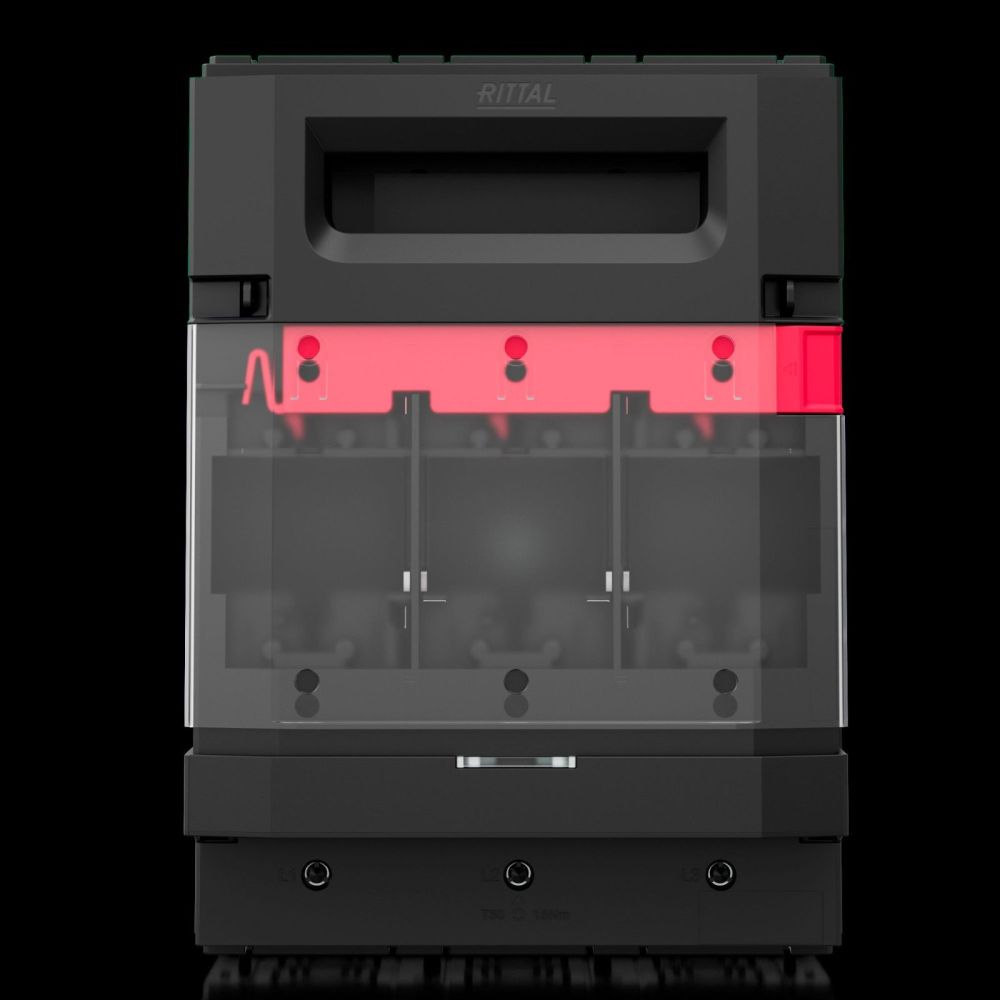

The disconnector’s cover is lockable and sealable, enabling secure access control and documentation of maintenance work. A visual fuse monitoring feature allows direct recognition of the status of the installed NH fuse. Safe voltage testing is performed via integrated test points on the cover, enabling testing without direct contact with live parts. A parking position for the cover facilitates maintenance and inspection work, as the cover can be held in a stable, open position. The cable exit is tool-free and individually convertible to top or bottom, enabling flexible installation at different mounting locations.

Technology Explained Simply
The electrical connection is made via a frame terminal, designed for connecting round conductors with a cross-section of at least 120 mm² up to a maximum of 300 mm². The contact strips are made of electrolytic copper, silver-plated, ensuring high electrical conductivity and corrosion resistance. The housing is made of polyamide (PA 6) with flame resistance according to UL 94, providing high heat and fire resistance. The protection rating IP 2XB according to IEC 60 529 protects against finger contact and solid foreign objects, but not against water or dust — therefore, application is limited to enclosed switchgear. The pollution degree 3 accounts for environments with increased contamination, as found in industrial plants.

Compatibility and Accessories
The disconnector is compatible with RiLineX and RiLine60 busbar systems. Various accessories are available, including the frame terminal RX 9365543 for NH disconnectors size 2/3, the enclosure protection profile RX 9365025 (length 1200 mm), mounting clips RX 9365027, the microswitch RX 9365505 for NH disconnectors size 00–3, and the connection space cover RX 9365532 for NH disconnectors size 2. These components support installation, safety, and maintenance of the device.

Mounting and Installation

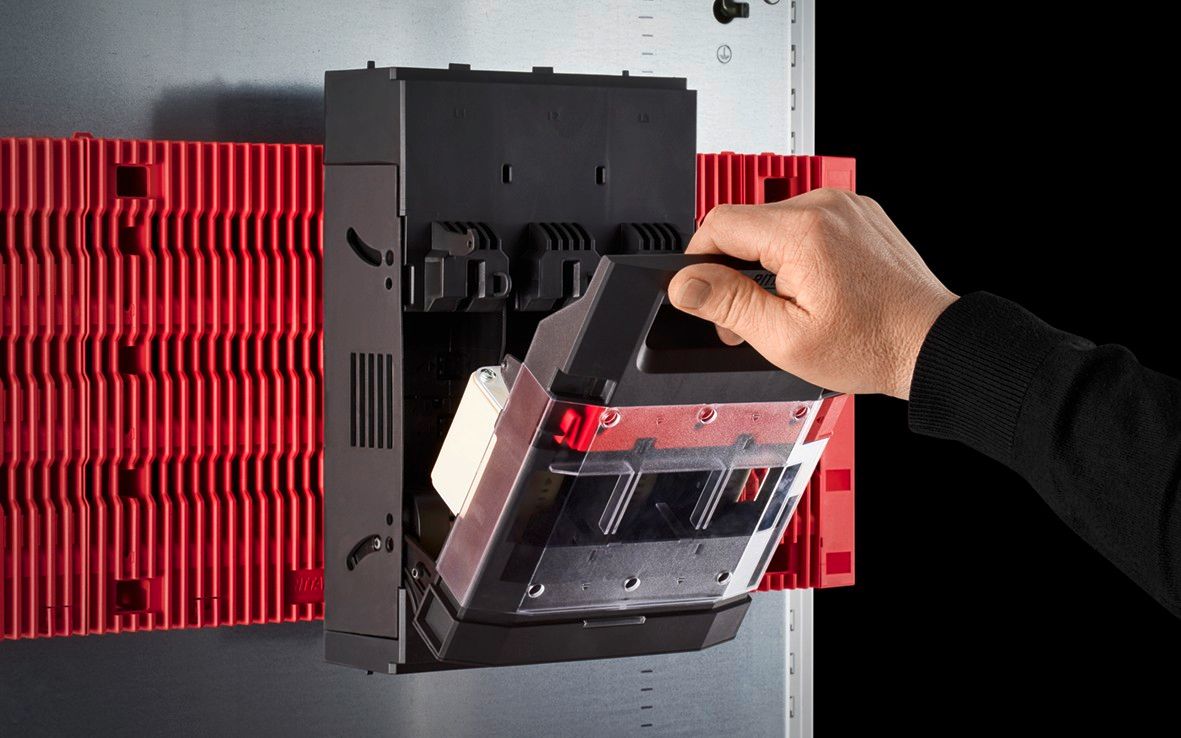

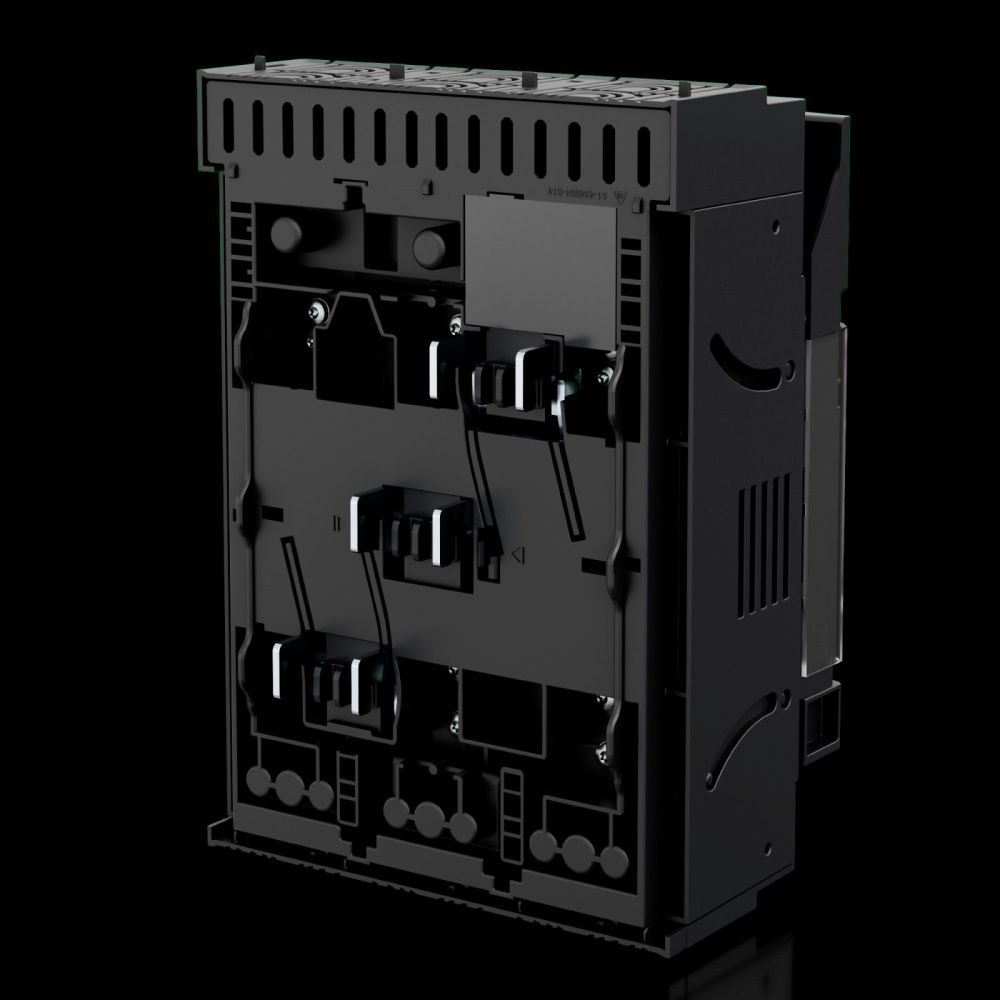

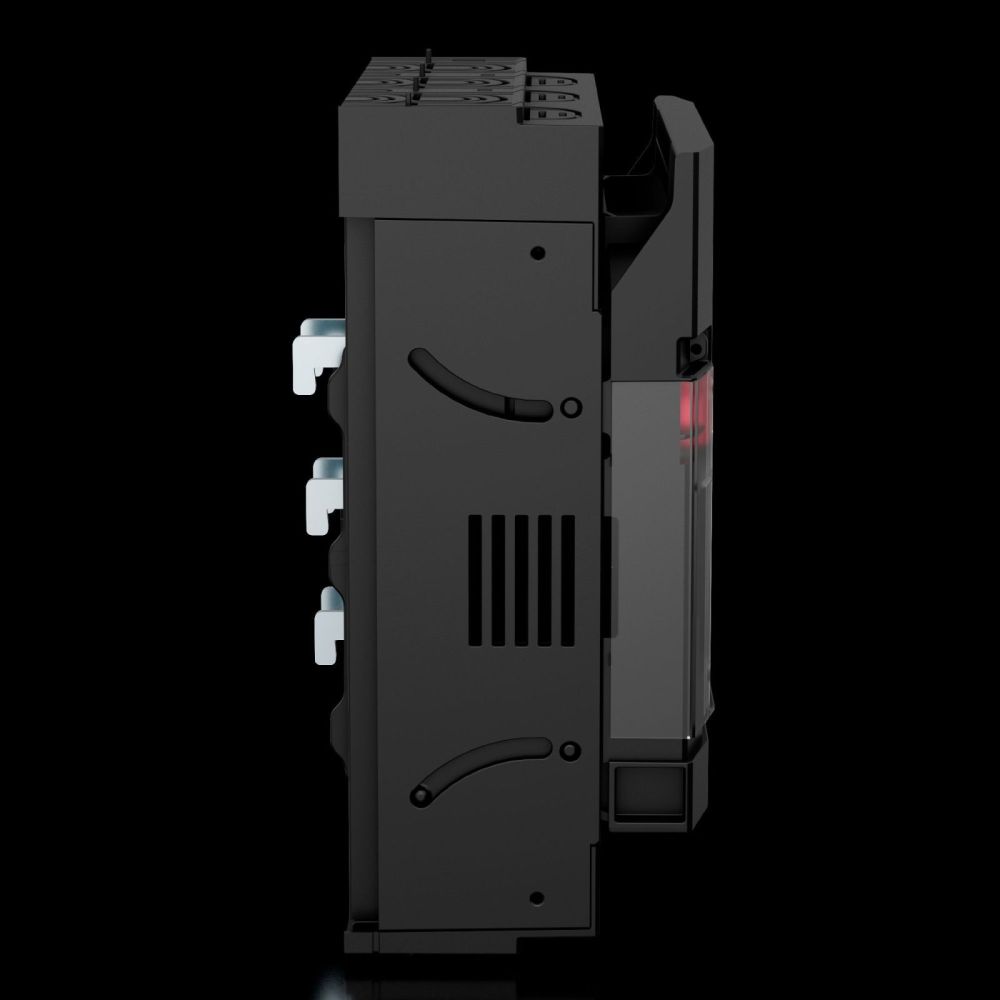

Mounting is performed directly onto 60 mm busbars, with tool-free adaptation to different rail thicknesses. The frame terminal allows connection of round conductors in the cross-section range of 120 to 300 mm². The cable exit position (top/bottom) can be individually selected according to requirements at the installation site. Dimensions are 208.5 mm (width) × 298.6 mm (height) × 134.6 mm (depth), enabling placement in standard switchgear.

Operational Advantages
The disconnector offers high operational safety through integrated voltage testing and visual fuse monitoring. The parking position and sealable cover simplify maintenance and document the device’s status. The tool-free conversion of the cable exit reduces installation time. The use of high-quality materials such as silver-plated electrolytic copper and PA 6 ensures long service life and high reliability in industrial use. The test basis IEC/DIN EN 60 947-3 and DIN EN 60 269-2 (for fuse inserts) ensures compliance with international standards.

General
ModelFor 60 mm busbar systems
MaterialPolyamide (PA 6), flammability rating according to UL 94, contact strips: electrolytic copper, silver-plated
ColourRAL 9005, RAL 35745
For rail systems with centre spacing60 mm
Cable exitAbove/under
Electrical connection typeFrame clamp
Fuse linksNH 2
Rated operating voltage690 V AC
For NH size2
Test basisIEC/DIN EN 60 947-3, DIN EN 60 269-2 (fuse inserts)
Width208,5 mm
Height298,6 mm
Depth134,6 mm
Operating temperature range-5 °C...35 °C
Storage temperature range-25 °C...70 °C
Suitable for busbars15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Suitable for busbar systemRiLineX, RiLine60
Number of poles3-pole
Pollution degree3
Degree of protection IP according to IEC 60 529IP 2XB
Fire load50,96 MJ/m²
Maximum power dissipation98 W
Copper content (kg/piece)1,75
PCF/VE (Cradle-to-Gate)28,84


Product data sheet
Datasheet for Rittal 9362250, EAN: 4069196001617
