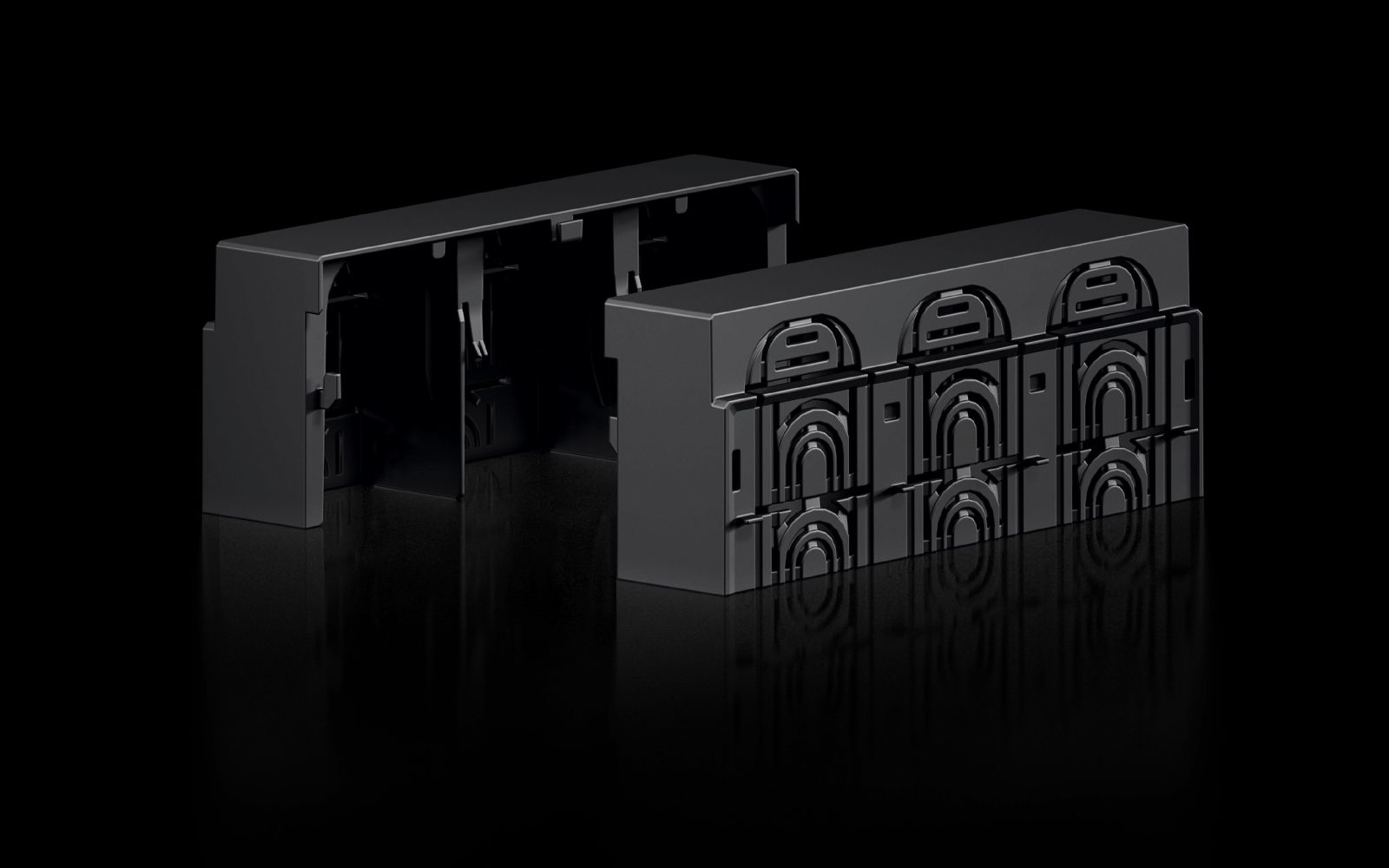

Rittal 9365532 RX connection space cover 1=2 for NH disconnector size 2

Your rating:
Average rating
product review for Rittal 9365532 RX connection space cover 1=2 for NH disconnector size 2
( 4.5 / 5 ) 2 ratings
Rittal 9365532
This image may differ from the desired article.
Rittal 9365532Rittal 9365532
-6% 17,37 EUR 18,57 EUR
( 20,67 EUR incl. VAT )
≈ £14.52  |  ≈ $19.19
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 2 pieces
1x Rittal 9365532 RX connection space cover 1=2 for NH disconnector size 2
Datasheet:file_download Download
Lieske Part No.:612157
Mfg Part No: 9365532
UPC/EAN: 4069196010442
Weight:0.439 kg
Type:RX 9365532

Product information for Rittal 9365532:

The Rittal RX 9365532 is a connection space cover for NH fuse switch disconnectors size 2, specifically developed for use in enclosures and power distribution systems. It serves as a protective cover for the connection area of RiLineX NH fuse switch disconnectors and is used in mounting plate and busbar system installations. The cover ensures proper compartmentalization of the connection space, enabling safe and orderly installation of electrical components.

Applications

The cover is intended for use in industrial electrical installations, particularly in enclosures where NH fuse switch disconnectors size 2 are mounted. It is suitable for installations using mounting plates or busbars to structure electrical connections. The cover is used during the installation of fuse switch disconnectors to protect the connection area from mechanical impacts and unintended contact.

Functions and Equipment in Detail

The cover is made of polyamide (PA 6), a thermoplastic material known for its high strength, heat resistance, and chemical resistance. The material meets the flammability requirements according to UL 94, ensuring safe use in electrical installations. The color is RAL 9005, a dark gray tone that integrates well visually in industrial enclosures. The cover is specifically designed for part numbers 9362210, 9362215, 9362250, 9363210, and 9363215, which represent NH fuse switch disconnectors size 2.

Technology Explained Simply

The cover has a width of 208.5 mm, a height of 60 mm, and a depth of 89.6 mm. These dimensions are matched to the specified fuse switch disconnectors to ensure a precise fit. The fire load is 3.002 MJ/m², describing the thermal load in case of fire and relevant for planning fire protection measures in enclosures. The packaging unit includes 2 pieces, sufficient for installation in standard systems. The net weight is 0.436 kg, and the gross weight is 0.439 kg.

Compatibility and Accessories

The cover is exclusively designed for NH fuse switch disconnectors size 2 and fits the specified part numbers. It is used in mounting plate and busbar system installations to cover the connection area of the disconnectors. The cover is used in conjunction with the installation of fuse switch disconnectors, protecting the area around the connections.

Installation and Mounting

Mounting is done directly at the connection area of the NH fuse switch disconnectors, where the cover seals the exposed terminals and connections. Installation requires no additional tools or components, as the cover is mechanically adapted to the disconnector.

Operational Advantages

The cover improves operational safety by preventing unintended contact with live parts. It also protects against dust, moisture, and mechanical impacts, extending the service life of electrical connections. The use of polyamide (PA 6) ensures high mechanical stability and heat resistance, which is important for industrial environments. The color RAL 9005 contributes to a uniform visual appearance of enclosures.

General
MaterialPolyamide (PA 6), flammability according to UL 94
ColourRAL 9005
Suitable for part no.9362210, 9362215, 9362250, 9363210, 9363215
Width208,5 mm
Height60 mm
Depth89,6 mm
Fire load3,002 MJ/m²
PCF/VE (Cradle-to-Gate)2,96


Product data sheet
Datasheet for Rittal 9365532, EAN: 4069196010442

Questions & answers

What is the delivery time of Rittal 9365532 RX connection space cover 1=2 for NH disconnector size 2?

The article Rittal 9365532 RX connection space cover 1=2 for NH disconnector size 2 is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9365532 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9365532 RX connection space cover 1=2 for NH disconnector size 2 always at the best possible price. We can give you a discount of 2% on Rittal 9365532 RX connection space cover 1=2 for NH disconnector size 2 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
