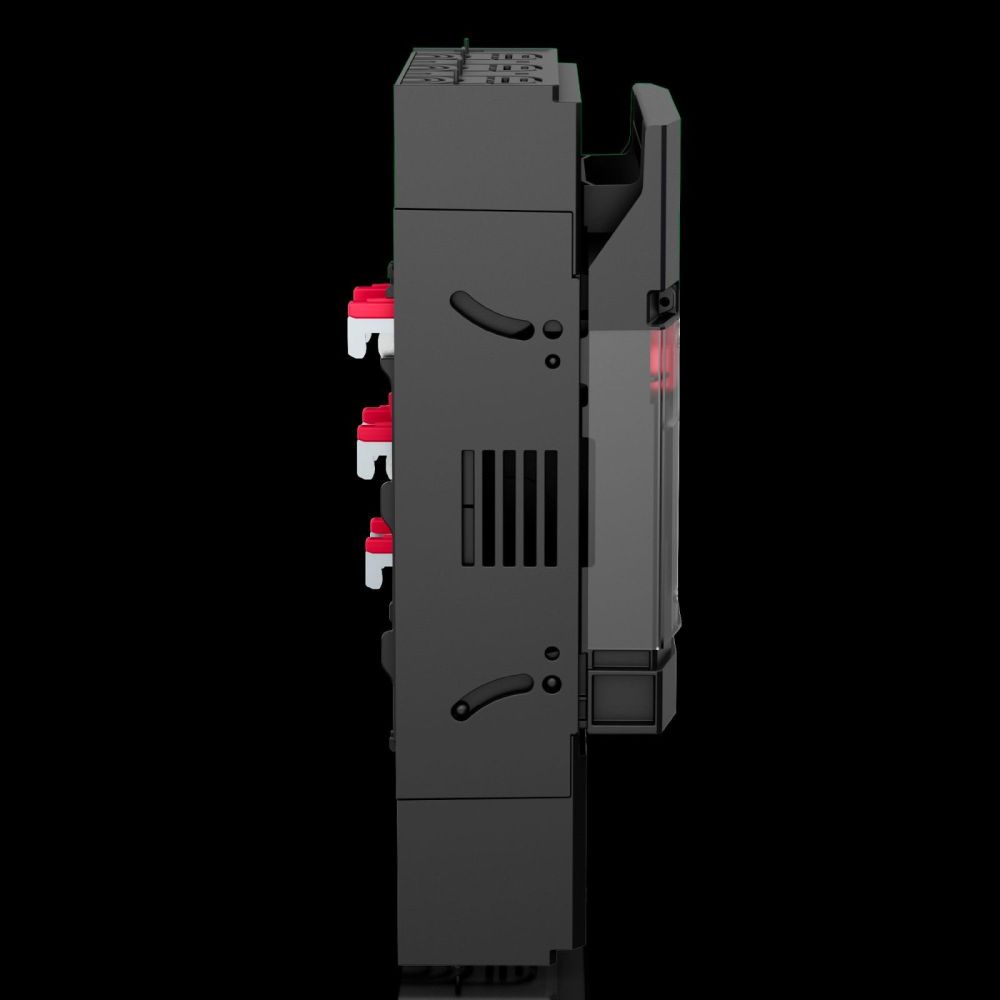

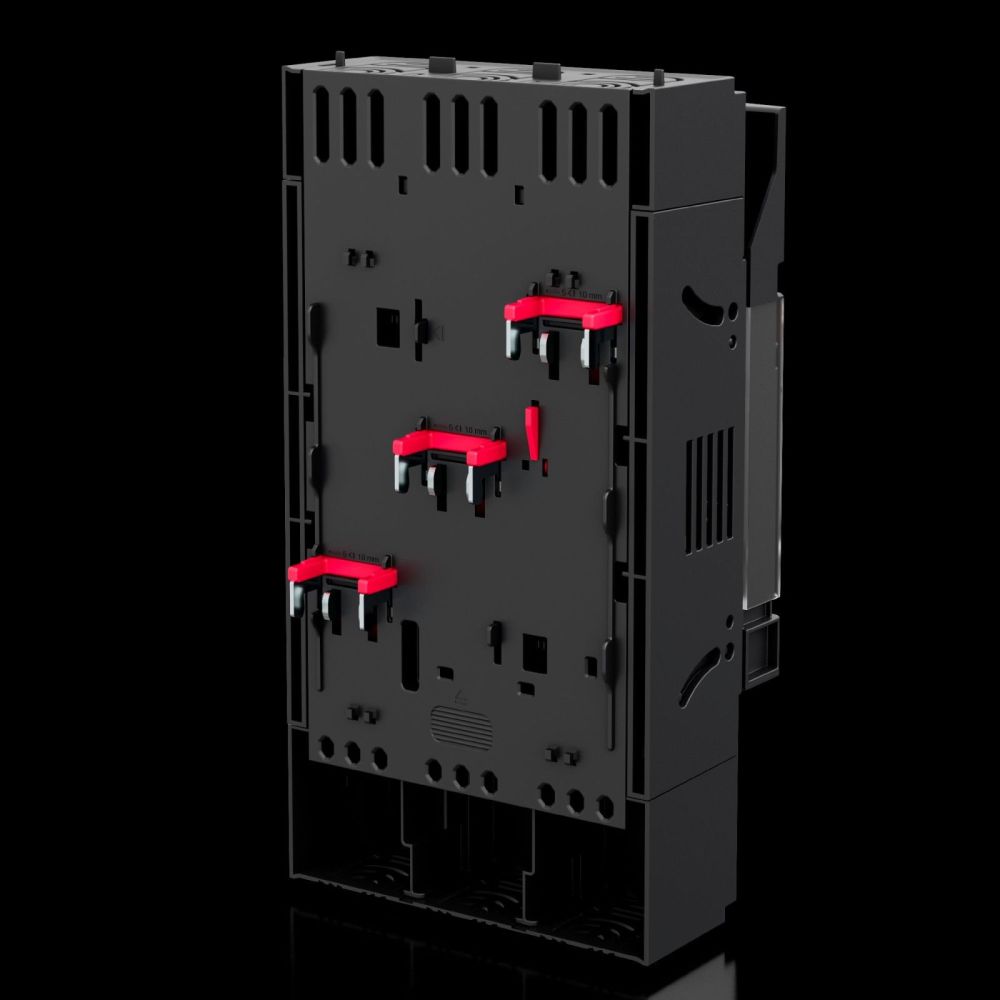

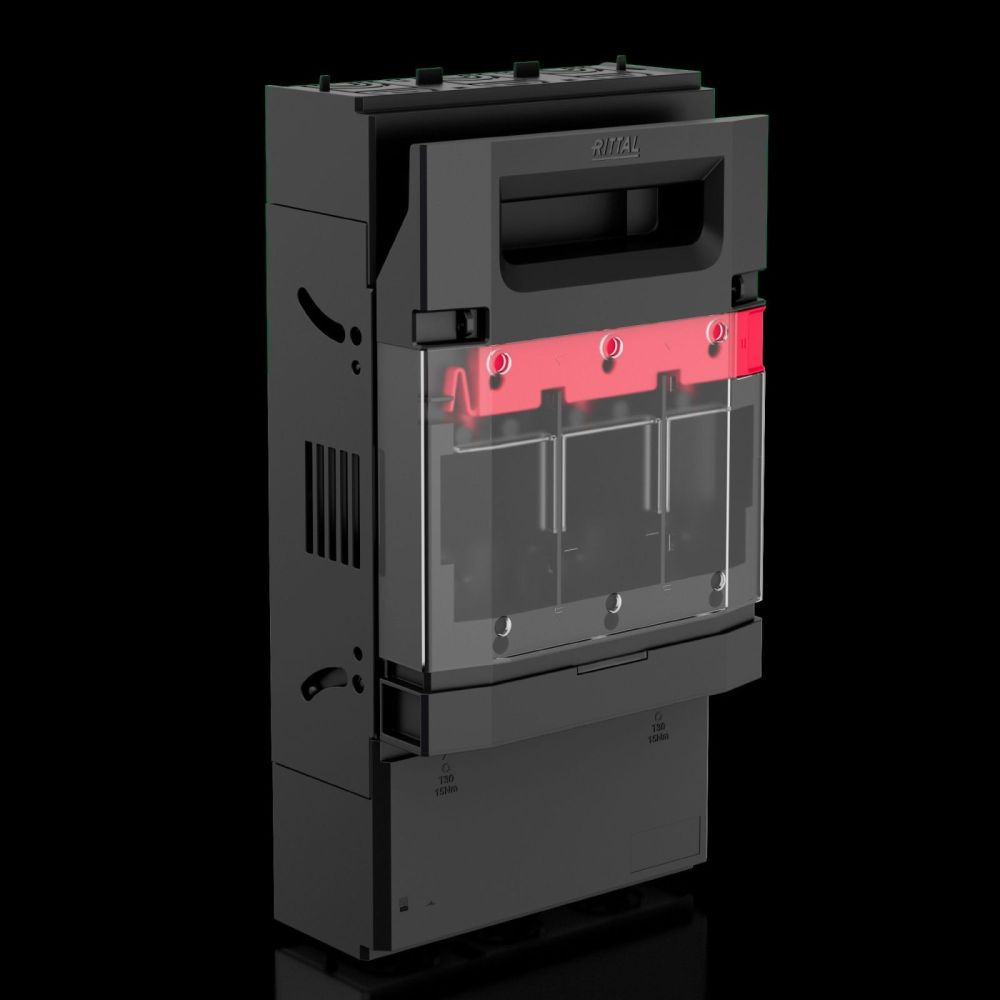

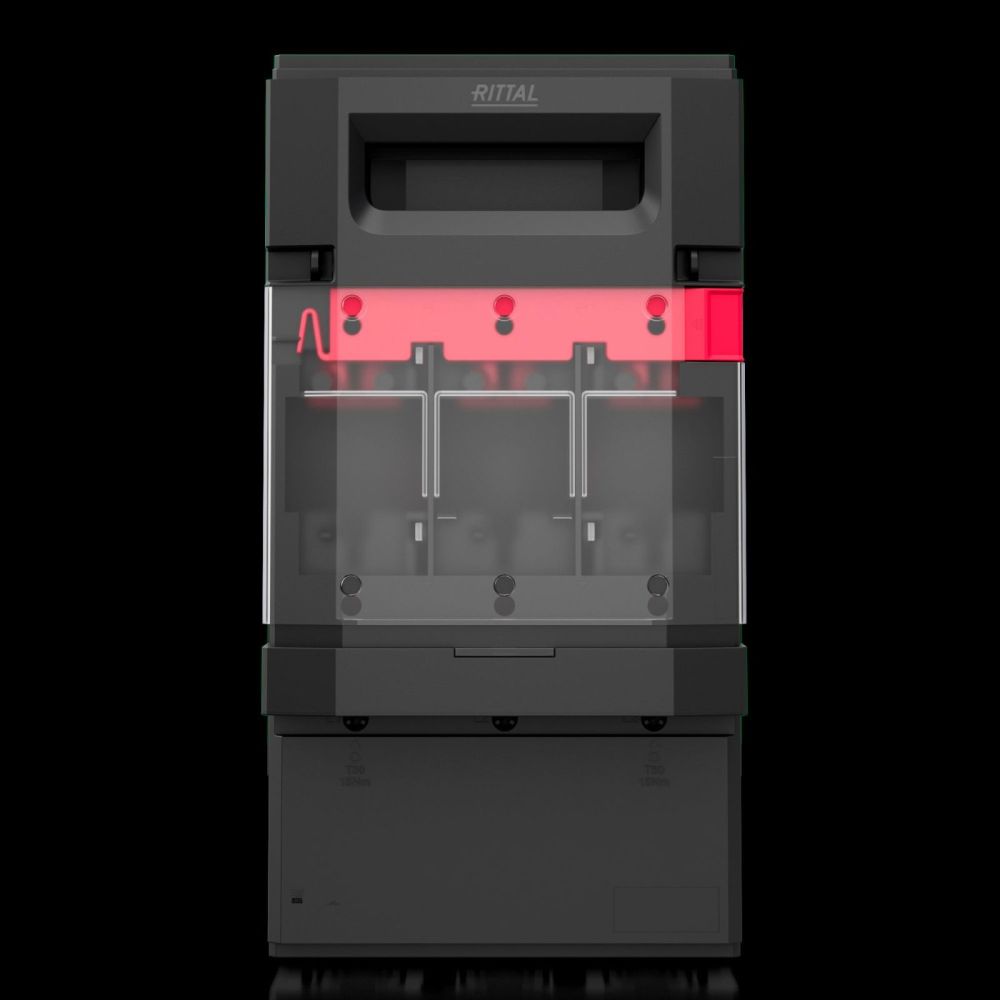

Rittal 9362215 RX NH fuse switch disconnector size 2 400 A 3-pole screw fuse monitoring 800 V

Your rating:
Average rating
product review for Rittal 9362215 RX NH fuse switch disconnector size 2 400 A 3-pole screw fuse monitoring 800 V
( 4.7 / 5 ) 3 ratings
Rittal 9362215
This image may differ from the desired article.
Rittal 9362215Rittal 9362215Rittal 9362215Rittal 9362215Rittal 9362215Rittal 9362215Rittal 9362215
339,25 EUR 352,82 EUR
( 403,71 EUR incl. VAT )
≈ £283.61  |  ≈ $374.87
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9362215 RX NH fuse switch disconnector size 2 400 A 3-pole screw fuse monitoring 800 V
Datasheet:file_download Download
Lieske Part No.:1571898
Mfg Part No: 9362215
UPC/EAN: 4069196001594
Weight:4.268 kg
Type:RX 9362215

Product information for Rittal 9362215:

The Rittal RX 9362215 is an NH fuse switch disconnector in size 2, specifically designed for 60 mm busbar systems. It serves as a power disconnector in industrial electrical installations, where a safe and monitorable disconnection of the power supply is required. The device is 3-pole and allows mounting on RiLineX and RiLine60 busbar systems with a center distance of 60 mm. The rated operational voltage is 690 V AC, with connections made via screw connection M10. The cable exits are tool-free and individually convertible to top or bottom, enabling flexible installation in various enclosures.

Applications
This fuse switch disconnector is intended for use in industrial electrical installations, particularly in enclosures where safe disconnection and monitoring of fuse inserts are required. It is suitable for systems with a rated voltage up to 690 V AC and is commonly used in manufacturing, power supply, and automation technology. The compatibility with busbars having cross-sections of 15 x 5/10 mm, 20 x 5/10 mm, and 30 x 5/10 mm allows adaptation to different busbar profiles.

Functions and Equipment in Detail
The disconnector’s cover is lockable and sealable, ensuring secure protection against unauthorized access. A visual fuse monitoring feature allows direct status checking of installed NH fuse inserts (size 2). Additionally, an electronic fuse monitoring (ESÜ) is integrated, which monitors the fuse condition and signals malfunctions. Safe voltage testing is enabled via integrated test points on the cover, allowing inspection without direct contact with conductors. A parking position for the cover facilitates maintenance, as the cover can be fixed in the open position.

Technology Explained Simply
The device consists of a housing made of polyamide (PA 6), which is flame-retardant according to UL 94, and silver-plated contact strips made of electrolytic copper, ensuring high electrical conductivity and corrosion resistance. The protection rating IP 2XB according to IEC 60 529 protects against finger contact and vertical dripping water, making it suitable for use in enclosed enclosures. Pollution degree 3 indicates that the device is designed for environments with increased contamination. The operating temperature ranges from -5 °C to 35 °C, and the storage temperature ranges from -25 °C to 70 °C.

Compatibility and Accessories
The disconnector is compatible with RiLineX and RiLine60 busbar systems. Available accessories include frame terminals (e.g. RX 9365543), grip protection profiles (e.g. RX 9365025), mounting clips (e.g. RX 9365027), microswitches (e.g. RX 9365505), and covers for the connection area (e.g. RX 9365532), which further enhance installation and safety. The delivery includes a connection plug for electronic fuse monitoring.

Mounting and Installation

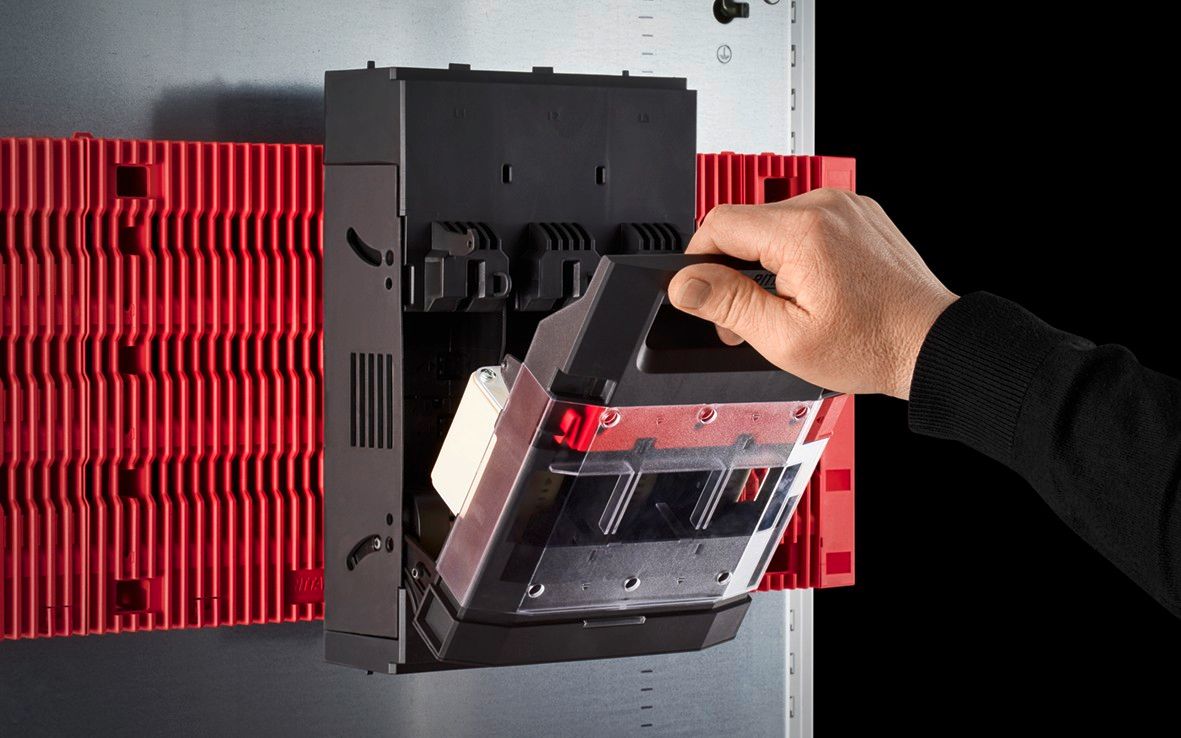

Mounting is done directly onto the busbar system with a 60 mm center distance. The tool-free conversion of the cable exit allows flexible adaptation to the respective enclosure configuration. The M10 screw connections provide a secure mechanical and electrical connection. Dimensions are 208.5 mm (width) × 348.7 mm (height) × 134.6 mm (depth).

Operational Advantages
The integrated electronic fuse monitoring ensures continuous monitoring of the fuse condition, increasing the availability and safety of the system. The parking position and the lockable, sealable cover support maintenance and safe operation. The tool-free cable exit conversion reduces installation time. The maximum power loss is 98 W, indicating efficient heat dissipation. The device complies with standards IEC/DIN EN 60 947-3 and DIN EN 60 269-2 (fuse inserts).

General
ModelFor 60 mm busbar systems, with electronic fuse monitoring (ESÜ)
MaterialPolyamide (PA 6), flammability rating according to UL 94, contact strips: electrolytic copper, silver-plated
ColourRAL 9005, RAL 35745
Scope of deliveryIncluding connection plug for electrical fuse monitoring
For rail systems with centre spacing60 mm
Cable exitAbove/under
Electrical connection typeM10 screw
Fuse linksNH 2
Rated operating voltage690 V AC
For NH size2
Test basisIEC/DIN EN 60 947-3, DIN EN 60 269-2 (fuse inserts)
Width208,5 mm
Height348,7 mm
Depth134,6 mm
Operating temperature range-5 °C...35 °C
Storage temperature range-25 °C...70 °C
Suitable for busbars15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Suitable for busbar systemRiLineX, RiLine60
Number of poles3-pole
Pollution degree3
Degree of protection IP according to IEC 60 529IP 2XB
Fire load46,16 MJ/m²
Maximum power dissipation98 W
Copper content (kg/piece)1,75
PCF/VE (Cradle-to-Gate)28,53
With electronic fuse monitoring (ESÜ)Ja


Product data sheet
Datasheet for Rittal 9362215, EAN: 4069196001594
