Rittal 9363310 RX NH fuse switch disconnector size 3 630 A 3-pole

Your rating:
Average rating
product review for Rittal 9363310 RX NH fuse switch disconnector size 3 630 A 3-pole
( 4 / 5 ) 1 ratings

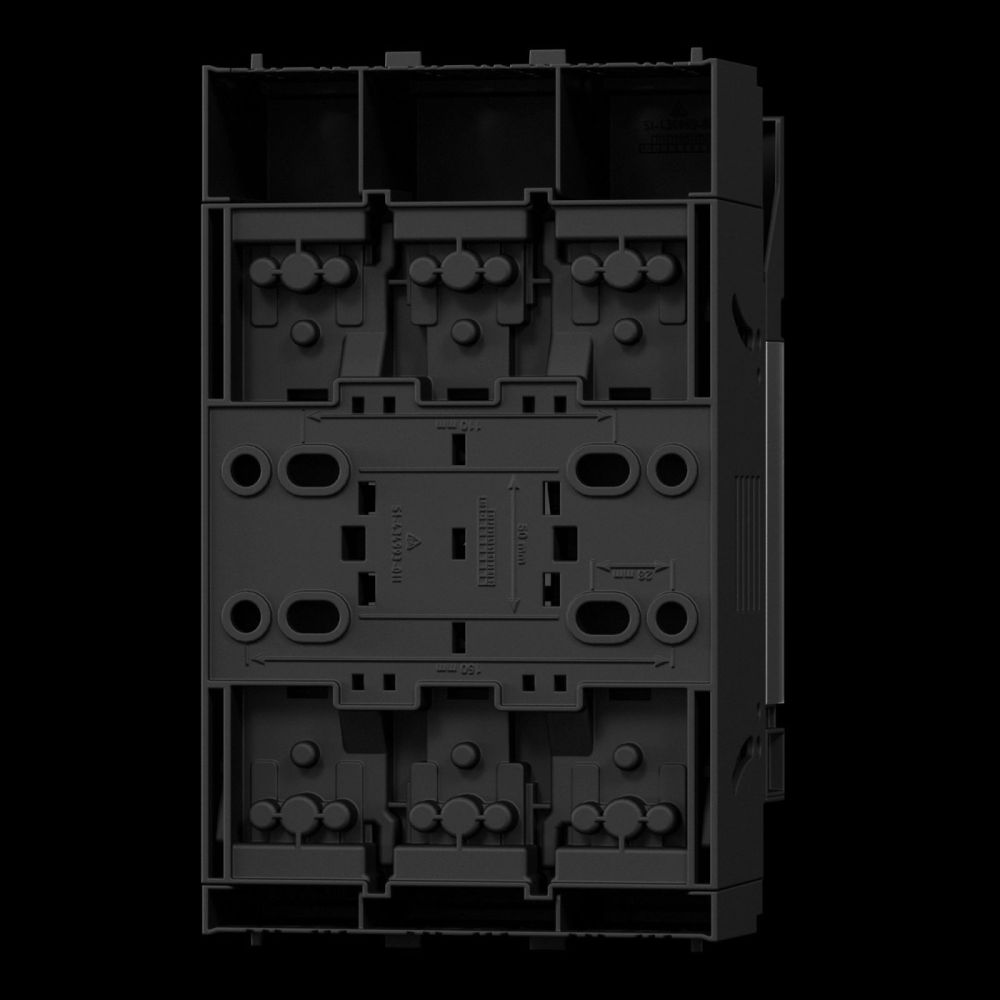

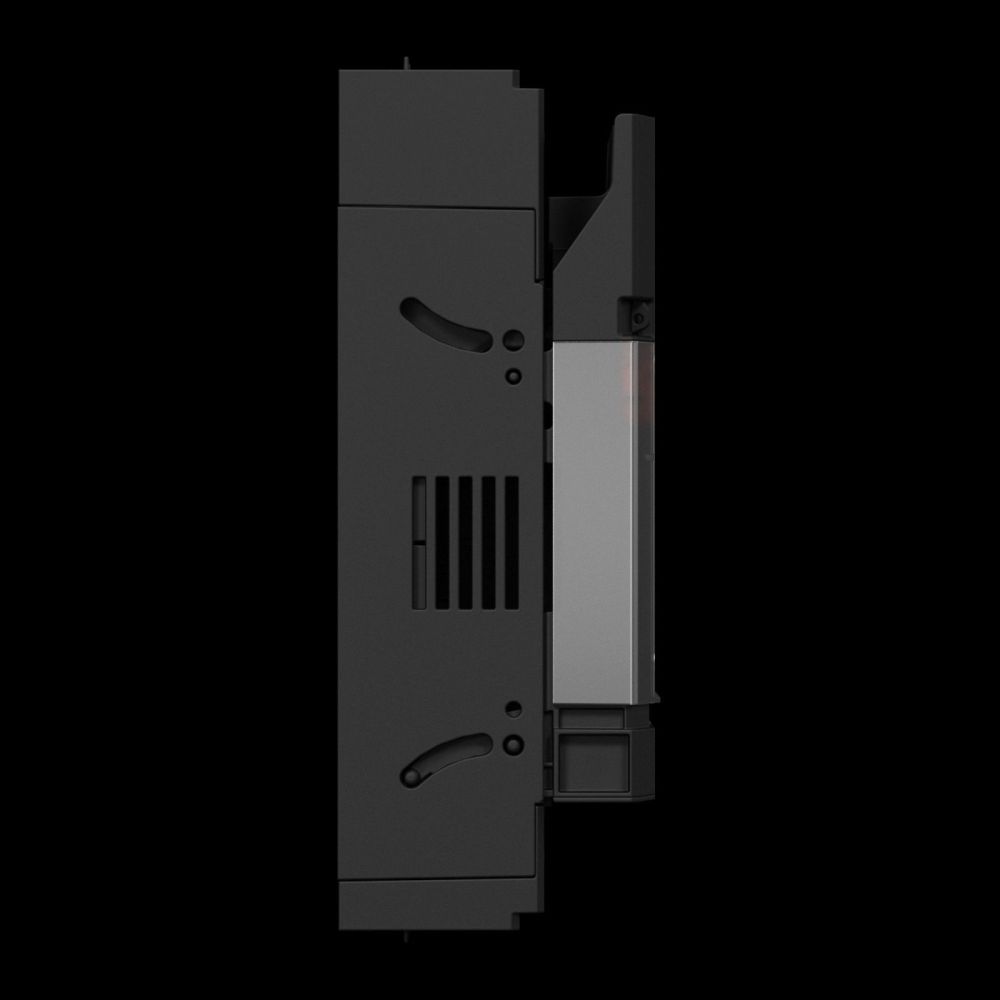

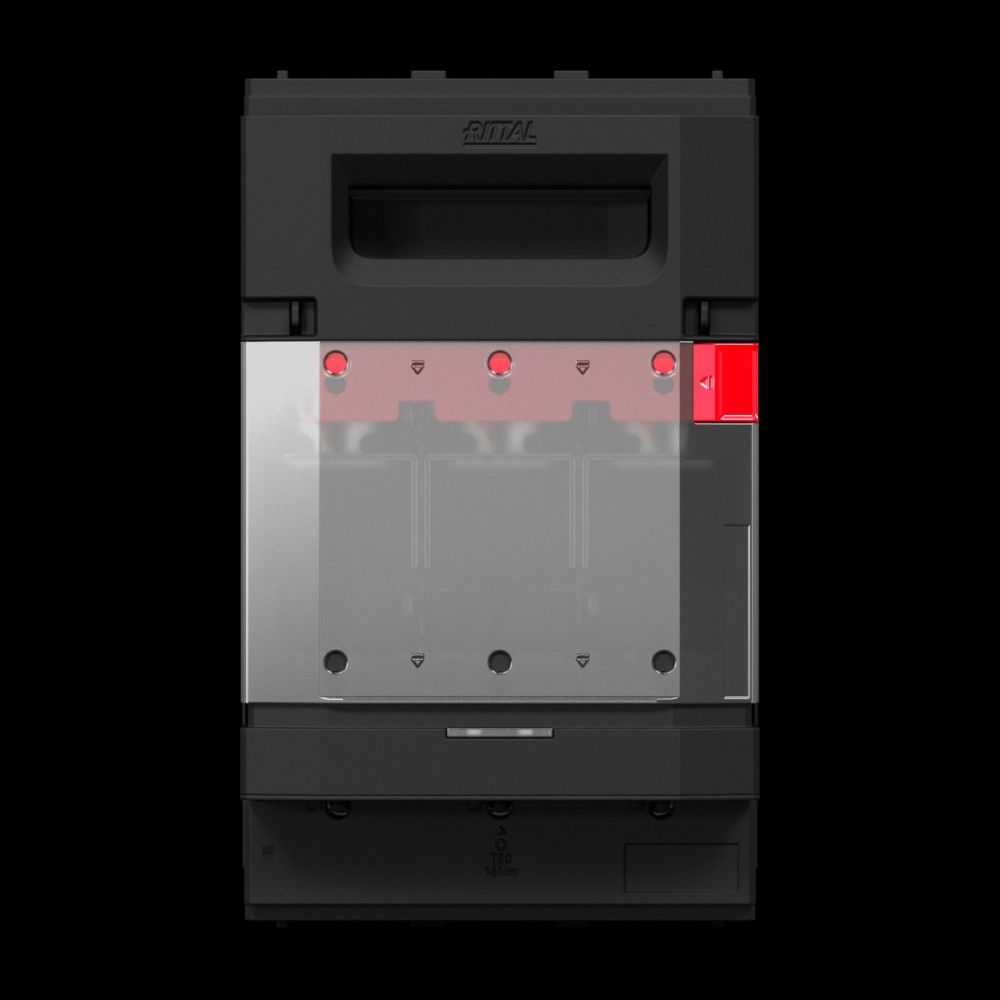

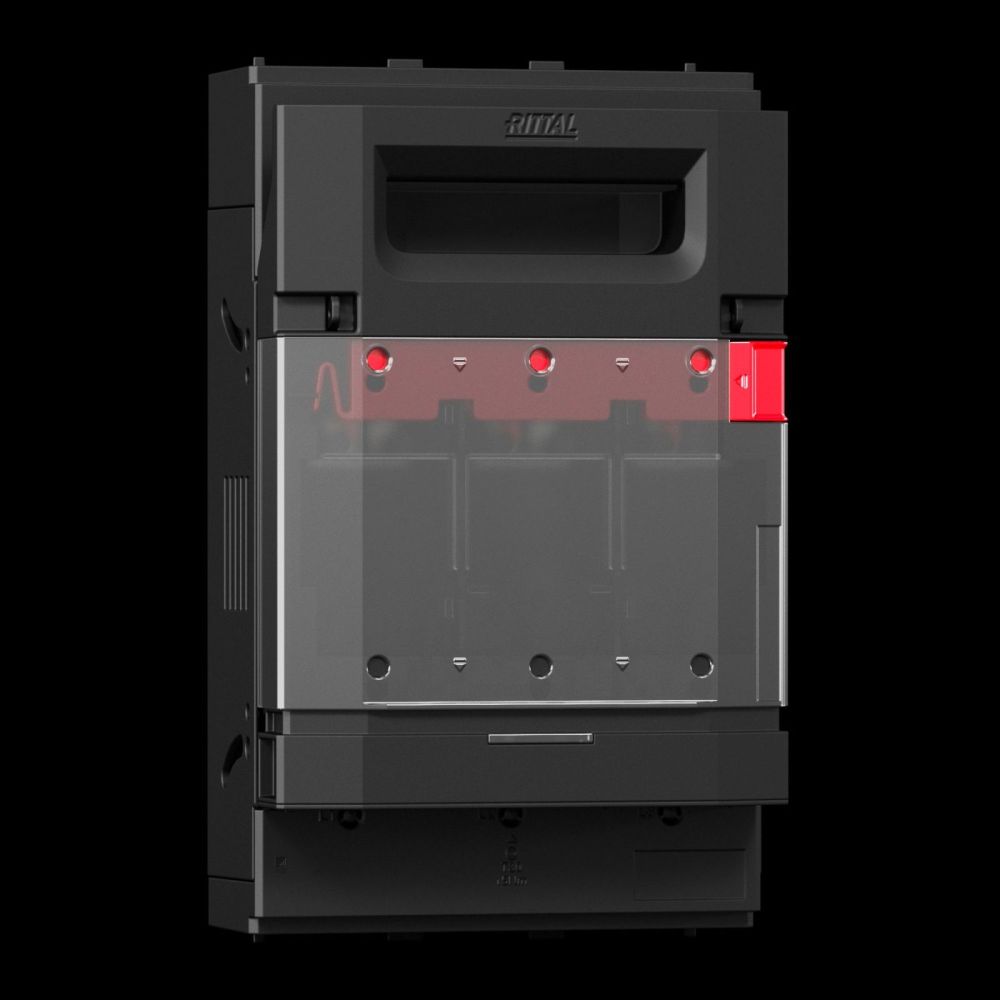

Rittal 9363310
This image may differ from the desired article.
Rittal 9363310Rittal 9363310Rittal 9363310Rittal 9363310Rittal 9363310Rittal 9363310
-6% 207,00 EUR 221,31 EUR
( 246,33 EUR incl. VAT )
≈ £173.05  |  ≈ $228.73
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9363310 RX NH fuse switch disconnector size 3 630 A 3-pole
Datasheet:file_download Download
Lieske Part No.:612131
Mfg Part No: 9363310
UPC/EAN: 4069196001815
Weight:3.882 kg
Type:RX 9363310

Product information for Rittal 9363310:

The Rittal RiLineX NH fuse switch disconnector type RX 9363310 is a 3-pole disconnector in size 3, specifically designed for mounting on mounting plates. It serves as a fuse switch disconnector in industrial electrical installations and enables the safe disconnection of circuits under operating voltage up to 690 V AC. The rated insulation voltage is 1,000 V, allowing application in high-voltage environments up to this limit. The disconnector is designed for use with NH fuse inserts of size 3 and features a screw connection design with M10 connectors, ensuring a secure and reliable connection for cables. The contact bars are made of electrolytic copper and are silver-plated to ensure high electrical conductivity and corrosion resistance.

Applications

The disconnector is suitable for use in industrial installations such as machine controls, distribution boxes, or drive systems, where a safe and visible disconnection of the power supply is required. Mounting on mounting plates allows flexible integration into existing control systems. The protection rating IP 2XB according to IEC 60 529 protects against finger contact and solid foreign objects, but not against splashing water or dust – thus it is intended for indoor installations. Pollution degree 3 accounts for environments with increased contamination risk, such as production halls or industrial processes.

Functions and Equipment in Detail

The disconnector's cover is lockable and sealable, preventing unauthorized manipulation and enhancing operational safety. Visual fuse monitoring allows the status of the installed NH fuse to be directly observed on the device without removing it. Integrated test points on the cover enable safe voltage testing without direct contact with the conductors. The park position of the cover facilitates maintenance work, as the cover can be held in a stable, open position without requiring additional holding devices.

Technology Explained Simply

The construction from polyamide (PA 6) with flame resistance according to UL 94 ensures high mechanical stability and fire resistance. The maximum power loss is 84 W, limiting thermal stress during operation. The operating temperature range is between -5 °C and 35 °C, while the storage temperature range from -25 °C to 70 °C allows storage under various conditions. Dimensions are 250 mm (width) × 298.5 mm (height) × 128.7 mm (depth), representing a compact design for mounting plates. Color variants RAL 9005 (black) and RAL 35745 (gray) allow optical harmonization with existing system components.

Compatibility and Accessories

The disconnector is designed for NH fuse inserts of size 3. Suitable accessories include the cover RX 9365533 for the connection space and the frame terminal RX 9365543, which is suitable for NH disconnectors of sizes 2 and 3. These components support safe and orderly installation and maintenance of the device.

Mounting and Installation

Mounting is done on mounting plates, with the disconnector's dimensions aligned to standard plate dimensions. Cable exit is possible at the top and bottom, ensuring flexible arrangement in the control system. The tool-free cable exit adjustment allows quick adaptation of the connection direction without additional tools.

Operational Advantages

The combination of a lockable cover, visual fuse monitoring, and integrated test points for voltage testing increases safety and efficiency during maintenance and inspection work. The park position reduces work effort during maintenance, as the cover can be held stably in the open position. The screw connection type M10 ensures a robust and reliable connection that remains stable even under high mechanical loads. The test basis IEC/DIN EN 60 947-3 and DIN EN 60 269-2 (for fuse inserts) ensures compliance with international standards for switching devices and fuses.

General
Modelfor panel mounting
MaterialPolyamide (PA 6), flammability rating according to UL 94, contact strips: electrolytic copper, silver-plated
ColourRAL 9005, RAL 35745
Cable exitAbove/under
Electrical connection typeM10 screw
Fuse linksNH 3
Rated insulation voltage Ui1.000 V
Rated operating voltage690 V AC
For NH size3
Test basisIEC/DIN EN 60 947-3, DIN EN 60 269-2 (fuse inserts)
Width250 mm
Height298,5 mm
Depth128,7 mm
Operating temperature range-5 °C...35 °C
Storage temperature range-25 °C...70 °C
Number of poles3-pole
Pollution degree3
Degree of protection IP according to IEC 60 529IP 2XB
Fire load44,94 MJ/m²
Maximum power dissipation84 W
Copper content (kg/piece)1,68
PCF/VE (Cradle-to-Gate)25,87
For panel mountingJa


Product data sheet
Datasheet for Rittal 9363310, EAN: 4069196001815

Questions & answers

What is the delivery time of Rittal 9363310 RX NH fuse switch disconnector size 3 630 A 3-pole?

The article Rittal 9363310 RX NH fuse switch disconnector size 3 630 A 3-pole is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9363310 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9363310 RX NH fuse switch disconnector size 3 630 A 3-pole always at the best possible price. We can give you a discount of 2% on Rittal 9363310 RX NH fuse switch disconnector size 3 630 A 3-pole if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
