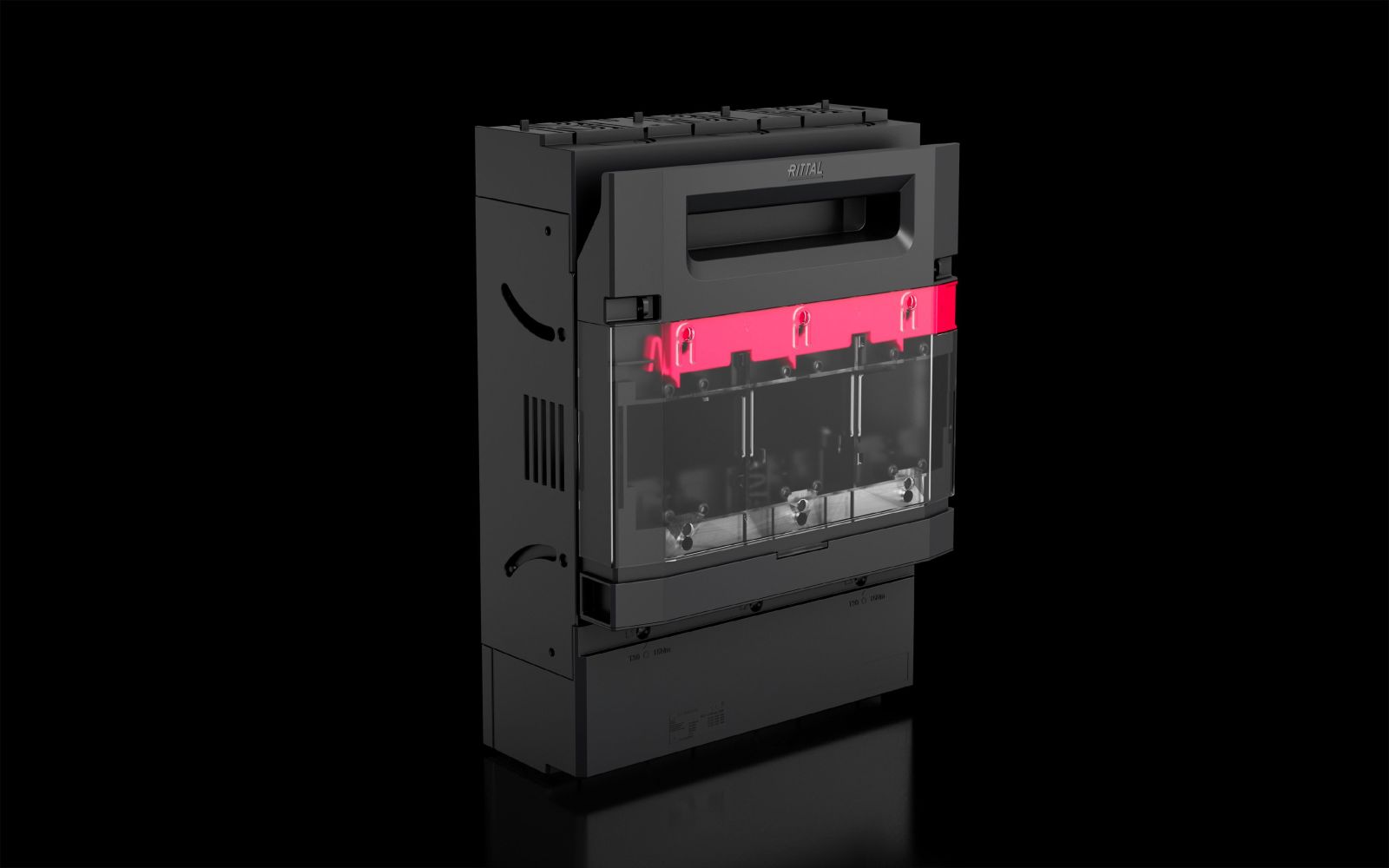

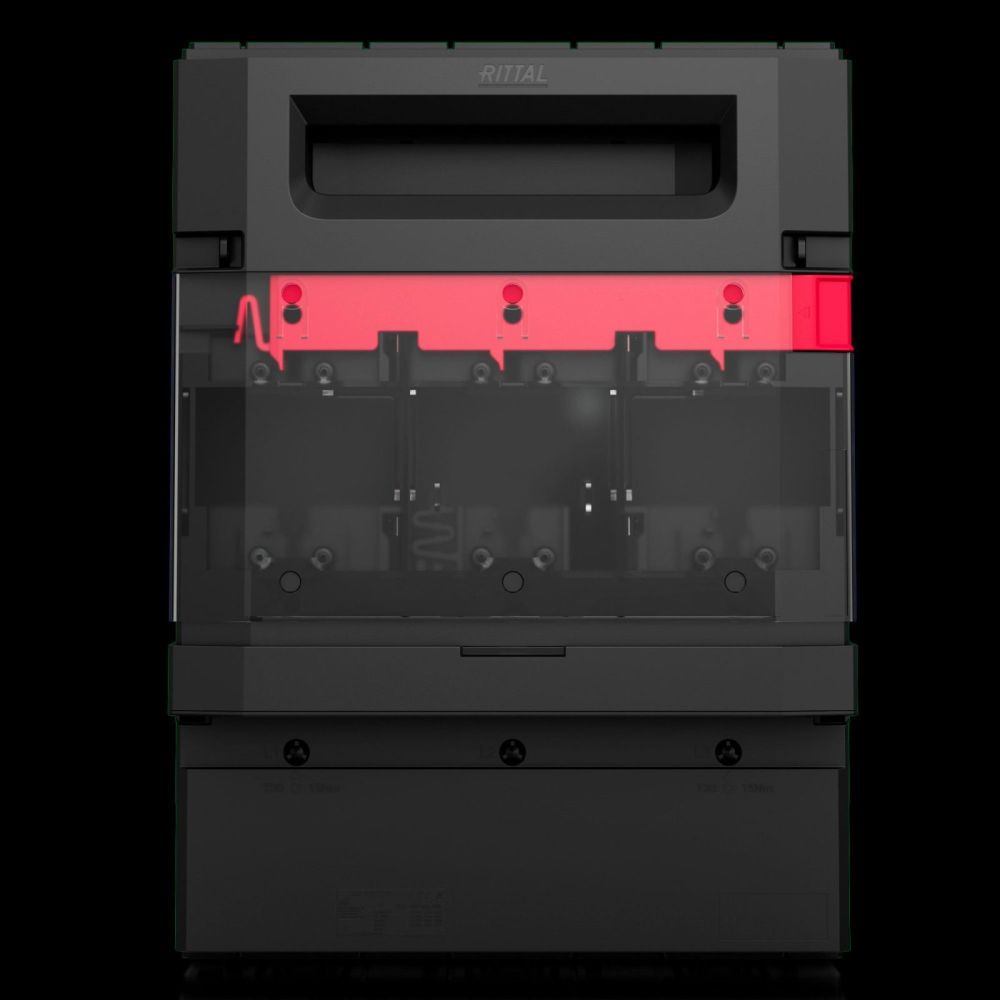

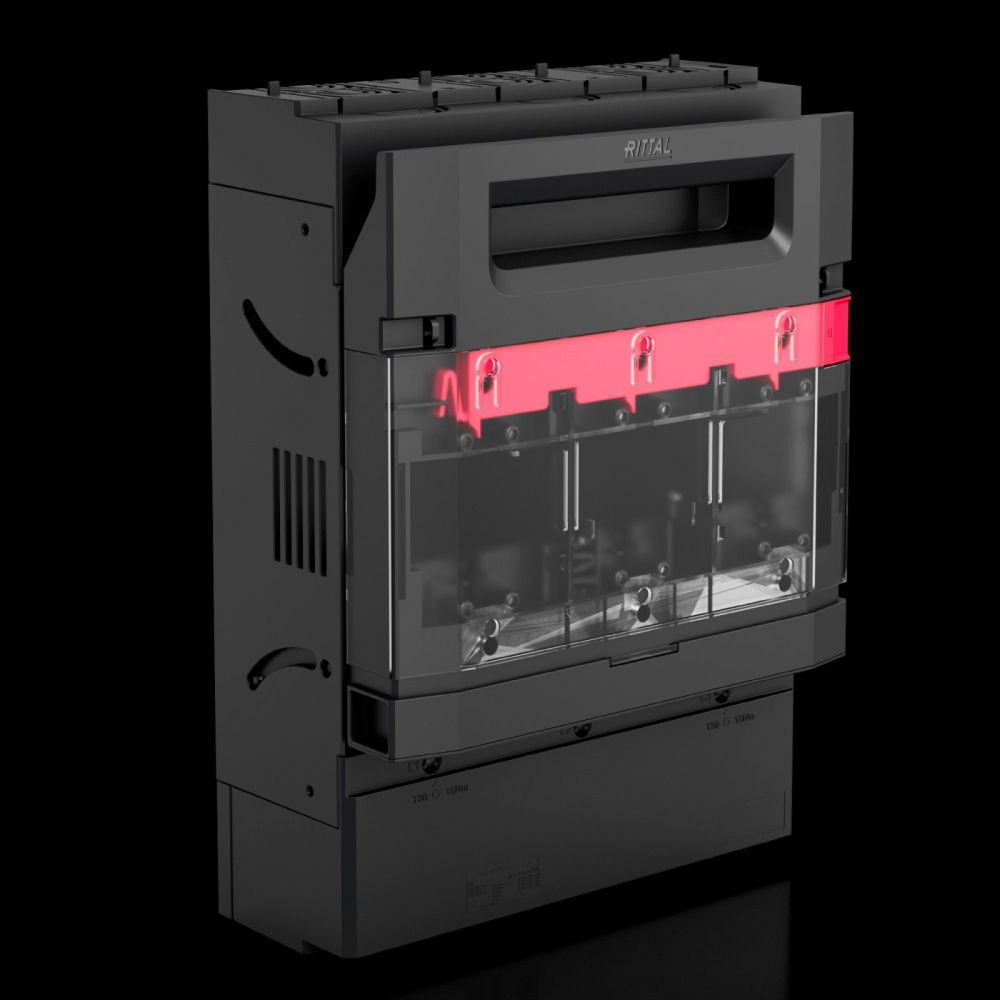

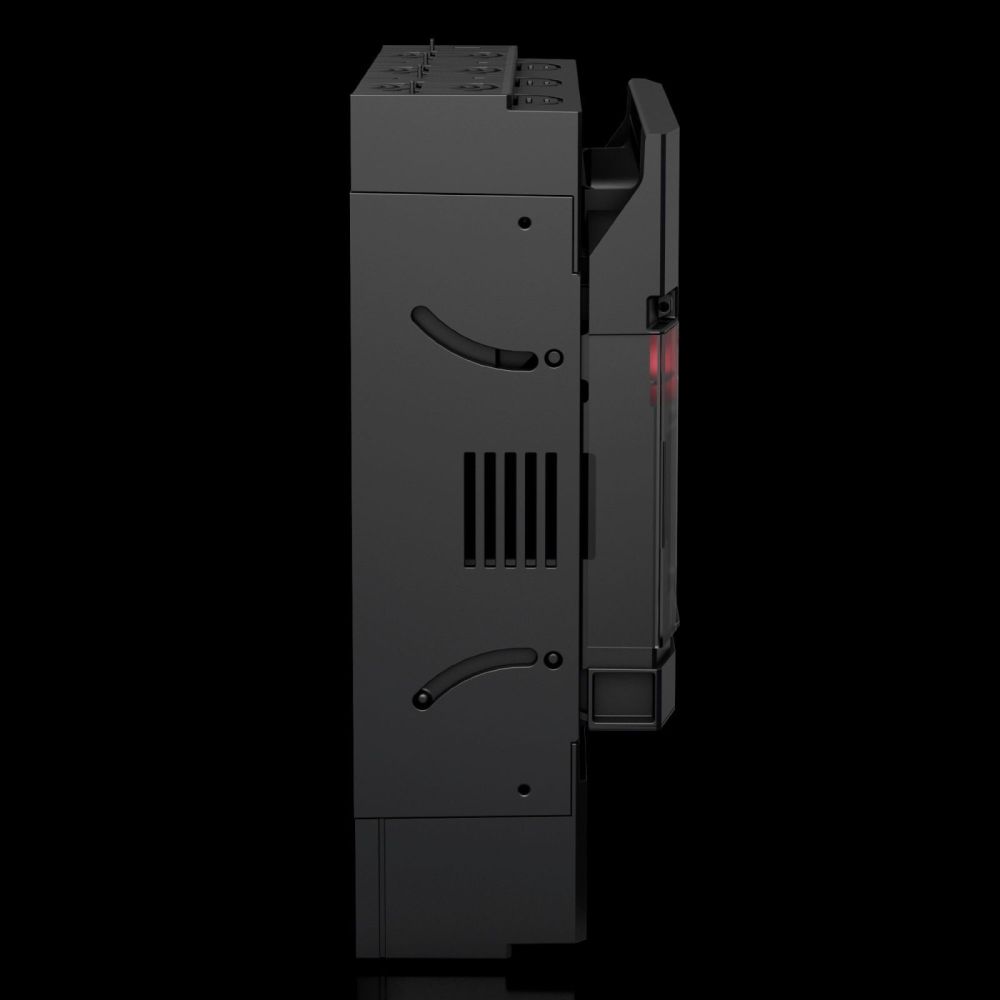

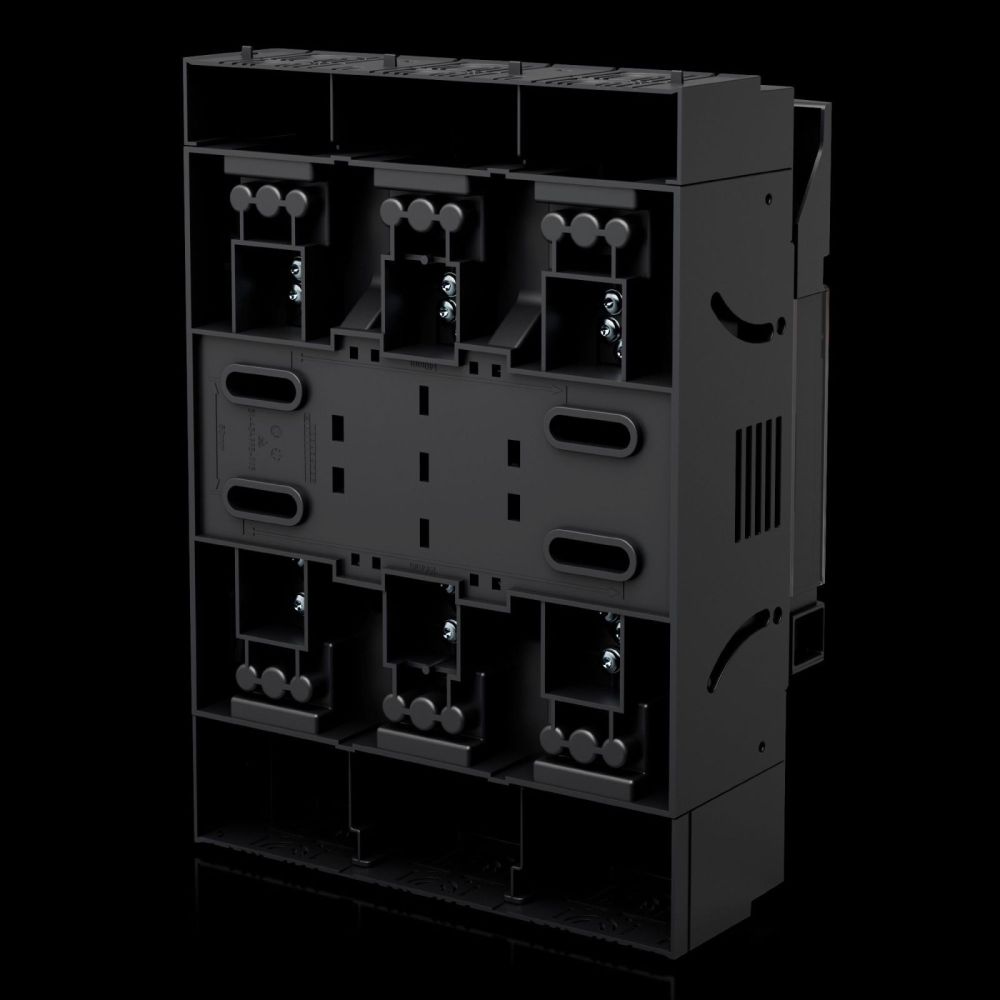

Rittal 9363315 RX NH fuse switch disconnector size 3 630 A 3-pole
|
339,25 EUR 352,82 EUR |
|
|
( 403,71 EUR incl. VAT ) ≈ £283.61 | ≈ $374.87 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 612132 |
| Mfg Part No: | 9363315 |
| UPC/EAN: | 4069196001822 |
| Weight: | 4.216 kg |
| Type: | RX 9363315 |
Product information for Rittal 9363315:
Applications
This disconnector is intended for use in industrial installations such as machine controls, distribution boxes, or systems with high safety requirements. It is suitable for installations with a rated operational voltage of 690 V AC and a rated insulation voltage of 1,000 kV, qualifying it for applications in the medium voltage range. The 3-pole configuration makes it suitable for three-phase AC systems. The protection rating IP 2XB according to IEC 60 529 ensures protection against finger contact and vertical dripping water, making it suitable for indoor use with limited environmental exposure.
Functions and Equipment in Detail
The disconnector's cover is lockable and sealable, preventing unauthorized access and ensuring compliance with safety regulations. The visual fuse monitoring allows the fuse condition to be directly observed on the device. For safe voltage testing, integrated test points on the cover enable inspection without direct contact with live parts. The parking position of the cover facilitates maintenance work, as the cover can be held in a stable, open position without requiring additional holding devices.
Technology Explained Simply
The electronic fuse monitoring (ESÜ) monitors the electrical condition of the NH fuse inserts and signals any failure or malfunction. This increases operational safety and reduces the risk of outages. The connection type is via screw connection M10, ensuring a secure and mechanically stable connection. The contact bars are made of electrolytic copper, silver-plated, providing high electrical conductivity and corrosion resistance. The housing is made of polyamide (PA 6) with flame resistance according to UL 94, offering high mechanical strength and heat resistance.
Compatibility and Accessories
The disconnector is designed for NH size 3 and is compatible with corresponding fuse inserts. Suitable accessories include the connection space cover 1=2 for NH disconnectors size 3 (RX 9365533) and the frame terminal 1=3 for NH disconnectors size 2/3 (RX 9365543), which support installation and protect connection areas. Cable exits are possible at the top and bottom, with a tool-free reconfiguration of the cable exit provided, simplifying installation and maintenance.
Mounting and Installation
The disconnector is mounted on mounting plates, with dimensions of 250 mm (width) × 348.6 mm (height) × 128.7 mm (depth) to be considered. Mounting is done via designated fastening points, ensuring secure and stable anchoring. The operating temperature range is between -5 °C and 35 °C, while the storage temperature range of -25 °C to 70 °C allows the device to be transported and stored even under extreme conditions.
Operational Advantages
The combination of electronic fuse monitoring, visual monitoring, lockable cover, and parking position enhances safety and efficiency in operation. The integrated test points for voltage testing reduce the risk of accidents during maintenance. The tool-free reconfiguration of the cable exit reduces installation time and labor effort. The conformity basis IEC/DIN EN 60 947-3 and DIN EN 60 269-2 for fuse inserts ensures compliance with international standards and reliability in critical applications.
| General | |
| Model | For panel mounting, with electronic fuse monitoring (ESÜ) |
| Material | Polyamide (PA 6), flammability rating according to UL 94, contact strips: electrolytic copper, silver-plated |
| Colour | RAL 9005, RAL 35745 |
| Scope of delivery | Including connection plug for electrical fuse monitoring |
| Cable exit | Above/under |
| Electrical connection type | M10 screw |
| Fuse links | NH 3 |
| Rated insulation voltage Ui | 1.000 kV |
| Rated operating voltage | 690 V AC |
| For NH size | 3 |
| Test basis | IEC/DIN EN 60 947-3, DIN EN 60 269-2 (fuse inserts) |
| Width | 250 mm |
| Height | 348,6 mm |
| Depth | 128,7 mm |
| Operating temperature range | -5 °C...35 °C |
| Storage temperature range | -25 °C...70 °C |
| Number of poles | 3-pole |
| Pollution degree | 3 |
| Degree of protection IP according to IEC 60 529 | IP 2XB |
| Fire load | 50,46 MJ/m² |
| Maximum power dissipation | 84 W |
| Copper content (kg/piece) | 1,68 |
| PCF/VE (Cradle-to-Gate) | 28,57 |
| For panel mounting | |
| With electronic fuse monitoring (ESÜ) | |
