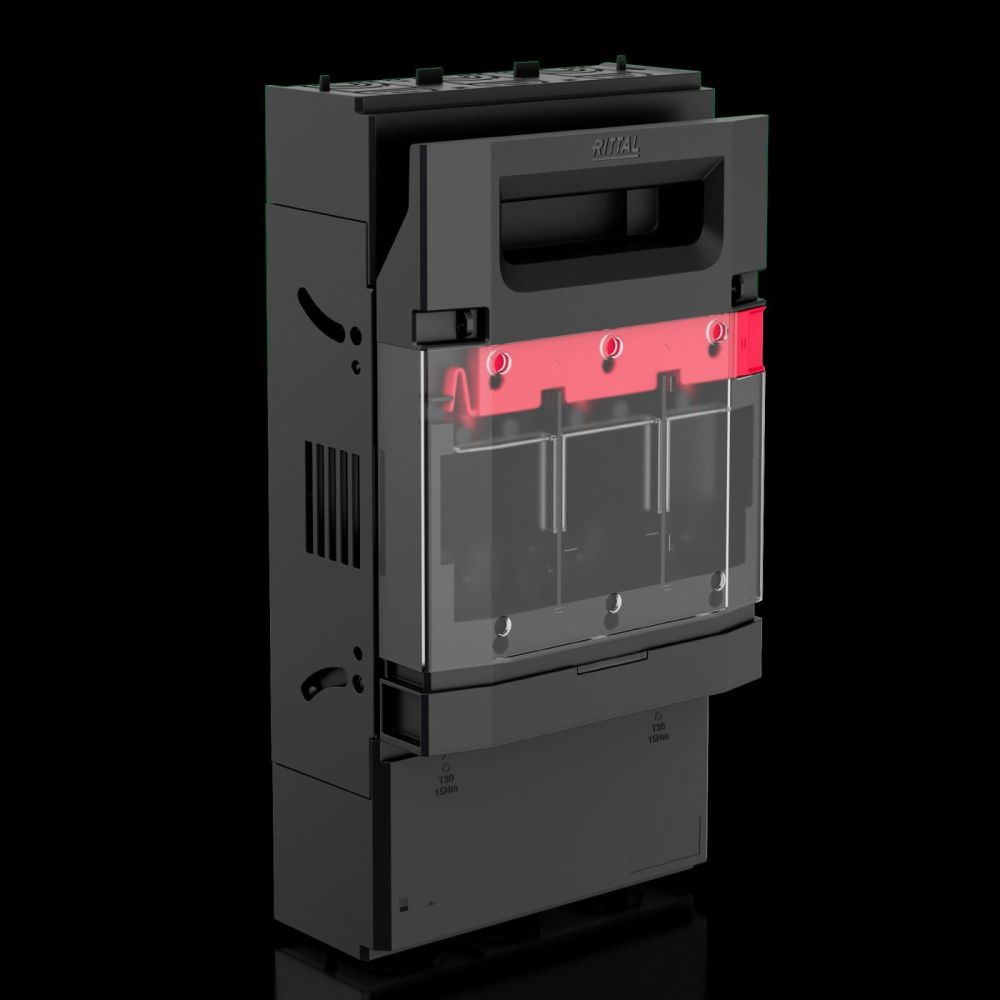

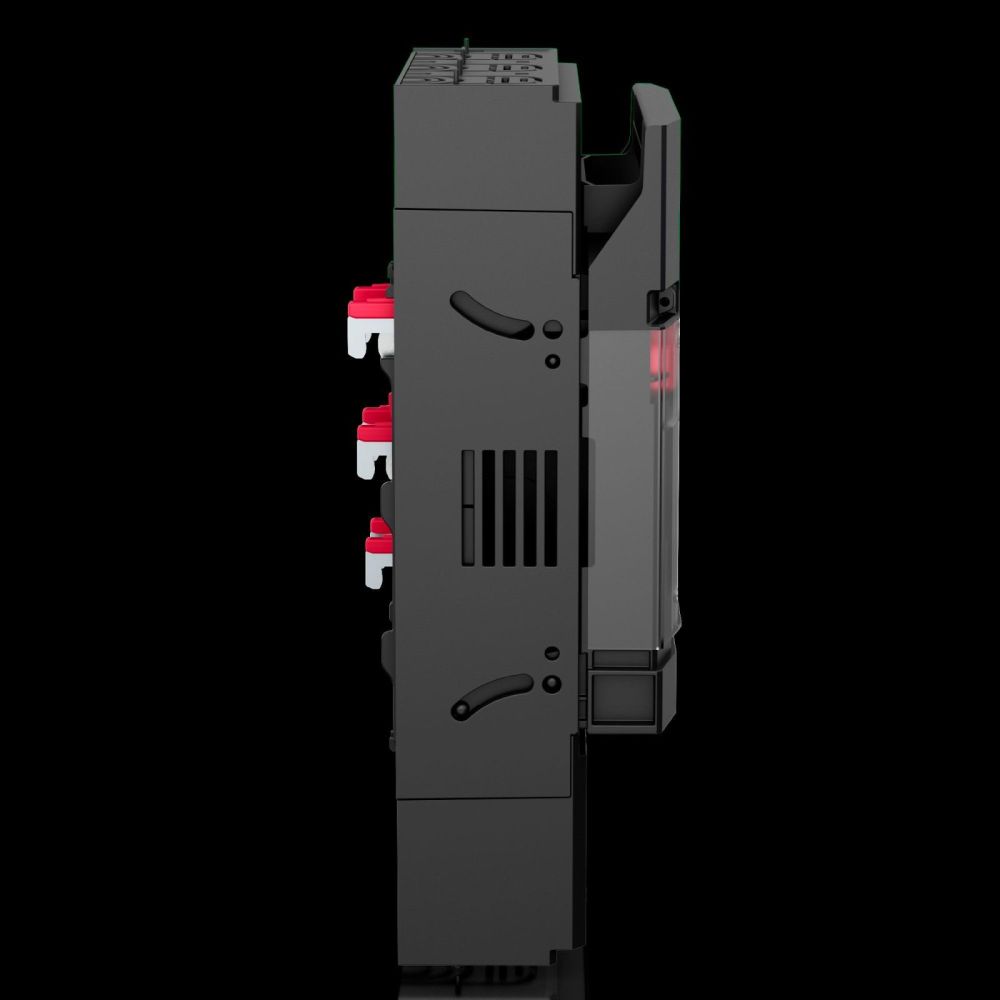

Rittal 9362315 RX NH fuse switch disconnector size 3 630 A 3-pole

Your rating:
Average rating
product review for Rittal 9362315 RX NH fuse switch disconnector size 3 630 A 3-pole
( 0 / 5 ) 0 ratings
Rittal 9362315
This image may differ from the desired article.
Rittal 9362315Rittal 9362315Rittal 9362315Rittal 9362315Rittal 9362315Rittal 9362315Rittal 9362315
408,25 EUR 424,58 EUR
( 485,82 EUR incl. VAT )
≈ £341.30  |  ≈ $451.12
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9362315 RX NH fuse switch disconnector size 3 630 A 3-pole
Datasheet:file_download Download
Lieske Part No.:611759
Mfg Part No: 9362315
UPC/EAN: 4069196001631
Weight:4.83 kg
Type:RX 9362315

Product information for Rittal 9362315:

The Rittal RX 9362315 is an NH fuse switch disconnector in size 3, specifically designed for 60 mm busbar systems. It serves as a power disconnector in industrial electrical installations and enables safe disconnection of circuits with integrated fusing. The device is designed for use in RiLineX and RiLine60 systems and offers a 3-pole configuration with a rated operational voltage of 690 V AC. Electronic fuse monitoring (ESÜ) is integrated as standard, enabling continuous monitoring of the fuse status.

Applications
This disconnector is intended for industrial applications in enclosures and distribution systems where safe and reliable power disconnection is required. It is particularly suitable for installations with high safety requirements, such as in manufacturing, power supply, or automation technology. The compatibility with busbars having cross-sections of 15 x 5/10 mm, 20 x 5/10 mm, and 30 x 5/10 mm ensures flexible mounting on various busbar systems.

Functions and Equipment in Detail

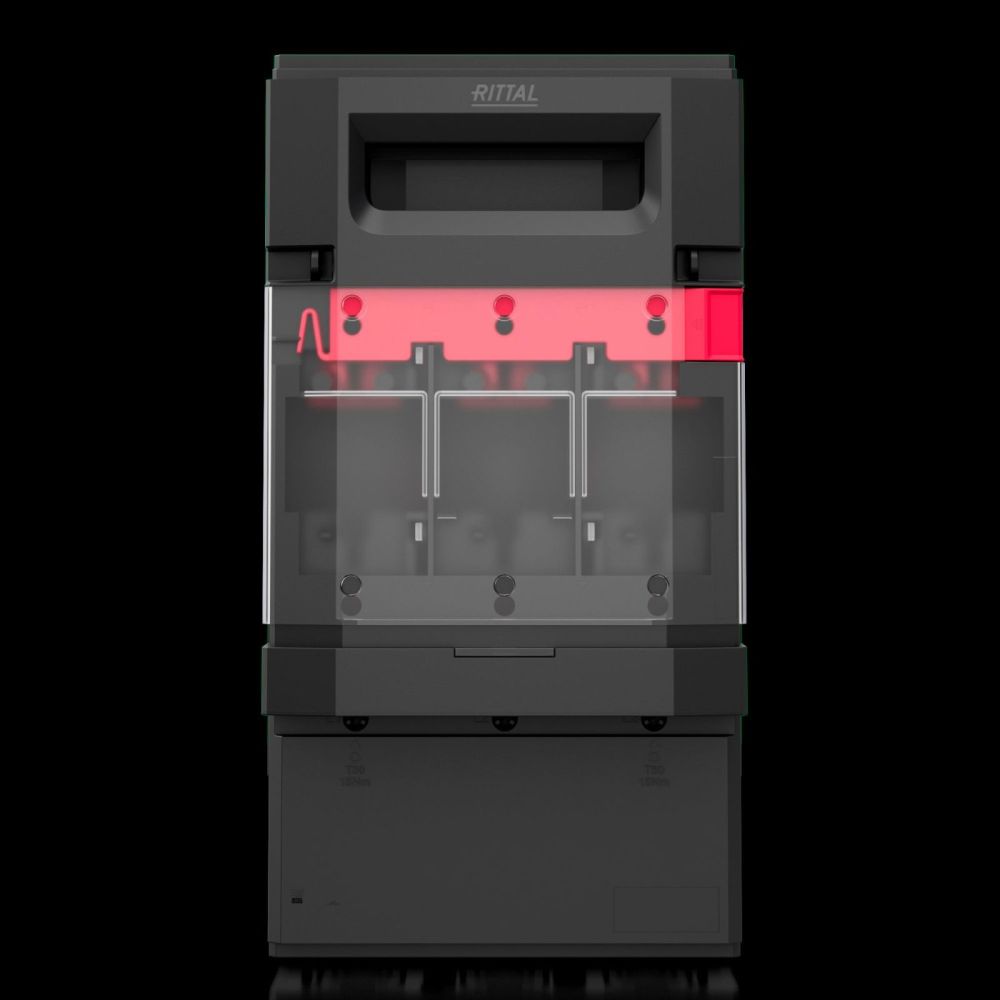

The disconnector’s cover is lockable and sealable, preventing unauthorized manipulation. Visual fuse monitoring allows for quick status checking of the fuse. For safe voltage testing, integrated test points on the cover enable testing without direct contact with live parts. A parking position for the cover facilitates maintenance work, as the cover can be held in a stable, open position. The cable exit is individually convertible to top or bottom, with tool-free conversion.

Technology Explained Simply
The device features a screw connection M10 for cable attachment, ensuring a secure and mechanically stable connection. The contact strips are made of electrolytic copper, silver-plated, providing high electrical conductivity and corrosion resistance. The housing is made of polyamide (PA 6), which exhibits good flame resistance according to UL 94. The protection rating IP 2XB per IEC 60 529 protects against finger contact and vertical dripping water. The operating temperature range is between -5 °C and 35 °C, with a storage temperature up to 70 °C. The maximum power loss is 101 W.

Compatibility and Accessories
The disconnector is designed for mounting on 60 mm busbar systems and adapts tool-free to various busbar thicknesses. Available accessories include a cover for NH disconnector size 3 (RX 9365533), a frame terminal 1=3 (RX 9365543), a clamping protection profile (RX 9365025), mounting clips (RX 9365027), and a microswitch (RX 9365505), which can be used for additional signaling or control.

Mounting and Installation

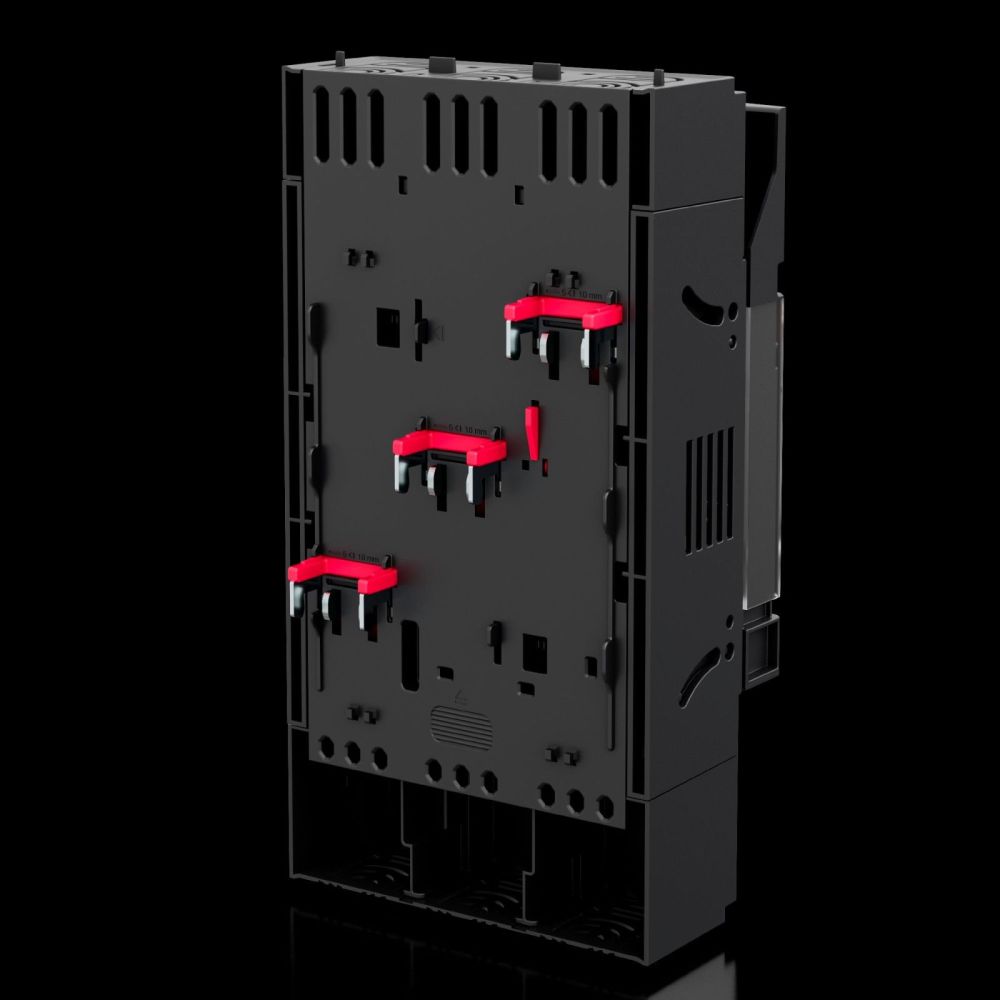

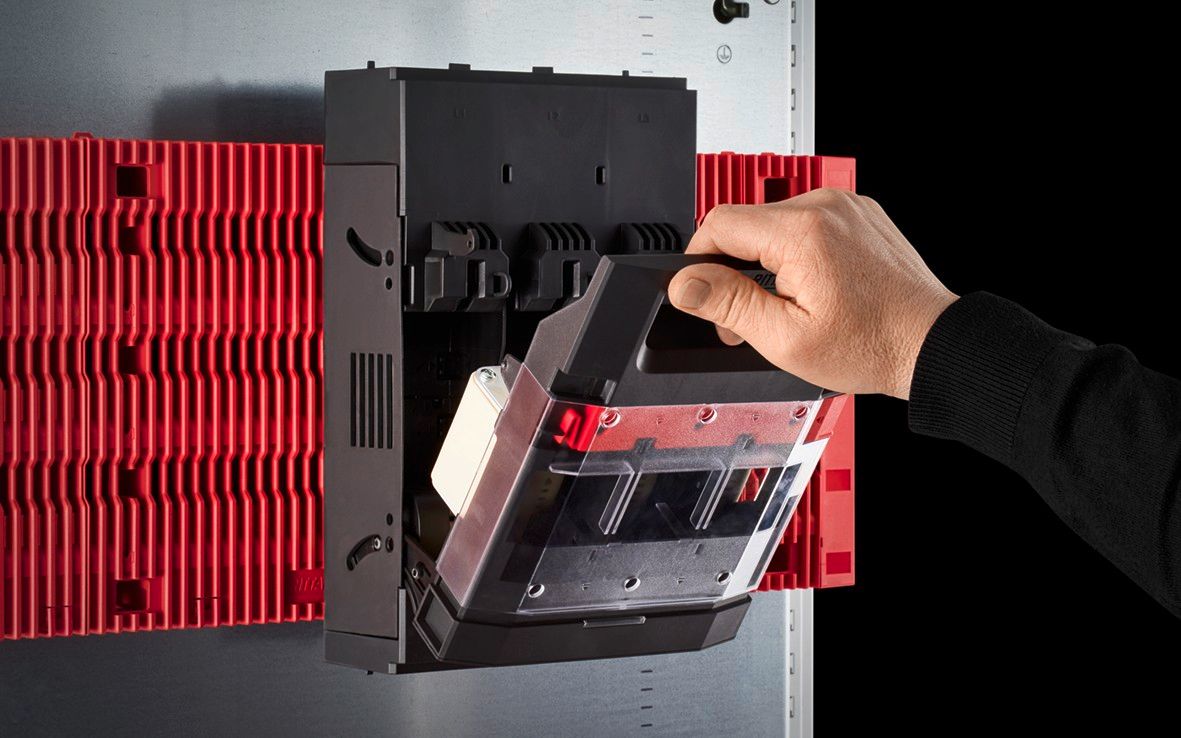

Mounting is done directly onto the busbar system with a center spacing of 60 mm. Adaptation to different busbar cross-sections is possible without tools. Electrical connection is made via the M10 screw terminals. The delivery includes a connector for electronic fuse monitoring, required for integration into monitoring systems.

Operational Advantages
The integrated ESÜ enables continuous monitoring of the fuse status, increasing the availability and safety of the installation. The parking position and tool-free cable exit conversion reduce maintenance time. The sealable and lockable cover ensures a high safety standard. The high rated voltage of 690 V AC and compatibility with 800 V-capable systems extend the range of applications. The use of polyamide and silver-plated copper ensures long service life and high reliability.

General
Modelwith electronic fuse monitoring (ESÜ), for 60 mm busbar system
MaterialPolyamide (PA 6), flammability rating according to UL 94, contact strips: electrolytic copper, silver-plated
ColourRAL 9005, RAL 35745
Scope of deliveryIncluding connection plug for electrical fuse monitoring
For rail systems with centre spacing60 mm
Cable exitAbove/under
Electrical connection typeM10 screw
Fuse linksNH 3
Rated operating voltage690 V AC
For NH size3
Test basisIEC/DIN EN 60 947-3, DIN EN 60 269-2 (fuse inserts)
Width250 mm
Height348,6 mm
Depth134,9 mm
Operating temperature range-5 °C...35 °C
Storage temperature range-25 °C...70 °C
Suitable for busbars15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Suitable for busbar systemRiLineX, RiLine60
Number of poles3-pole
Pollution degree3
Degree of protection IP according to IEC 60 529IP 2XB
Fire load47,58 MJ/m²
Maximum power dissipation101 W
Copper content (kg/piece)2,255
PCF/VE (Cradle-to-Gate)32,08
With electronic fuse monitoring (ESÜ)Ja


Product data sheet
Datasheet for Rittal 9362315, EAN: 4069196001631

Questions & answers

What is the delivery time of Rittal 9362315 RX NH fuse switch disconnector size 3 630 A 3-pole?

The article Rittal 9362315 RX NH fuse switch disconnector size 3 630 A 3-pole is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9362315 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9362315 RX NH fuse switch disconnector size 3 630 A 3-pole always at the best possible price. We can give you a discount of 2% on Rittal 9362315 RX NH fuse switch disconnector size 3 630 A 3-pole if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
