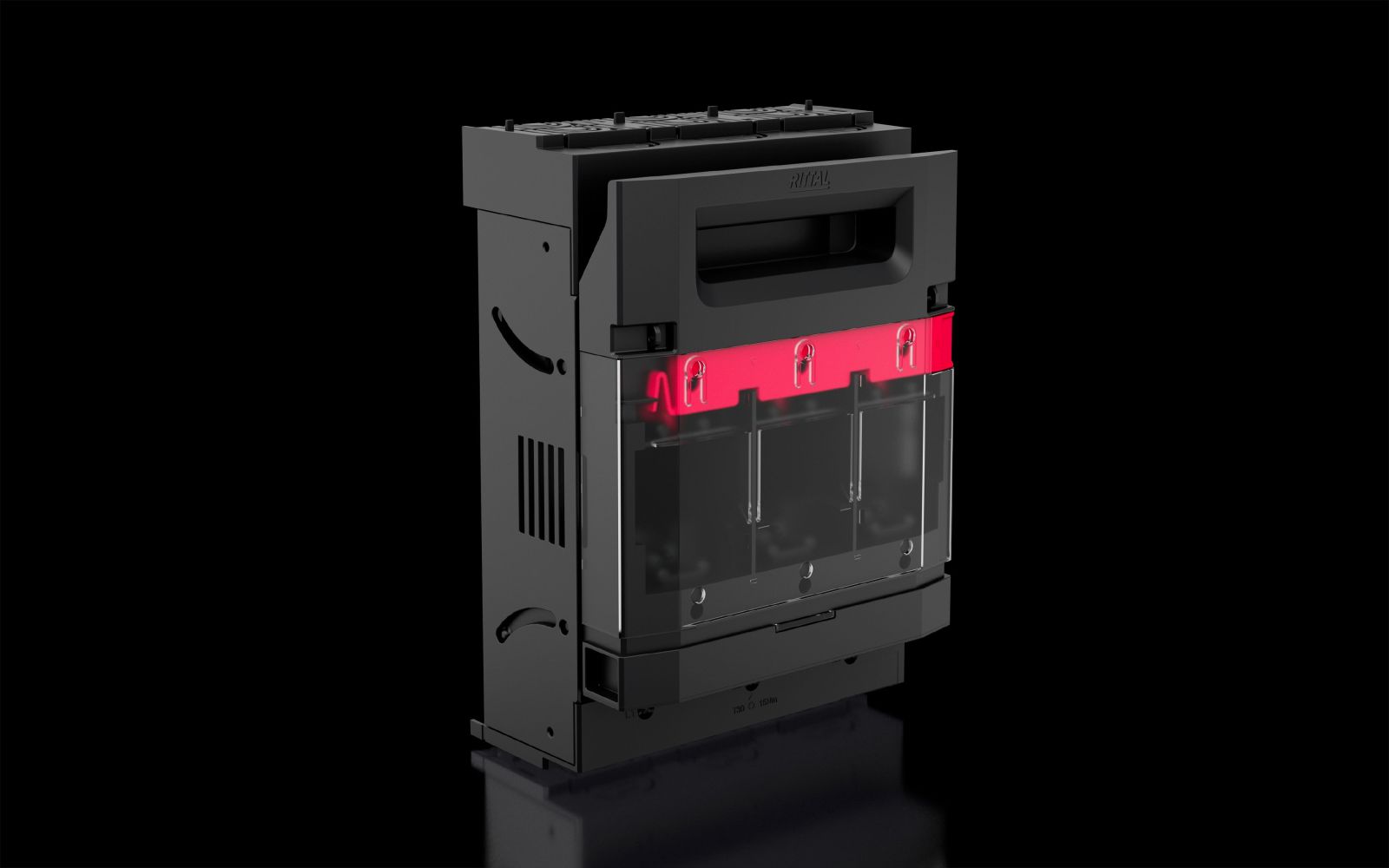

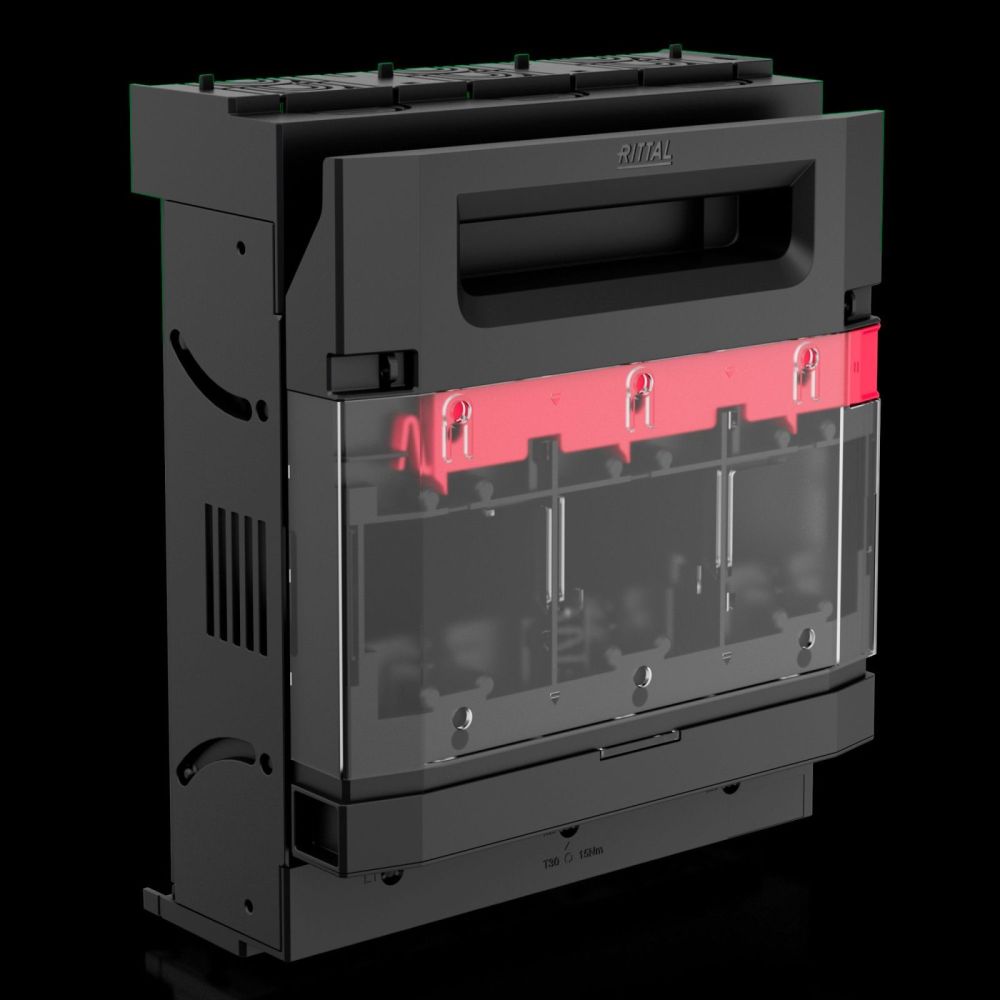

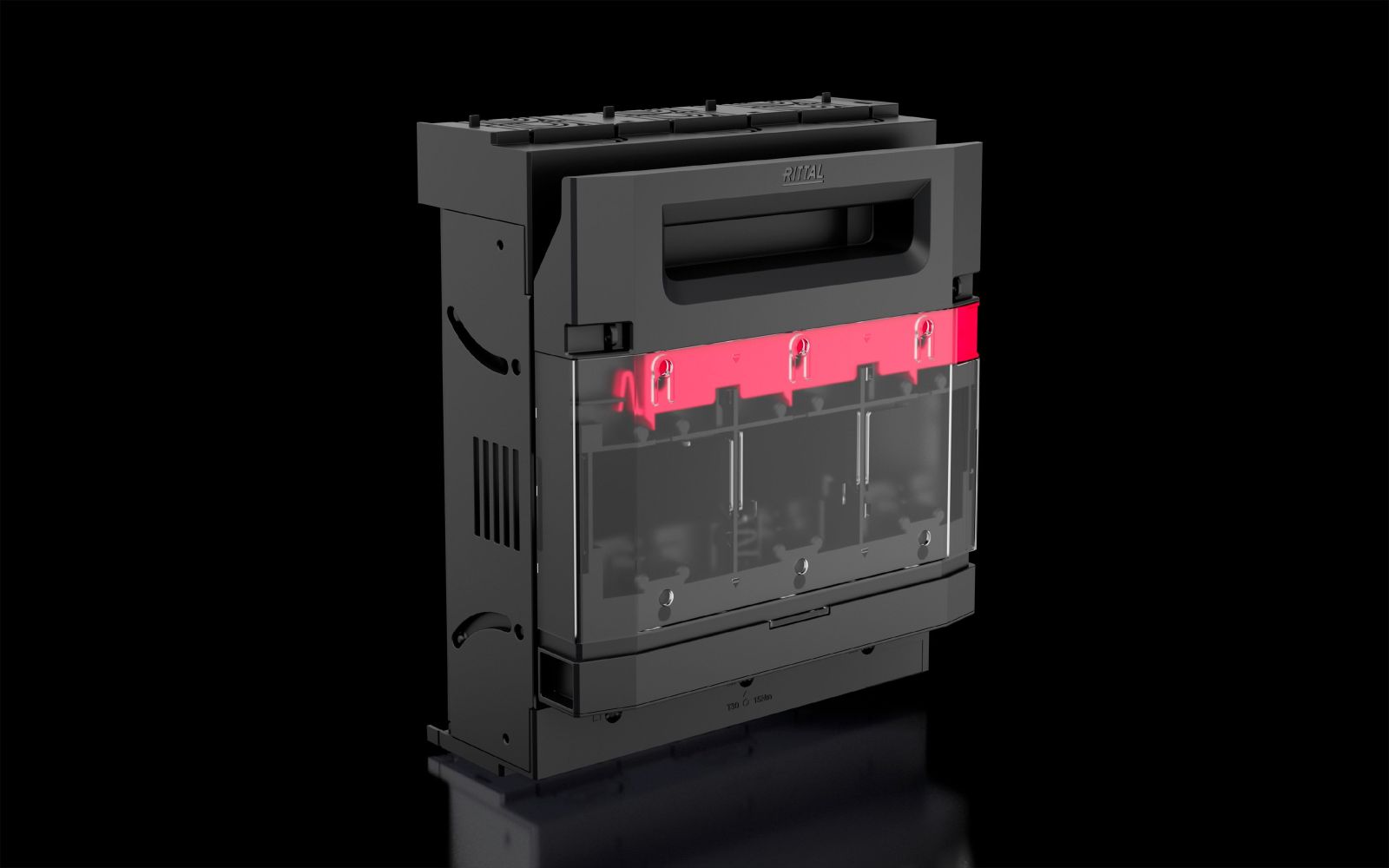

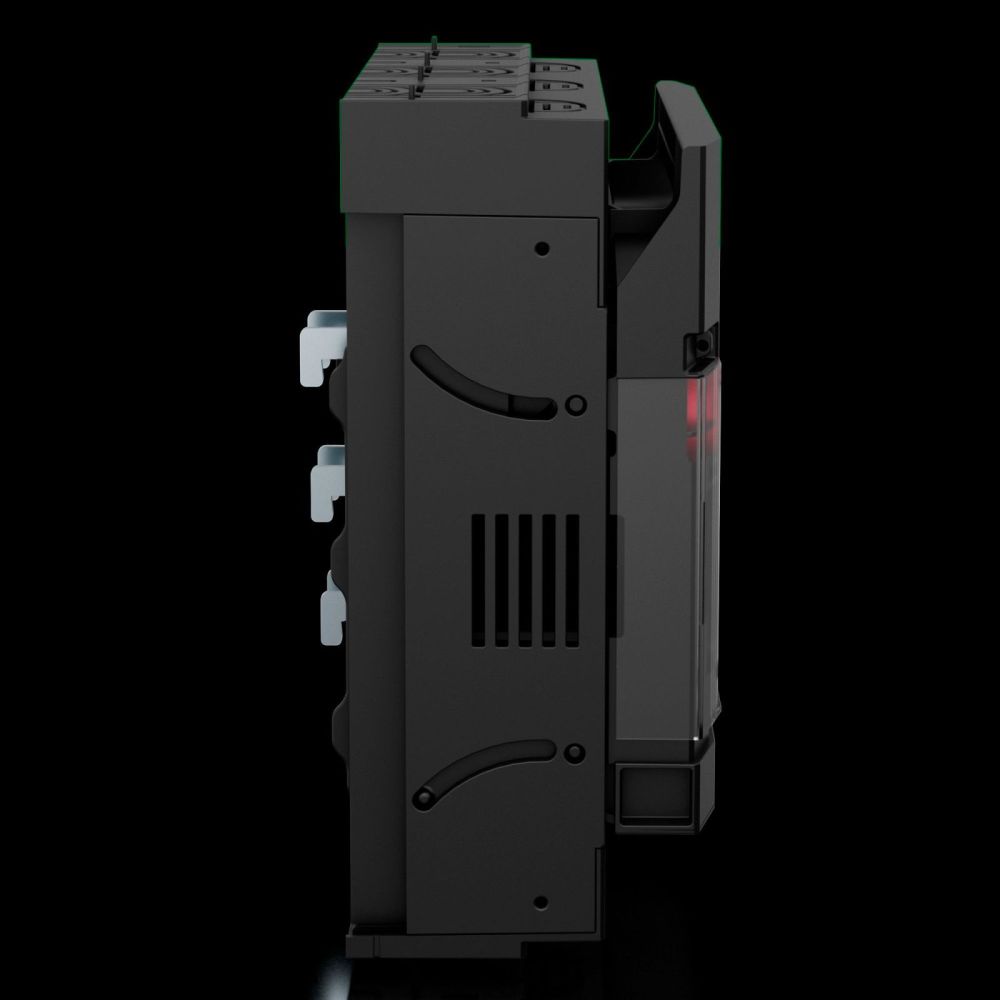

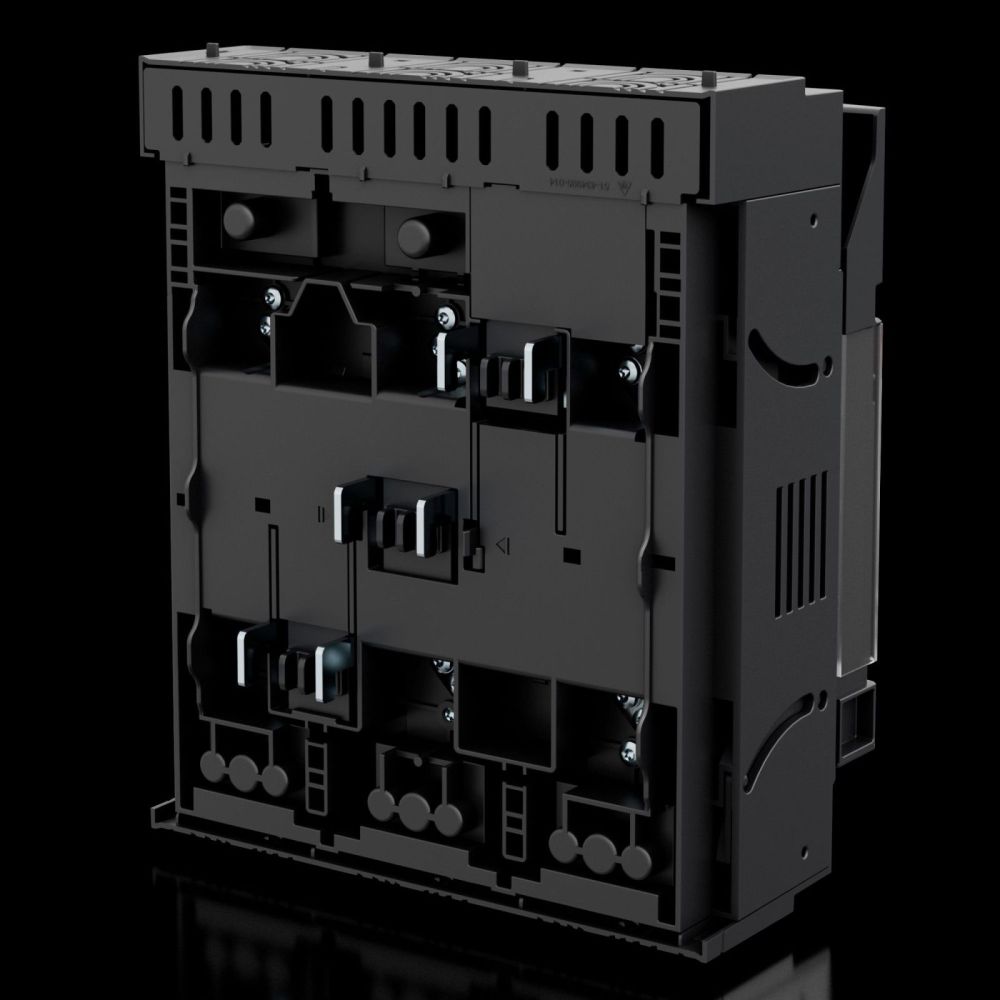

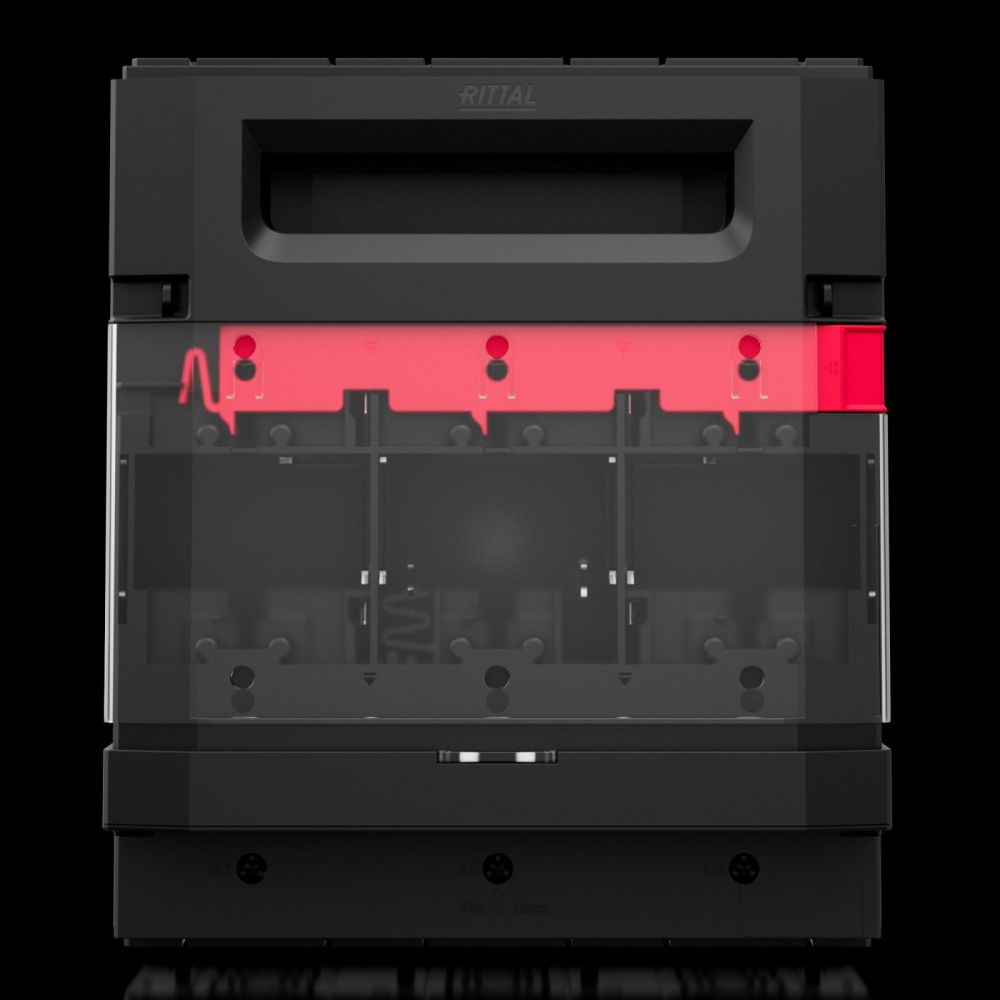

Rittal 9362310 RX NH fuse switch disconnector size 3, 630 A, 3-pole, screw

Your rating:
Average rating
product review for Rittal 9362310 RX NH fuse switch disconnector size 3, 630 A, 3-pole, screw
( 4.5 / 5 ) 2 ratings
Rittal 9362310
This image may differ from the desired article.
Rittal 9362310Rittal 9362310Rittal 9362310Rittal 9362310Rittal 9362310Rittal 9362310Rittal 9362310Rittal 9362310Rittal 9362310
293,25 EUR 304,98 EUR
( 348,97 EUR incl. VAT )
≈ £245.16  |  ≈ $324.04
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 9362310 RX NH fuse switch disconnector size 3, 630 A, 3-pole, screw
Datasheet:file_download Download
Lieske Part No.:157190
Mfg Part No: 9362310
UPC/EAN: 4069196001624
Weight:4.492 kg
Type:RX 9362310

Product information for Rittal 9362310:

The Rittal RX 9362310 is an NH fuse switch disconnector in size 3, specifically designed for 60 mm busbar systems. It serves as a power disconnector in industrial electrical installations and enables the safe disconnection of circuits under load conditions. The device is designed for mounting on RiLineX and RiLine60 busbar systems and offers a 3-pole configuration with a rated operational voltage of 690 V AC. The fuse inserts are designed for NH size 3, ensuring high performance in protecting electrical installations.

Applications

The disconnector is intended for use in industrial and commercial electrical installations, particularly in environments where safe and reliable power disconnection is required. It is suitable for installations with a rated current of 630 A, although the exact current rating is not explicitly stated in the product text but can be inferred from the NH size 3 and product category. The application is in switchgear mounted on 60 mm busbars, supporting busbar thicknesses of 15 x 5/10 mm, 20 x 5/10 mm, and 30 x 5/10 mm.

Functions and Equipment in Detail

The disconnector's cover is lockable and sealable, enabling secure and documented monitoring of the operational status. A visual fuse monitoring feature allows the status of the installed fuse to be directly observed on the device. Safe voltage testing is performed via integrated test points on the cover, enabling testing without direct contact with live parts. A parking position for the cover facilitates maintenance work, as the cover can be held in a stable, open position.

Technology Explained Simply

Electrical connection is made via a screw connection M10, ensuring a secure and mechanically stable connection for cables. The cable exit can be toollessly reconfigured to top or bottom, enabling flexible installation in various switchgear configurations. The contact strips are made of electrolytic copper, silver-plated, ensuring high electrical conductivity and corrosion resistance. The housing is made of polyamide (PA 6), which exhibits good flame resistance according to UL 94. The protection rating IP 2XB according to IEC 60 529 protects against finger contact and solid foreign objects, but not against water or dust. The pollution degree 3 is intended for environments with increased pollution risk, as commonly found in industrial facilities.

Compatibility and Accessories

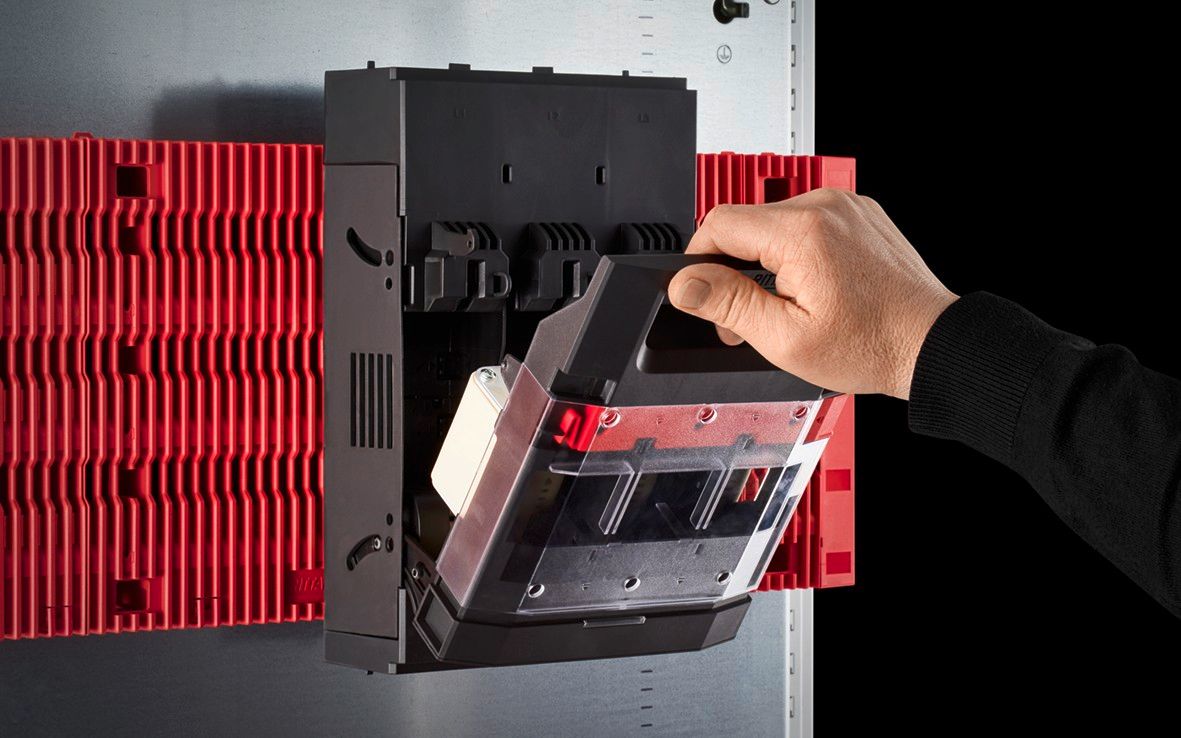

The disconnector is designed for mounting on RiLineX and RiLine60 busbar systems. Compatible accessories include, among others, the connection space cover 1=2 for NH disconnector size 3 (RX 9365533), the frame terminal 1=3 for NH disconnector size 2/3 (RX 9365543), the enclosure protection profile 1=4 L:1200 mm (RX 9365025), the mounting clip 1=24 for enclosure protection profile (RX 9365027), and the microswitch 1=5 for NH disconnector size 00-3 (RX 9365505). These components can be used to extend functionality or enhance safety.

Mounting and Installation

Mounting is directly onto 60 mm busbars, with adjustable busbar thickness. The toolless reconfiguration of the cable exit enables flexible installation without additional tools. Dimensions are 250 mm (width) × 298.4 mm (height) × 134.9 mm (depth), enabling compact integration into switchgear. The operating temperature range is between -5 °C and 35 °C, while the storage temperature range is between -25 °C and 70 °C.

Advantages in Operation

The disconnector offers high operational safety through integrated safety features such as lockability, sealability, and visual monitoring. The parking position and toolless cable exit reduce installation and maintenance times. The use of silver-plated electrolytic copper for the contact strips ensures long service life and high reliability. The testing basis IEC/DIN EN 60 947-3 and DIN EN 60 269-2 (fuse inserts) ensures compliance with international standards.

General
ModelFor 60 mm busbar systems
MaterialPolyamide (PA 6), flammability rating according to UL 94, contact strips: electrolytic copper, silver-plated
ColourRAL 9005, RAL 35745
For rail systems with centre spacing60 mm
Cable exitAbove/under
Electrical connection typeM10 screw
Fuse linksNH 3
Rated operating voltage690 V AC
For NH size3
Test basisIEC/DIN EN 60 947-3, DIN EN 60 269-2 (fuse inserts)
Width250 mm
Height298,4 mm
Depth134,9 mm
Operating temperature range-5 °C...35 °C
Storage temperature range-25 °C...70 °C
Suitable for busbars15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Suitable for busbar systemRiLineX, RiLine60
Number of poles3-pole
Pollution degree3
Degree of protection IP according to IEC 60 529IP 2XB
Fire load47,58 MJ/m²
Maximum power dissipation101 W
Copper content (kg/piece)2,255
PCF/VE (Cradle-to-Gate)30,42


Product data sheet
Datasheet for Rittal 9362310, EAN: 4069196001624

Questions & answers

What is the delivery time of Rittal 9362310 RX NH fuse switch disconnector size 3, 630 A, 3-pole, screw?

The article Rittal 9362310 RX NH fuse switch disconnector size 3, 630 A, 3-pole, screw is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9362310 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9362310 RX NH fuse switch disconnector size 3, 630 A, 3-pole, screw always at the best possible price. We can give you a discount of 2% on Rittal 9362310 RX NH fuse switch disconnector size 3, 630 A, 3-pole, screw if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
