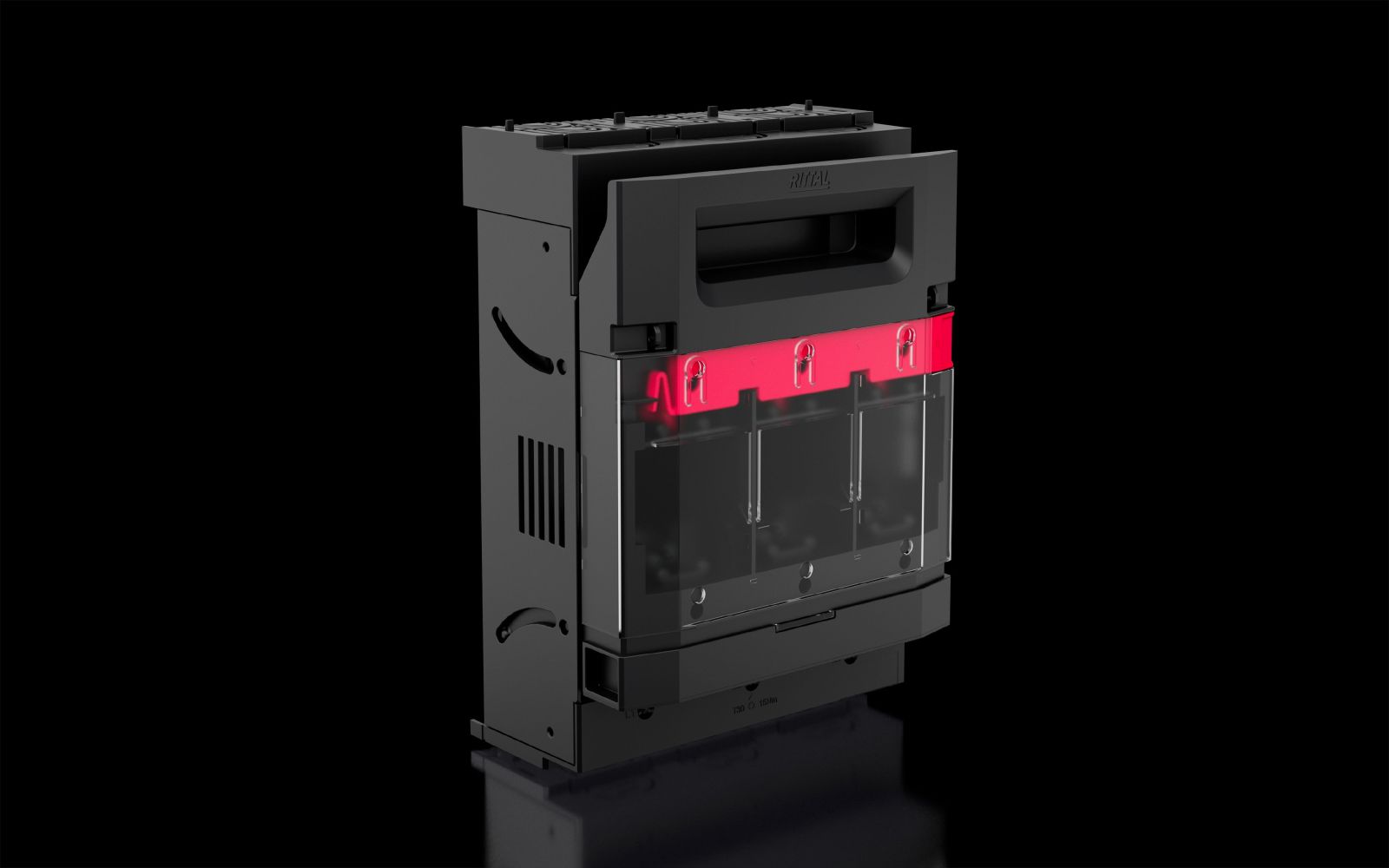

Rittal 9362110 RX NH fuse switch disconnector size 1, 250 A, 3-pole, screw

Your rating:
Average rating
product review for Rittal 9362110 RX NH fuse switch disconnector size 1, 250 A, 3-pole, screw
( 4.5 / 5 ) 2 ratings
Rittal 9362110
This image may differ from the desired article.
Rittal 9362110Rittal 9362110Rittal 9362110Rittal 9362110Rittal 9362110Rittal 9362110Rittal 9362110Rittal 9362110
149,50 EUR 155,48 EUR
( 177,91 EUR incl. VAT )
≈ £124.98  |  ≈ $165.20
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 2 pieces
1x Rittal 9362110 RX NH fuse switch disconnector size 1, 250 A, 3-pole, screw
Datasheet:file_download Download
Lieske Part No.:1571890
Mfg Part No: 9362110
UPC/EAN: 4069196001549
Weight:2.448 kg
Type:RX 9362110

Product information for Rittal 9362110:

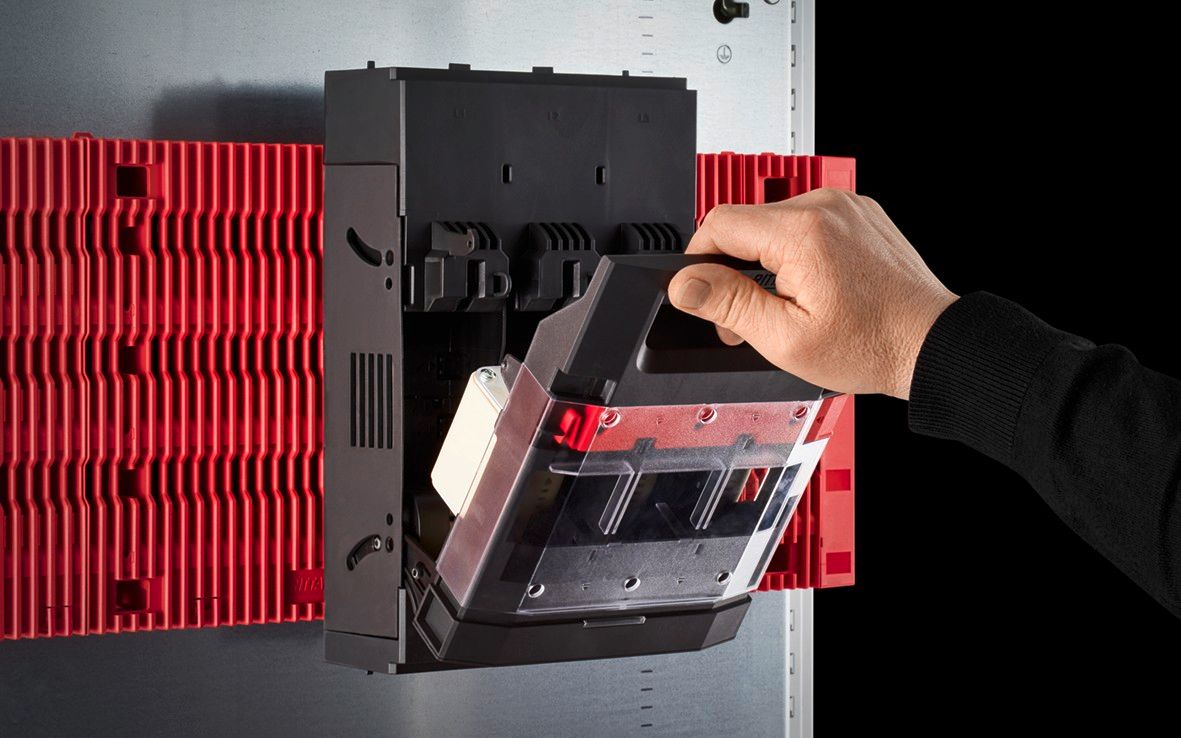

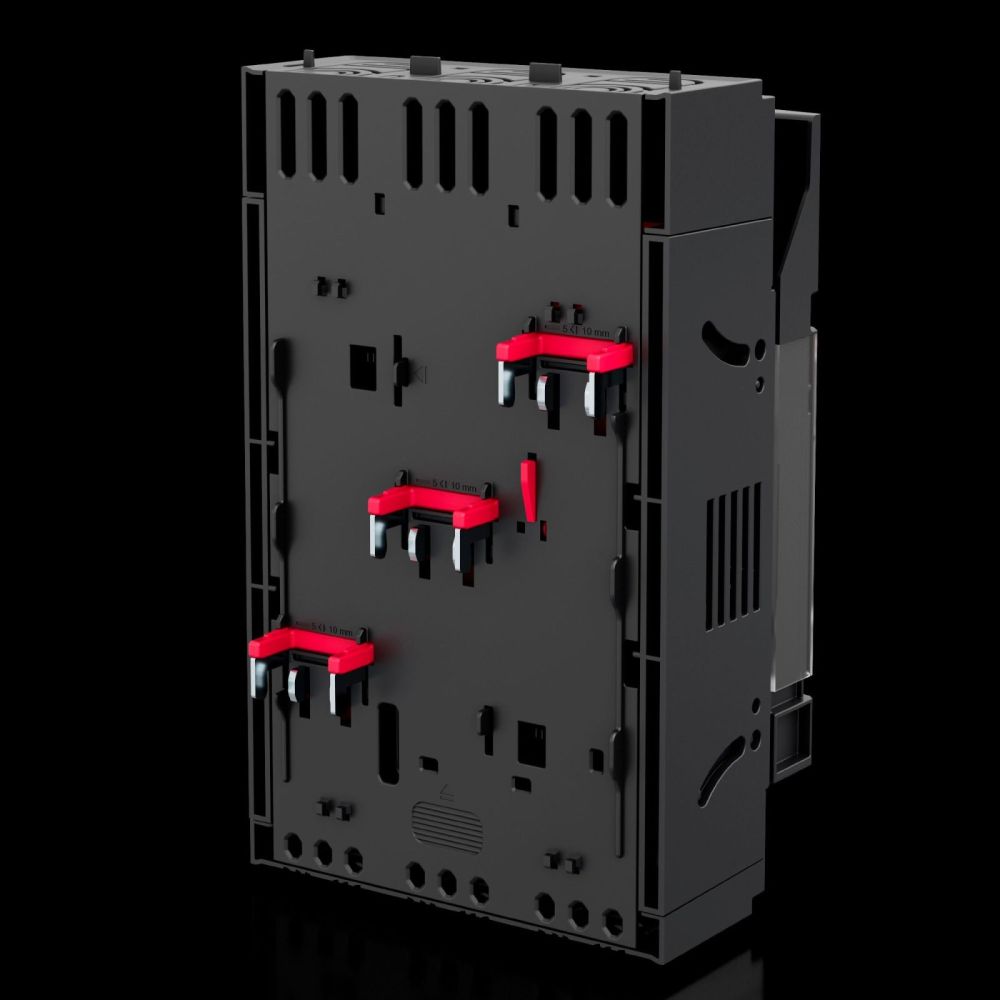

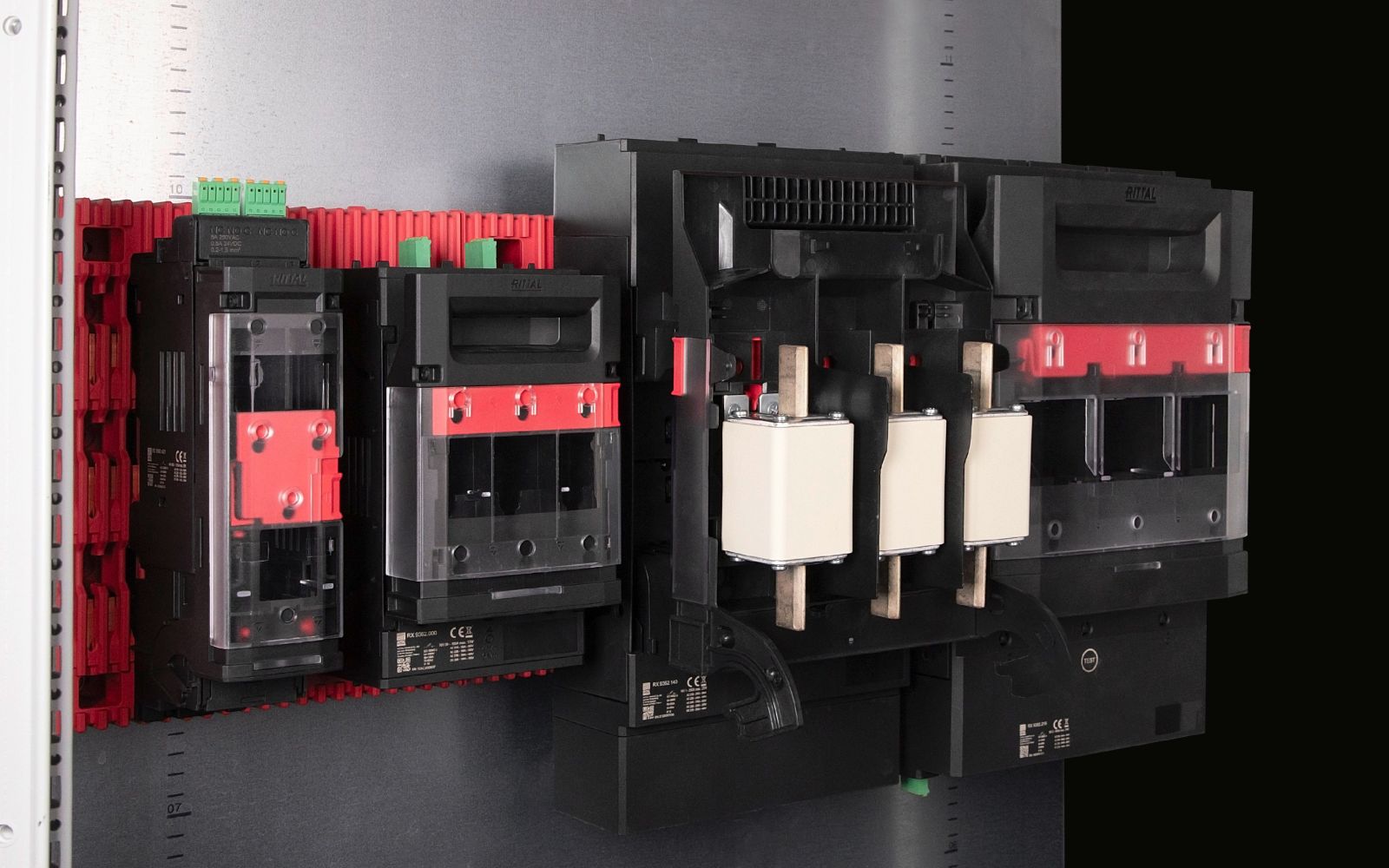

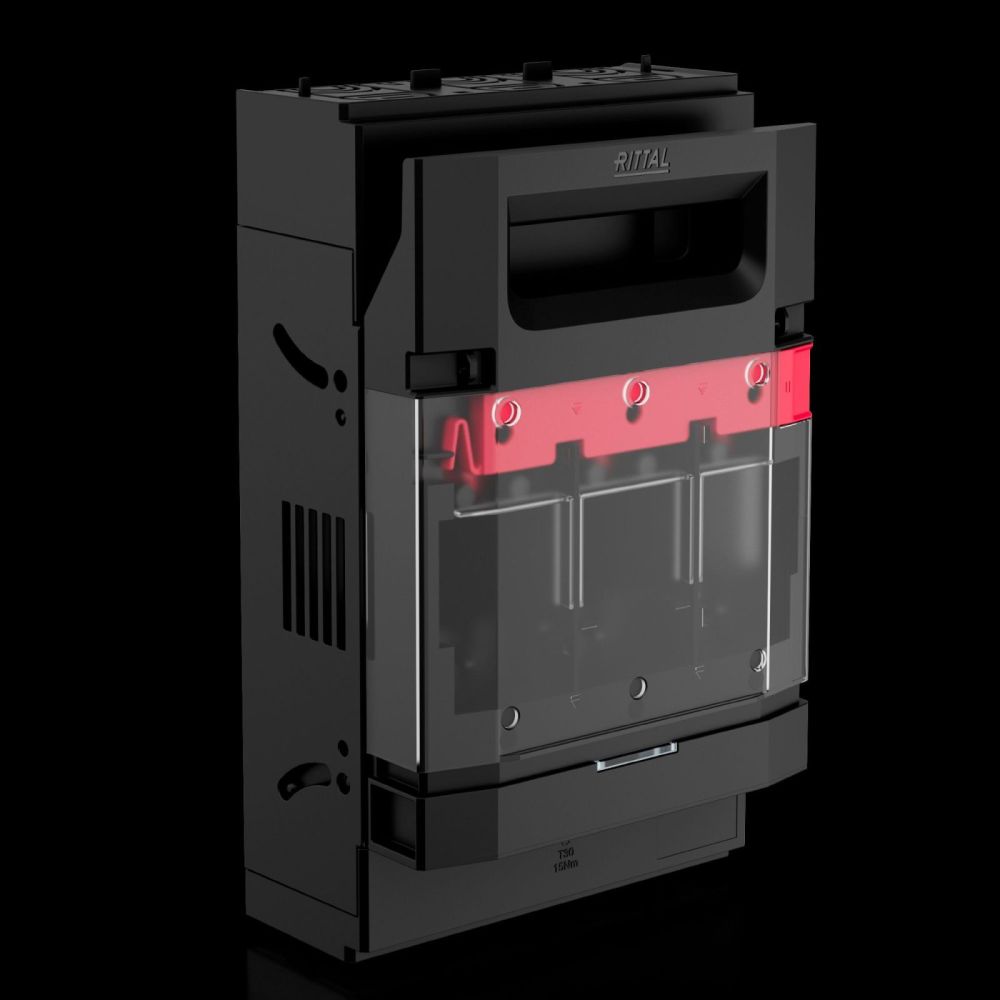

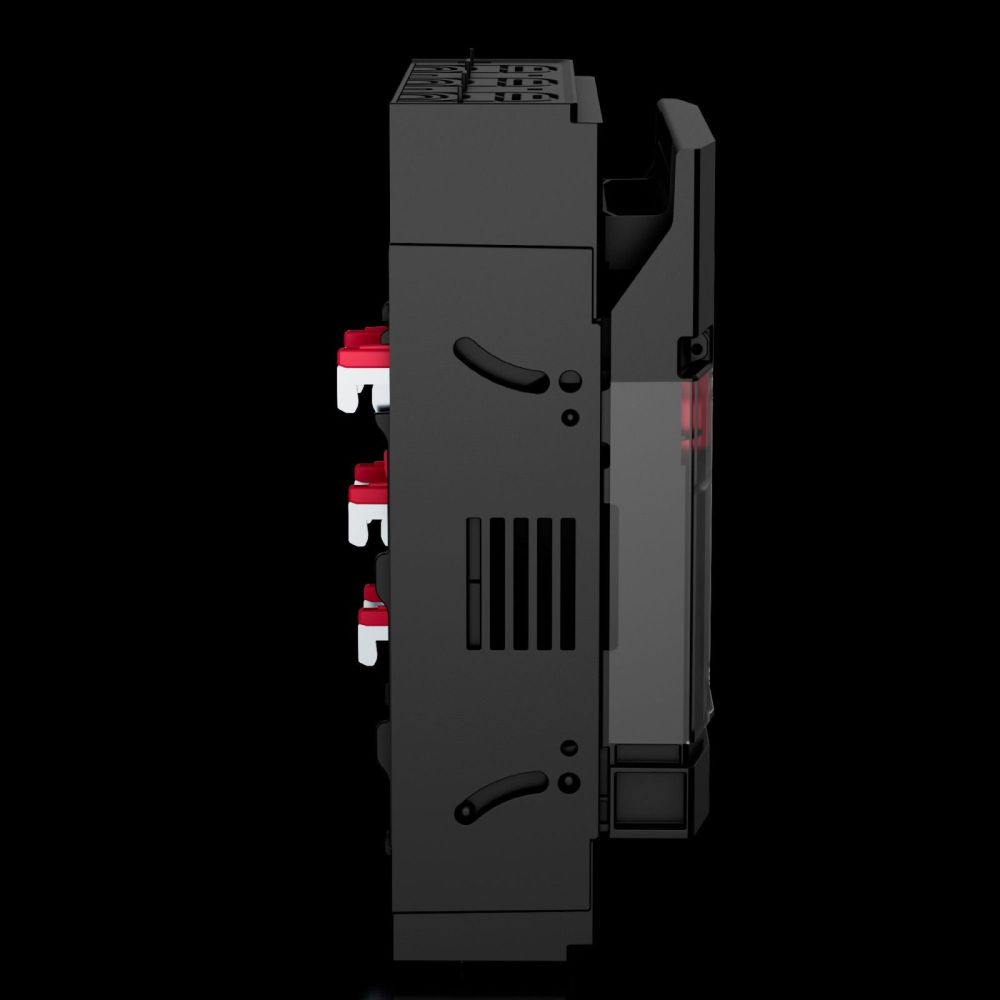

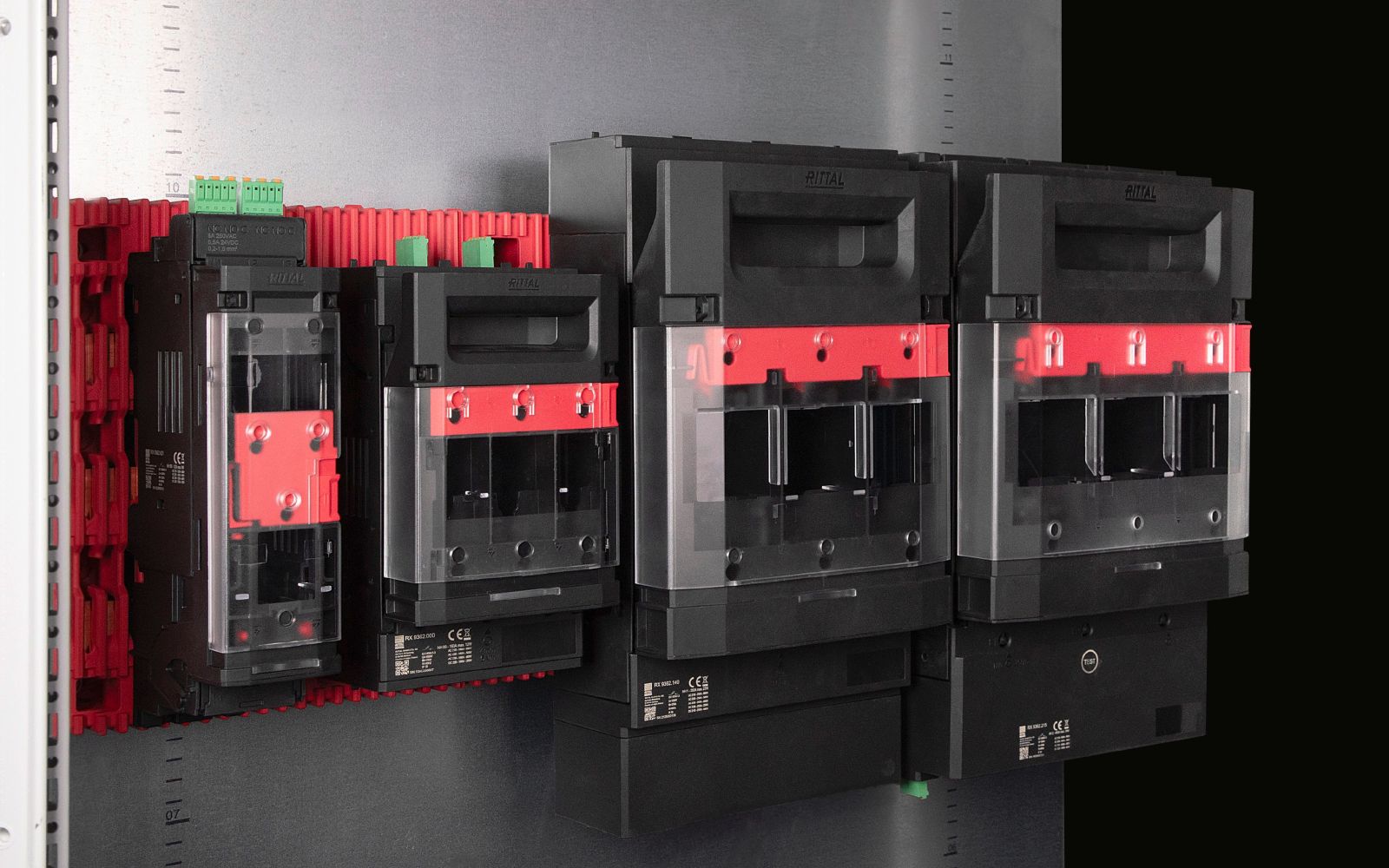

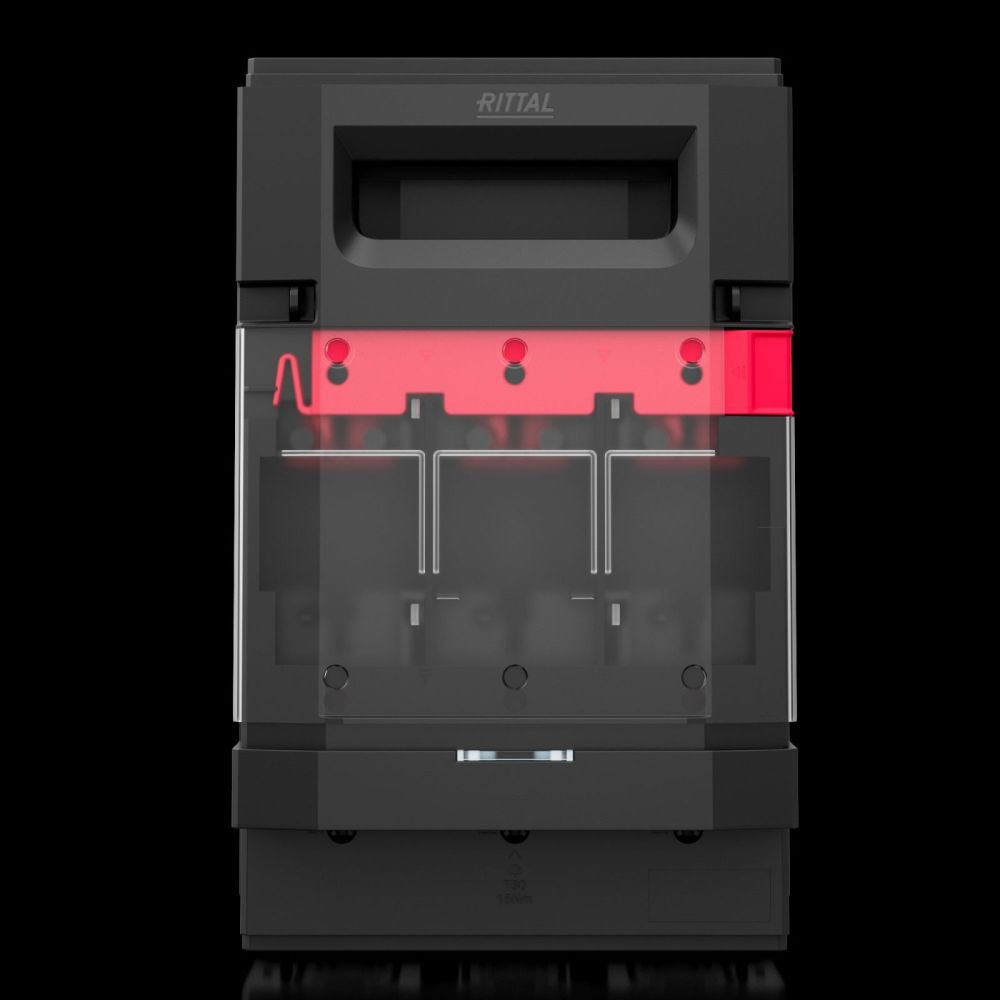

The RiLineX NH fuse-disconnector in size 1 from Rittal is specifically designed for 60 mm busbar systems and provides reliable disconnection and protection functions in industrial electrical installations. With a lockable and sealable cover, it ensures a high safety standard and prevents unauthorized access. The visual fuse monitoring allows for quick status overview of the installed NH fuse, making maintenance and inspection work more efficient. The integrated test points on the cover enable safe voltage testing, which is essential for complying with safety regulations and carrying out maintenance work. The parking position facilitates maintenance, as the disconnector can be fixed in a safe, non-conductive position. The connection is made via screw connection size M10, ensuring a stable and secure connection to cables and wiring. The individually convertible cable exit (top or bottom) offers flexibility during installation and adapts to different arrangements in the enclosure.

General
ModelFor 60 mm busbar systems
Size1
MaterialPolyamide (PA 6), flammability rating according to UL 94, contact strips: electrolytic copper, silver-plated
System width60 mm busbar system
ColourRAL 9005, RAL 35745
Coverlockable, sealable
For rail systems with centre spacing60 mm
Fuse monitoringvisual
Cable exitindividually convertible (top/bottom)
Voltage testingIntegrated test points on the cover
ConnectionScrew connection size M10
Electrical connection typeM10 screw
Fuse linksNH 1
Number of poles3-pole
Rated operating voltage690 V AC
For NH size1
Nominal current250 A
Test basisIEC/DIN EN 60 947-3, DIN EN 60 269-2 (fuse inserts)
Width181,5 mm
Height298 mm
Depth116,7 mm
Operating temperature range-5 °C...35 °C
Storage temperature range-25 °C...70 °C
Suitable for busbars15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Suitable for busbar systemRiLineX, RiLine60
Utility categoryAC-23B (400 V/100 A), AC-22B (500 V/100 A), AC-21B (690 V/100 A), DC-22B (250 V/100 A), DC-21B (440 V/100 A)
Pollution degree3
Degree of protection IP according to IEC 60 529IP 2XB
Fire load36,19 MJ/m²
Maximum power dissipation51 W
Power loss per fuse element (max.)23 W
Copper content (kg/piece)0,8
PCF/VE (Cradle-to-Gate)15,39


Product data sheet
Datasheet for Rittal 9362110, EAN: 4069196001549
