Rittal 9365542 RX frame terminal 1=3 for NH disconnector size 1

Your rating:
Average rating
product review for Rittal 9365542 RX frame terminal 1=3 for NH disconnector size 1
( 4.7 / 5 ) 3 ratings

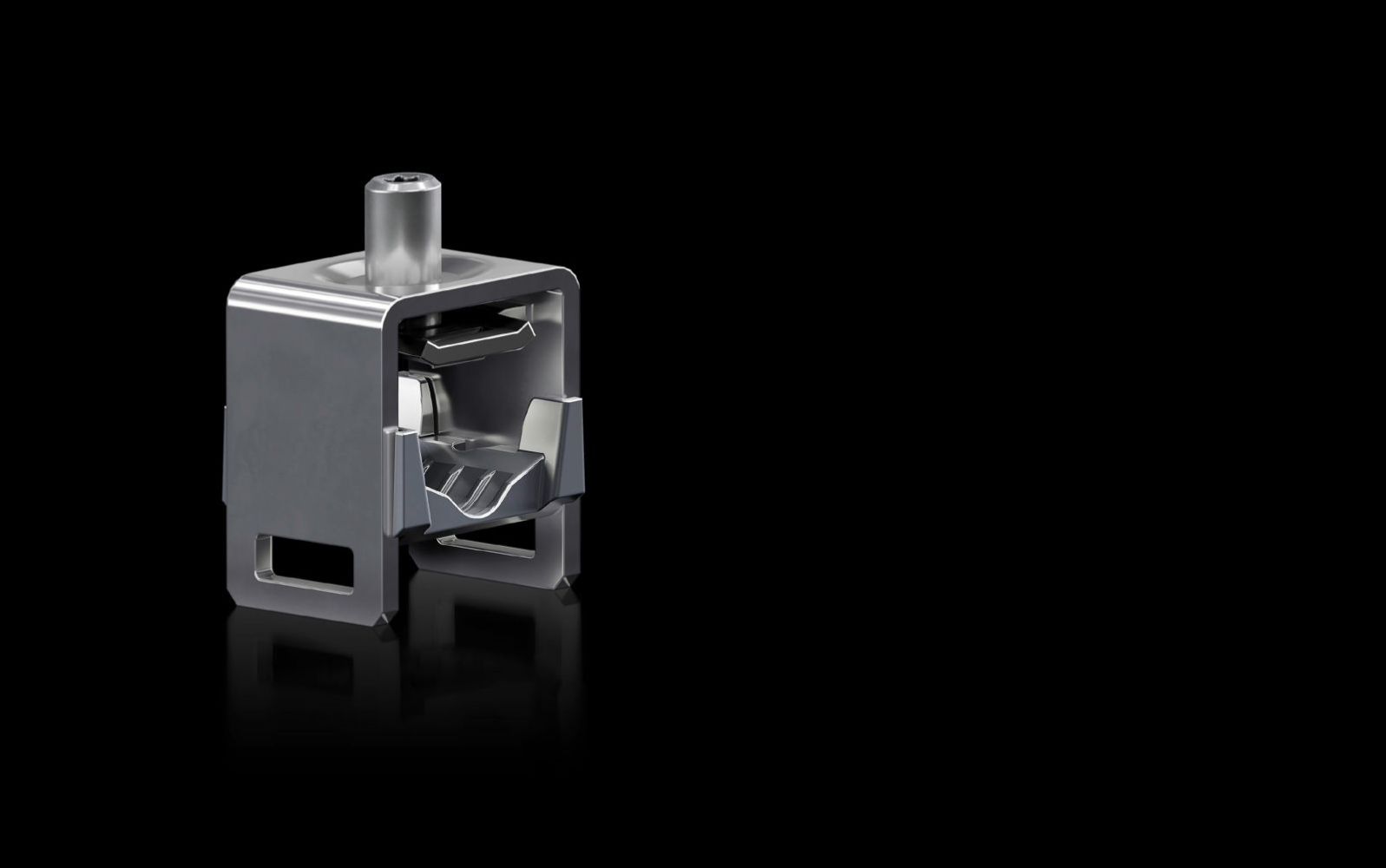

Rittal 9365542
This image may differ from the desired article.
-6% 28,18 EUR 30,13 EUR
( 33,53 EUR incl. VAT )
≈ £23.56  |  ≈ $31.14
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 2 pieces
1x Rittal 9365542 RX frame terminal 1=3 for NH disconnector size 1
Datasheet:file_download Download
Lieske Part No.:612122
Mfg Part No: 9365542
UPC/EAN: 4069196010480
Weight:0.506 kg
Type:RX 9365542

Product information for Rittal 9365542:

The Rittal RX 9365542 is a frame terminal for NH fuse switch disconnectors size 1, specifically developed for use in industrial enclosures and distribution systems. The product serves as a terminal connection element within RiLineX systems and enables secure and reliable fastening of cables to the fuse switch disconnectors. The frame terminal is designed for cross-sections from 35 to 150 mm², making it suitable for medium to high current loads in industrial electrical engineering. The packaging unit includes 3 pcs, enabling more efficient installation of multiple disconnectors in an enclosure.

Applications
The frame terminal is used in industrial electrical installations, particularly in enclosures where NH fuse switch disconnectors size 1 are mounted. It is compatible with models 9362.110, 9362.115, 9363.110, and 9363.115, which are also part of the RiLineX system. These disconnectors serve for power distribution and protection functions in electrical installations, with the frame terminal ensuring the mechanical and electrical connection between cables and the disconnector. The application occurs in areas such as machine building, manufacturing plants, power supply systems, and other industrial environments where a stable and maintenance-friendly connection is required.

Functions and Equipment in Detail
The frame terminal is supplied as a set and serves for fastening cables to the NH fuse switch disconnectors. The terminals are designed to ensure a secure electrical contact and simultaneously provide mechanical stability to compensate for vibrations and movements during operation. The use of three terminals per packaging unit enables quick and even installation of multiple disconnectors. The terminals are designed for use with cables in the cross-section range of 35 to 150 mm², ensuring broad applicability in various industrial installations.

Technology Explained Simply
The frame terminal is a mechanical component that fastens cables to the NH fuse switch disconnectors. The terminals are designed to securely hold the cables and enable a reliable electrical contact. The use of three terminals per pack simplifies installation, especially when multiple disconnectors are installed in an enclosure. The terminals are designed for use with cables in the cross-section range of 35 to 150 mm², enabling high current load capacity. The terminals are part of the RiLineX system, which is based on standardization and modular construction to simplify installation and maintenance.

Compatibility and Accessories
The frame terminal is specifically developed for NH fuse switch disconnectors size 1 and fits models 9362.110, 9362.115, 9363.110, and 9363.115. These disconnectors are also part of the RiLineX system and enable modular and standardized installation in enclosures. The combination of frame terminal and disconnector ensures secure and reliable power distribution.

Installation and Mounting
The frame terminal is mounted directly onto the NH fuse switch disconnector size 1. The terminals are attached to the designated mounting points on the disconnector, with cables of the specified cross-section of 35 to 150 mm² inserted and secured. The installation requires no additional tools or aids, as the terminals are mechanically designed to create a secure connection. The use of three terminals per pack enables quick and even installation of multiple disconnectors in an enclosure.

Operational Advantages
The frame terminal provides a secure and reliable connection between cables and NH fuse switch disconnectors. The mechanical stability of the terminals ensures that vibrations and movements during operation do not impair the electrical connection. The use of three terminals per pack simplifies installation and reduces mounting time. Compatibility with RiLineX models 9362.110, 9362.115, 9363.110, and 9363.115 ensures modular and standardized installation, simplifying maintenance and component replacement. The terminals are designed for use in industrial environments where high reliability and longevity are required.

General
Suitable for part no.9362.110, 9362.115, 9363.110, 9363.115
PCF/VE (Cradle-to-Gate)1,25


Product data sheet
Datasheet for Rittal 9365542, EAN: 4069196010480

Questions & answers

What is the delivery time of Rittal 9365542 RX frame terminal 1=3 for NH disconnector size 1?

The article Rittal 9365542 RX frame terminal 1=3 for NH disconnector size 1 is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9365542 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9365542 RX frame terminal 1=3 for NH disconnector size 1 always at the best possible price. We can give you a discount of 2% on Rittal 9365542 RX frame terminal 1=3 for NH disconnector size 1 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
