Rittal 9363110 RX NH fuse switch disconnector size 1 250 A 3-pole

Your rating:
Average rating
product review for Rittal 9363110 RX NH fuse switch disconnector size 1 250 A 3-pole
( 5 / 5 ) 1 ratings

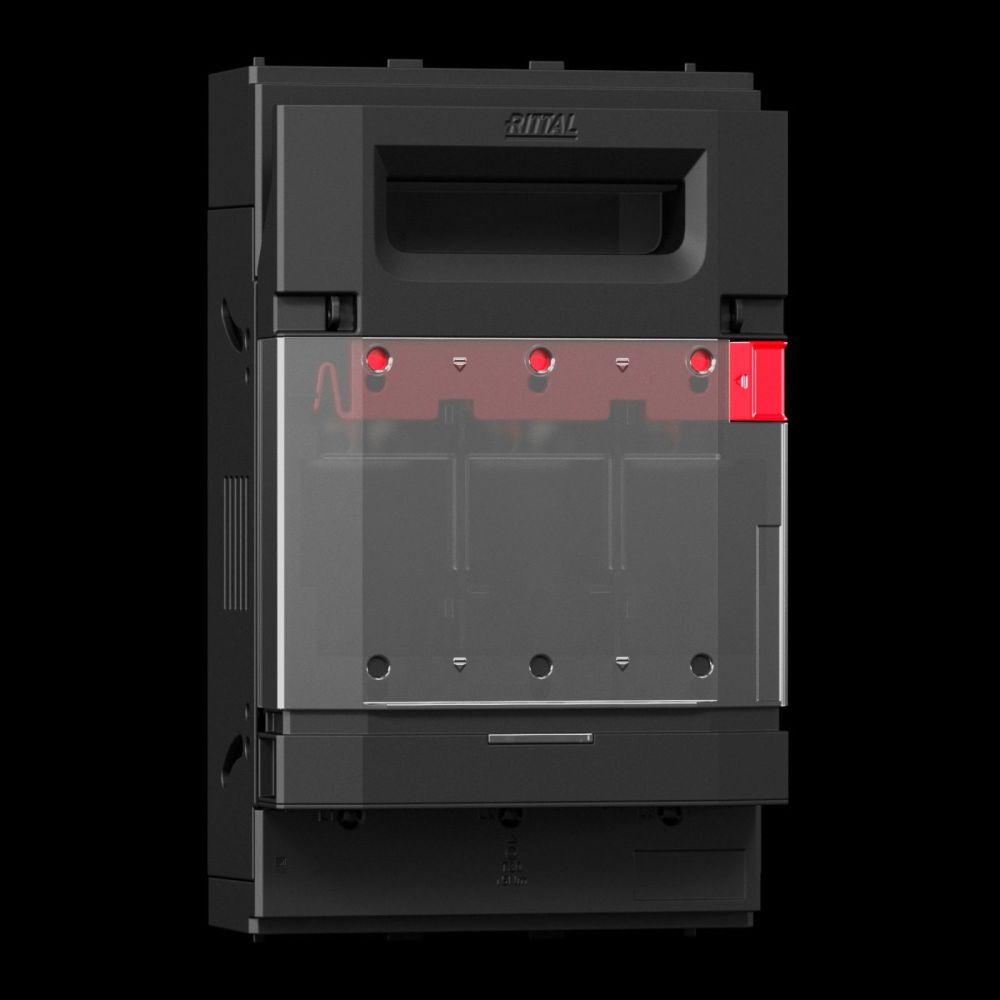

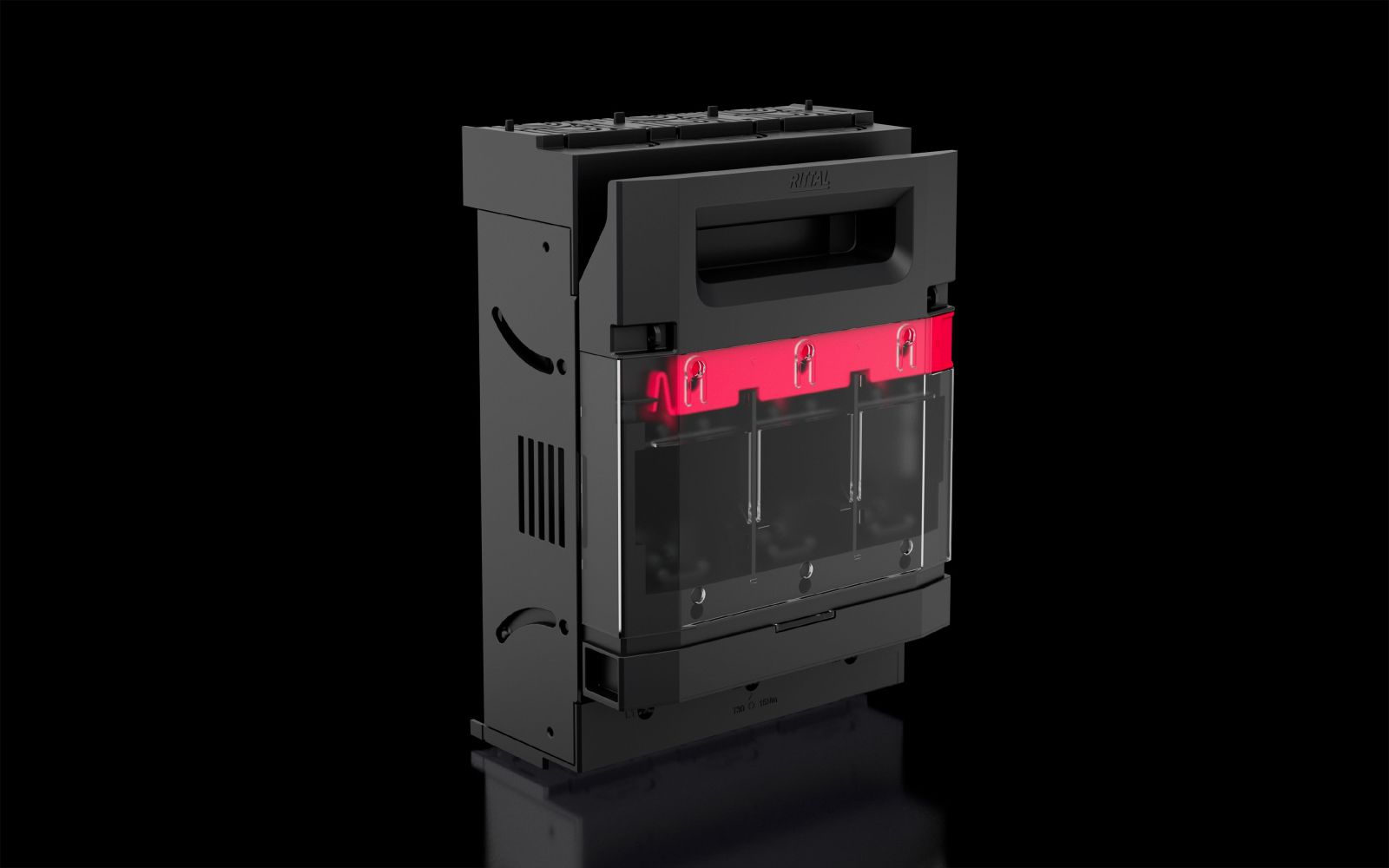

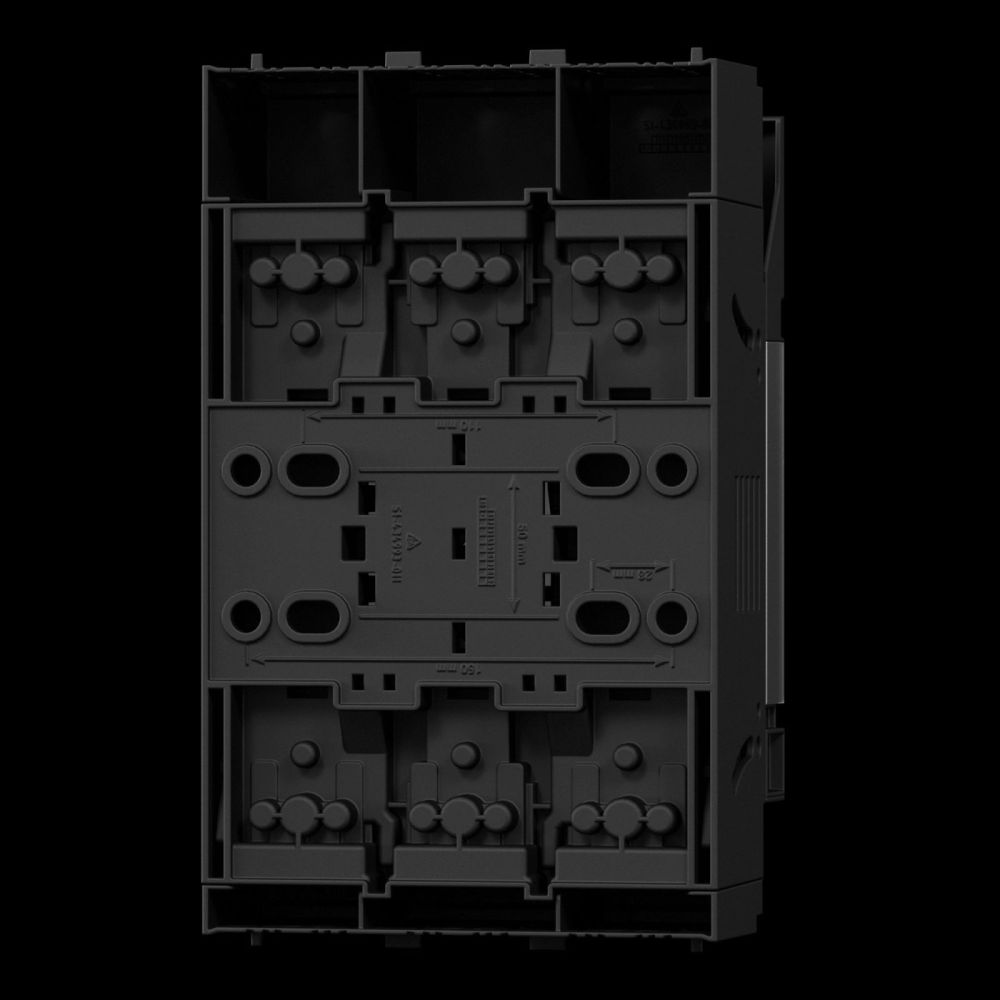

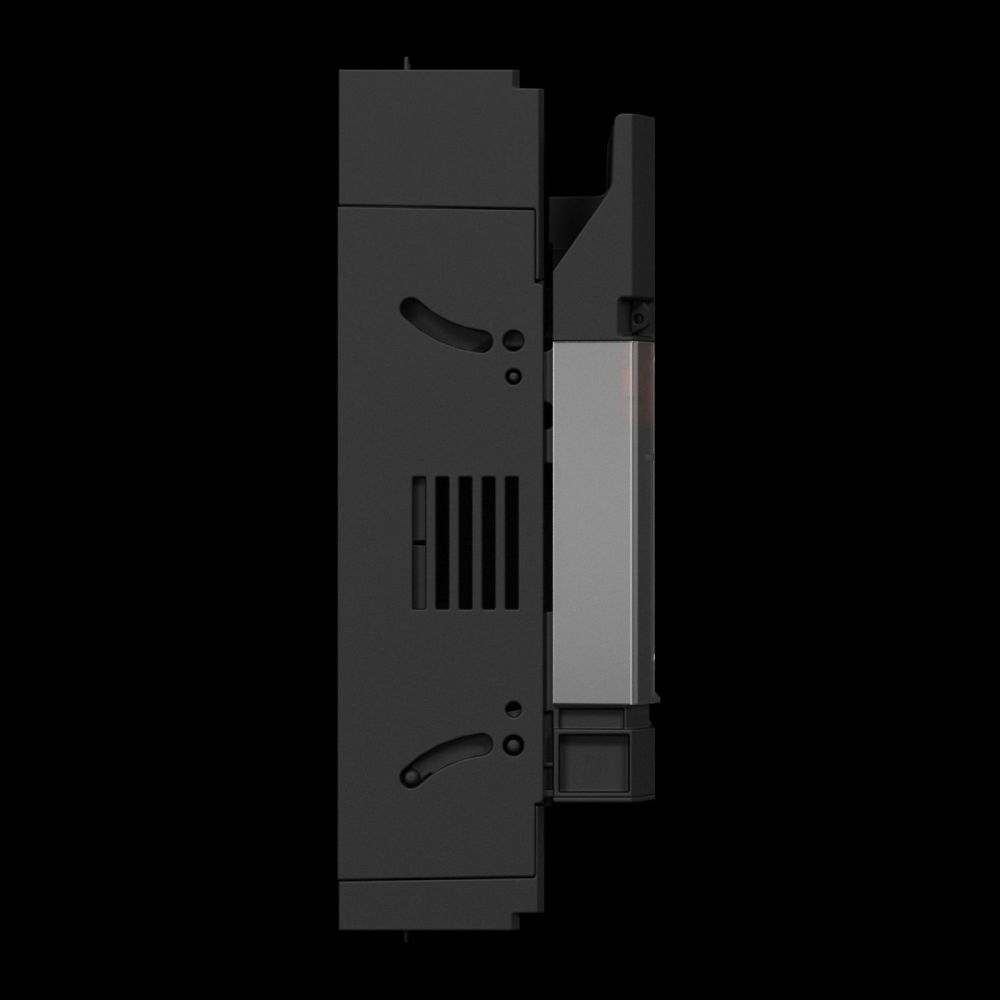

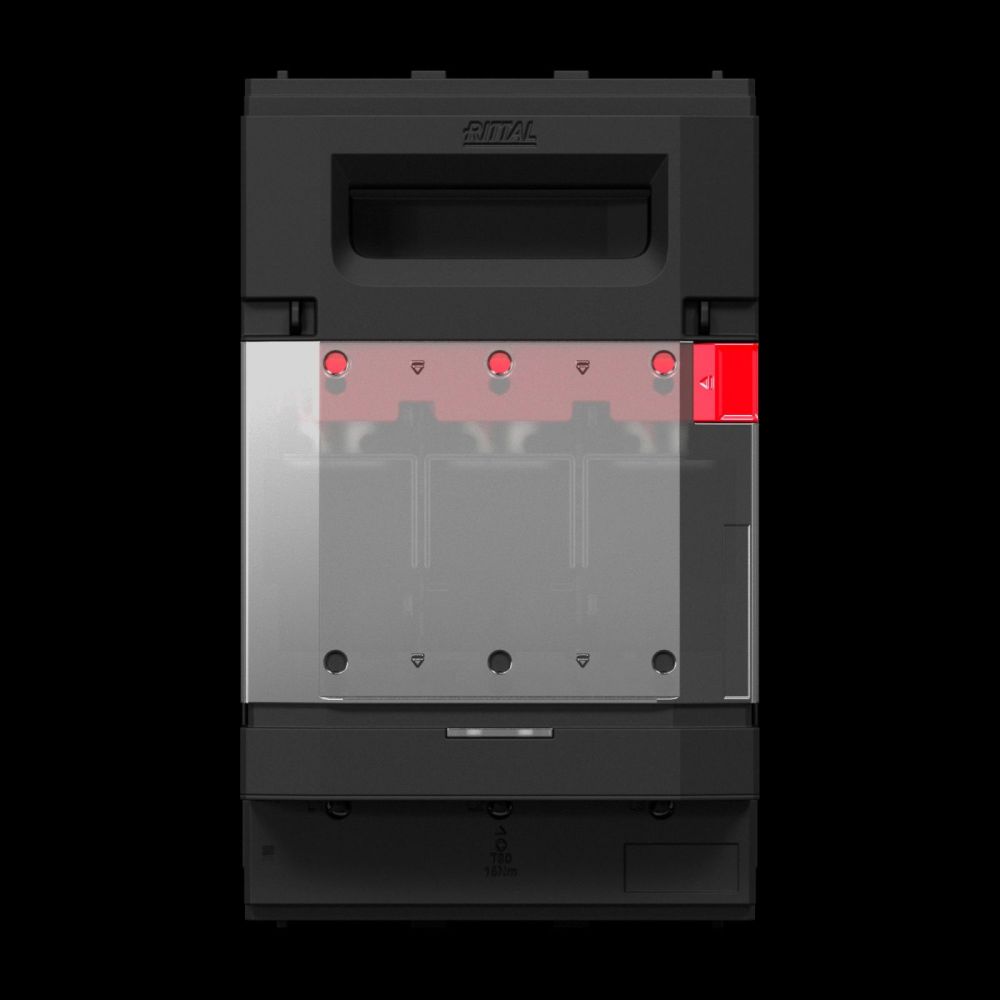

Rittal 9363110
This image may differ from the desired article.
Rittal 9363110Rittal 9363110Rittal 9363110Rittal 9363110Rittal 9363110Rittal 9363110Rittal 9363110
-6% 143,75 EUR 153,69 EUR
( 171,06 EUR incl. VAT )
≈ £120.18  |  ≈ $158.84
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9363110 RX NH fuse switch disconnector size 1 250 A 3-pole
Datasheet:file_download Download
Lieske Part No.:612106
Mfg Part No: 9363110
UPC/EAN: 4069196001754
Weight:2.209 kg
Type:RX 9363110

Product information for Rittal 9363110:

The Rittal RiLineX NH fuse switch disconnector type RX 9363110 is a 3-pole switch disconnector in size 1, specifically designed for mounting on mounting plates. It serves as a switching and disconnecting device in electrical installations and enables the safe disconnection of circuits under load, with the integrated NH fuse inserts (size 1) providing the protective function. The design is for mounting plate installation, with dimensions of 181.8 mm (width) × 298 mm (height) × 110.5 mm (depth). The rated operational voltage is 690 V AC, and the rated insulation voltage Ui is 1,000 kV. The devices are designed for use in industrial installations, with an operating temperature range of -5 °C to 35 °C and a storage temperature range of -25 °C to 70 °C.

Applications

The switch disconnector is intended for use in industrial electrical installations, particularly in systems with high safety requirements. It is commonly used in enclosures, distribution boxes, or machine controls where safe disconnection and monitoring of power supply are required. The protection class IP 2XB according to IEC 60 529 ensures protection against finger contact and vertical dripping water, making it suitable for indoor applications. The usage categories include AC-23B (400 V/100 A), AC-22B (500 V/100 A), AC-21B (690 V/100 A), DC-22B (250 V/100 A), and DC-21B (440 V/100 A), enabling application in both AC and DC installations.

Functions and Equipment in Detail

The cover of the switch disconnector is lockable and sealable, enabling secure and documented monitoring of the operational status. Visual fuse monitoring allows the status of the NH fuse inserts to be directly observed on the device. Safe voltage testing is performed via integrated test points on the cover, enabling testing without direct contact with the conductors. A parking position for the cover facilitates maintenance work, as the cover can be held in a stable, open position. The connection is made via screw connection M10, with cable exit possible at the top and bottom.

Technology Explained Simply

The contact strips are made of electrolytic copper and are silver-plated, ensuring high electrical conductivity and corrosion resistance. The housing is made of polyamide (PA 6), which according to UL 94 exhibits a specific flammability behavior. The power loss is a maximum of 42 W, with up to 23 W per fuse insert. The maximum fire load is 33.55 MJ/m². The test basis includes standards IEC/DIN EN 60 947-3 and DIN EN 60 269-2 (for fuse inserts). Pollution degree class 3 accounts for environments with increased contamination, as found in industrial installations.

Compatibility and Accessories

Compatible accessories are available for this switch disconnector, including the frame terminal RX 9365542 (pack of 3 for NH disconnectors size 1) and the connection space cover RX 9365531 (pack of 2 for NH disconnectors size 1). These components support installation and safe operation, particularly for cabling and protection of connection areas.

Mounting and Installation

Mounting is performed on mounting plates, with the device dimensions and connection type (screw M10) aligned with standard constructions. The tool-free adjustment of the cable exit allows flexible adaptation to different cabling situations. The parking position of the cover facilitates installation and maintenance, as the cover can be held securely during work.

Advantages in Operation

The combination of a lockable and sealable cover, visual fuse monitoring, and integrated test points for voltage testing increases safety and transparency in operation. The parking position reduces working time during maintenance. The high rated voltage and robust construction from polyamide with silver-plated copper contacts ensure reliable performance in industrial environments. Compliance with standards IEC/DIN EN 60 947-3 and DIN EN 60 269-2 ensures conformity with applicable safety standards.

General
Modelfor panel mounting
MaterialPolyamide (PA 6), flammability rating according to UL 94, contact strips: electrolytic copper, silver-plated
ColourRAL 9005, RAL 35745
Cable exitAbove/under
Electrical connection typeM10 screw
Fuse linksNH 1
Rated insulation voltage Ui1.000 kV
Rated operating voltage690 V AC
For NH size1
Test basisIEC/DIN EN 60 947-3, DIN EN 60 269-2 (fuse inserts)
Width181,8 mm
Height298 mm
Depth110,5 mm
Operating temperature range-5 °C...35 °C
Storage temperature range-25 °C...70 °C
Number of poles3-pole
Utility categoryAC-23B (400 V/100 A), AC-22B (500 V/100 A), AC-21B (690 V/100 A), DC-22B (250 V/100 A), DC-21B (440 V/100 A)
Pollution degree3
Degree of protection IP according to IEC 60 529IP 2XB
Fire load33,55 MJ/m²
Maximum power dissipation42 W
Power loss per fuse element (max.)23 W
Copper content (kg/piece)0,57
PCF/VE (Cradle-to-Gate)14,79
For panel mountingJa


Product data sheet
Datasheet for Rittal 9363110, EAN: 4069196001754
