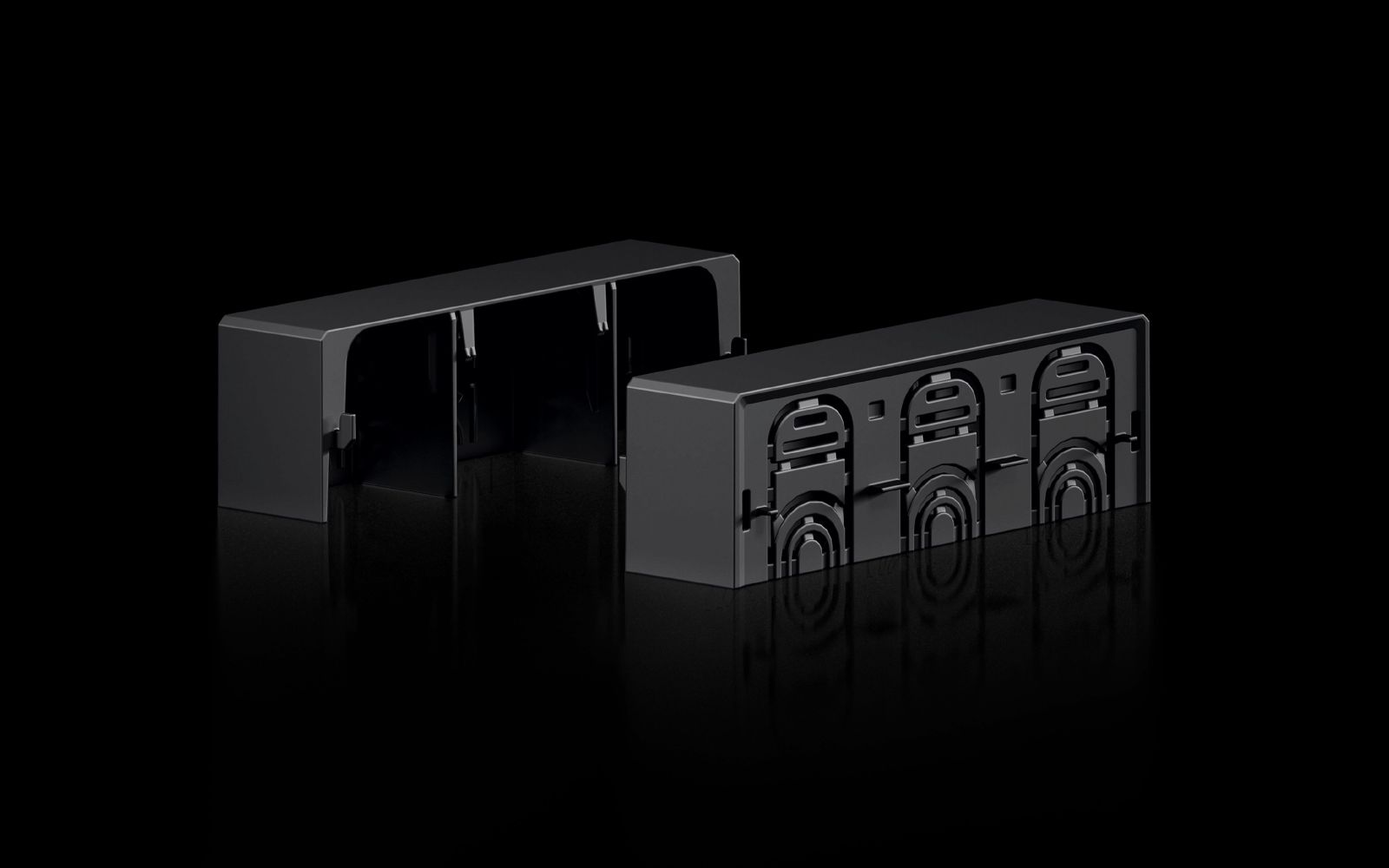

Rittal 9365531 RX connection space cover 1=2 for NH disconnector size 1

Your rating:
Average rating
product review for Rittal 9365531 RX connection space cover 1=2 for NH disconnector size 1
( 5 / 5 ) 1 ratings

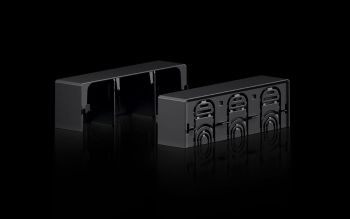

Rittal 9365531
This image may differ from the desired article.
Rittal 9365531Rittal 9365531
-6% 12,65 EUR 13,52 EUR
( 15,05 EUR incl. VAT )
≈ £10.58  |  ≈ $13.98
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 1 pieces
1x Rittal 9365531 RX connection space cover 1=2 for NH disconnector size 1
Datasheet:file_download Download
Lieske Part No.:612156
Mfg Part No: 9365531
UPC/EAN: 4069196010435
Weight:0.334 kg
Type:RX 9365531

Product information for Rittal 9365531:

The Rittal RX 9365531 is a connection compartment cover for NH fuse switch disconnectors size 1. It is designed for the safe covering of the connection area during the installation of busbars and mounting plates in enclosures. The component is specifically designed for use in industrial electrical installations, where proper shielding of electrical connections and a clean layout of the control panel are required. The cover is typically used together with NH fuse switch disconnectors with part numbers 9362110, 9362115, 9362140, 9363110, and 9363115 to ensure accessibility and safety within the enclosure.

Applications

The cover is intended for use in enclosures, particularly when installing NH fuse switch disconnectors in combination with mounting plates or busbars. It provides mechanical shielding of the connection area and helps prevent short circuits and mechanical damage. Its use is common in industrial electrical engineering, where clear structuring of the control panel and compliance with safety regulations are prioritized.

Functions and Features in Detail

The cover is made of polyamide (PA 6), a thermoplastic material known for its high mechanical strength, heat resistance, and chemical resistance. The material meets the flammability requirements according to UL 94, ensuring limited flammability and low flame spread. The color is RAL 9005, a dark gray shade that integrates well visually in industrial enclosures. The cover is available in a packaging unit of 2 pieces.

Technical Explanation

The cover has a width of 181.5 mm, a height of 66 mm, and a depth of 62.6 mm, making it suitable for the specified NH fuse switch disconnectors size 1. The precise fit ensures secure and obstruction-free installation. The fire load is 1.836 MJ/m², a value considered in the assessment of fire load in enclosures. The PCF/VE (Cradle-to-Gate) is 2.04, describing the environmental impact in the product life cycle from raw material extraction to manufacturing.

Compatibility and Accessories

The cover is specifically designed for NH fuse switch disconnectors with part numbers 9362110, 9362115, 9362140, 9363110, and 9363115. It is used during the installation of busbars and mounting plates to cover the connection area.

Installation and Mounting

Mounting is done directly onto NH fuse switch disconnectors size 1, with the cover fully enclosing the connection compartment. The cover is typically installed after the disconnectors have been mounted.

Operational Advantages

The cover enhances safety within the enclosure by preventing unintended contact with live parts. The use of polyamide (PA 6) ensures high mechanical stability and resistance to mechanical stress. The RAL 9005 color contributes to a uniform visual appearance of the control panel. The cover supports structuring and clarity of the installation, simplifying maintenance and inspection.

General
MaterialPolyamide (PA 6), flammability according to UL 94
ColourRAL 9005
Suitable for part no.9362110, 9362115, 9362140, 9363110, 9363115
Width181,5 mm
Height66 mm
Depth62,6 mm
Fire load1,836 MJ/m²
PCF/VE (Cradle-to-Gate)2,04


Product data sheet
Datasheet for Rittal 9365531, EAN: 4069196010435

Questions & answers

What is the delivery time of Rittal 9365531 RX connection space cover 1=2 for NH disconnector size 1?

The article Rittal 9365531 RX connection space cover 1=2 for NH disconnector size 1 is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9365531 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9365531 RX connection space cover 1=2 for NH disconnector size 1 always at the best possible price. We can give you a discount of 2% on Rittal 9365531 RX connection space cover 1=2 for NH disconnector size 1 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
