Rittal 9362140 RX NH fuse switch disconnector size 1 250 A 3-pole terminal

Your rating:
Average rating
product review for Rittal 9362140 RX NH fuse switch disconnector size 1 250 A 3-pole terminal
( 4.5 / 5 ) 2 ratings
Rittal 9362140
This image may differ from the desired article.
Rittal 9362140Rittal 9362140Rittal 9362140Rittal 9362140Rittal 9362140Rittal 9362140Rittal 9362140Rittal 9362140
166,75 EUR 173,42 EUR
( 198,43 EUR incl. VAT )
≈ £139.40  |  ≈ $184.26
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: 3 pieces
1x Rittal 9362140 RX NH fuse switch disconnector size 1 250 A 3-pole terminal
Datasheet:file_download Download
Lieske Part No.:1571893
Mfg Part No: 9362140
UPC/EAN: 4069196001570
Weight:2.781 kg
Type:RX 9362140

Product information for Rittal 9362140:

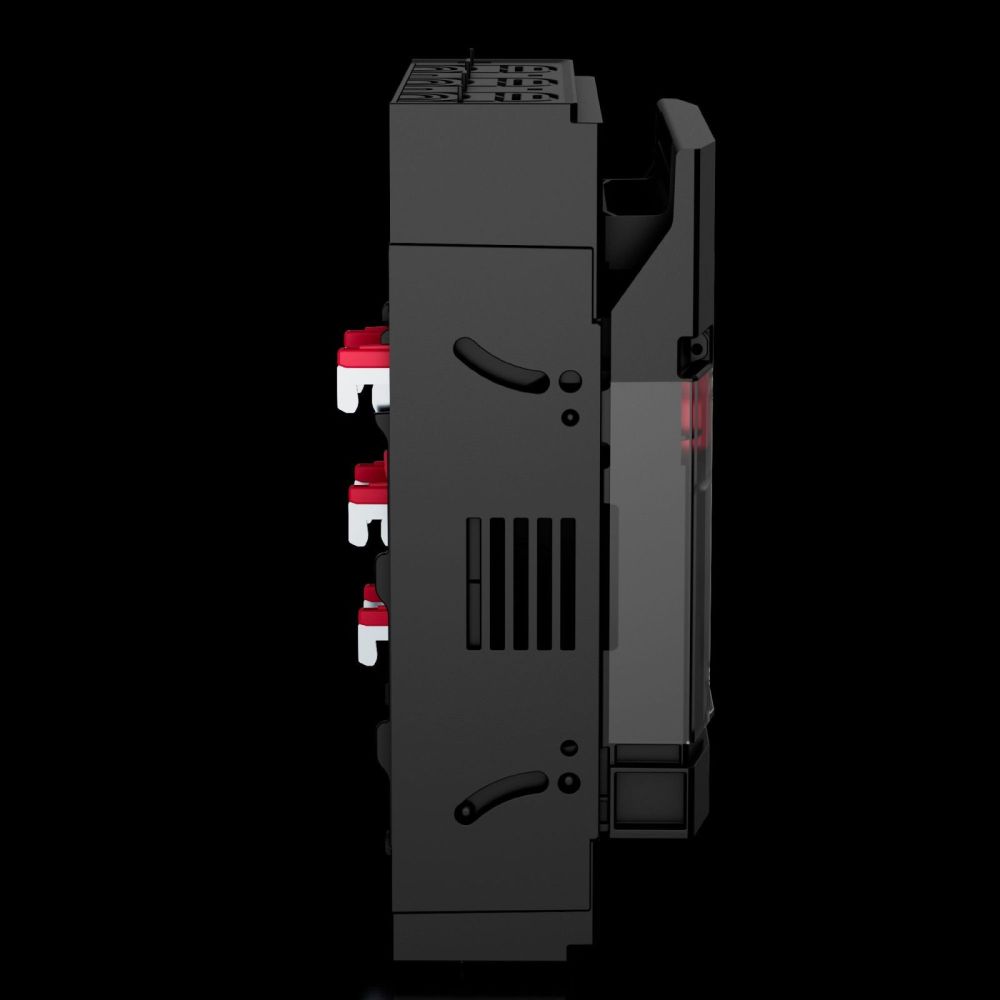

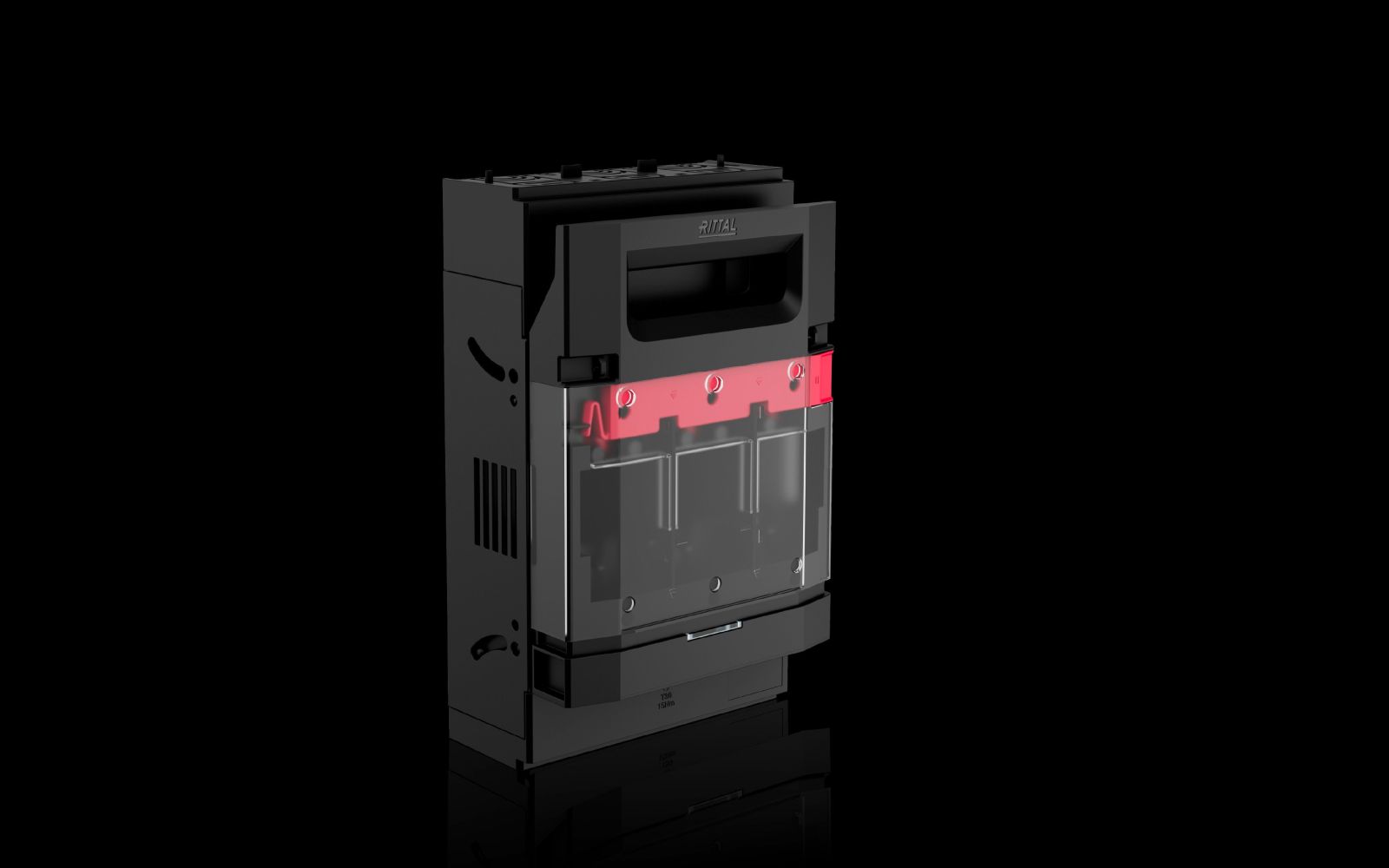

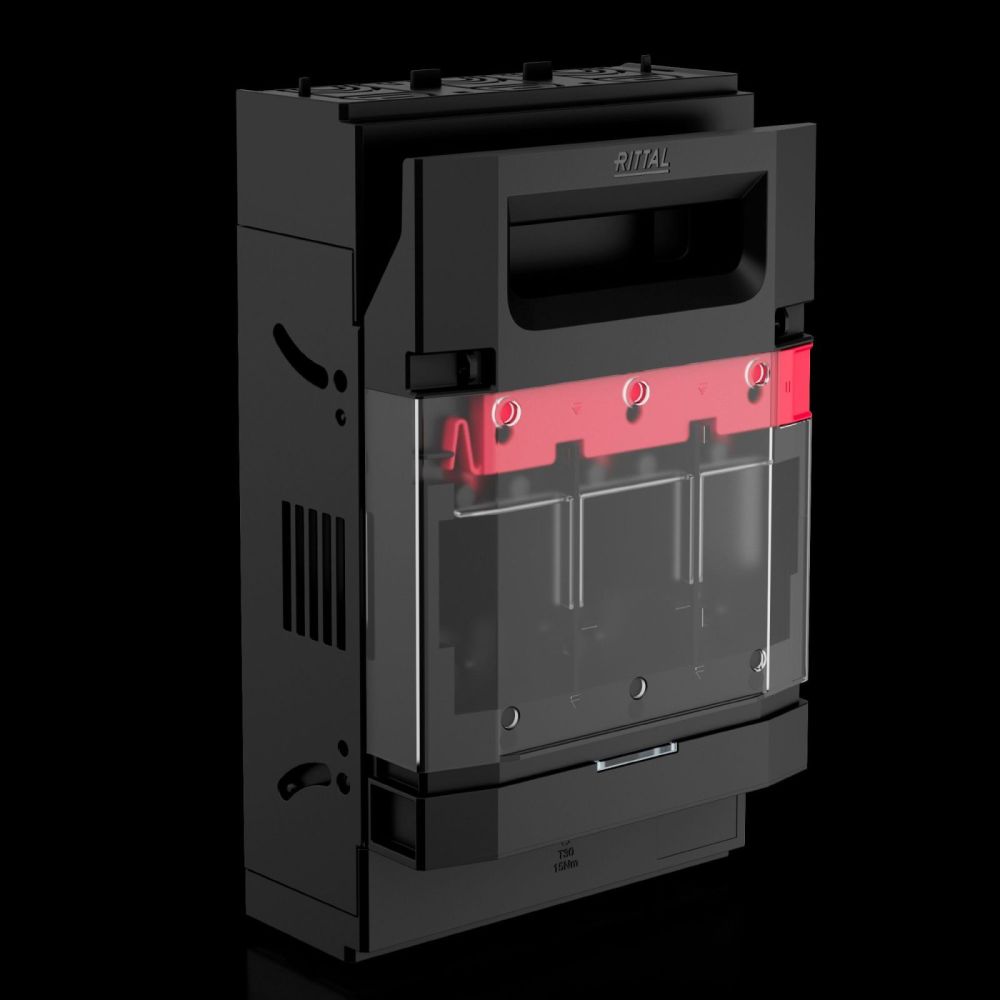

The Rittal RX 9362140 is an NH fuse switch disconnector in size 1, specifically designed for 60 mm busbar systems. It serves as a switch disconnector with integrated NH 1 fuse inserts, enabling safe disconnection of electrical installations during operation. The device is designed for use in industrial electrical installations where reliable current disconnection and protection are required. The design is for busbar systems with a center-to-center spacing of 60 mm, allowing mounting on RiLineX and RiLine60 systems. The frame terminal as connection type enables connection of round conductors with a cross-section of at least 50 mm² up to a maximum of 150 mm². The cable exit is tool-free and individually convertible to top or bottom, enabling flexible installation in various enclosures.

Applications

The switch disconnector is intended for use in industrial and commercial electrical installations, particularly in enclosures where safe and visible disconnection of power supply is required. The rated operational voltage is 690 V AC, making it suitable for applications in high-voltage networks. The usage categories include AC-23B (400 V/100 A), AC-22B (500 V/100 A), AC-21B (690 V/100 A), DC-22B (250 V/100 A), and DC-21B (440 V/100 A), enabling use in both alternating and direct current applications. The operating temperature range is between -5 °C and 35 °C, while the storage temperature range extends from -25 °C to 70 °C. The protection class IP 2XB according to IEC 60 529 protects against finger contact and solid foreign objects, but not against water or dust, making it suitable for indoor installations.

Functions and Equipment in Detail

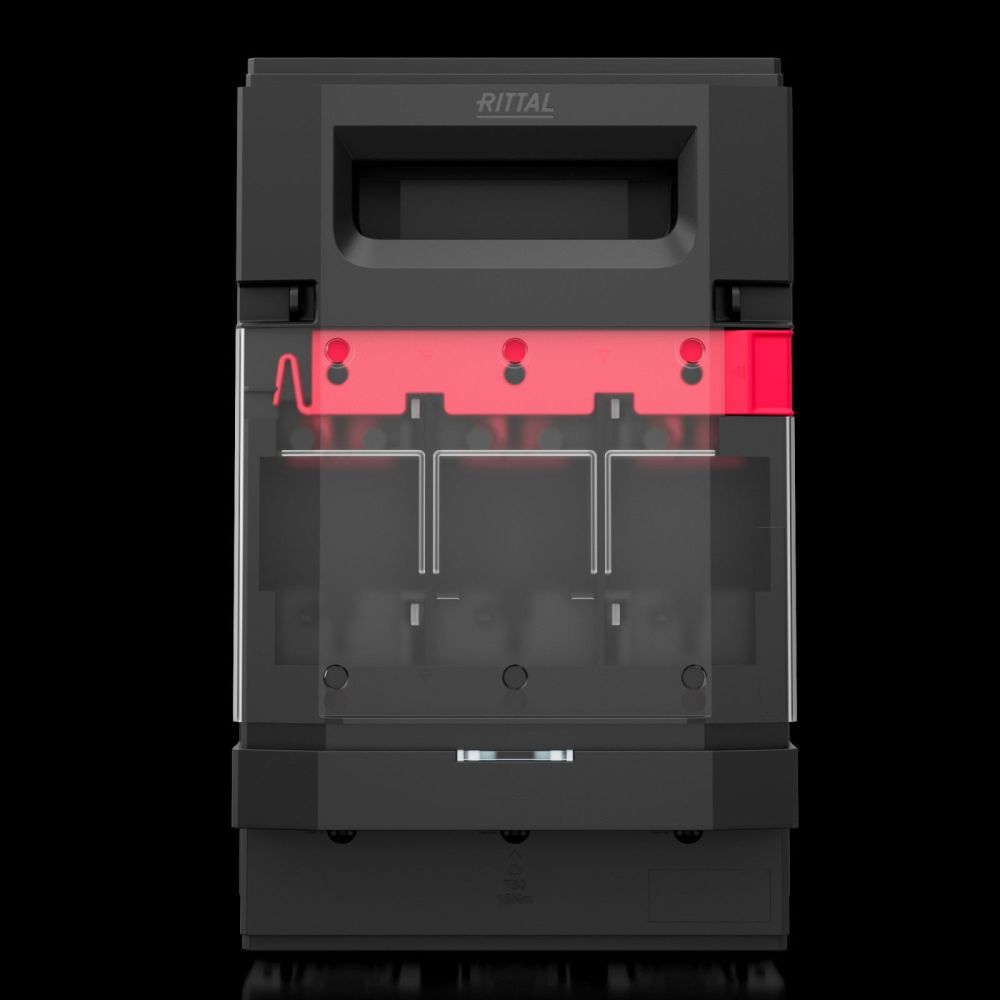

The cover of the switch disconnector is lockable and sealable, enabling secure and documented monitoring of the operational status. The visual fuse monitoring allows direct recognition of the status of the installed NH fuse on the device without requiring additional measurement. The safe voltage testing is performed via integrated test points on the cover, enabling testing without direct contact with conductive parts. A parking position for the cover facilitates maintenance work, as the cover can be held in a stable, open position. Mounting is done via push-on mounting up to 250 A, with easy and tool-free adaptation to various busbar thicknesses (5/10 mm).

Technology Explained Simply

The device consists of a housing made of polyamide (PA 6), which according to UL 94 exhibits a specific flammability behavior, limiting the fire load to 40.51 MJ/m². The contact bars are made of electrolytic copper and are silver-plated, ensuring high electrical conductivity and corrosion resistance. The maximum power loss is 51 W, with up to 23 W per fuse insert. The pole count is 3, indicating a three-pole application. The fit for busbars is designed for profiles with dimensions 15 x 5/10 mm, 20 x 5/10 mm, and 30 x 5/10 mm. The device dimensions are 181.5 mm (width), 298 mm (height), and 116.7 mm (depth). The test basis is according to IEC/DIN EN 60 947-3 and DIN EN 60 269-2 (for fuse inserts). The pollution degree is 3, indicating use in environments with increased pollution risk.

Compatibility and Accessories

The switch disconnector is compatible with RiLineX and RiLine60 busbar systems. Available accessories include the frame terminal RX 9365542, the encircling protection profile RX 9365025, the mounting clip RX 9365027, the microswitch RX 9365505, the shock protection RX 9365515, and the cover for the connection space RX 9365531. These components support installation, protection, and functionality of the switch disconnector in various application scenarios.

Mounting and Installation

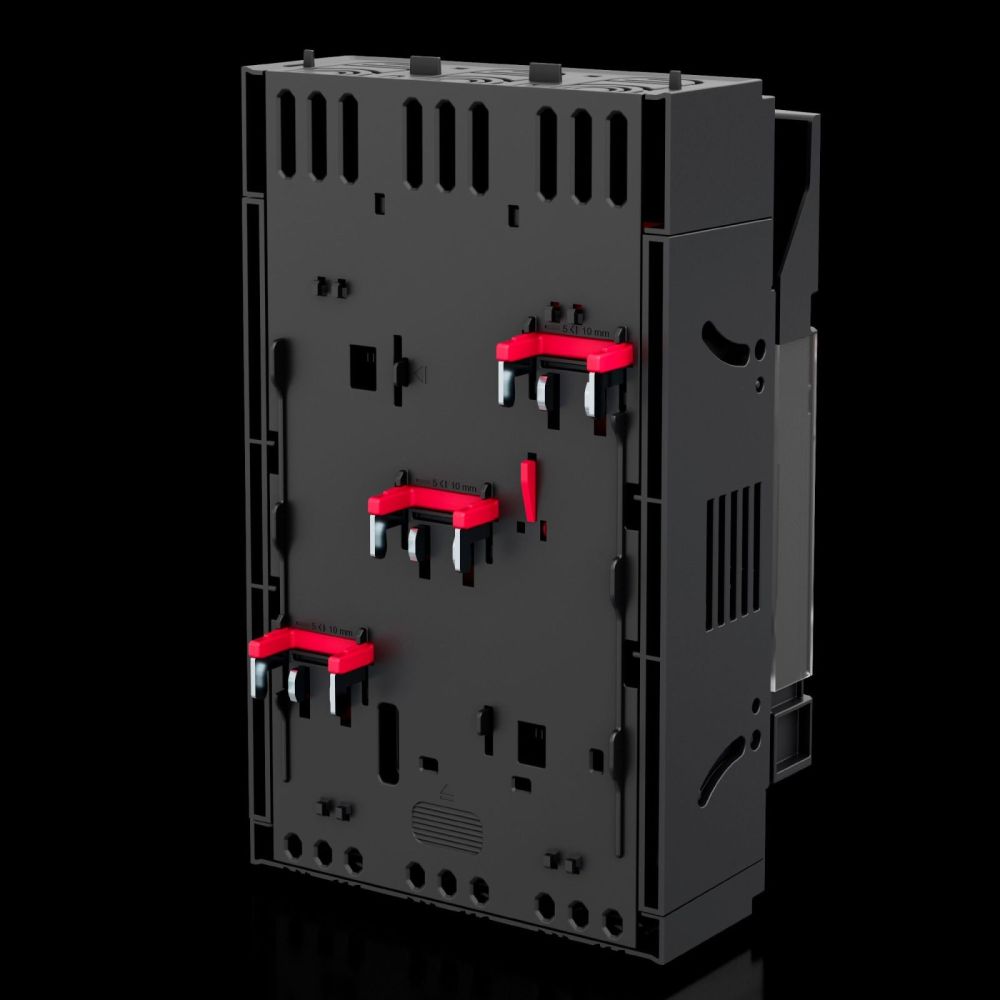

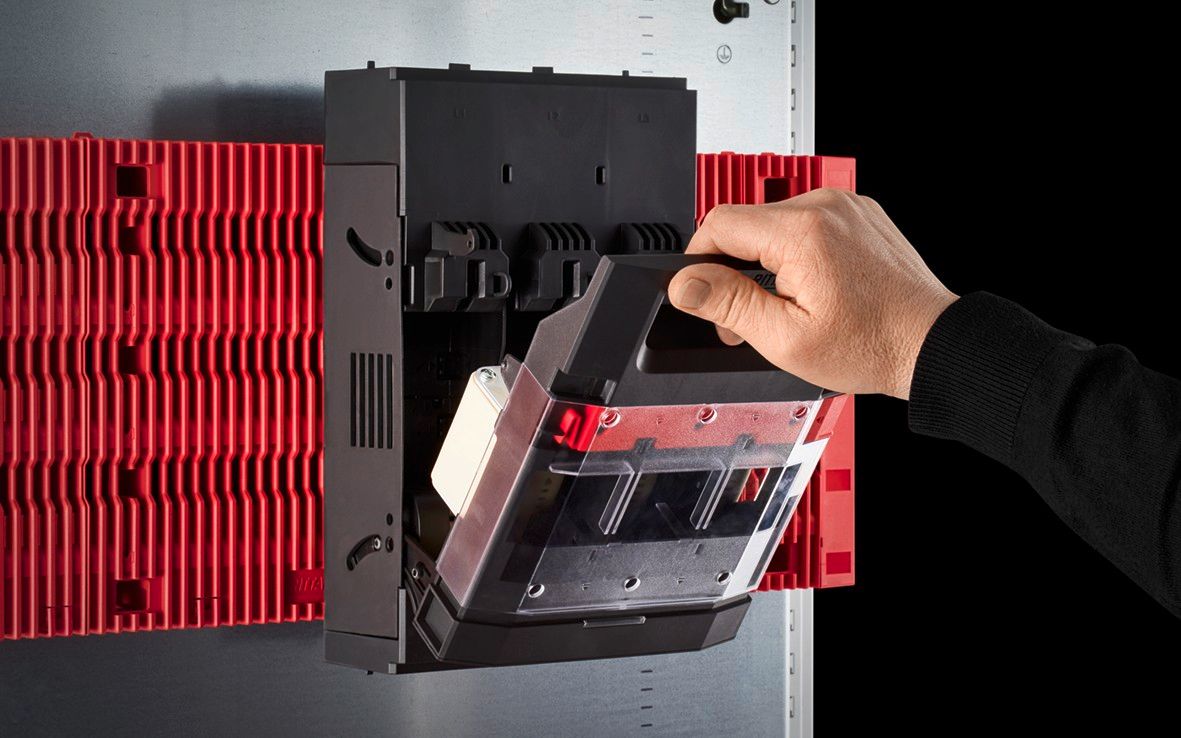

Mounting is done via push-on mounting onto the busbars, with tool-free adaptation to various busbar thicknesses (5/10 mm) possible. The frame terminal enables connection of round conductors with a cross-section of 50 to 150 mm². The cable exit can be set to top or bottom as required, enabling flexible integration into existing enclosure configurations. The parking position of the cover facilitates maintenance, as the cover can be held securely in the open position.

Advantages in Operation

The switch disconnector offers high operational safety through its lockable and sealable cover, as well as visual fuse monitoring. The integrated test points enable safe voltage testing without direct contact. The tool-free conversion of the cable exit and easy adaptation to various busbar thicknesses reduce installation time. The parking position facilitates maintenance work, and the robust construction from polyamide and silver-plated copper ensures long service life under industrial conditions. Compliance with standards IEC/DIN EN 60 947-3 and DIN EN 60 269-2 ensures reliability and safety of the device in operation.

General
ModelFor 60 mm busbar systems
MaterialPolyamide (PA 6), flammability rating according to UL 94, contact strips: electrolytic copper, silver-plated
ColourRAL 9005, RAL 35745
For rail systems with centre spacing60 mm
Cable exitAbove/under
Electrical connection typeFrame clamp
Fuse linksNH 1
Rated operating voltage690 V AC
For NH size1
Test basisIEC/DIN EN 60 947-3, DIN EN 60 269-2 (fuse inserts)
Width181,5 mm
Height298 mm
Depth116,7 mm
Operating temperature range-5 °C...35 °C
Storage temperature range-25 °C...70 °C
Suitable for busbars15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Suitable for busbar systemRiLineX, RiLine60
Number of poles3-pole
Utility categoryAC-23B (400 V/100 A), AC-22B (500 V/100 A), AC-21B (690 V/100 A), DC-22B (250 V/100 A), DC-21B (440 V/100 A)
Pollution degree3
Degree of protection IP according to IEC 60 529IP 2XB
Fire load40,51 MJ/m²
Maximum power dissipation51 W
Power loss per fuse element (max.)23 W
Copper content (kg/piece)0,8
PCF/VE (Cradle-to-Gate)17,58


Product data sheet
Datasheet for Rittal 9362140, EAN: 4069196001570
