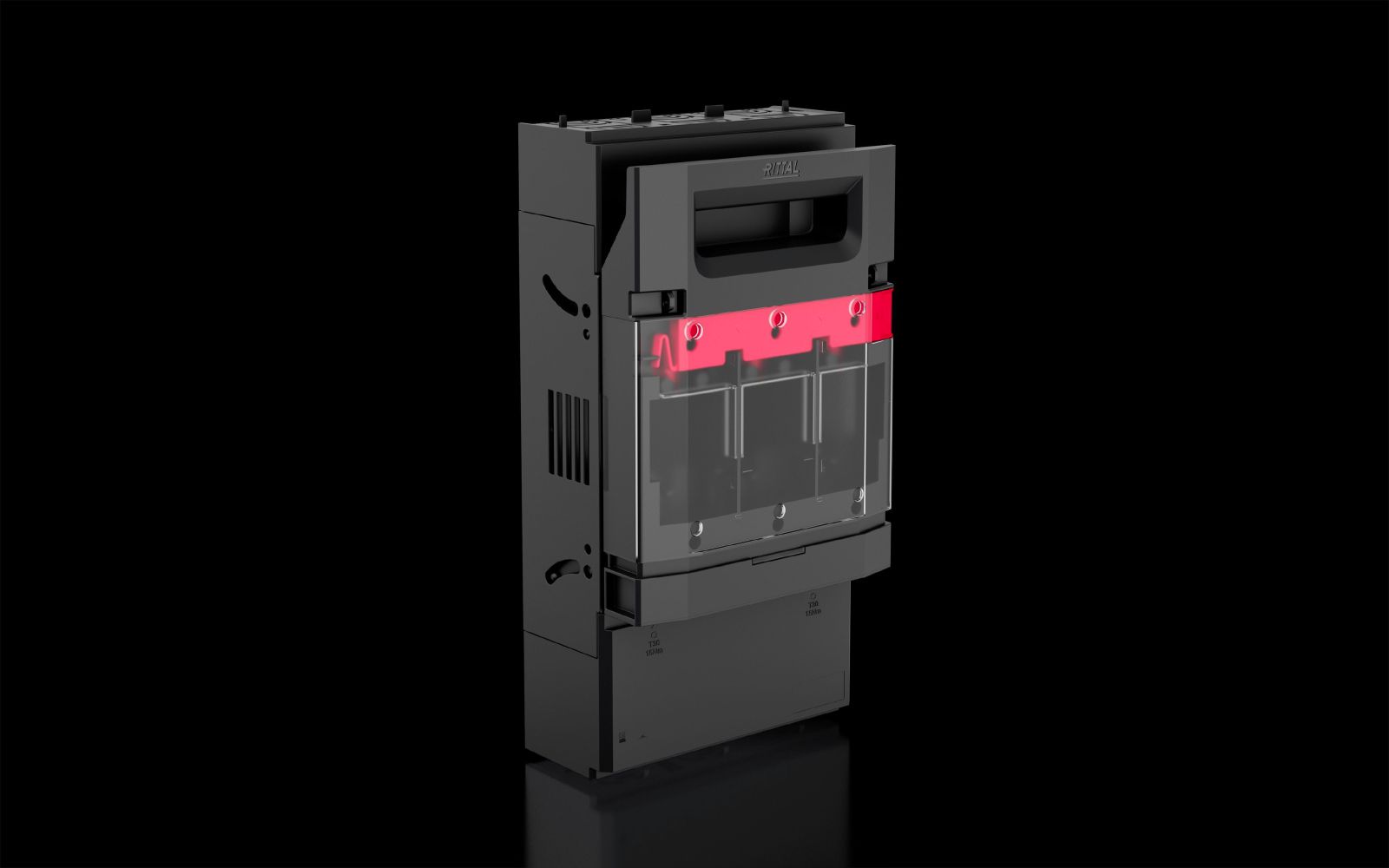

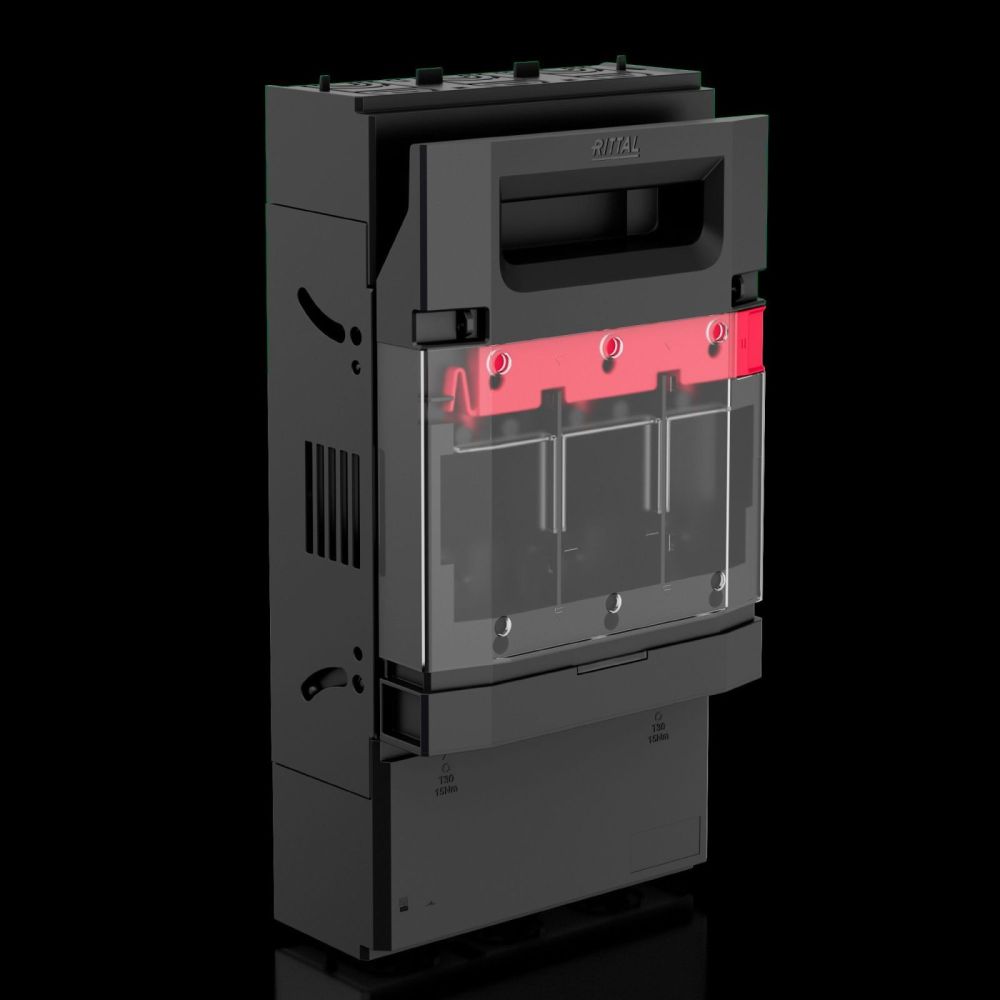

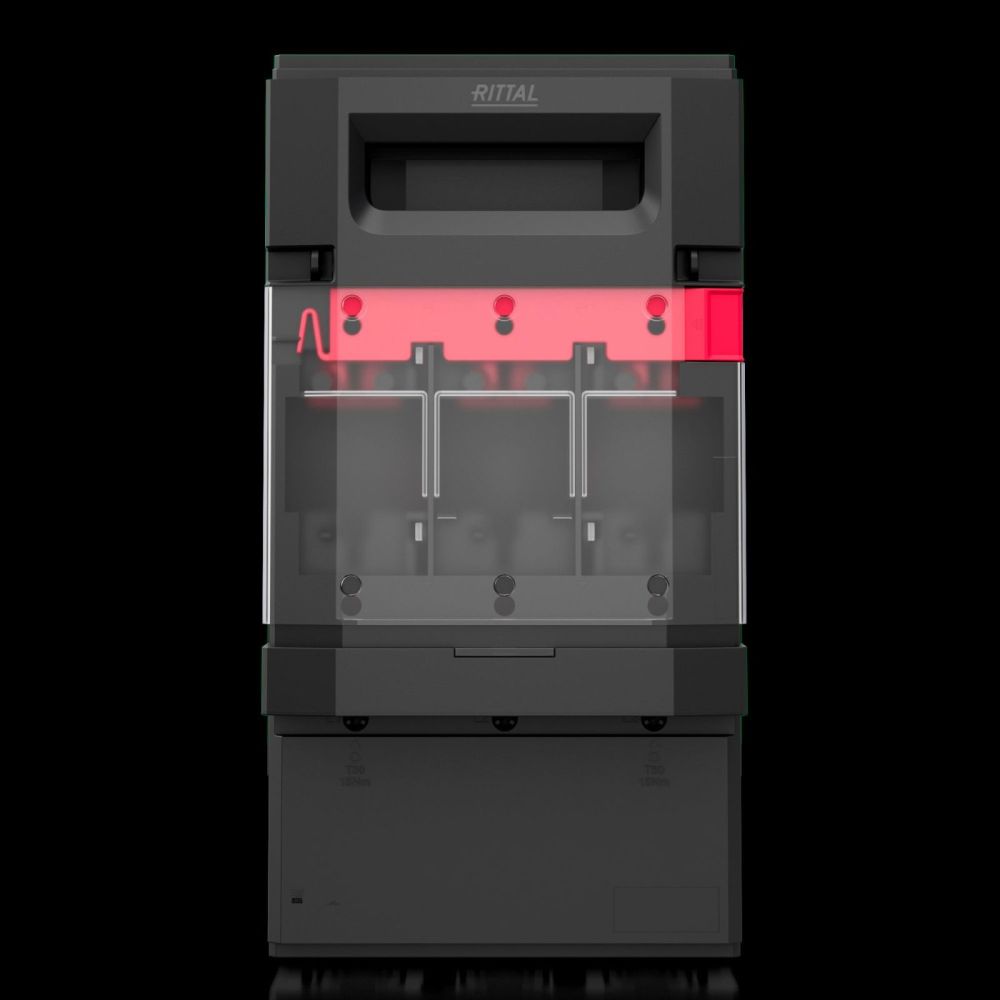

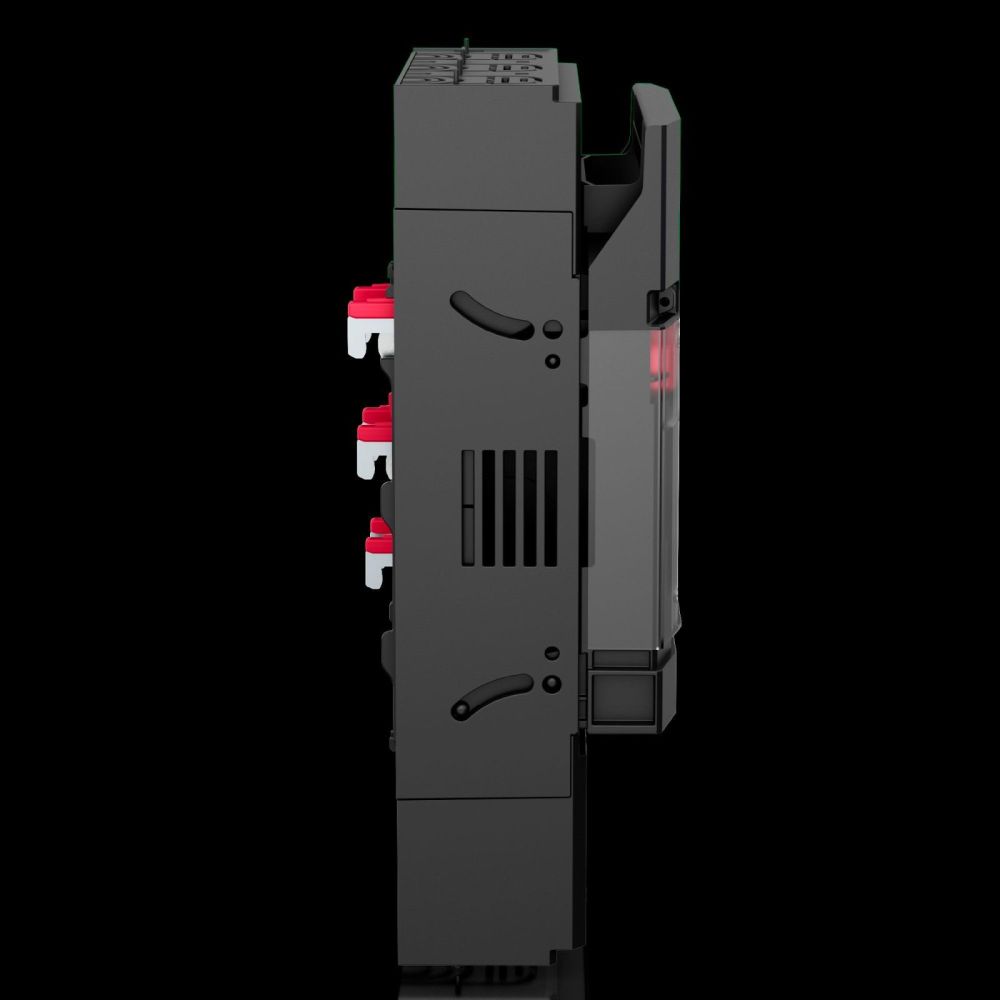

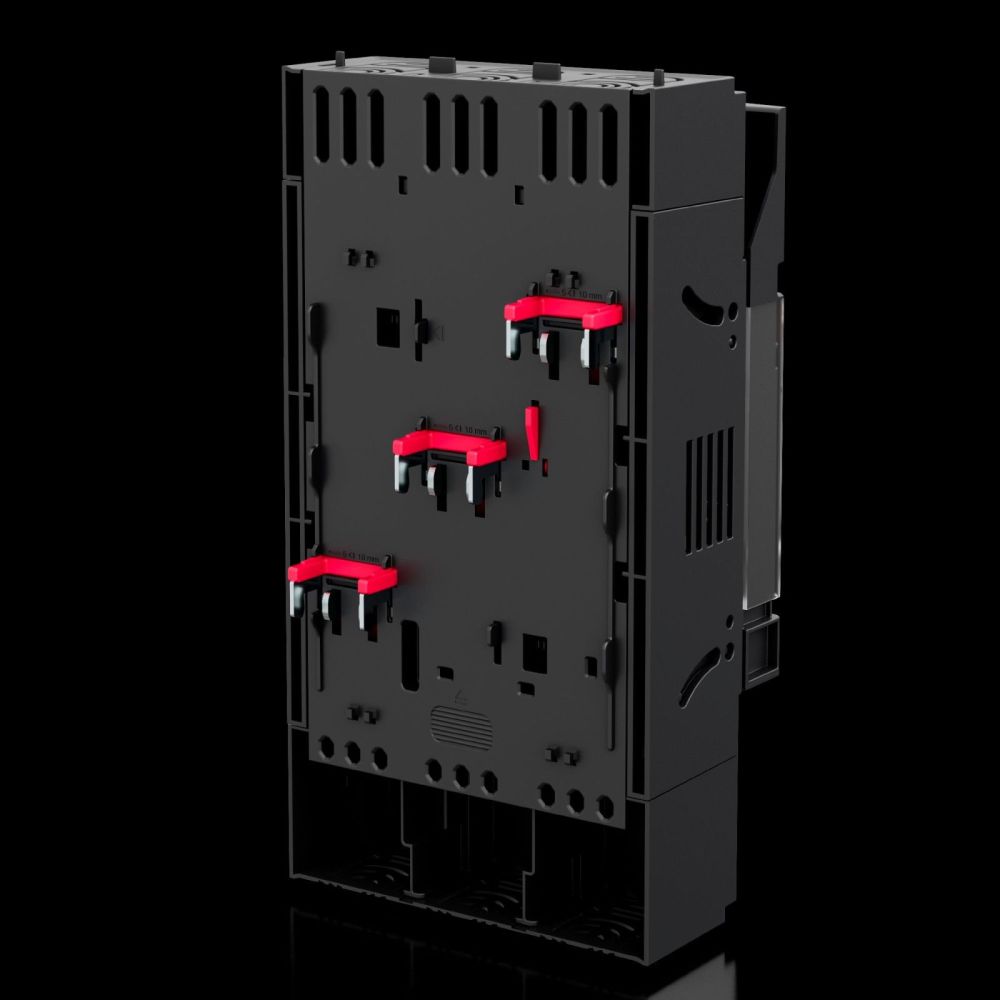

Rittal 9362115 RX NH fuse switch disconnector size 1 250 A 3-pole screw fuse monitoring 800 V

Your rating:
Average rating
product review for Rittal 9362115 RX NH fuse switch disconnector size 1 250 A 3-pole screw fuse monitoring 800 V
( 4.5 / 5 ) 2 ratings
Rittal 9362115
This image may differ from the desired article.
Rittal 9362115Rittal 9362115Rittal 9362115Rittal 9362115Rittal 9362115Rittal 9362115Rittal 9362115Rittal 9362115
281,75 EUR 293,02 EUR
( 335,28 EUR incl. VAT )
≈ £235.54  |  ≈ $311.33
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9362115 RX NH fuse switch disconnector size 1 250 A 3-pole screw fuse monitoring 800 V
Datasheet:file_download Download
Lieske Part No.:1571891
Mfg Part No: 9362115
UPC/EAN: 4069196001556
Weight:2.728 kg
Type:RX 9362115

Product information for Rittal 9362115:

The Rittal RX 9362115 is an NH fuse switch disconnector in size 1, specifically designed for 60 mm busbar systems. It serves as a power disconnector in industrial electrical installations and enables the safe disconnection of circuits using NH fuse inserts. The device is equipped with electronic fuse monitoring (ESÜ), which monitors the status of the installed fuse and signals any defect or incorrect positioning. The construction is made of polyamide (PA 6) with a flammability rating according to UL 94, ensuring high thermal and mechanical stability. The contact bars are made of electrolytic copper, silver-plated, ensuring reliable and corrosion-resistant conductivity.

Applications include industrial distributions, machine controls, and installations where safe, manual disconnection of power supply is required. The disconnector is designed for busbar systems RiLineX and RiLine60 and adapts to rail thicknesses of 15 x 5/10 mm, 20 x 5/10 mm, and 30 x 5/10 mm. The rated operational voltage is 690 V AC, covering usage categories AC-23B (400 V/100 A), AC-22B (500 V/100 A), AC-21B (690 V/100 A), DC-22B (250 V/100 A), and DC-21B (440 V/100 A). The pole count is 3-pole, making it suitable for three-phase installations.

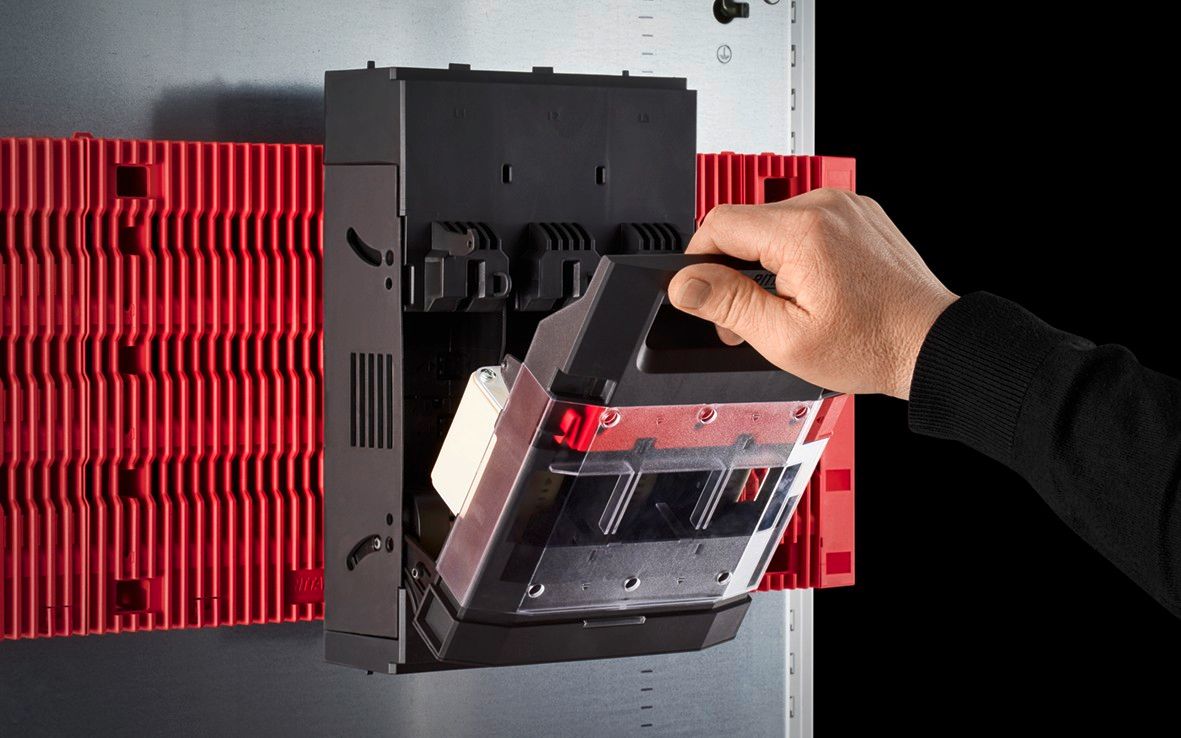

Functions and equipment in detail include a lockable and sealable cover, enabling safe disconnection and documentation of the operating status. The visual fuse monitoring allows direct status verification of the fuse. For safe voltage testing, integrated test points on the cover are provided, enabling testing without direct contact with conductors. A parking position for the cover facilitates maintenance work, as the cover can be fixed in the open position. The cable exit is tool-free adjustable and can be individually set to top or bottom. The connection type is via M10 screws, ensuring a robust and secure connection.

Technology explained simply shows that the electronic fuse monitoring (ESÜ) communicates via an integrated connector plug, included in the delivery scope. This enables connection to monitoring systems or alarm devices. The protection rating IP 2XB according to IEC 60 529 protects against finger contact and vertical dripping water, making it suitable for indoor installations. The pollution degree 3 accounts for environments with increased contamination risk, as found in industrial installations. The operating temperature range is between -5 °C and 35 °C, while the storage temperature range extends from -25 °C to 70 °C.

Compatibility and accessories include compatible components such as frame terminal RX 9365542, encapsulation profile RX 9365025, mounting clips RX 9365027, microswitch RX 9365505, shock protection RX 9365515, and covers RX 9365531. These elements support mounting, protection, and integration into existing switchgear. Mounting is done via push-on mounting up to 250 A, with easy, tool-free adjustment to various rail thicknesses (5/10 mm).

Mounting and installation are performed directly onto the 60 mm busbar system. The tool-free adjustment of the cable exit and simple setting for rail thickness facilitate integration into existing installations. The dimensions are 181.5 mm (width) × 348.5 mm (height) × 116.7 mm (depth), enabling compact placement in enclosures. The maximum power loss is 51 W, with the power loss per fuse insert reaching up to 23 kW.

Operational advantages include high safety due to the sealable cover, visual and electronic monitoring, and easy maintenance via parking position. The tool-free adjustment of the cable exit and compatible mounting on RiLineX systems increase installation flexibility. Compliance with standards IEC/DIN EN 60 947-3 and DIN EN 60 269-2 (for fuse inserts) ensures reliability and safety in operation. The color variants RAL 9005 and RAL 35745 allow visual integration into existing installation concepts.

General
Modelwith electronic fuse monitoring (ESÜ), for 60 mm busbar system
MaterialPolyamide (PA 6), flammability rating according to UL 94, contact strips: electrolytic copper, silver-plated
ColourRAL 9005, RAL 35745
Scope of deliveryIncluding connection plug for electrical fuse monitoring
For rail systems with centre spacing60 mm
Cable exitAbove/under
Electrical connection typeM10 screw
Fuse linksNH 1
Rated operating voltage690 V AC
For NH size1
Test basisIEC/DIN EN 60 947-3, DIN EN 60 269-2 (fuse inserts)
Width181,5 mm
Height348,5 mm
Depth116,7 mm
Operating temperature range-5 °C...35 °C
Storage temperature range-25 °C...70 °C
Suitable for busbars15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Suitable for busbar systemRiLineX, RiLine60
Number of poles3-pole
Utility categoryAC-23B (400 V/100 A), AC-22B (500 V/100 A), AC-21B (690 V/100 A), DC-22B (250 V/100 A), DC-21B (440 V/100 A)
Pollution degree3
Degree of protection IP according to IEC 60 529IP 2XB
Fire load36,19 MJ/m²
Maximum power dissipation51 W
Power loss per fuse element (max.)23 kW
Copper content (kg/piece)0,8
PCF/VE (Cradle-to-Gate)18,21
With electronic fuse monitoring (ESÜ)Ja


Product data sheet
Datasheet for Rittal 9362115, EAN: 4069196001556
