Rittal 9363115 RX NH fuse switch disconnector size 1 250 A 3-pole

Your rating:
Average rating
product review for Rittal 9363115 RX NH fuse switch disconnector size 1 250 A 3-pole
( 5 / 5 ) 1 ratings
Rittal 9363115
This image may differ from the desired article.
Rittal 9363115Rittal 9363115Rittal 9363115Rittal 9363115Rittal 9363115Rittal 9363115Rittal 9363115
-6% 235,75 EUR 252,05 EUR
( 280,54 EUR incl. VAT )
≈ £197.09  |  ≈ $260.50
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9363115 RX NH fuse switch disconnector size 1 250 A 3-pole
Datasheet:file_download Download
Lieske Part No.:612109
Mfg Part No: 9363115
UPC/EAN: 4069196001761
Weight:2.454 kg
Type:RX 9363115

Product information for Rittal 9363115:

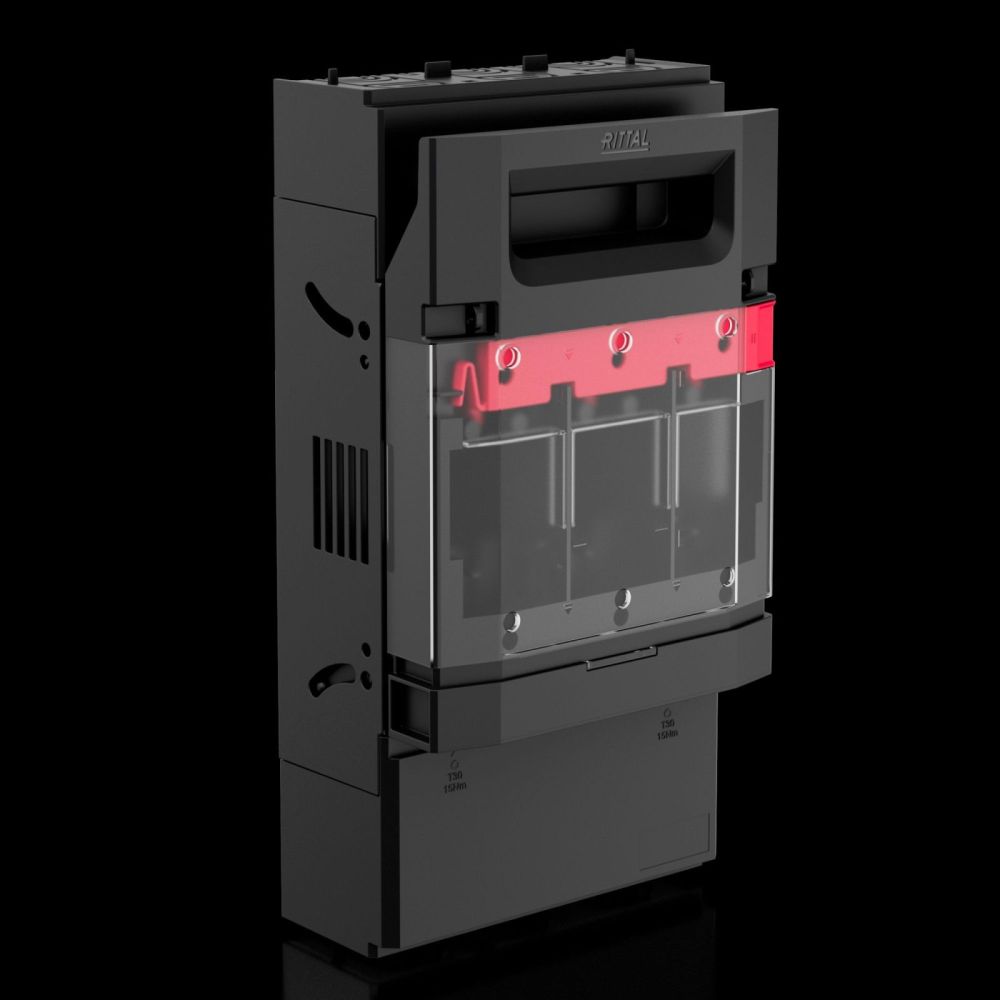

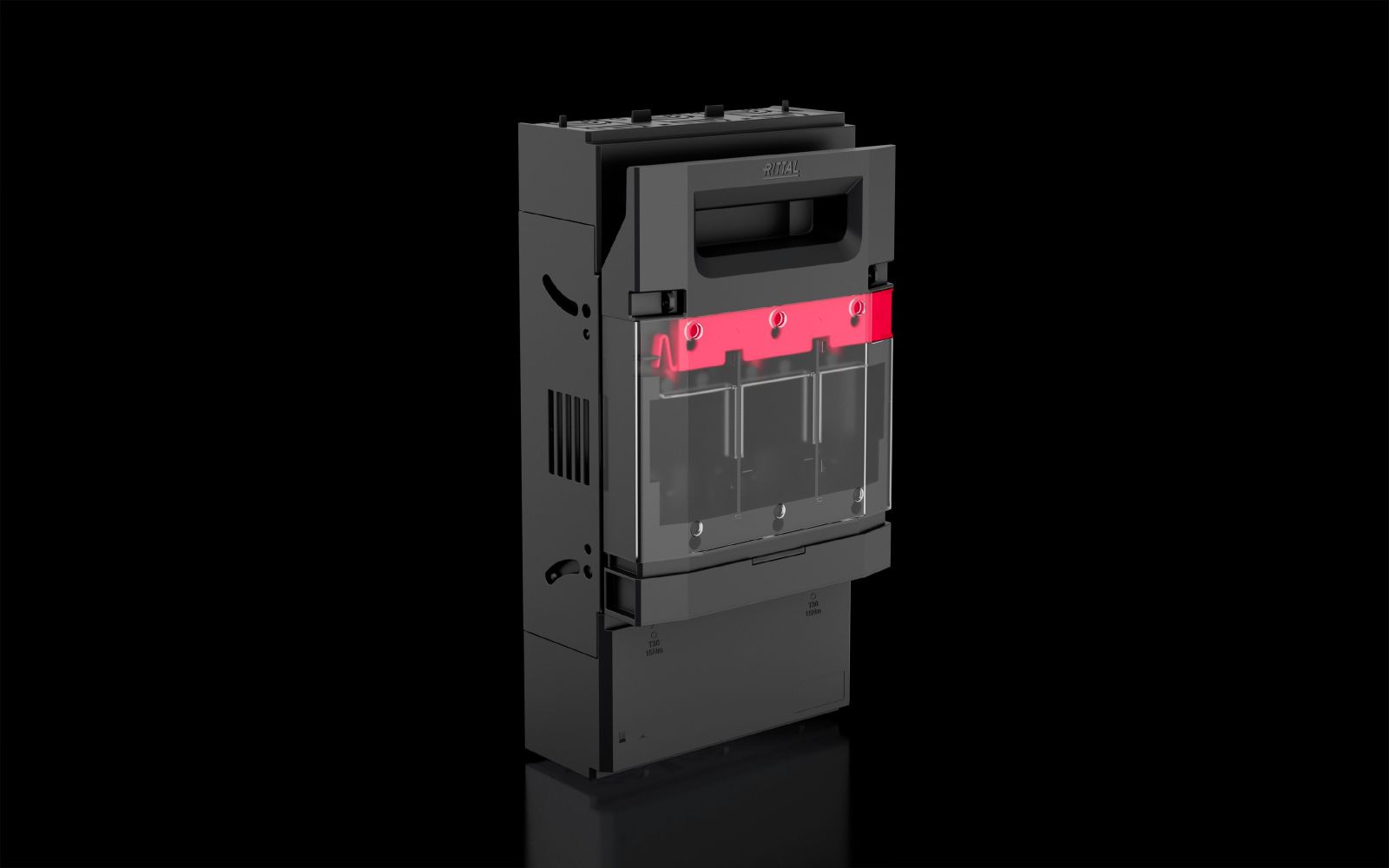

The Rittal RiLineX NH fuse switch disconnector type RX 9363115 is a 3-pole switch disconnector in size 1, specifically designed for mounting plate installation. It serves as a fuse switch disconnector in industrial electrical installations and enables safe disconnection of power supply as well as monitoring of installed NH fuse inserts. The version with electronic fuse monitoring (ESÜ) ensures reliable control of the fuse status, with an electrical fuse monitoring connector included in the delivery scope.

Applications

The switch disconnector is suitable for applications in industrial and commercial electrical installations where safe and monitored power disconnection is required. It is frequently used in enclosures, distributions, and systems requiring high operational safety. The rated operational voltage is 690 V AC, and the rated insulation voltage Ui is 1,000 V, making it suitable for installations with high voltages. The usage categories include AC-23B (400 V/100 A), AC-22B (500 V/100 A), AC-21B (690 V/100 A), DC-22B (250 V/100 A), and DC-21B (440 V/100 A), ensuring suitability for various operating modes.

Functions and Equipment in Detail

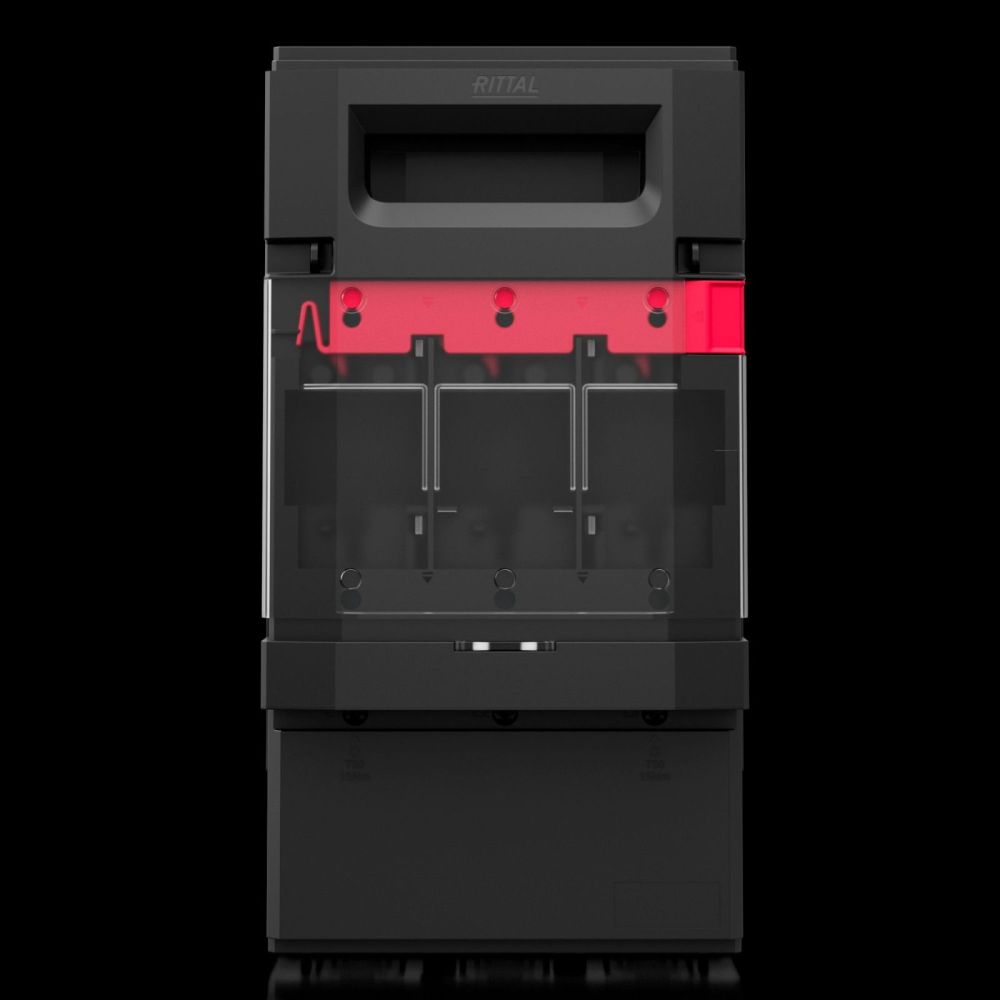

The disconnector’s cover is lockable and sealable, preventing unauthorized manipulation. Visual fuse monitoring allows direct inspection of the fuse status. Safe voltage testing is performed via integrated test points on the cover, enabling testing without direct contact with live parts. A parking position for the cover facilitates maintenance work, as the cover can be held in a stable position. Cable exit is possible at the top and bottom, with a tool-free conversion of the cable exit provided.

Technology Explained Simply

The disconnector is made of polyamide (PA 6), which has a defined flammability rating according to UL 94. The contact strips are made of electrolytic copper, silver-plated, ensuring high electrical conductivity and corrosion resistance. The protection class IP 2XB according to IEC 60 529 protects against finger contact and solid foreign objects, but not against water or dust. The operating temperature range is between -5 °C and 35 °C, and the storage temperature range is between -25 °C and 70 °C. The maximum power loss is 42 W, with a maximum of 23 W per fuse insert.

Compatibility and Accessories

The disconnector is designed for NH size 1 and uses NH fuse inserts. Suitable accessories include the frame terminal RX 9365542 (pack of 3) and the connection space cover RX 9365531 (pack of 2), which support better integration into enclosures and secure the connection areas. The connection is made via M10 screws, ensuring a secure and robust connection.

Mounting and Installation

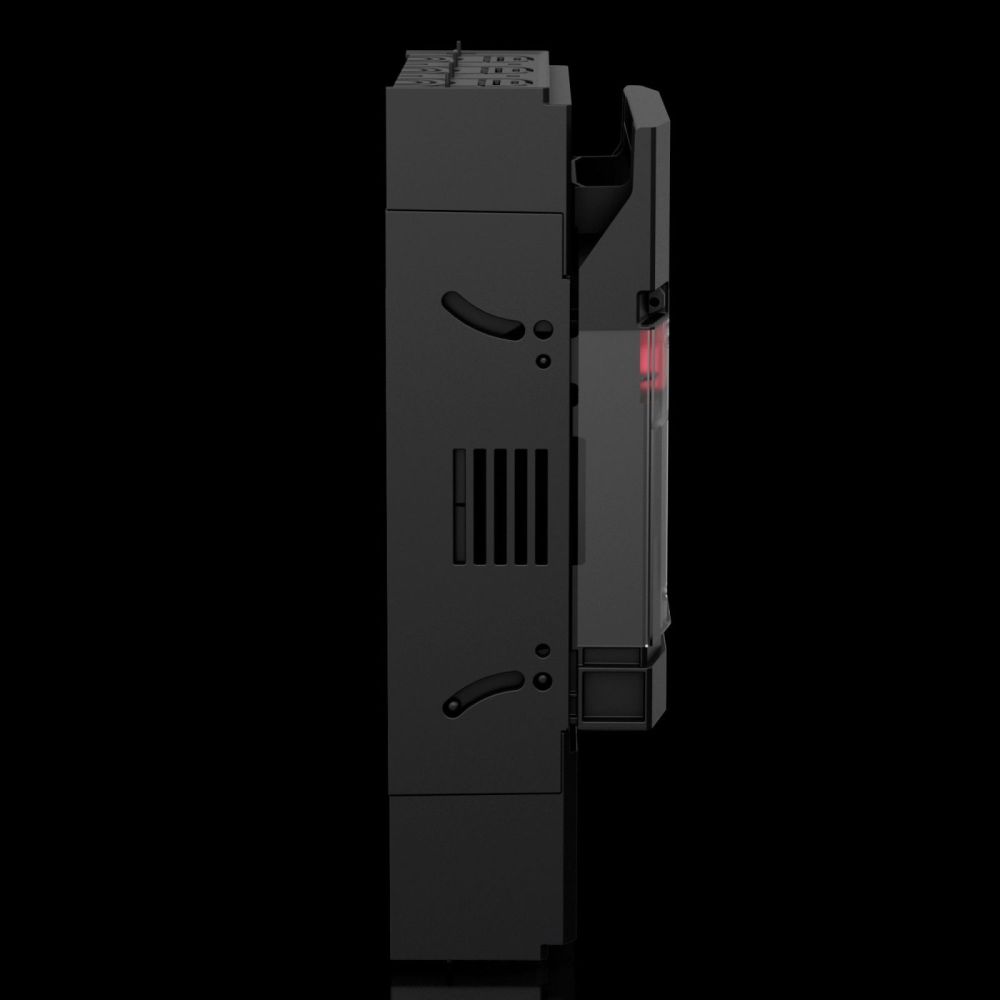

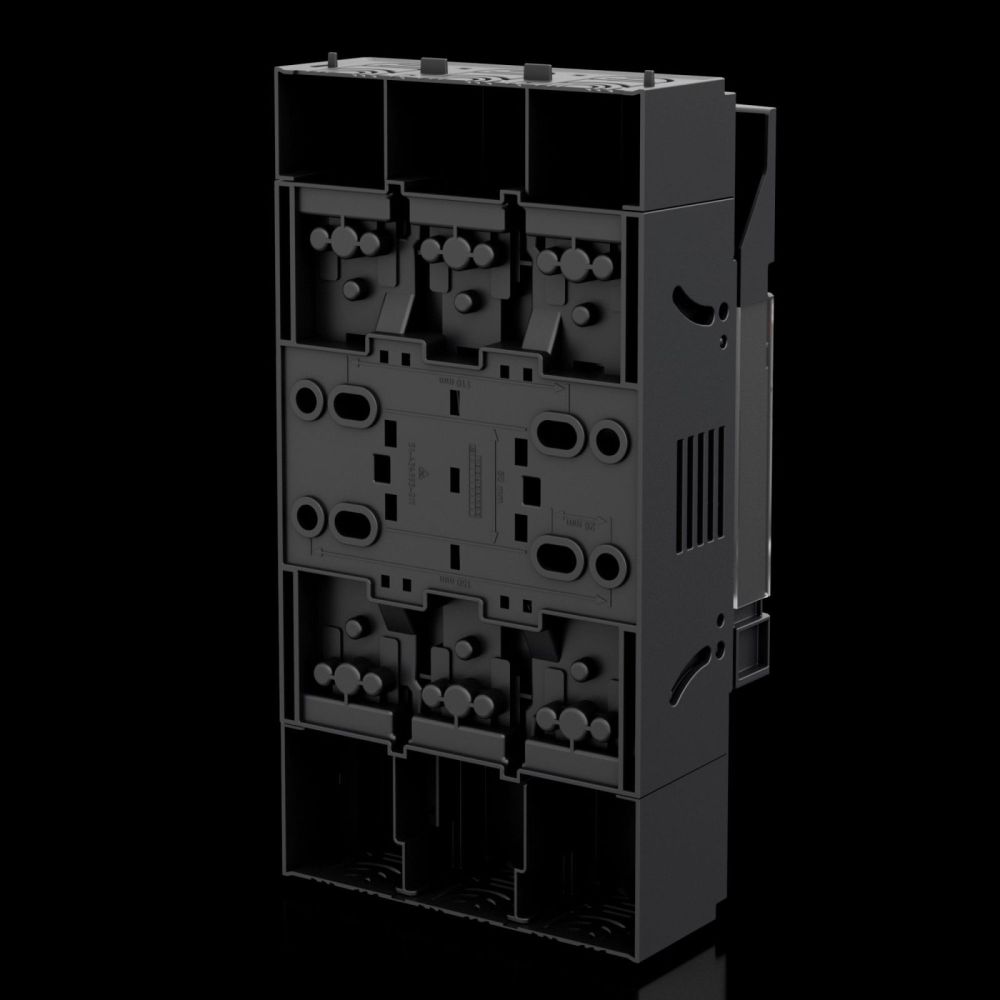

The disconnector is intended for mounting plate installation and can be directly fastened to mounting plates. Dimensions are 181.8 mm (width), 348.5 mm (height), and 110.5 mm (depth). Mounting is tool-free for cable exit, making installation flexible and time-efficient.

t
Advantages in Operation

The integrated electronic fuse monitoring (ESÜ) enables continuous monitoring of the fuse status, increasing operational safety. The parking position and the lockable, sealable cover support maintenance and secure the system against unauthorized access. The integrated test points for voltage testing increase safety during inspections. The use of silver-plated electrolytic copper for the contact strips ensures high reliability and low heat generation under high loads.

General
Modelwith electronic fuse monitoring (ESÜ), for panel mounting
MaterialPolyamide (PA 6), flammability rating according to UL 94, contact strips: electrolytic copper, silver-plated
ColourRAL 9005, RAL 35745
Scope of deliveryIncluding connection plug for electrical fuse monitoring
Cable exitAbove/under
Electrical connection typeM10 screw
Fuse linksNH 1
Rated insulation voltage Ui1.000 V
Rated operating voltage690 V AC
For NH size1
Test basisIEC/DIN EN 60 947-3, DIN EN 60 269-2 (fuse inserts)
Width181,8 mm
Height348,5 mm
Depth110,5 mm
Operating temperature range-5 °C...35 °C
Storage temperature range-25 °C...70 °C
Number of poles3-pole
Utility categoryAC-23B (400 V/100 A), AC-22B (500 V/100 A), AC-21B (690 V/100 A), DC-22B (250 V/100 A), DC-21B (440 V/100 A)
Pollution degree3
Degree of protection IP according to IEC 60 529IP 2XB
Fire load37,87 MJ/m²
Maximum power dissipation42 W
Power loss per fuse element (max.)23 W
Copper content (kg/piece)0,57
PCF/VE (Cradle-to-Gate)16,12
For panel mountingJa
With electronic fuse monitoring (ESÜ)Ja


Product data sheet
Datasheet for Rittal 9363115, EAN: 4069196001761

Questions & answers

What is the delivery time of Rittal 9363115 RX NH fuse switch disconnector size 1 250 A 3-pole?

The article Rittal 9363115 RX NH fuse switch disconnector size 1 250 A 3-pole is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9363115 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9363115 RX NH fuse switch disconnector size 1 250 A 3-pole always at the best possible price. We can give you a discount of 2% on Rittal 9363115 RX NH fuse switch disconnector size 1 250 A 3-pole if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
