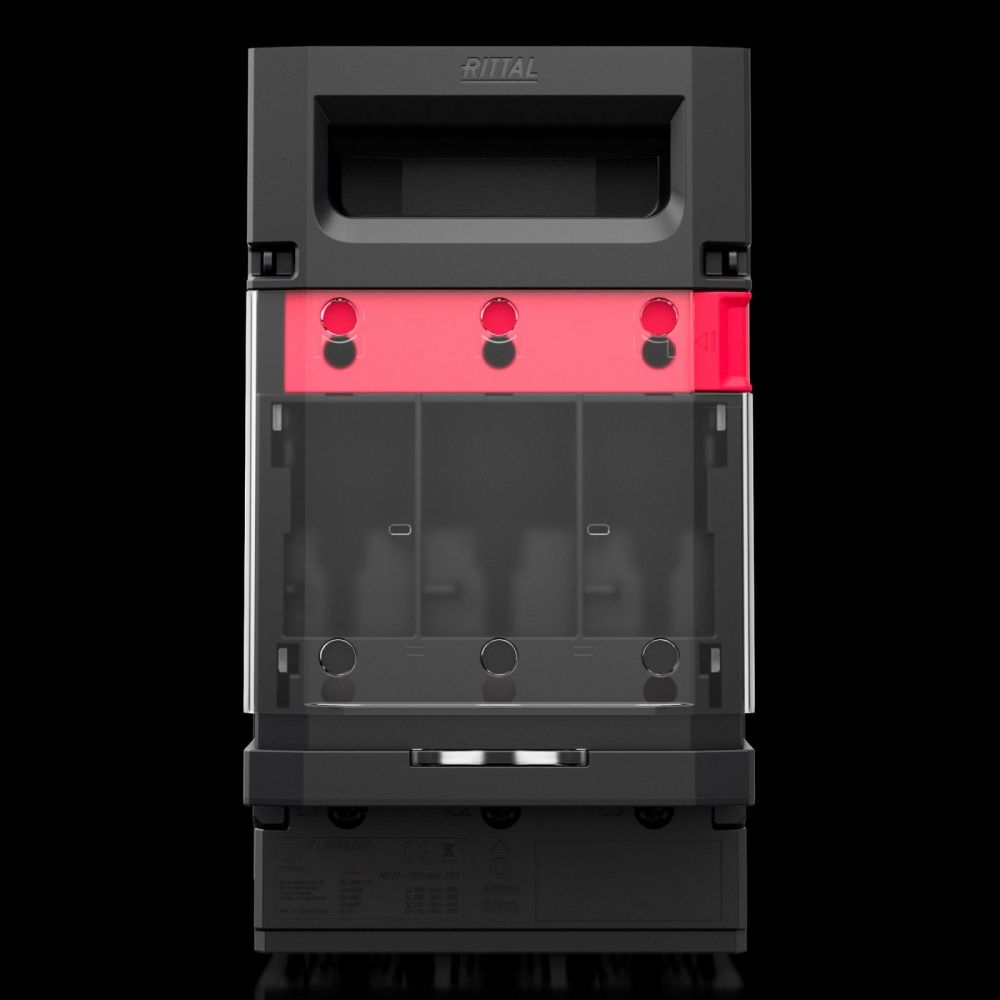

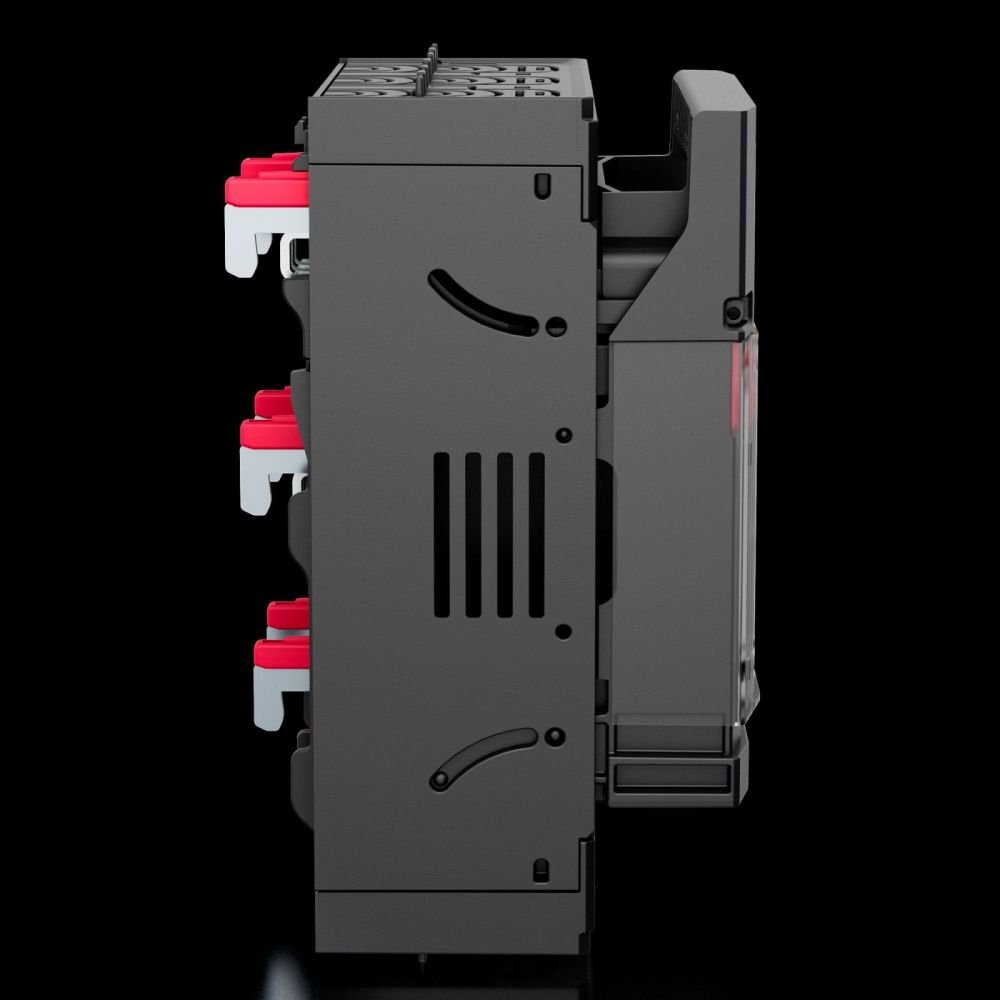

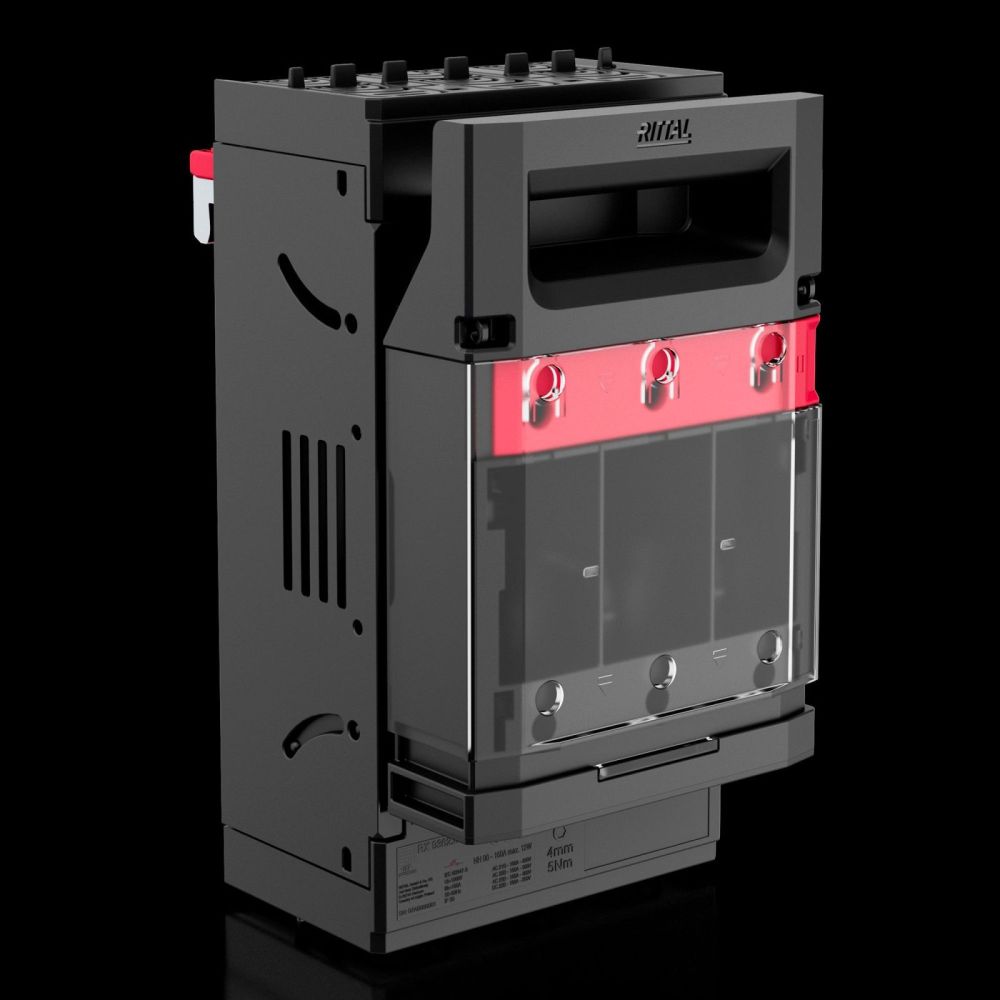

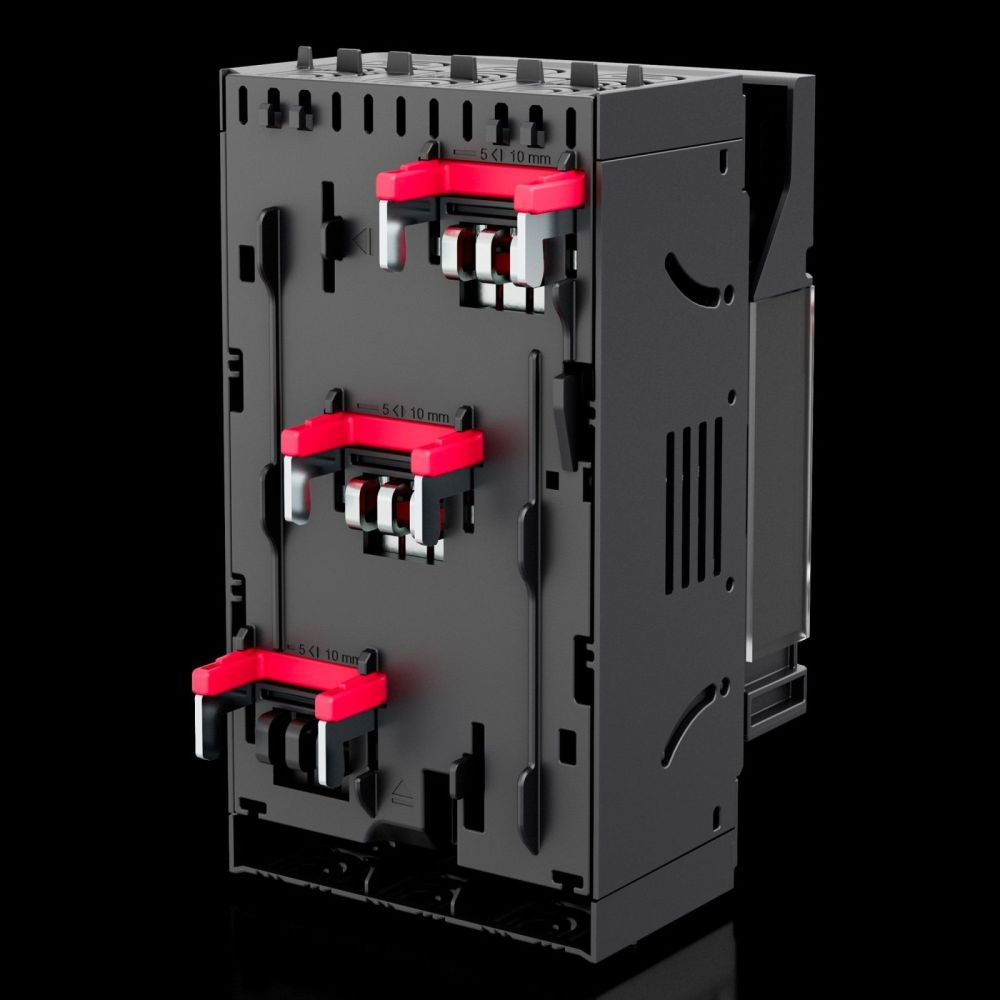

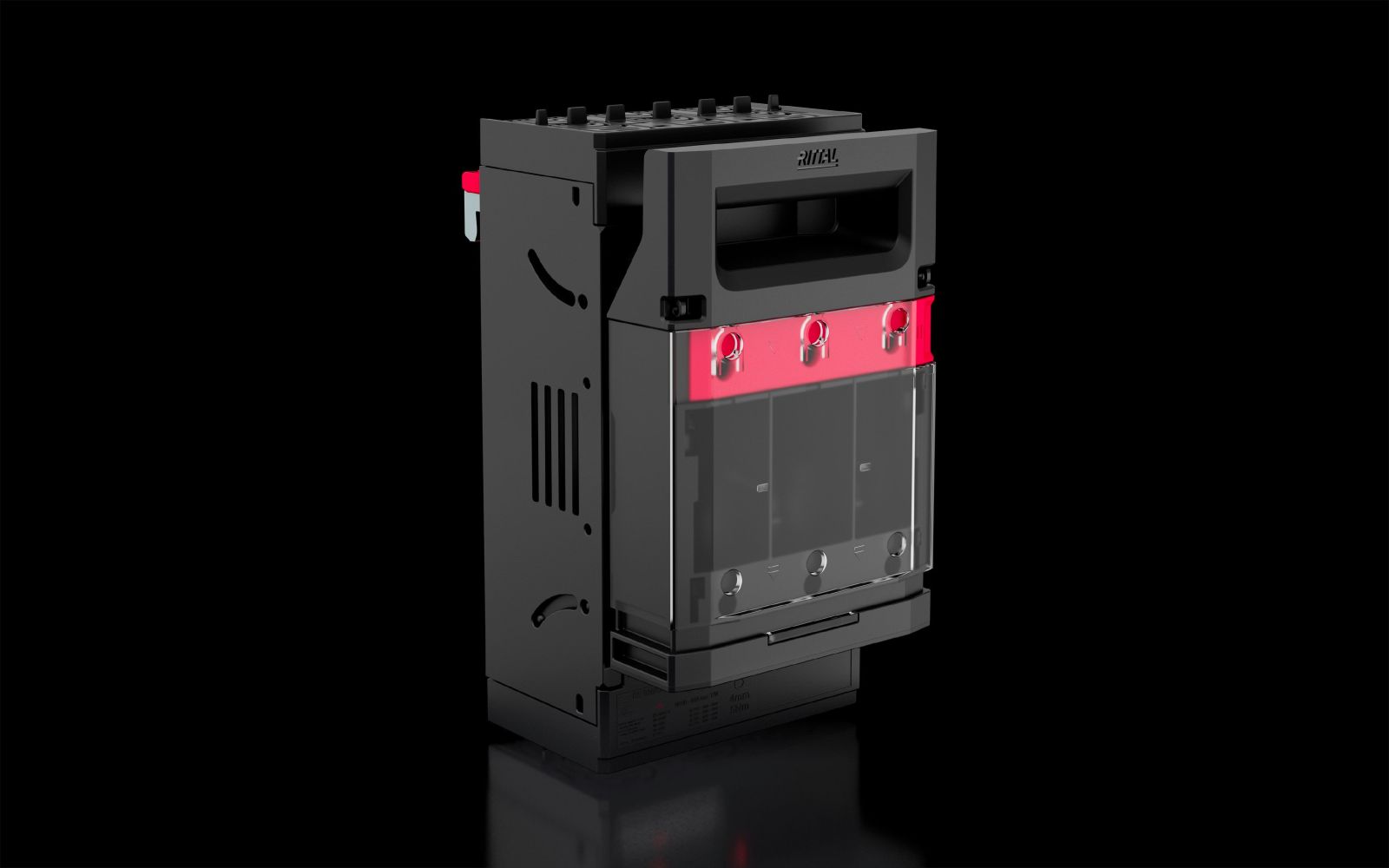

Rittal 9362000 RX NH fuse switch disconnector size 00 160 A 3-pole screw

Your rating:
Average rating
product review for Rittal 9362000 RX NH fuse switch disconnector size 00 160 A 3-pole screw
( 5 / 5 ) 1 ratings
Rittal 9362000
This image may differ from the desired article.
Rittal 9362000Rittal 9362000Rittal 9362000Rittal 9362000Rittal 9362000Rittal 9362000
47,15 EUR 49,04 EUR
( 56,11 EUR incl. VAT )
≈ £39.42  |  ≈ $52.10
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 9362000 RX NH fuse switch disconnector size 00 160 A 3-pole screw
Datasheet:file_download Download
Lieske Part No.:1571857
Mfg Part No: 9362000
UPC/EAN: 4069196001495
Weight:1.023 kg
Type:RX 9362000

Product information for Rittal 9362000:

The Rittal RX 9362000 is a NH fuse-disconnector in size 00, specifically designed for 60 mm busbar systems. It serves as a power disconnector in industrial electrical installations, enabling safe disconnection of circuits with integrated fuse inserts. The device is designed for use in RiLine60 and RiLineX systems and offers robust, tool-free mounting on busbars with a center distance of 60 mm. The design is suitable for busbar thicknesses of 5 mm and 10 mm, as well as widths of 15 mm, 20 mm, and 30 mm, allowing flexible adaptation to various installation scenarios.

Applications
This disconnector is intended for industrial applications in the field of electrical distribution technology, particularly in machine building, manufacturing plants, and systems with high safety requirements. It is used to safely disconnect electrical circuits, for example, during maintenance work or in the event of a fault. The rated operational voltage is 690 V AC, qualifying it for use in industrial medium-voltage applications. The usage categories include AC-23B (400 V/100 A), AC-22B (500 V/100 A), AC-21B (690 V/100 A), and DC-22B (250 V/100 A), confirming its suitability for various load types and voltage ranges.

Functions and Features in Detail
The disconnector features a lockable and sealable cover, enhancing device safety and preventing unauthorized access. Visual monitoring of the fuse inserts allows for quick status checks without opening the device. Integrated test points on the cover enable safe voltage testing without direct contact with live parts. A parking position for the cover facilitates maintenance work, as the cover can be securely held in the open position. The cable exit is tool-free adjustable and can be configured either top or bottom, providing flexible installation options.

Technology Explained Simply
The device is 3-pole and allows mounting of NH 00 and NH 000 size fuse inserts. Electrical connections are made via an M8 screw, suitable for connecting cables. The contact bars are made of electrolytic copper, silver-plated, ensuring high electrical conductivity and corrosion resistance. The enclosure is made of polyamide (PA 6), which is flame-retardant according to UL 94, providing high mechanical and thermal stability. The protection rating IP 2XB according to IEC 60 529 protects against finger contact and solid foreign objects, but not against water or dust. Pollution degree 3 is intended for environments with increased contamination risk, typical in industrial facilities.

Compatibility and Accessories
The disconnector is designed for use with various accessories from the RiLineX system. These include, for example, saddle clamps for round and sector conductors (part numbers RX 9365540 and RX 9365541), enclosure protection profiles (RX 9365025), and mounting clips (RX 9365027) for their installation. Additionally, microswitches (RX 9365505) and touch protection covers (RX 9365510) are available, enhancing safety and functionality. The connection compartment cover (RX 9365530) provides additional protection for connection points.

Mounting and Installation
Mounting is done via push-on mounting, possible up to 250 A, allowing easy adaptation to different busbar thicknesses (5 mm or 10 mm). Installation requires no tools for adjusting the cable exit, reducing installation time. Dimensions are 106 mm (width), 194.2 mm (height), and 104.5 mm (depth), fitting standard switchboards and distribution units. The operating temperature range is -5 °C to 35 °C, and the storage temperature range is -25 °C to 70 °C.

Operational Advantages
The disconnector offers high operational safety thanks to integrated voltage testing and the sealable cover. The tool-free cable exit adjustment and the cover parking position reduce maintenance time. The use of silver-plated copper for the contact bars ensures low power losses (maximum 19 W total, maximum 12 W per fuse insert) and a reliable electrical connection. Compatibility with the RiLineX system enables modular expansion of the installation.

Color and Material
The device is available in colors RAL 9005 (black) and RAL 35745 (grey). The polyamide (PA 6) material offers high mechanical strength and heat resistance, while the silver-plated copper contact bars ensure high electrical conductivity. The fire load is 14.2 MJ/m², describing the material's fire behavior characteristics.

General
ModelFor 60 mm busbar systems
MaterialPolyamide (PA 6), flammability rating according to UL 94, contact strips: electrolytic copper, silver-plated
ColourRAL 9005, RAL 35745
For rail systems with centre spacing60 mm
Cable exitAbove/under
Electrical connection typeM8 screw
Fuse linksNH 00, NH 000
Rated operating voltage690 V AC
For NH size00
Test basisIEC/DIN EN 60 947-3, DIN EN 60 269-2 (fuse inserts)
Width106 mm
Height194,2 mm
Depth104,5 mm
Operating temperature range-5 °C...35 °C
Storage temperature range-25 °C...70 °C
Suitable for busbars15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Suitable for busbar systemRiLine60, RiLineX
Number of poles3-pole
Utility categoryAC-23B (400 V/100 A), AC-22B (500 V/100 A), AC-21B (690 V/100 A), DC-22B (250 V/100 A)
Pollution degree3
Degree of protection IP according to IEC 60 529IP 2XB
Fire load14,2 MJ/m²
Maximum power dissipation19 W
Power loss per fuse element (max.)12 W
Copper content (kg/piece)0,363
PCF/VE (Cradle-to-Gate)6,85


Product data sheet
Datasheet for Rittal 9362000, EAN: 4069196001495
