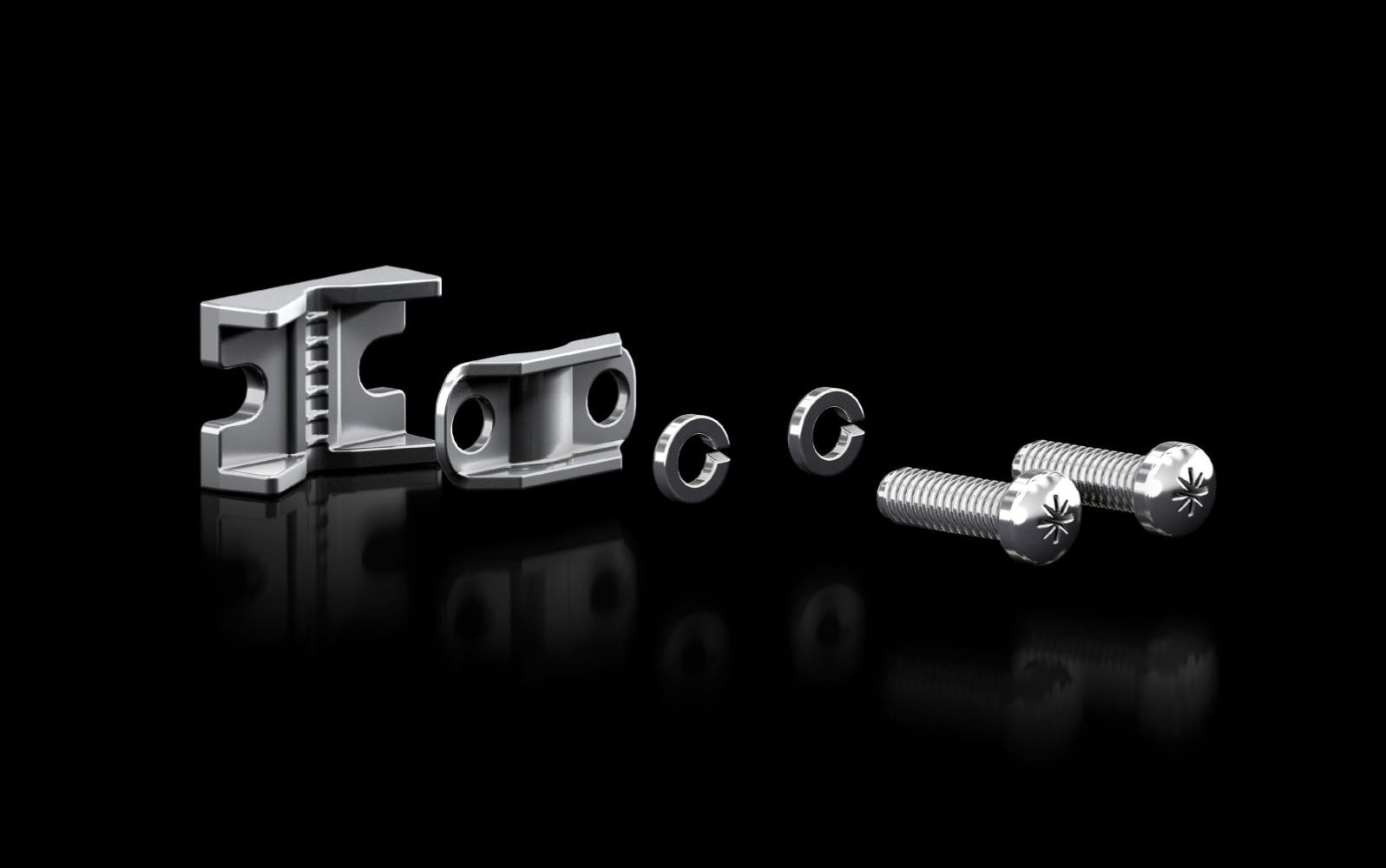

Rittal 9365541 RX terminal clamp 1=3 for NH disconnector size 00 (sector conductor)

Your rating:
Average rating
product review for Rittal 9365541 RX terminal clamp 1=3 for NH disconnector size 00 (sector conductor)
( 4.5 / 5 ) 2 ratings
Rittal 9365541
This image may differ from the desired article.
-6% 13,80 EUR 14,75 EUR
( 16,42 EUR incl. VAT )
≈ £11.54  |  ≈ $15.25
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 2 pieces
1x Rittal 9365541 RX terminal clamp 1=3 for NH disconnector size 00 (sector conductor)
Datasheet:file_download Download
Lieske Part No.:612120
Mfg Part No: 9365541
UPC/EAN: 4069196010473
Weight:0.149 kg
Type:RX 9365541

Product information for Rittal 9365541:

The Rittal RX 9365541 is a clamp terminal for connecting sector conductors to NH fuse switch disconnectors of size 00. It serves as a connecting element between the disconnector and the conductors in the enclosure, with the terminal specifically designed for use with sector conductors having a cross-section of up to 95 mm². The product is part of the RiLineX product family and is supplied as a set in a packaging unit containing three pieces.

Applications

The clamp terminal is used in industrial electrical construction, particularly in enclosures where NH fuse switch disconnectors of size 00 are installed. It enables a secure and reliable electrical connection for sector conductors, which are commonly used in power distribution and conversion. The terminal is designed for use in installations requiring stable and durable connections, for example in manufacturing industry, power supply, or automation technology.

Functions and Equipment in Detail

The terminal is made of sheet steel, galvanized, ensuring high mechanical strength and corrosion resistance. The galvanization protects the material from oxidation and extends the component’s service life, especially in environments with high humidity or aggressive atmospheres. The terminal is designed for sector conductors with a cross-section of 4 to 95 mm², with the maximum cross-section of 95 mm² representing the upper limit for use. The shape of the terminal allows for secure fastening of the conductor via clamp mechanism, ensuring a firm and conductive connection.

Technology Explained Simply

The clamp terminal operates on the principle of mechanical clamp connection. The sector conductor is inserted into the terminal and secured by a clamp, creating a firm electrical contact. The use of galvanized sheet steel ensures high strength and resistance to mechanical stress and environmental influences. The terminal is not designed for other conductor shapes such as round conductors, but specifically for the geometric shape of sector conductors, which are common in industrial electrical engineering.

Compatibility and Accessories

The clamp terminal is specifically developed for NH fuse switch disconnectors of size 00 and fits with article numbers 9362210, 9362215, 9362310, 9362315, 9363210, 9363215, 9363310, and 9363315. These disconnectors are also part of the RiLineX product line and are used in enclosures for distribution and protection of electrical conductors. The terminal is not suitable for other sizes or manufacturers, as the dimensions and mounting geometries are specifically matched to RiLineX disconnectors.

Installation and Mounting

Mounting is performed directly on the NH fuse switch disconnector of size 00. The terminal is attached to the designated connection points on the disconnector, with the exact mounting instructions corresponding to the respective disconnector model. The sector conductors are inserted into the terminal and secured by the clamp mechanism. It is essential to ensure that the conductor is fully seated in the terminal and that no loose or inadequately secured connections occur. Mounting requires no additional tools other than a suitable screwdriver or wrench for tightening the clamps.

Advantages in Operation

Using the Rittal RX 9365541 provides a reliable and maintenance-friendly connection between the disconnector and sector conductor. The galvanized sheet steel construction ensures long service life and high mechanical stability. The specific adaptation to RiLineX disconnectors of size 00 ensures precise fit and minimizes the risk of incorrect installation. The terminal is designed for industrial use and meets the requirements for safety and reliability in electrical installations.

General
MaterialSheet steel, galvanised
For size00
Suitable for part no.9362210, 9362215, 9362310, 9362315, 9363210, 9363215, 9363310, 9363315
Cross-sectional area of solid conductor95 mm²
PCF/VE (Cradle-to-Gate)0,43


Product data sheet
Datasheet for Rittal 9365541, EAN: 4069196010473
