Rittal 9363030 RX NH fuse switch disconnector size 00 160 A 3-pole terminal MTPL

Your rating:
Average rating
product review for Rittal 9363030 RX NH fuse switch disconnector size 00 160 A 3-pole terminal MTPL
( 5 / 5 ) 1 ratings

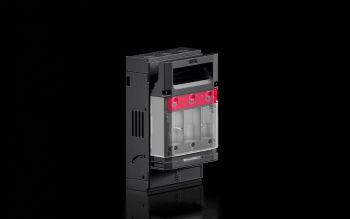

Rittal 9363030
This image may differ from the desired article.
Rittal 9363030Rittal 9363030Rittal 9363030Rittal 9363030Rittal 9363030Rittal 9363030Rittal 9363030
36,80 EUR 38,27 EUR
( 43,79 EUR incl. VAT )
≈ £30.76  |  ≈ $40.66
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: 5 pieces
1x Rittal 9363030 RX NH fuse switch disconnector size 00 160 A 3-pole terminal MTPL
Datasheet:file_download Download
Lieske Part No.:1571931
Mfg Part No: 9363030
UPC/EAN: 4069196001723
Weight:0.829 kg
Type:RX 9363030

Product information for Rittal 9363030:

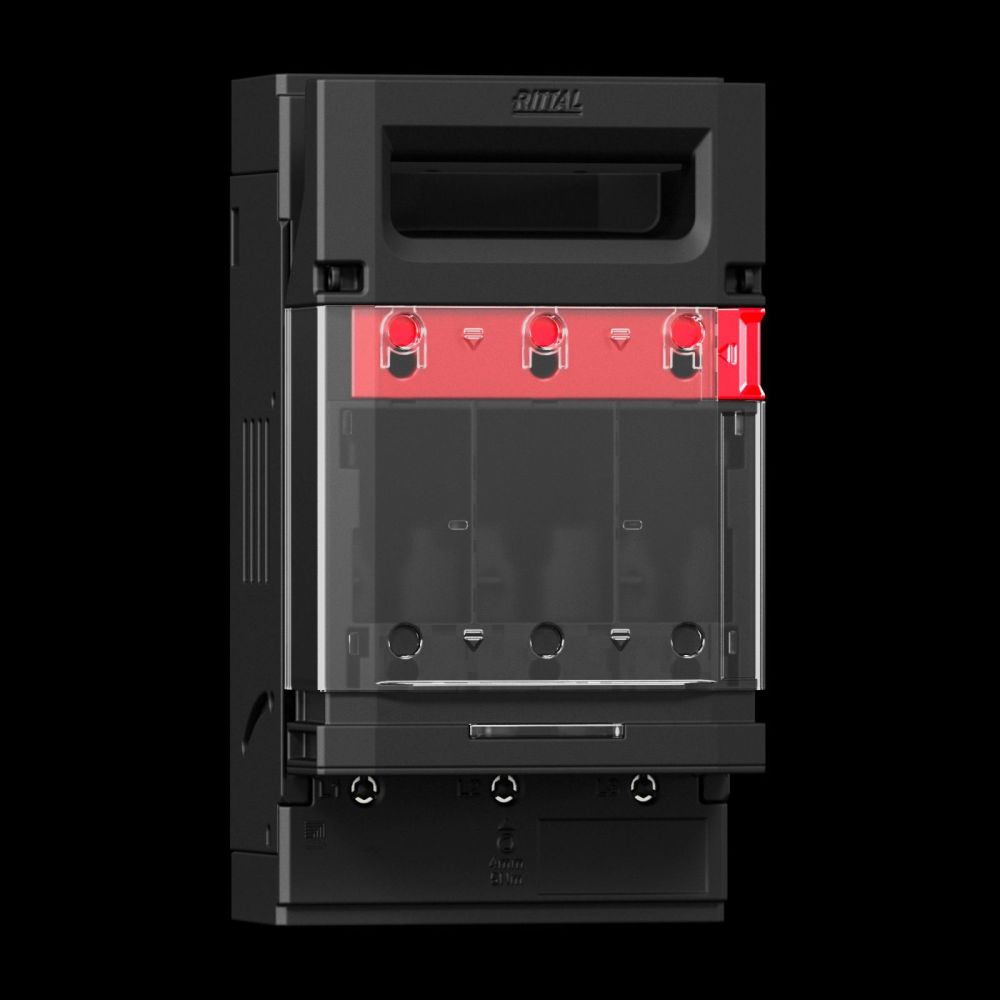

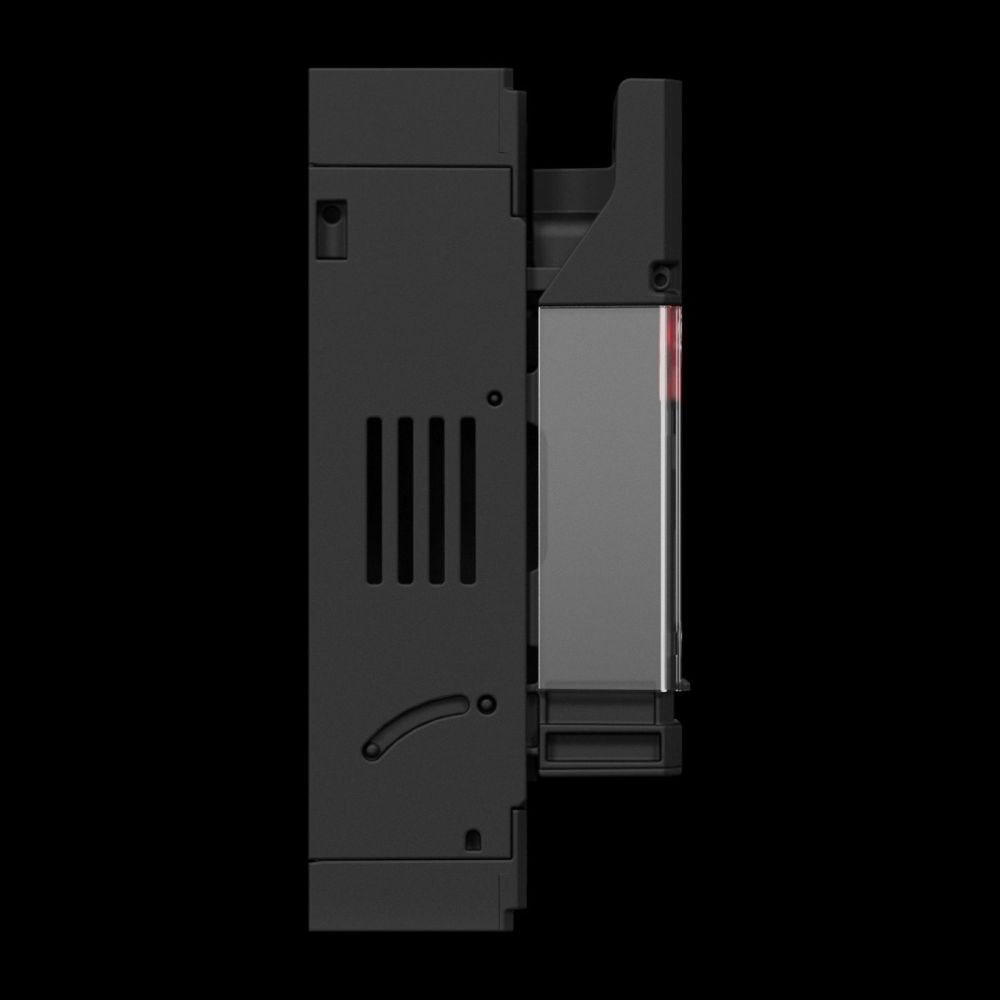

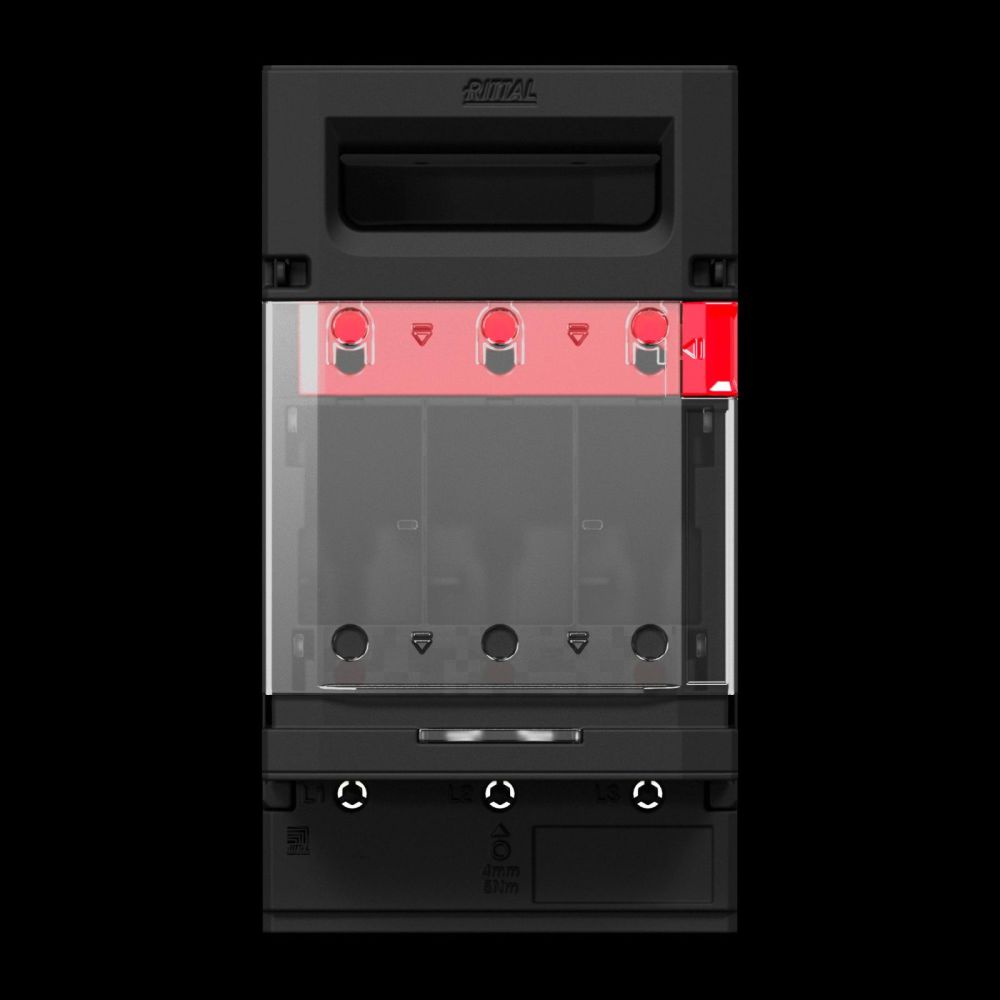

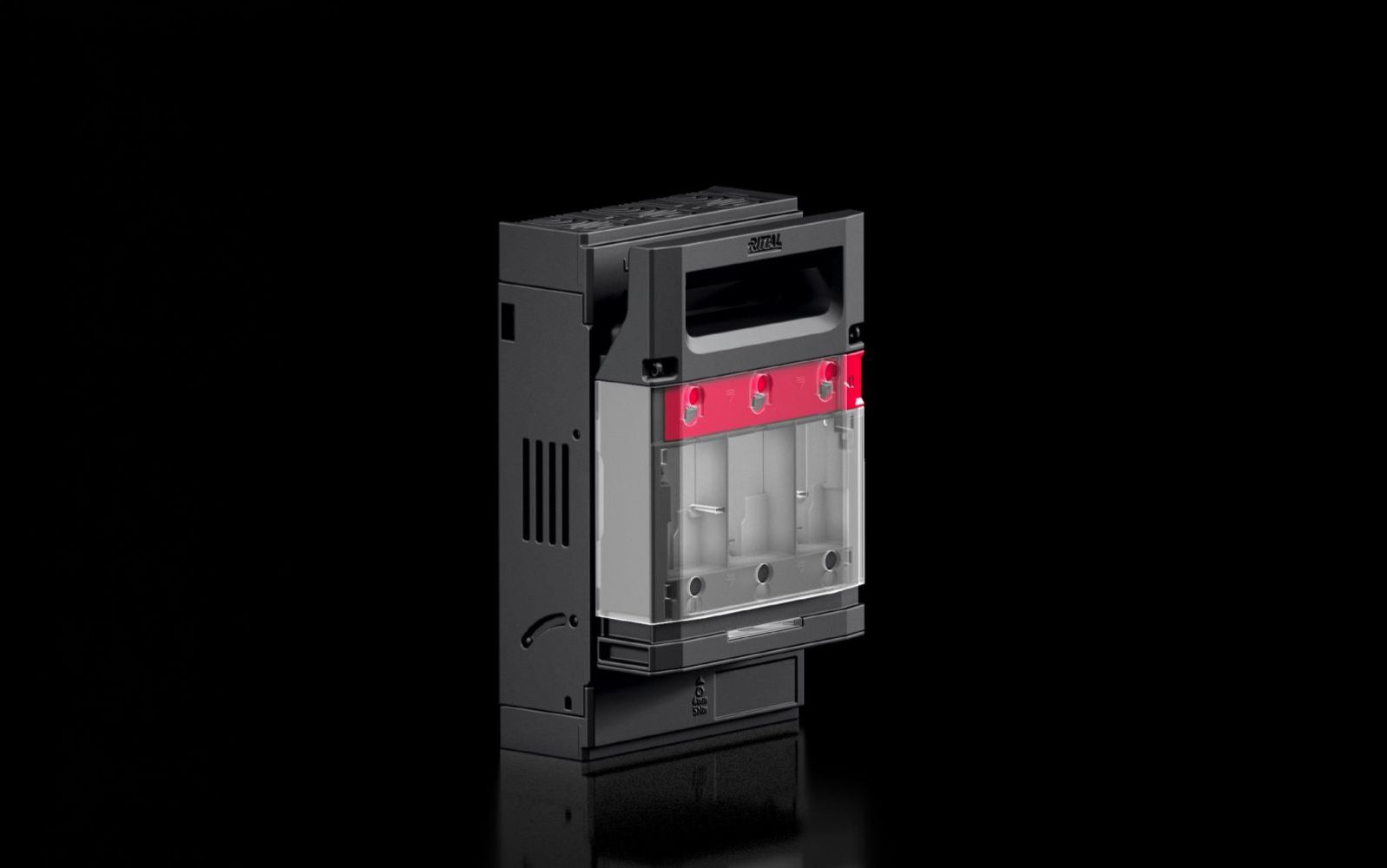

The Rittal RiLineX NH fuse switch disconnector type RX 9363030 is a 3-pole switch disconnector in size 00, designed for mounting on a mounting plate. It serves as a switching and disconnecting device in industrial electrical installations, particularly in enclosures, where secure disconnection of the power supply and integration of NH fuse inserts are required. The device is designed for use with NH fuse inserts of sizes NH 00 and NH 000 and enables secure and visual monitoring of the fuse status. The cover is lockable and sealable, supporting access control and documentation of maintenance work. Integrated voltage testing is performed via test points on the cover, enabling safe testing without direct contact with live parts. The park position of the cover facilitates maintenance work, as the cover can be held in a stable, open position.

Applications

The switch disconnector is designed for use in industrial installations where secure disconnection of the power supply is required, for example in machine controls, drive technology, or distribution enclosures. The rated operational voltage is 690 V AC, making it suitable for applications in medium voltage ranges. The usage categories include AC-23B (400 V/100 A), AC-22B (500 V/100 A), AC-21B (690 V/100 A), and DC-22B (250 V/100 A), allowing use in alternating and direct current installations. The rated insulation voltage Ui is 1,000 kV, ensuring high electrical insulation. Pollution degree 3 indicates that the device is designed for environments with increased pollution risk, such as production halls or industrial processes.

Functions and Equipment in Detail

The disconnector features a frame terminal for securing round conductors. The connection cross-sections for round conductors range from 1.5 to 16 mm², while fine-stranded conductors with or without wire end ferrules can be connected up to 95 mm². Cable exits are possible at the top and bottom, enabling flexible installation in enclosures. The tool-free change of cable exit simplifies installation and maintenance. The contact bars are made of electrolytic copper, silver-plated, ensuring high electrical conductivity and corrosion resistance. The housing is made of polyamide (PA 6) with flame resistance according to UL 94, providing high thermal and mechanical stability. The color variants are RAL 9005 (black) and RAL 35745 (gray). The protection rating IP 2XB according to IEC 60 529 protects against finger contact and vertical dripping water, but not against splashing water or dust – therefore, the application is intended for indoor use.

Technology Explained Simply

The integrated voltage testing is performed via test points on the cover, enabling safe testing without direct contact with live parts. The park position of the cover holds it in an open position, which is helpful during maintenance work. The lockable and sealable cover allows documented access control, for example for safety or maintenance purposes. The power loss is maximum 16 W, with up to 12 W per fuse insert. The operating temperature range is between -5 °C and 35 °C, and the storage temperature range is between -25 °C and 70 °C. The dimensions are 106 mm (width) × 194 mm (height) × 86.1 mm (depth). The test basis is IEC/DIN EN 60 947-3 for the switch disconnector and DIN EN 60 269-2 for the fuse inserts.

Compatibility and Accessories

The switch disconnector is compatible with NH fuse inserts of sizes NH 00 and NH 000. Suitable accessories include terminal lugs for round conductors (item RX 9365540) and sector conductors (item RX 9365541), as well as a connection space cover 1=2 for NH disconnectors size 00 (item RX 9365520), which seals and protects the connection area. These accessories support installation and safe operation.

Mounting and Installation

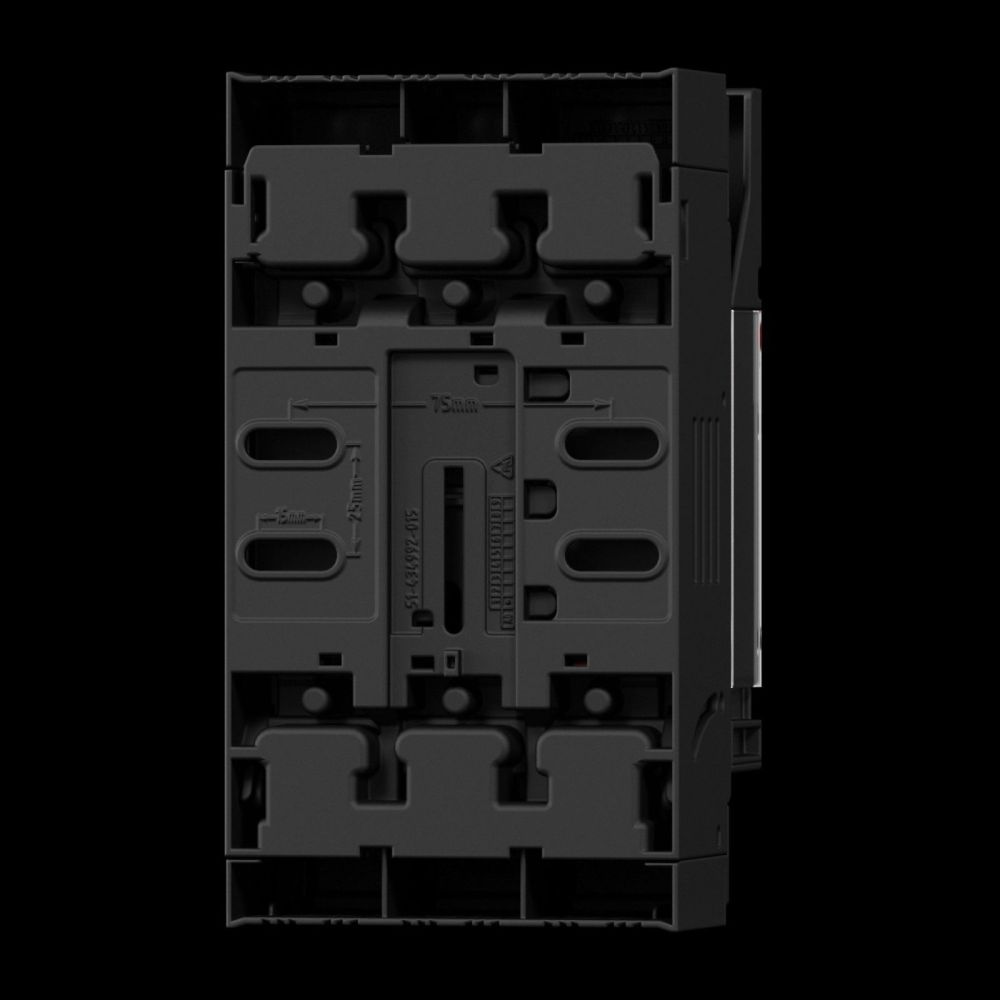

The switch disconnector is designed for mounting on a mounting plate and can be directly fastened to mounting plates. The frame terminal enables a secure and reliable connection with round conductors. Cable exits at the top and bottom offer flexibility in arrangement within the enclosure. The tool-free change of cable exit reduces installation time. The park position of the cover facilitates maintenance, as the cover can be held stably in an open position.

Advantages in Operation

The integrated visual fuse monitoring and the secure voltage testing via test points on the cover increase operational safety. The lockable and sealable cover supports documentation of maintenance work and access control. The park position facilitates maintenance work, and the tool-free change of cable exit reduces installation time. The use of polyamide (PA 6) and silver-plated electrolytic copper ensures high mechanical and electrical reliability. The rating for 690 V AC and the usage categories AC-21B to DC-22B make the device suitable for a wide range of industrial applications.

General
Modelfor panel mounting
MaterialPolyamide (PA 6), flammability rating according to UL 94, contact strips: electrolytic copper, silver-plated
ColourRAL 9005, RAL 35745
Cable exitAbove/under
Electrical connection typeFrame clamp
Fuse linksNH 00, NH 000
Rated insulation voltage Ui1.000 kV
Rated operating voltage690 V AC
For NH size00
Test basisIEC/DIN EN 60 947-3, DIN EN 60 269-2 (fuse inserts)
Width106 mm
Height194 mm
Depth86,1 mm
Connection of ring conductors1,5 ‐ 16 mm²
Operating temperature range-5 °C...35 °C
Storage temperature range-25 °C...70 °C
Number of poles3-pole
Utility categoryAC-23B (400 V/100 A), AC-22B (500 V/100 A), AC-21B (690 V/100 A), DC-22B (250 V/100 A)
Pollution degree3
Degree of protection IP according to IEC 60 529IP 2XB
Fire load11,56 MJ/m²
Connection of round conductors, fine-stranded without ferrule1,5 ‐ 95 mm²
Connection of stranded wires, fine-stranded with ferrule1,5 ‐ 95 mm²
Cross-section round conductor1,5 ‐ 16 mm²
Maximum power dissipation16 W
Power loss per fuse element (max.)12 W
Copper content (kg/piece)0,268
PCF/VE (Cradle-to-Gate)5,47
For panel mountingJa


Product data sheet
Datasheet for Rittal 9363030, EAN: 4069196001723
