Rittal 9365520 RX connection space cover 1=2 for NH disconnector size 00 (MTPL)

Your rating:
Average rating
product review for Rittal 9365520 RX connection space cover 1=2 for NH disconnector size 00 (MTPL)
( 4 / 5 ) 1 ratings

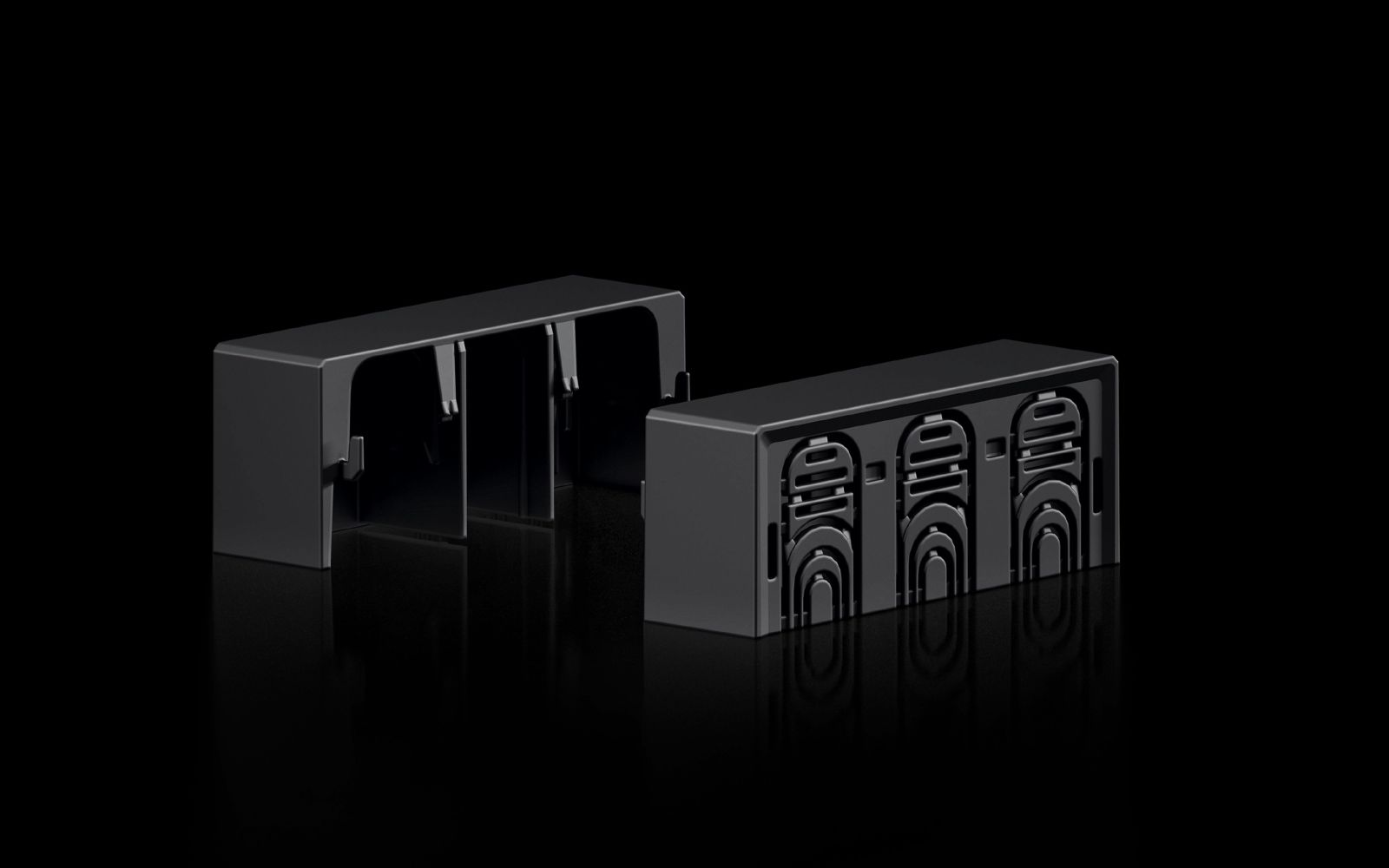

Rittal 9365520
This image may differ from the desired article.
Rittal 9365520Rittal 9365520
-7% 6,21 EUR 6,65 EUR
( 7,39 EUR incl. VAT )
≈ £5.19  |  ≈ $6.86
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 2 pieces
1x Rittal 9365520 RX connection space cover 1=2 for NH disconnector size 00 (MTPL)
Datasheet:file_download Download
Lieske Part No.:612154
Mfg Part No: 9365520
UPC/EAN: 4069196007282
Weight:0.13 kg
Type:RX 9365520

Product information for Rittal 9365520:

The Rittal RX 9365520 is a connection space cover for NH fuse switch disconnectors size 00, specifically designed for use in mounting plate construction. The component serves to safely cover the connection area of fuse switch disconnectors in the RiLineX system and ensures proper, impact-resistant isolation of electrical connections. The cover is made of polyamide (PA 6), a thermoplastic material with high mechanical strength and heat resistance, suitable for use in industrial enclosures. The flammability characteristics comply with the UL 94 standard, guaranteeing a specific flame retardant and self-extinguishing property. The colour is RAL 9005, a dark grey, standardised shade that integrates visually into industrial installations.

Applications

The cover is used in the context of enclosure construction and distribution technology, particularly when mounting NH fuse switch disconnectors in RiLineX systems. It is intended for use in mounting plate constructions where multiple components are arranged on a common mounting plate. The cover protects the connection areas from mechanical damage, contamination, and unintended access, thereby increasing the safety and reliability of the electrical installation.

Functions and Features in Detail

The cover is specifically designed to fit part numbers 9363000, 9363005, 9363030, and 9363035, which represent NH fuse switch disconnectors size 00. The dimensions are 106 mm (width), 35 mm (height), and 46 mm (depth), ensuring a precise fit. The material choice of polyamide (PA 6) provides sufficient stiffness and resistance to mechanical stresses during operation. The RAL 9005 colour ensures visual harmony with other components in the enclosure.

Technology Explained Simply

The cover is not an active electrical component, but a mechanical protective part. Its function is to cover the connection space of the fuse switch disconnectors, preventing short circuits, contact hazards, or contamination. The material polyamide (PA 6) is known for its high strength, heat resistance, and chemical resistance, making it suitable for industrial environments. The fire load is 0.778 MJ/m², quantifying the energy load in case of fire and relevant for fire protection planning. The environmental impact is described by the value PCF/VE (Cradle-to-Gate) of 0.91, indicating the production environmental impact per packaging unit (2 pieces).

Compatibility and Accessories

The cover is specifically designed for NH fuse switch disconnectors with part numbers 9363000, 9363005, 9363030, and 9363035. These disconnectors are part of the RiLineX system and are used in mounting plate constructions. The cover is supplied in a packaging unit of 2 pieces, which is sufficient for mounting multiple disconnectors in an enclosure.

Mounting and Installation

Installation is carried out directly at the connection area of the NH fuse switch disconnectors in the mounting plate construction. The cover is inserted over the connection terminals or sockets, with the exact installation method depending on the specific disconnector design. No additional mounting aids or tools are required. The fit is designed to ensure a secure and tight cover.

Operational Advantages

The cover increases safety within the enclosure by protecting electrical connections from mechanical stress and contamination. The use of polyamide (PA 6) ensures long service life and resistance to industrial stresses. The uniform colouring in RAL 9005 supports the visual structuring of enclosures. The cover is easy to install and requires no additional components, reducing installation time and simplifying maintenance.

General
MaterialPolyamide (PA 6), flammability according to UL 94
ColourRAL 9005
Suitable for part no.9363000, 9363005, 9363030, 9363035
Width106 mm
Height35 mm
Depth46 mm
Fire load0,778 MJ/m²
PCF/VE (Cradle-to-Gate)0,91


Product data sheet
Datasheet for Rittal 9365520, EAN: 4069196007282

Questions & answers

What is the delivery time of Rittal 9365520 RX connection space cover 1=2 for NH disconnector size 00 (MTPL)?

The article Rittal 9365520 RX connection space cover 1=2 for NH disconnector size 00 (MTPL) is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9365520 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9365520 RX connection space cover 1=2 for NH disconnector size 00 (MTPL) always at the best possible price. We can give you a discount of 2% on Rittal 9365520 RX connection space cover 1=2 for NH disconnector size 00 (MTPL) if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
