Rittal 9363000 RX NH fuse switch disconnector size 00 160 A 3-pole screw MTPL

Your rating:
Average rating
product review for Rittal 9363000 RX NH fuse switch disconnector size 00 160 A 3-pole screw MTPL
( 4 / 5 ) 1 ratings

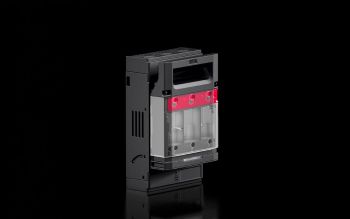

Rittal 9363000
This image may differ from the desired article.
Rittal 9363000Rittal 9363000Rittal 9363000Rittal 9363000Rittal 9363000Rittal 9363000Rittal 9363000
36,80 EUR 38,27 EUR
( 43,79 EUR incl. VAT )
≈ £30.76  |  ≈ $40.66
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 3 pieces
1x Rittal 9363000 RX NH fuse switch disconnector size 00 160 A 3-pole screw MTPL
Datasheet:file_download Download
Lieske Part No.:1571085
Mfg Part No: 9363000
UPC/EAN: 4069196001709
Weight:0.785 kg
Type:RX 9363000

Product information for Rittal 9363000:

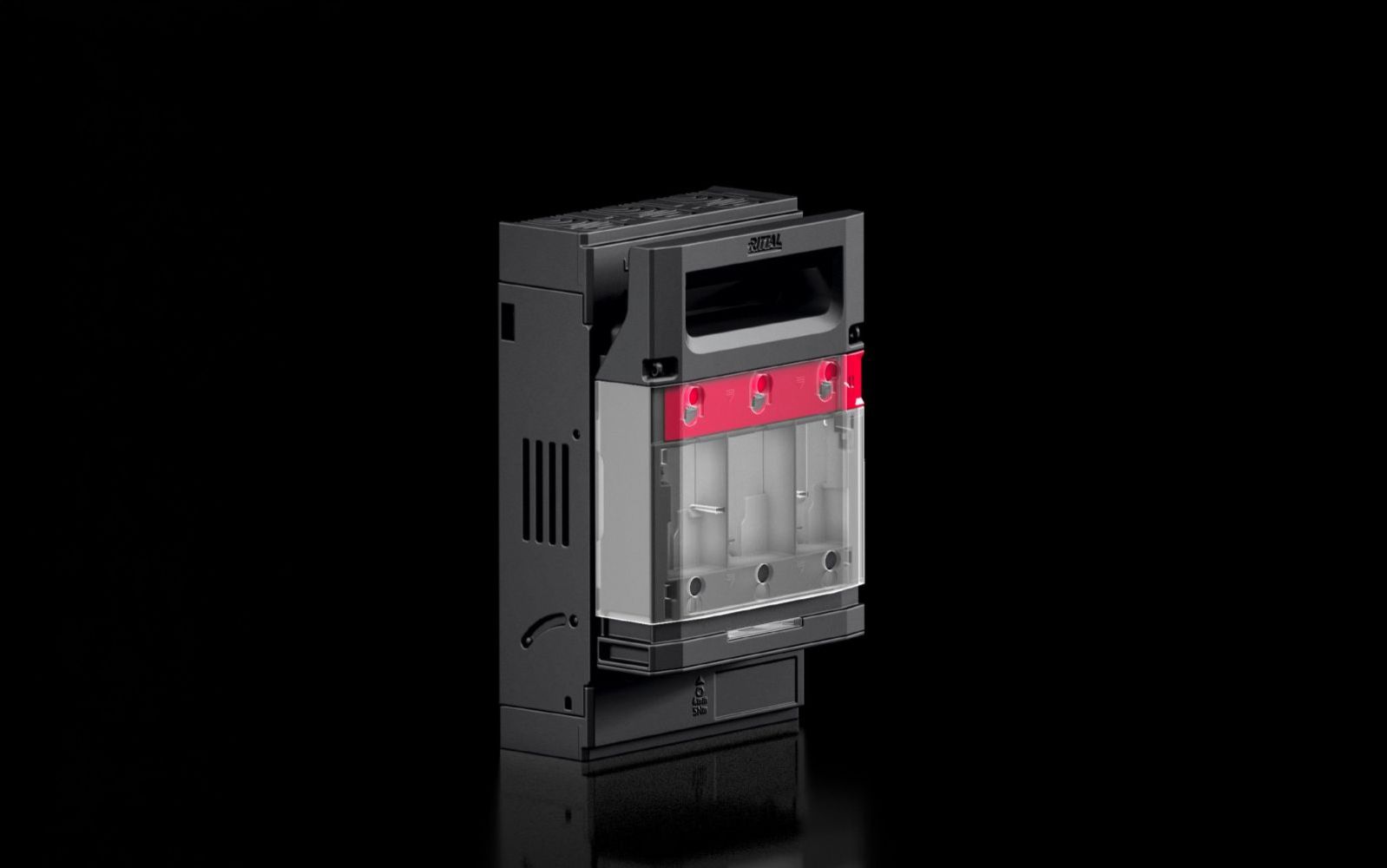

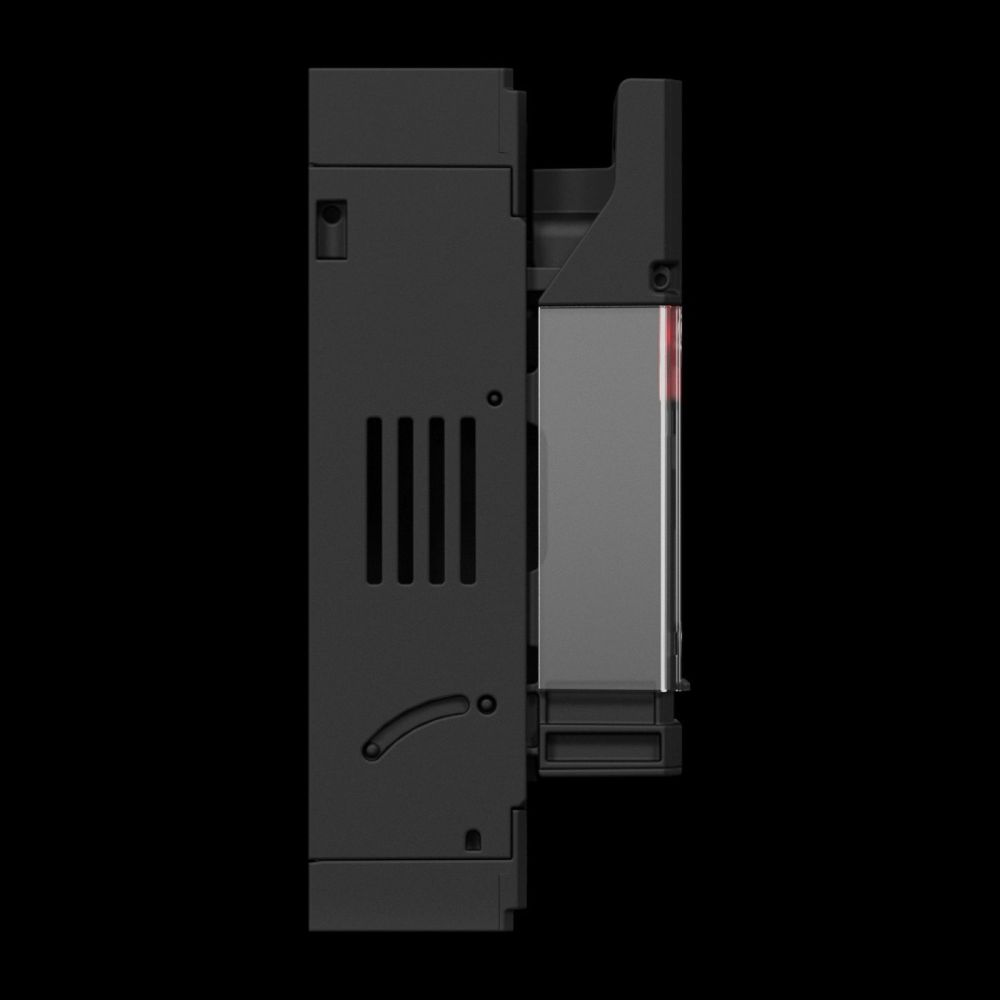

The Rittal RiLineX NH fuse switch disconnector, type RX 9363000, is a 3-pole switch disconnector for mounting plate installation, designed for use in industrial electrical systems. It is designed for fuse inserts of size NH 00 and enables safe disconnection of the power supply as well as visual monitoring of the fuses. The construction is made of polyamide (PA 6) with flammability rating according to UL 94, while the contact strips are made of electrolytic copper with silver plating. The colour variants RAL 9005 and RAL 35745 provide clear visual identification. The disconnector is rated for a nominal operating voltage of 690 V AC and has a rated insulation voltage of 1,000 kV. The protection class IP 2XB ensures protection against contact with fingers and against solid foreign objects, but not against water or dust. The operating temperature range is between -5 °C and 35 °C, and the storage temperature range is between -25 °C and 70 °C.

Applications
This disconnector is intended for use in industrial installations where safe and controlled power disconnection is required. It is commonly used in enclosures, distributions or machine controls where visual inspection of fuses and safe voltage testing are necessary. Installation is on mounting plates, with dimensions 106 mm (width) × 194 mm (height) × 86.1 mm (depth). Cable connections are made via screw connection M8, with cable exit possible at the top or bottom.

Functions and Equipment in Detail

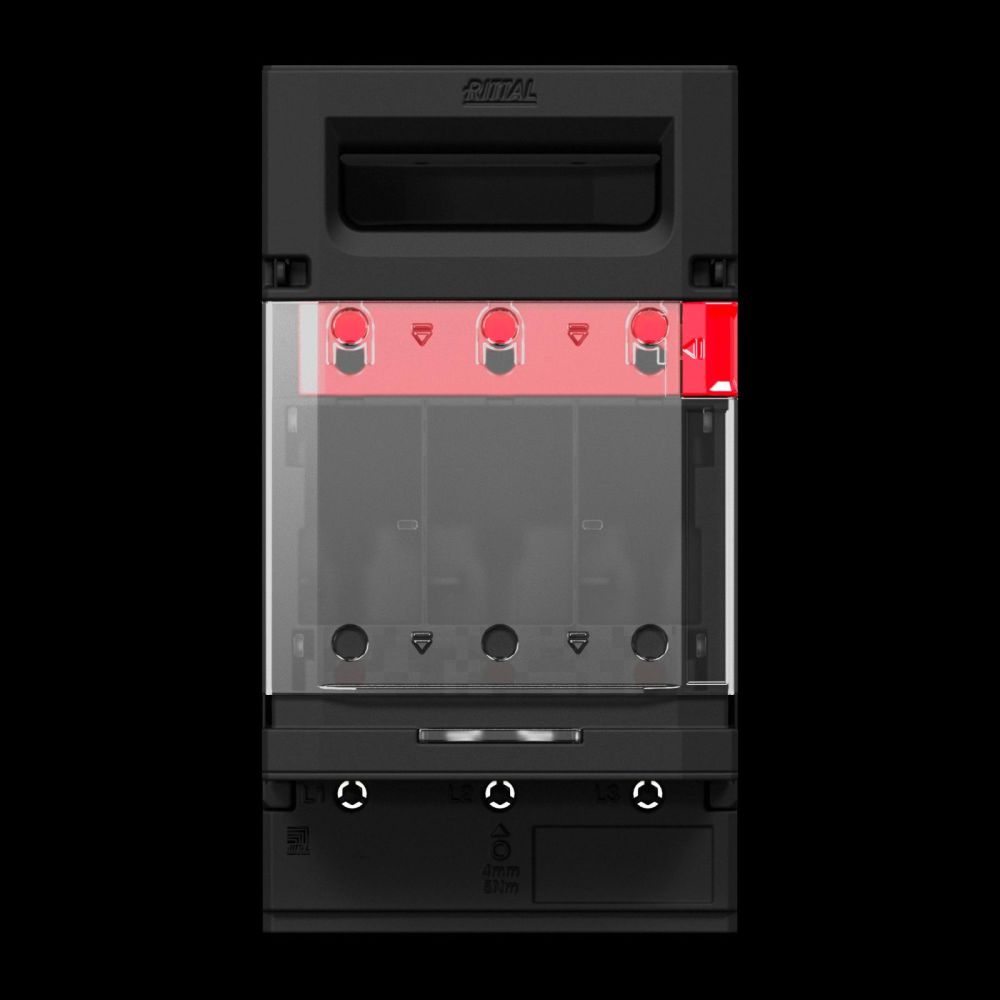

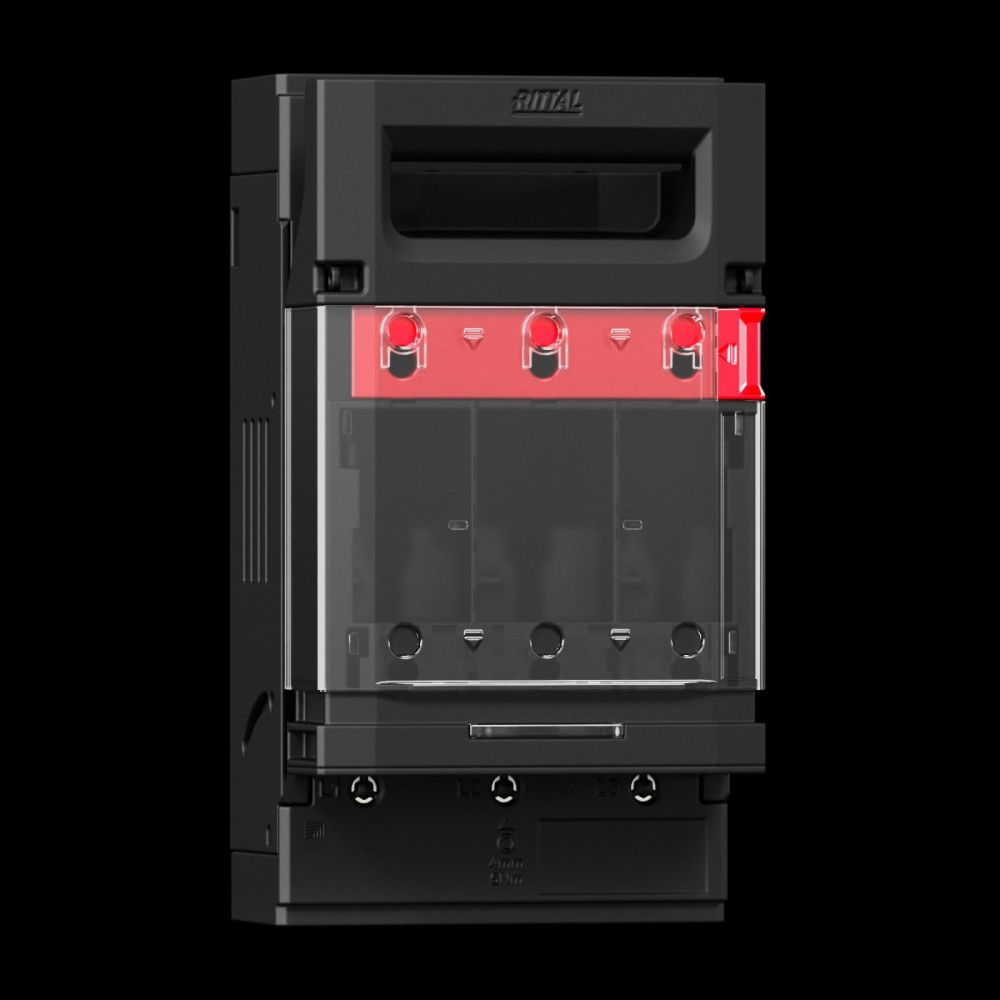

The disconnector’s cover is lockable and sealable, preventing unauthorized manipulation. Visual fuse monitoring allows direct inspection of the installed NH fuse condition. Safe voltage testing is enabled by integrated test points on the cover, allowing testing without direct access to contact points. A parking position for the cover facilitates maintenance, as the cover can be held securely in an open position. The tool-free reconfiguration of the cable exit allows flexible adaptation to different connection geometries.

Technology Explained Simply
The contact strips made of silver-plated electrolytic copper ensure high electrical conductivity and corrosion resistance. The rated insulation voltage of 1,000 kV ensures insulation against overvoltages, while the rated operating voltage of 690 V AC defines the maximum operating voltage range. The usage categories AC-23B, AC-22B, AC-21B and DC-22B define the operating conditions for alternating and direct current. Pollution degree 3 accounts for environments with increased contamination, as found in industrial installations. The maximum power loss is 16 W, with up to 12 W per fuse insert.

Compatibility and Accessories
The disconnector is suitable for fuse inserts of size NH 00 and NH 000. As compatible accessory, the cover RX 9365520 for the connection area is available, providing additional protection for the disconnector. The testing basis is according to IEC/DIN EN 60 947-3 and DIN EN 60 269-2, confirming compliance with European standards for switching devices and fuse inserts. Electronic fuse monitoring is available as an alternative, but is not part of this model.

Mounting and Installation

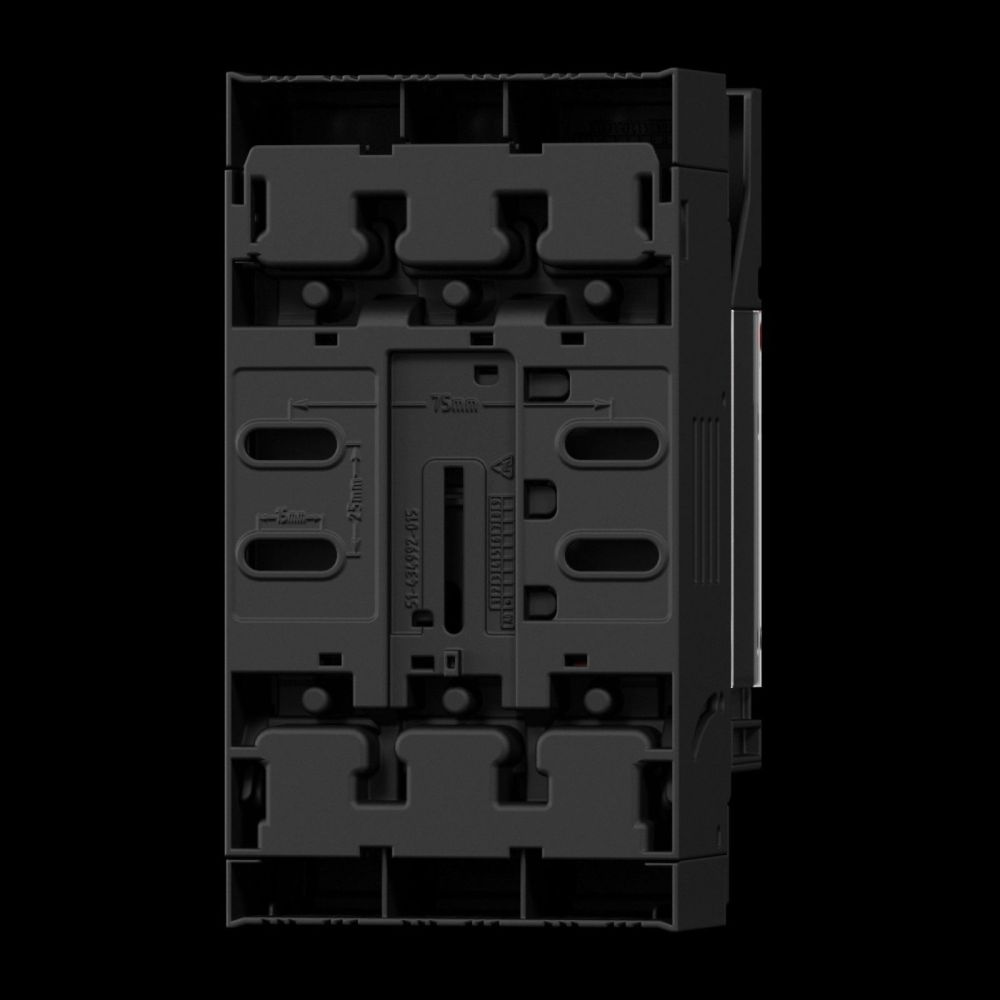

Installation is on mounting plates, with dimensions and M8 screw connection enabling installation in standard enclosures. The tool-free reconfiguration of the cable exit reduces installation time and increases flexibility during installation. The parking position of the cover facilitates maintenance, as the cover can be held securely in the open position.

Operational Advantages
The combination of a lockable and sealable cover, visual fuse monitoring, and integrated test points for voltage testing increases safety and transparency in operation. The parking position and tool-free reconfiguration of the cable exit reduce maintenance time and simplify servicing. The high insulation strength and compliance with international standards ensure reliable performance in demanding industrial environments.

General
Modelfor panel mounting
MaterialPolyamide (PA 6), flammability rating according to UL 94, contact strips: electrolytic copper, silver-plated
ColourRAL 9005, RAL 35745
Cable exitAbove/under
Electrical connection typeM8 screw
Fuse linksNH 00, NH 000
Rated insulation voltage Ui1.000 kV
Rated operating voltage690 V AC
For NH size00
Test basisIEC/DIN EN 60 947-3, DIN EN 60 269-2 (fuse inserts)
Width106 mm
Height194 mm
Depth86,1 mm
Operating temperature range-5 °C...35 °C
Storage temperature range-25 °C...70 °C
Number of poles3-pole
Utility categoryAC-23B (400 V/100 A), AC-22B (500 V/100 A), AC-21B (690 V/100 A), DC-22B (250 V/100 A)
Pollution degree3
Degree of protection IP according to IEC 60 529IP 2XB
Fire load11,56 MJ/m²
Maximum power dissipation16 W
Power loss per fuse element (max.)12 W
Copper content (kg/piece)0,18
PCF/VE (Cradle-to-Gate)5,07
For panel mountingJa


Product data sheet
Datasheet for Rittal 9363000, EAN: 4069196001709
