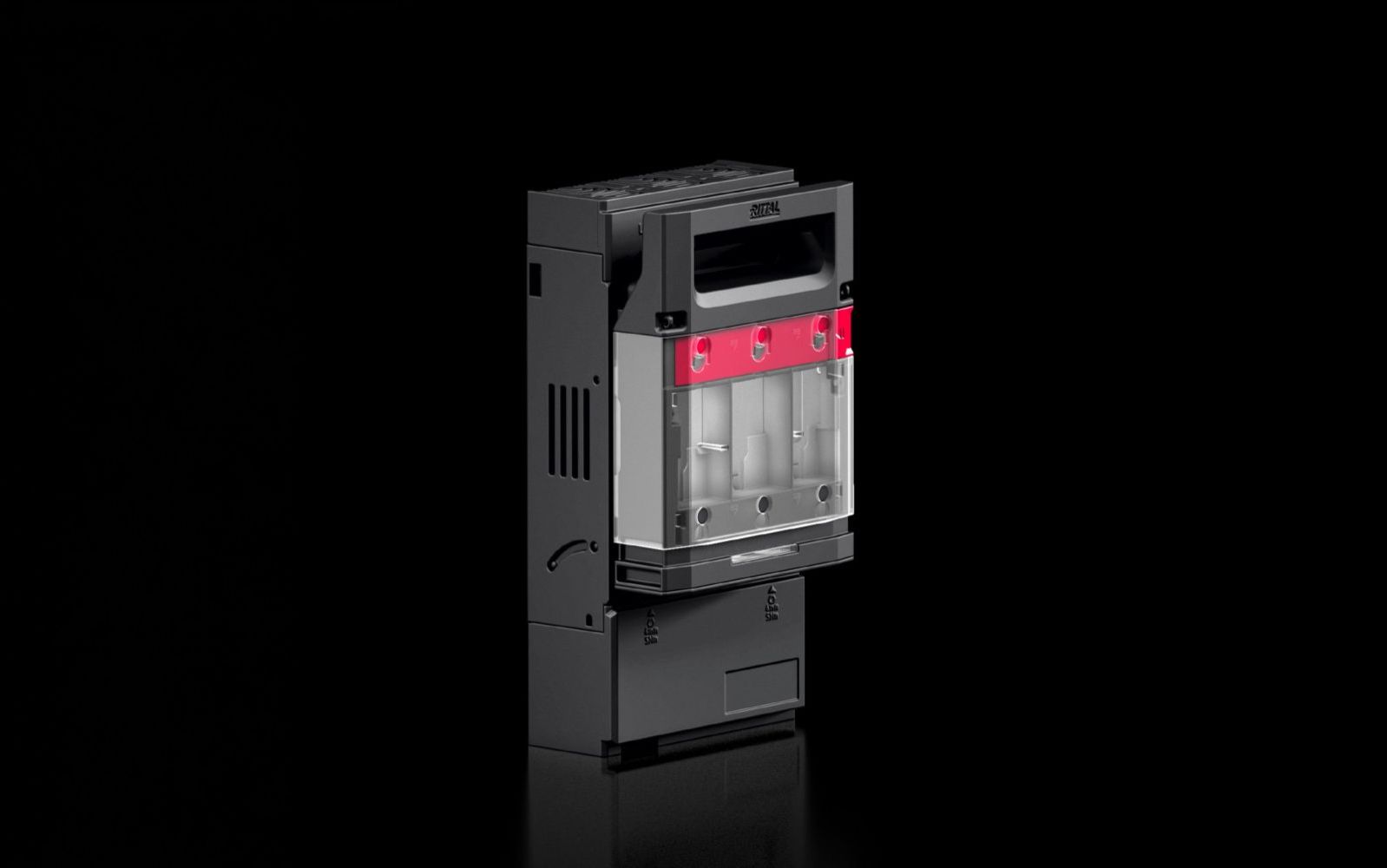

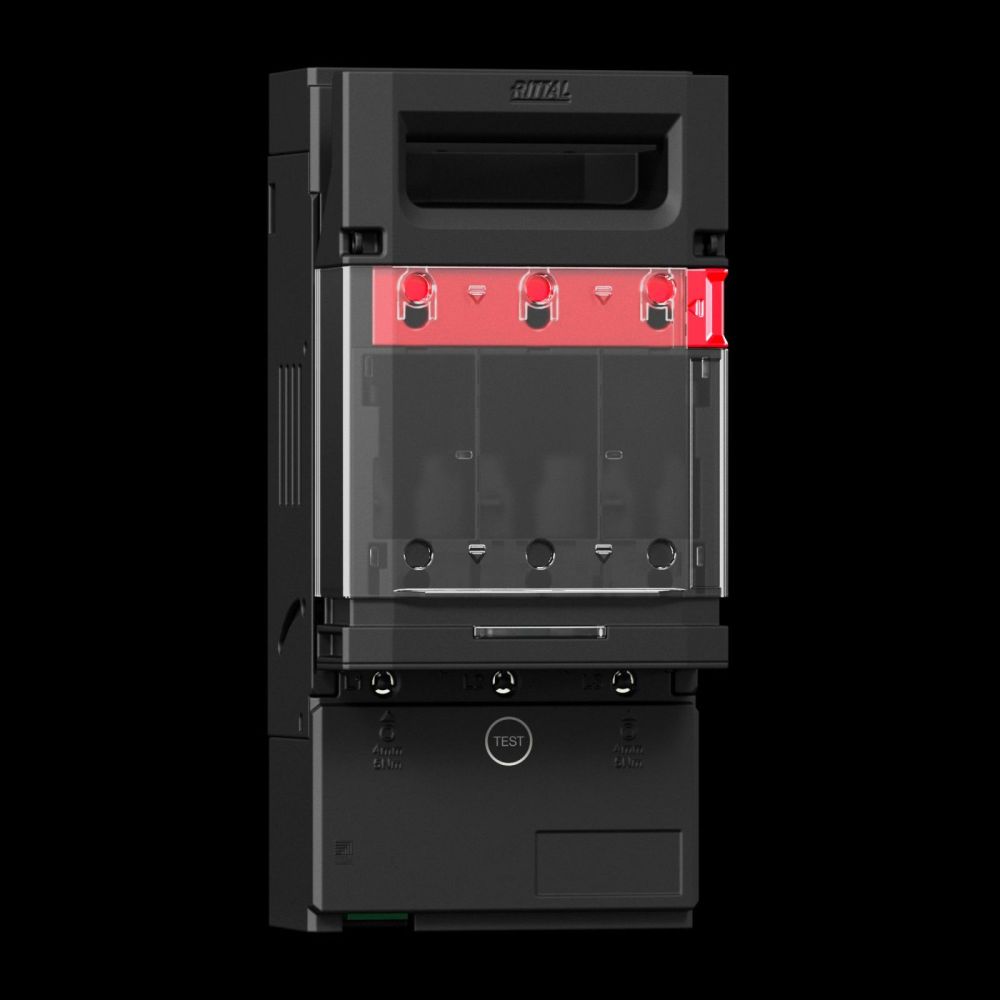

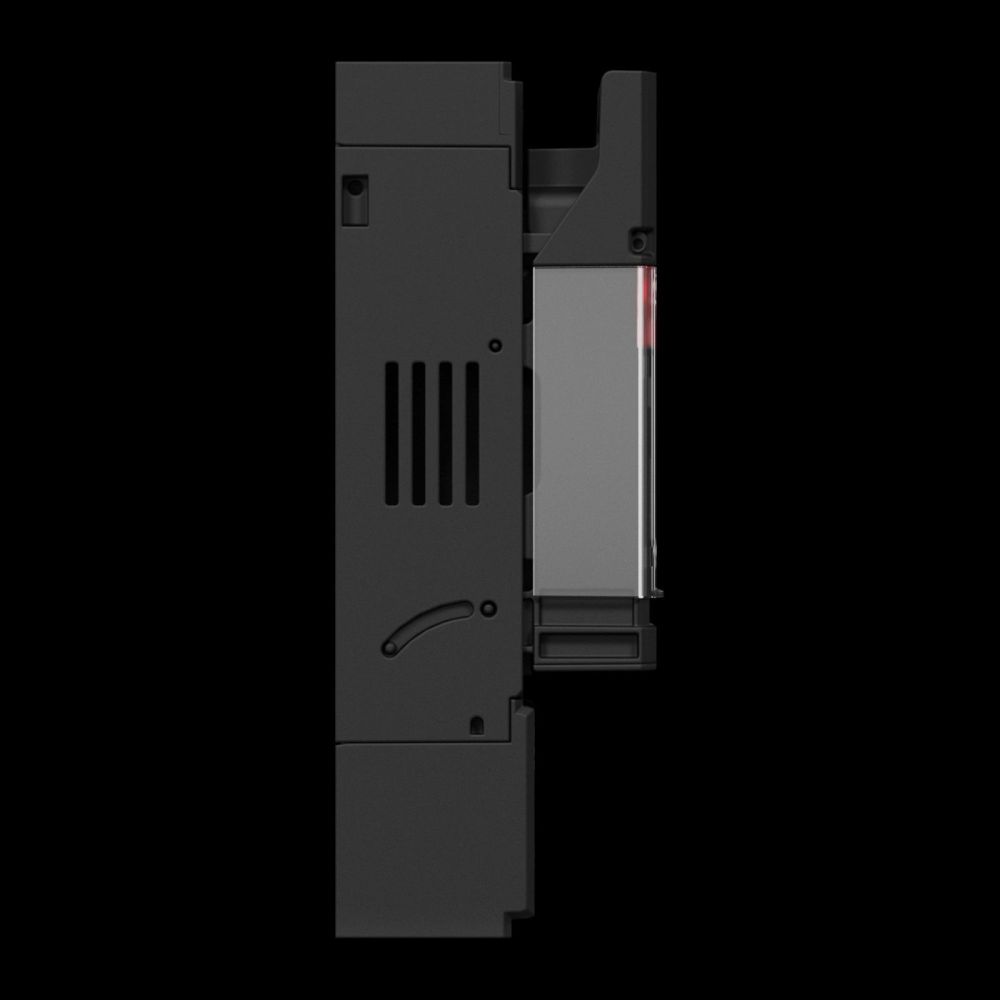

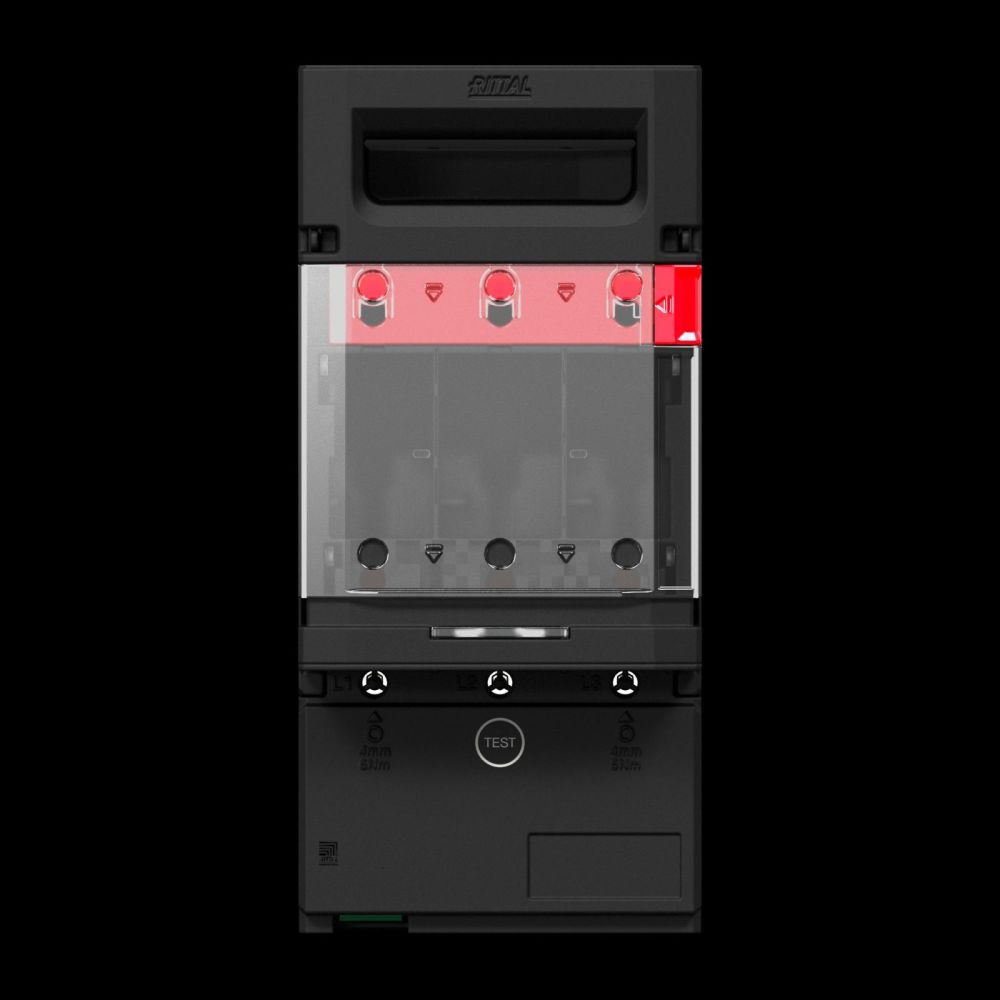

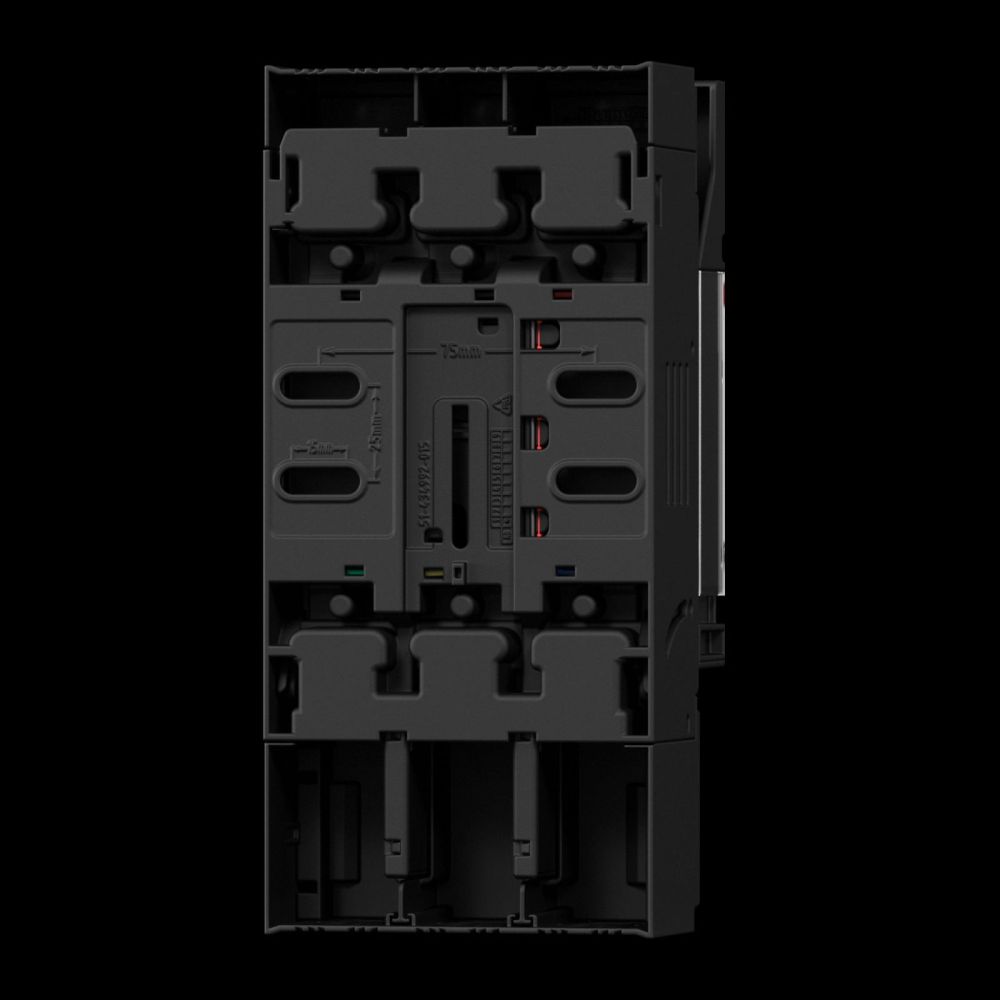

Rittal 9363005 RX NH fuse switch disconnector size 00 160 A 3-pole screw fuse monitoring

Your rating:
Average rating
product review for Rittal 9363005 RX NH fuse switch disconnector size 00 160 A 3-pole screw fuse monitoring
( 4.7 / 5 ) 3 ratings
Rittal 9363005
This image may differ from the desired article.
Rittal 9363005Rittal 9363005Rittal 9363005Rittal 9363005Rittal 9363005Rittal 9363005Rittal 9363005
-6% 135,70 EUR 145,07 EUR
( 161,48 EUR incl. VAT )
≈ £113.45  |  ≈ $149.95
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9363005 RX NH fuse switch disconnector size 00 160 A 3-pole screw fuse monitoring
Datasheet:file_download Download
Lieske Part No.:157164
Mfg Part No: 9363005
UPC/EAN: 4069196001716
Weight:0.917 kg
Type:RX 9363005

Product information for Rittal 9363005:

The Rittal RiLineX NH fuse switch disconnector type RX 9363005 is a 3-pole switch disconnector in size 00, specifically designed for mounting on mounting plates. It serves as a fuse switch disconnector in industrial electrical installations and enables safe disconnection of circuits during maintenance work. The disconnector is equipped with electronic fuse monitoring (ESÜ), which monitors the condition of the installed NH fuse inserts, ensuring both visual and electronic monitoring. The unit is available in the colours RAL 9005 and RAL 35745, with the housing made of polyamide (PA 6), which meets UL 94 flammability requirements. The contact bars are made of electrolytic copper, silver-plated, to ensure high conductivity and corrosion resistance.

Applications
This disconnector is intended for use in industrial installations where safe and reliable electrical disconnection is required. It is suitable for installations with a rated operational voltage of 690 V AC and a rated insulation voltage of 1,000 kV. The usage categories include AC-23B (400 V/100 A), AC-22B (500 V/100 A), AC-21B (690 V/100 A), and DC-22B (250 V/100 A), making it suitable for various industrial applications. Pollution degree 3 indicates suitability for environments with increased pollution risk.

Functions and Equipment in Detail
The disconnector’s cover is lockable and sealable, enabling secure protection against unauthorised access. Visual fuse monitoring is achieved via integrated test points on the cover, allowing safe voltage testing. A parking position for the cover facilitates maintenance work, as the cover can be held in a stable position. The connection is made via a screw connection of size M8, with wiring exits available at the top and bottom. The electronic fuse monitoring is implemented via a supplied connection plug.

Technology Explained Simply
The electronic fuse monitoring (ESÜ) monitors the condition of the NH fuse inserts (size 00) and signals any defect or failure. The protection class IP 2XB according to IEC 60 529 protects against finger contact and vertical dripping water, making it suitable for indoor use. The operating temperature range is between -5 °C and 35 °C, while the storage temperature range extends from -25 °C to 70 °C. The maximum power loss is 16 W, with up to 12 W of power loss per fuse insert.

Compatibility and Accessories
The disconnector is designed for NH fuse inserts of size 00 and 000. Compatible accessories include lugs for round conductors (RX 9365540) and sector conductors (RX 9365541), as well as a cover for the connection area (RX 9365520), which seals the connection area and protects against contamination. These components enable flexible and secure installation.

Mounting and Installation
The disconnector is mounted on mounting plates and is intended for use in enclosures or distribution boards. The tool-free adjustment of the wiring exit allows flexible adaptation to different connection configurations. Mounting is carried out using the designated fastening options on the mounting plate.

Operational Advantages
The combination of electronic and visual fuse monitoring increases operational safety and reliability. The parking position and lockable cover simplify maintenance and secure operation. The M8 screw connection ensures a secure and stable connection. Compliance with standards IEC/DIN EN 60 947-3 and DIN EN 60 269-2 for fuse inserts guarantees conformity with applicable standards.

Scope of Delivery
Includes connection plug for electronic fuse monitoring.

General
Modelwith electronic fuse monitoring (ESÜ), for panel mounting
MaterialPolyamide (PA 6), flammability rating according to UL 94, contact strips: electrolytic copper, silver-plated
ColourRAL 9005, RAL 35745
Scope of deliveryIncluding connection plug for electrical fuse monitoring
Cable exitAbove/under
Electrical connection typeM8 screw
Fuse linksNH 00, NH 000
Rated insulation voltage Ui1.000 kV
Rated operating voltage690 V AC
For NH size00
Test basisIEC/DIN EN 60 947-3, DIN EN 60 269-2 (fuse inserts)
Width106 mm
Height228,9 mm
Depth86,1 mm
Operating temperature range-5 °C...35 °C
Storage temperature range-25 °C...70 °C
Number of poles3-pole
Utility categoryAC-23B (400 V/100 A), AC-22B (500 V/100 A), AC-21B (690 V/100 A), DC-22B (250 V/100 A)
Pollution degree3
Degree of protection IP according to IEC 60 529IP 2XB
Fire load13,24 MJ/m²
Maximum power dissipation16 W
Power loss per fuse element (max.)12 W
Copper content (kg/piece)0,18
PCF/VE (Cradle-to-Gate)5,51
For panel mountingJa
With electronic fuse monitoring (ESÜ)Ja


Product data sheet
Datasheet for Rittal 9363005, EAN: 4069196001716
