Rittal 9365540 RX terminal clamp 1=3 for NH disconnector size 00 (round conductor)

Your rating:
Average rating
product review for Rittal 9365540 RX terminal clamp 1=3 for NH disconnector size 00 (round conductor)
( 4 / 5 ) 1 ratings

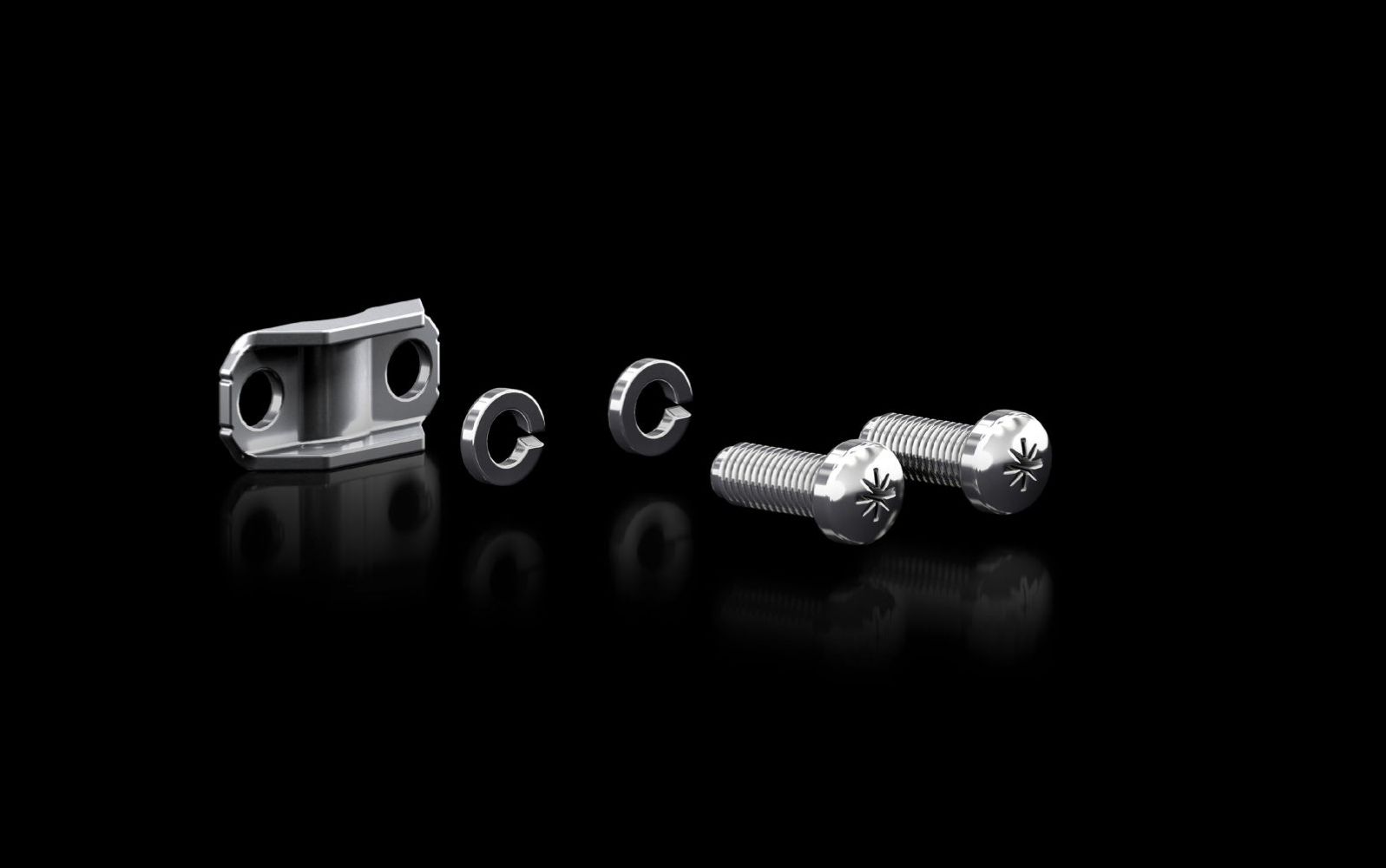

Rittal 9365540
This image may differ from the desired article.
-6% 11,41 EUR 12,19 EUR
( 13,58 EUR incl. VAT )
≈ £9.54  |  ≈ $12.61
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9365540 RX terminal clamp 1=3 for NH disconnector size 00 (round conductor)
Datasheet:file_download Download
Lieske Part No.:612118
Mfg Part No: 9365540
UPC/EAN: 4069196007268
Weight:0.096 kg
Type:RX 9365540

Product information for Rittal 9365540:

The product RX 9365540 from Rittal is a clamp terminal set for connecting round conductors to RiLineX NH fuse switch disconnectors of size 00. It serves as a connecting element between the conductors and the fuse switch disconnectors to establish a secure and reliable electrical connection. The terminals are specifically designed for round conductors with a cross-section of 4 to 70 mm², making them suitable for a wide range of industrial applications in the field of power distribution.

Applications
The clamp terminal set is used in industrial electrical engineering, particularly during the installation of RiLineX NH fuse switch disconnectors in enclosures. These disconnectors are used to protect electrical installations and enable safe power disconnection. The terminals ensure a firm and correct fixation of the conductors, thereby guaranteeing electrical conductivity and mechanical stability of the connection. The use is typical in production plants, machine building, power supply systems, and other areas where reliable power distribution is required.

Functions and Equipment in Detail
The set consists of three individual terminals, made of sheet steel, galvanized. The galvanization provides protection against corrosion and ensures a longer service life of the terminals, especially in environments with high humidity or aggressive atmosphere. The terminals are designed for connecting round conductors with a cross-section of 4 to 70 mm², enabling broad applicability across various power ratings. The terminals are designed to create a secure and durable connection to the fuse switch disconnector without requiring additional tools or accessories.

Technology Explained Simply
The clamp terminals operate on the principle of mechanical clamping connection. They enclose the round conductor and secure it via a screw or pressure connection, creating a firm electrical contact. The use of galvanized sheet steel ensures high mechanical strength and corrosion resistance. The terminals are designed for size 00, meaning they are specifically developed for RiLineX NH fuse switch disconnectors of this size. The precise fit ensures accurate installation and prevents loose or poorly conducting connections.

Compatibility and Accessories
The clamp terminal set is specifically designed for RiLineX NH fuse switch disconnectors of size 00 and fits article numbers 9362110, 9262115, 9363110, and 9363115. These disconnectors are part of the RiLineX system from Rittal and are used in industrial enclosures. The terminals are not suitable for other sizes or manufacturers. Using them with the specified disconnectors ensures compatible and safe installation.

Installation and Mounting
Installation is done by simply inserting the terminal into the designated connection area of the fuse switch disconnector and securing the round conductor. The terminal is positioned so that the conductor is held securely and a firm electrical contact is established. The use of tools is generally not required, as the terminals are mechanically designed to securely fix the conductor. Installation is carried out during the mounting of the fuse switch disconnector in the enclosure.

Advantages in Operation
The clamp terminals provide a reliable and durable connection that remains stable even under industrial loads. The galvanization protects against corrosion and extends service life. The precise fit for size 00 and the specified disconnector models ensures easy and safe installation. The inclusion of three terminals per set allows simultaneous connection of multiple conductors, increasing installation efficiency. The terminals are designed for use in industrial environments and support the overall reliability of the power distribution system.

General
MaterialSheet steel, galvanised
For size00
Suitable for part no.9362110, 9262115, 9363110, 9363115
Connection of ring conductors4 ‐ 70 mm²
Cross-section round conductor4 ‐ 70 mm²
PCF/VE (Cradle-to-Gate)0,3


Product data sheet
Datasheet for Rittal 9365540, EAN: 4069196007268
