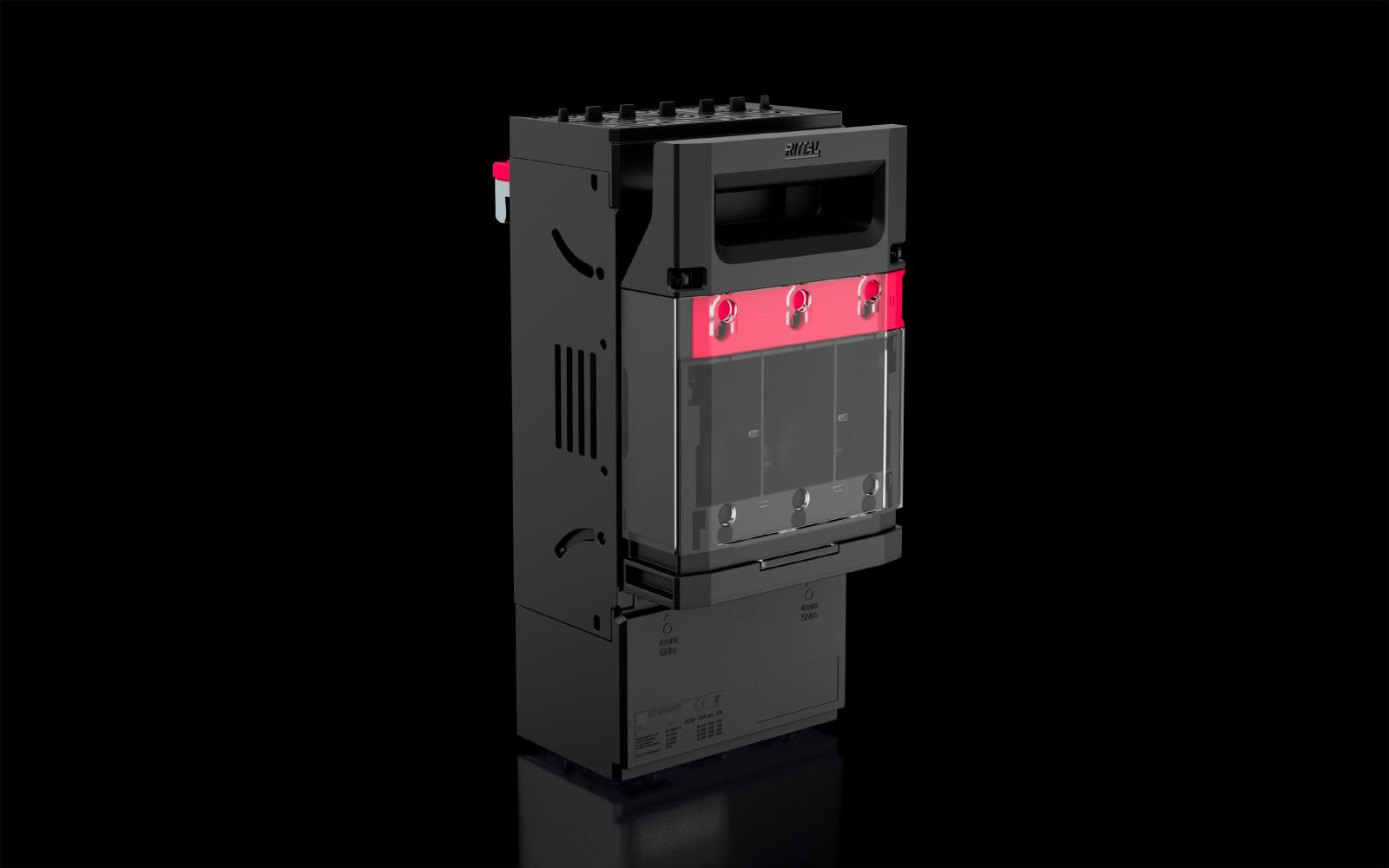

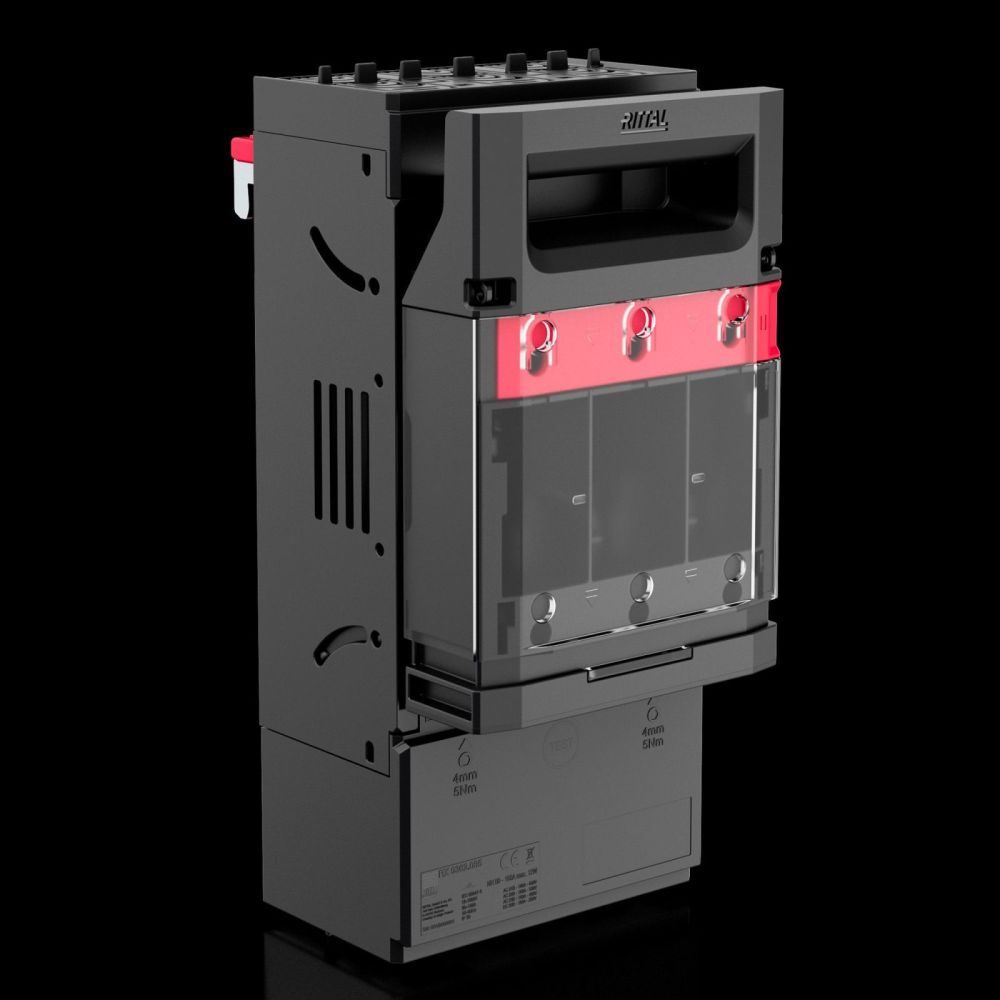

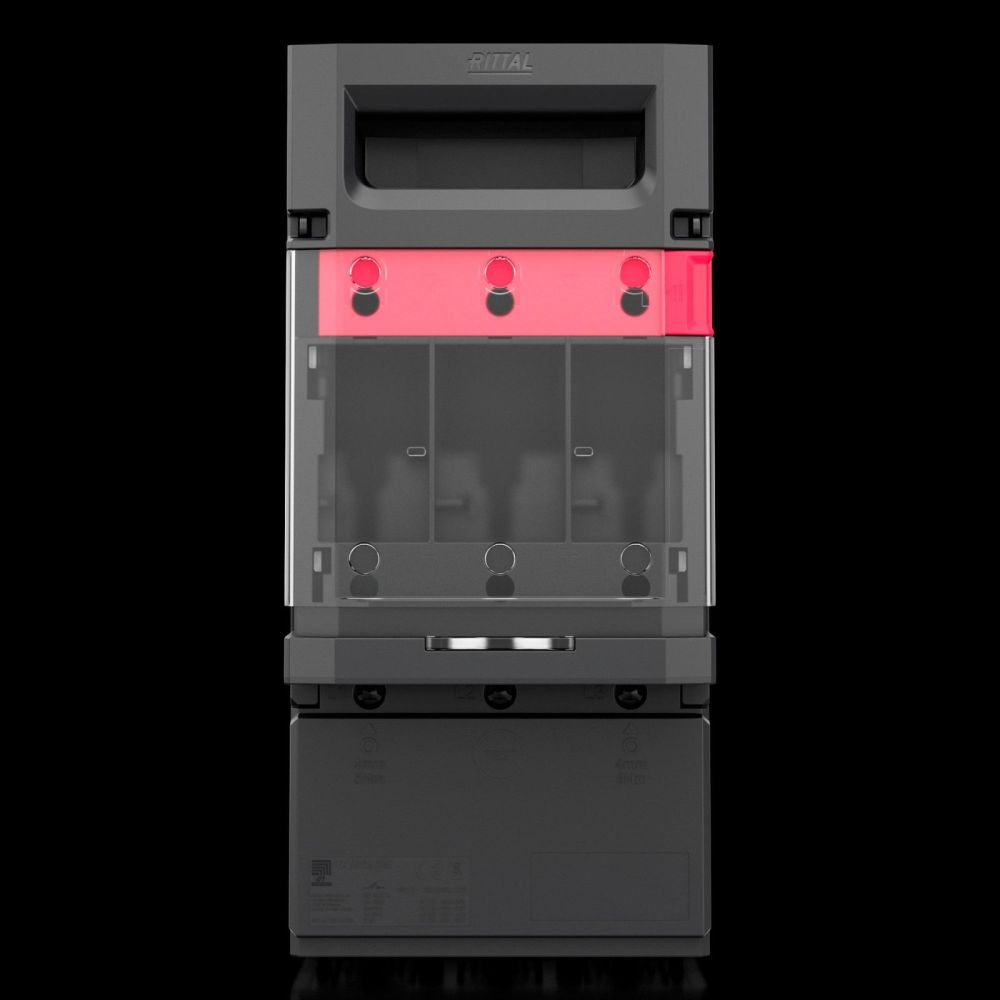

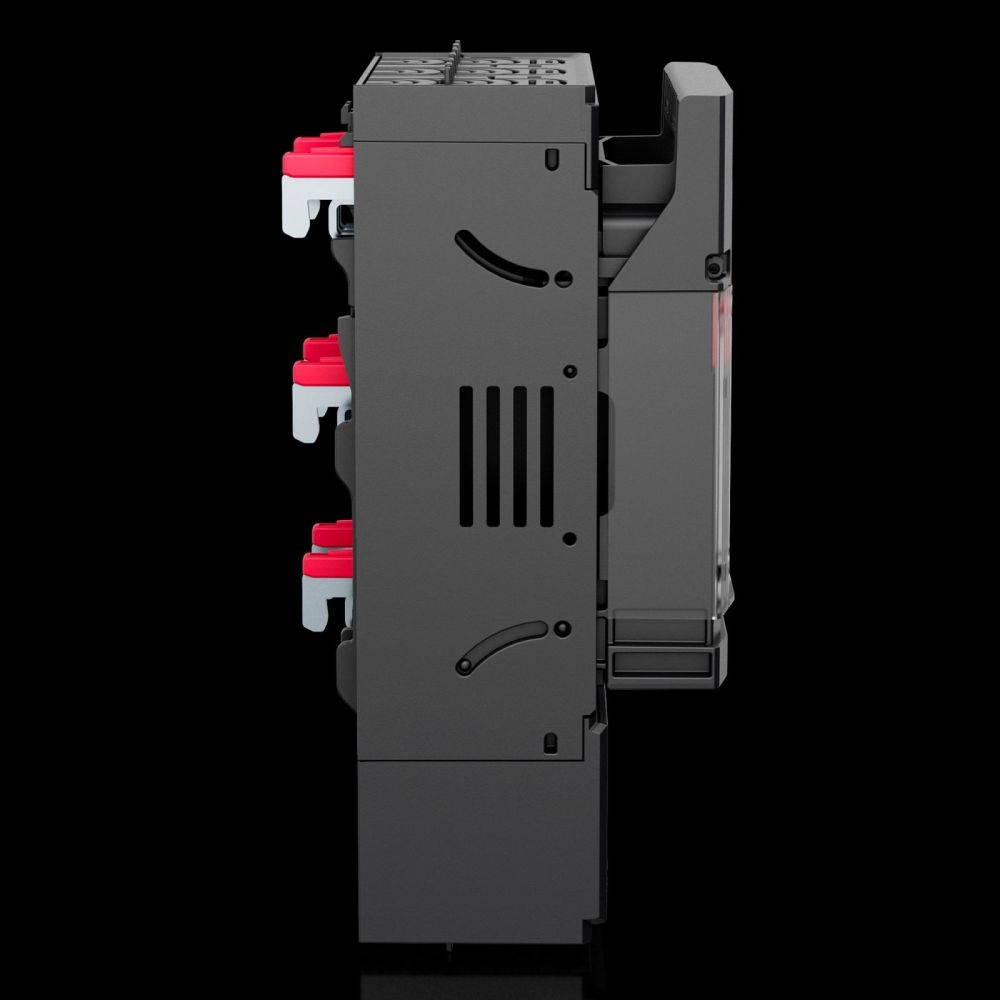

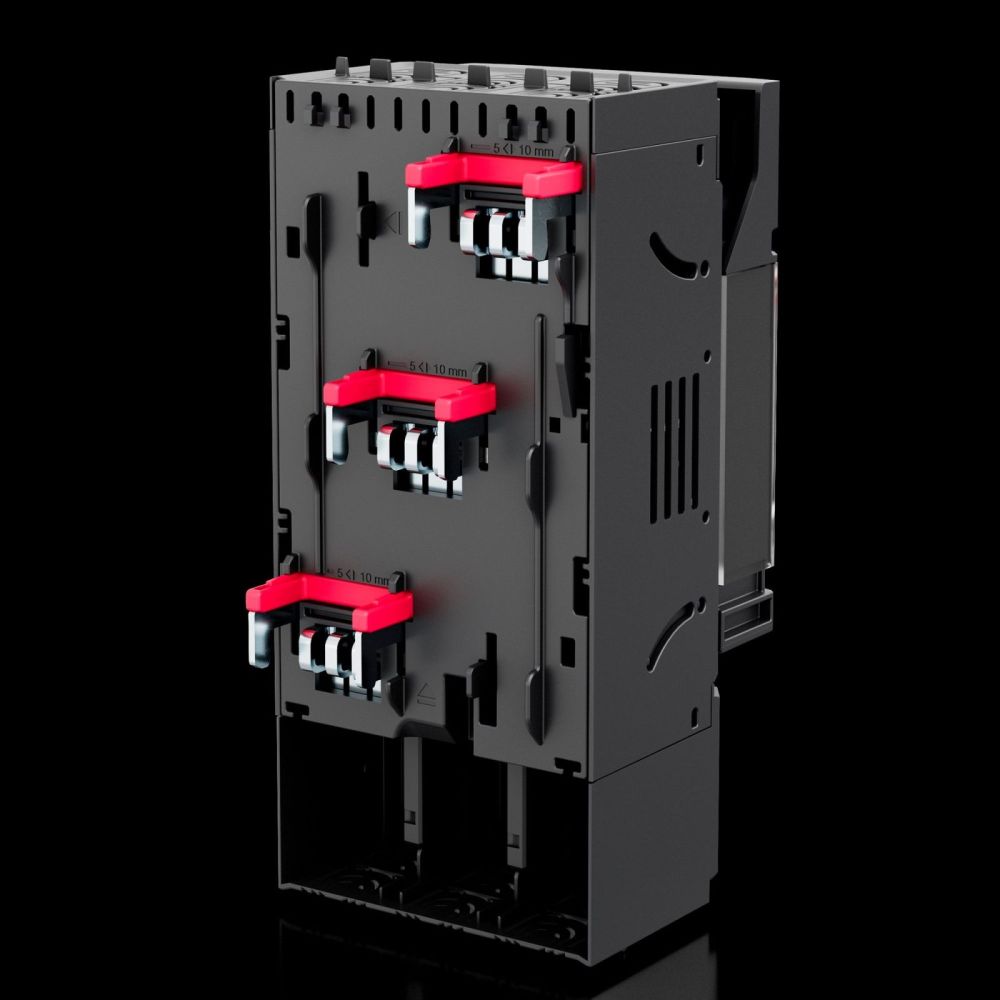

Rittal 9362035 RX NH fuse switch disconnector size 00 160 A 3-pole terminal fuse monitoring 800 V

Your rating:
Average rating
product review for Rittal 9362035 RX NH fuse switch disconnector size 00 160 A 3-pole terminal fuse monitoring 800 V
( 5 / 5 ) 2 ratings
Rittal 9362035
This image may differ from the desired article.
Rittal 9362035Rittal 9362035Rittal 9362035Rittal 9362035Rittal 9362035Rittal 9362035Rittal 9362035
157,55 EUR 163,85 EUR
( 187,48 EUR incl. VAT )
≈ £131.71  |  ≈ $174.09
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: 3 pieces
1x Rittal 9362035 RX NH fuse switch disconnector size 00 160 A 3-pole terminal fuse monitoring 800 V
Datasheet:file_download Download
Lieske Part No.:1571881
Mfg Part No: 9362035
UPC/EAN: 4069196001525
Weight:1.175 kg
Type:RX 9362035

Product information for Rittal 9362035:

The Rittal RX 9362035 is an NH fuse switch disconnector in size 00, specifically designed for 60 mm busbar systems. It serves as a power disconnector in industrial electrical installations, where secure disconnection of the power supply and monitoring of installed fuse inserts are required. The device is designed for use in RiLineX and RiLine60 systems and allows direct mounting on busbars with a center distance of 60 mm. The version with electronic fuse monitoring (ESÜ) ensures continuous monitoring of NH 00 and NH 000 fuse inserts, enabling rapid detection of defects or failures. The delivery includes a connector for electronic fuse monitoring.

Applications

The disconnector is intended for industrial applications in enclosures and distributions, where high operational safety and service-friendliness are required. It is suitable for installations with a rated operational voltage of 690 V AC and a rated insulation voltage of 1,000 V. The usage categories include AC-23B (400 V/100 A), AC-22B (500 V/100 A), AC-21B (690 V/100 A), and DC-22B (250 V/100 A), covering a wide range of loads and operating conditions. The protection rating IP 2XB according to IEC 60 529 protects against finger contact and vertical dripping water, making it suitable for use in slightly damp environments.

Functions and Equipment in Detail

The disconnector’s cover is lockable and sealable, enabling secure and documented monitoring of the operational status. Visual fuse monitoring allows direct inspection of the fuse status. Safe voltage testing is performed via integrated test points on the cover, enabling testing without direct contact with live parts. A parking position for the cover facilitates maintenance work, as the cover can be fixed in the open position. The cable exit is tool-free convertible between top and bottom, allowing flexible installation at various locations within the enclosure.

Technology Explained Simply

The disconnector consists of a housing made of polyamide (PA 6) with flame resistance according to UL 94, ensuring high heat and flame resistance. The contact strips are made of electrolytic copper, silver-plated, providing high electrical conductivity and corrosion resistance. The frame terminal allows connection of round conductors with a cross-section of 1.5 to 95 mm², both with and without wire end ferrules. The snap-on mounting up to 250 A and easy adjustment to rail thicknesses of 5/10 mm simplify installation. The power loss is maximum 22 W, with up to 12 W per fuse insert. The operating temperature range is -5 °C to 35 °C, and the storage temperature range is -25 °C to 70 °C.

Compatibility and Accessories

The disconnector is suitable for busbars with dimensions 15 x 5/10 mm, 20 x 5/10 mm, and 30 x 5/10 mm. It fits into RiLineX and RiLine60 systems. Various accessories are available, including clamp terminals (e.g. RX 9365540 for round conductors, RX 9365541 for sector conductors), enclosure protection profiles (e.g. RX 9365025), mounting clips (e.g. RX 9365027), microswitches (e.g. RX 9365505), shock protection (e.g. RX 9365510), and covers for the connection area (e.g. RX 9365530). These components support installation, protection, and functionality of the disconnector.

Mounting and Installation

Mounting is done by snap-on to the busbar, with easy and tool-free adjustment to rail thickness (5/10 mm). The cable exits can be set to top or bottom as required. The frame terminal enables a secure and load-bearing connection of conductors. The cover’s parking position facilitates mounting and maintenance, as the cover remains fixed during work.

Operational Advantages

The disconnector provides high operational safety through integrated electronic fuse monitoring and visual inspection. The lockable and sealable cover protects against unauthorized access. The tool-free conversion of the cable exit and the parking position reduce installation and maintenance times. The use of high-quality materials such as silver-plated electrolytic copper and PA 6 ensures long service life and high reliability. Compliance with standards IEC/DIN EN 60 947-3 and DIN EN 60 269-2 (fuse inserts) ensures conformity with international standards.

General
Modelwith electronic fuse monitoring (ESÜ), for 60 mm busbar system
MaterialPolyamide (PA 6), flammability rating according to UL 94, contact strips: electrolytic copper, silver-plated
ColourRAL 9005, RAL 35745
Scope of deliveryIncluding connection plug for electrical fuse monitoring
For rail systems with centre spacing60 mm
Cable exitAbove/under
Electrical connection typeFrame clamp
Fuse linksNH 00, NH 000
Rated insulation voltage Ui1.000 V
Rated operating voltage690 V AC
For NH size00
Test basisIEC/DIN EN 60 947-3, DIN EN 60 269-2 (fuse inserts)
Width106 mm
Height229,5 mm
Depth104,5 mm
Operating temperature range-5 °C...35 °C
Storage temperature range-25 °C...70 °C
Suitable for busbars15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Suitable for busbar systemRiLineX, RiLine60
Number of poles3-pole
Utility categoryAC-23B (400 V/100 A), AC-22B (500 V/100 A), AC-21B (690 V/100 A), DC-22B (250 V/100 A)
Pollution degree3
Degree of protection IP according to IEC 60 529IP 2XB
Fire load16,6 MJ/m²
Connection of round conductors, fine-stranded without ferrule1,5 ‐ 95 mm²
Connection of stranded wires, fine-stranded with ferrule1,5 ‐ 95 mm²
Maximum power dissipation22 W
Power loss per fuse element (max.)12 W
Copper content (kg/piece)0,409
PCF/VE (Cradle-to-Gate)7,86
With electronic fuse monitoring (ESÜ)Ja


Product data sheet
Datasheet for Rittal 9362035, EAN: 4069196001525
