Rittal 9365530 RX connection space cover 1=2 for NH disconnector size 00 (60 mm)

Your rating:
Average rating
product review for Rittal 9365530 RX connection space cover 1=2 for NH disconnector size 00 (60 mm)
( 4.5 / 5 ) 2 ratings

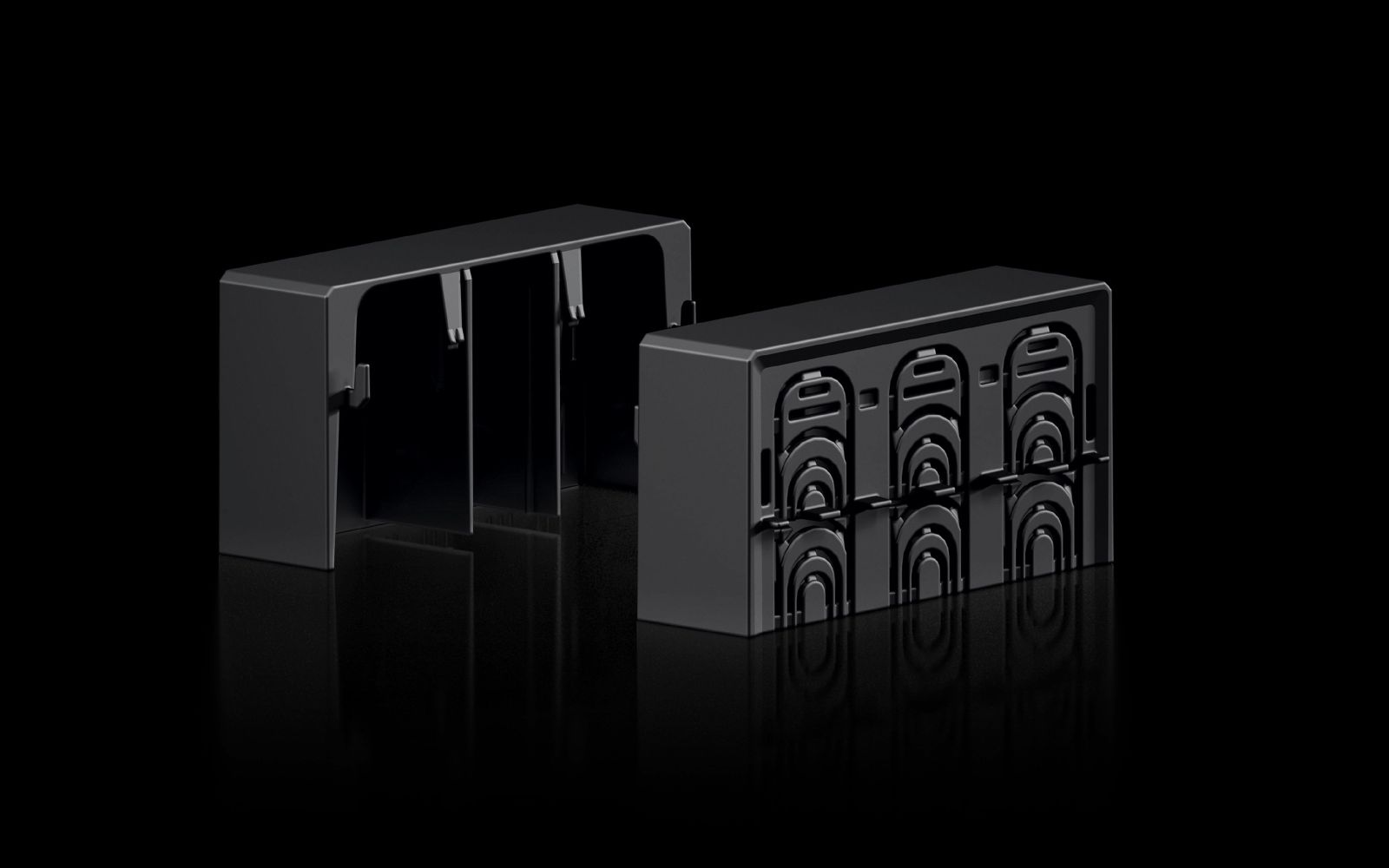

Rittal 9365530
This image may differ from the desired article.
Rittal 9365530Rittal 9365530
-6% 6,33 EUR 6,77 EUR
( 7,53 EUR incl. VAT )
≈ £5.29  |  ≈ $6.99
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 2 pieces
1x Rittal 9365530 RX connection space cover 1=2 for NH disconnector size 00 (60 mm)
Datasheet:file_download Download
Lieske Part No.:612155
Mfg Part No: 9365530
UPC/EAN: 4069196007275
Weight:0.144 kg
Type:RX 9365530

Product information for Rittal 9365530:

The Rittal RiLineX connection compartment cover, type RX 9365530, is a specific component for mounting in enclosures, particularly in conjunction with RiLineX NH fuse switch disconnectors size 00. It serves to safely cover the connection compartment and is used in busbar system installations to ensure electrical safety and proper installation. The component is made of polyamide (PA 6), a thermoplastic material known for its mechanical strength and heat resistance. The flammability characteristics comply with UL 94 standard, ensuring a certain level of flame retardancy and self-extinguishing properties. The color is RAL 9005, a dark gray commonly used in industrial facilities to enable uniform visual design.

Applications

The cover is specifically designed for use in industrial electrical installations where NH fuse switch disconnectors are mounted in enclosures. It is used during busbar installation to cover the connection area of the disconnectors, thereby protecting against mechanical damage, dust, or moisture. Use in enclosures with RiLineX systems enables modular and standardized mounting, simplifying maintenance and component replacement.

Functions and Equipment in Detail

The cover is precisely designed for RiLineX NH fuse switch disconnectors with part numbers 9362000, 9362005, 9362030, and 9362035. Its dimensions are 106 mm in width, 41.4 mm in height, and 62 mm in depth, ensuring an exact fit. The selection of polyamide (PA 6) material provides high mechanical stability and resistance to chemical influences, which is important for industrial environments. The fire load is 0.95 MJ/m², which can be considered in fire protection planning.

Technology Explained Simply

Polyamide (PA 6) is a high-quality plastic commonly used in electrical engineering for components requiring high strength and heat resistance. The UL 94 approval for flammability means the material exhibits a certain flame retardancy under defined conditions, increasing safety in case of fire. The color RAL 9005 is a standardized gray used in many industrial facilities to enable uniform visual design. The dimensions are chosen to ensure the cover fits exactly into the designated space in the enclosure without requiring additional modifications.

Compatibility and Accessories

The cover is specifically designed for RiLineX NH fuse switch disconnectors size 00 and fits models with part numbers 9362000, 9362005, 9362030, and 9362035. It is part of the RiLineX system, which enables modular and standardized mounting in enclosures. Use in combination with busbars is intended to secure electrical connections and increase mounting efficiency.

Mounting and Installation

Mounting is done directly onto RiLineX NH fuse switch disconnectors size 00, where the cover seals the connection compartment. Installation requires no additional tools or components, as the cover is mechanically adapted to the disconnector. Use in busbar installations enables safe and orderly integration into existing enclosure configurations.

Operational Advantages

The cover increases operational safety by protecting the connection area from external influences. The use of polyamide (PA 6) ensures long service life and resistance to industrial stresses. The standardized fit for RiLineX systems simplifies mounting and maintenance, enhancing operational safety and efficiency. The color RAL 9005 supports uniform visual design of enclosures, improving clarity and maintainability.

General
MaterialPolyamide (PA 6), flammability according to UL 94
ColourRAL 9005
Suitable for part no.9362000, 9362005, 9362030, 9362035
Width106 mm
Height41,4 mm
Depth62 mm
Fire load0,95 MJ/m²
PCF/VE (Cradle-to-Gate)1,02


Product data sheet
Datasheet for Rittal 9365530, EAN: 4069196007275

Questions & answers

What is the delivery time of Rittal 9365530 RX connection space cover 1=2 for NH disconnector size 00 (60 mm)?

The article Rittal 9365530 RX connection space cover 1=2 for NH disconnector size 00 (60 mm) is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9365530 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9365530 RX connection space cover 1=2 for NH disconnector size 00 (60 mm) always at the best possible price. We can give you a discount of 2% on Rittal 9365530 RX connection space cover 1=2 for NH disconnector size 00 (60 mm) if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
