Chauvin Arnoux P03197526A Resistance decade 10...100 kΩ

Your rating:
Average rating
product review for Chauvin Arnoux P03197526A Resistance decade 10...100 kΩ
( 4.6 / 5 ) 9 ratings

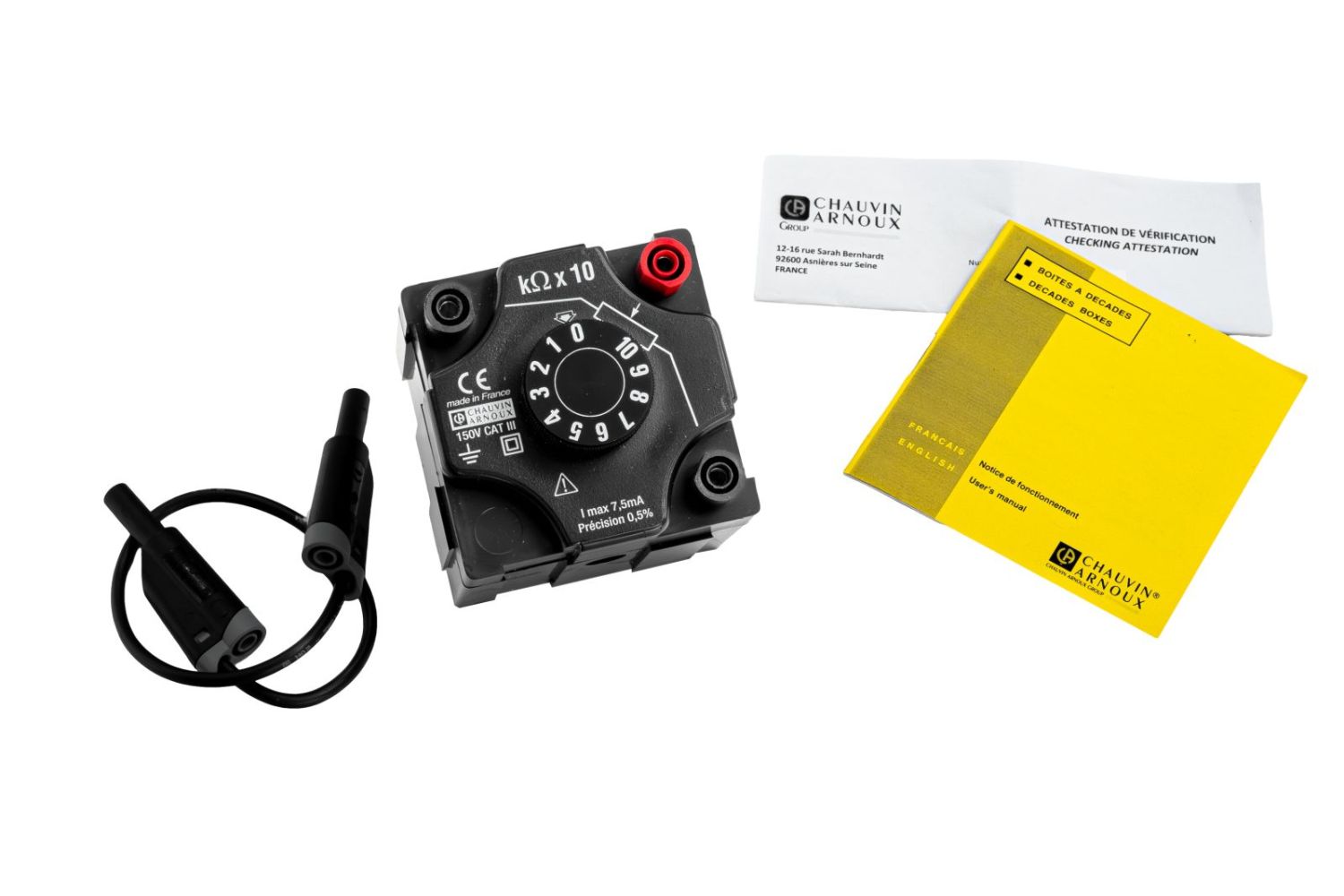

Chauvin Arnoux P03197526A
This image may differ from the desired article.
201,88 EUR
( 240,24 EUR incl. VAT )
≈ £168.17  |  ≈ $221.46
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x Chauvin Arnoux P03197526A Resistance decade 10...100 kΩ
Lieske Part No.:985021
Mfg Part No: P03197526A
UPC/EAN: 3663653004343
Weight:0.2 kg
Graduated prices net
From piecesPrice per pieces
5200,37 EUR
10198,85 EUR
15197,34 EUR
20195,82 EUR

Product information for Chauvin Arnoux P03197526A:

The resistance decade from Chauvin Arnoux is a precise measuring accessory for use in training, laboratories, research and development, as well as for maintenance work. The device allows selection of a resistance value in the range of 10 to 100 kΩ via an 11-digit selector switch, where position 0 represents a short circuit. The decade is designed for high accuracy of 0.5 % and can be operated at a maximum current of 7.5 mA. The robust construction and compact dimensions of 72 x 72 x 90 mm make the device suitable for various mechanical and electrical installations.

Applications
The resistance decade is suitable for applications requiring a defined, adjustable resistance. This includes testing of measuring instruments, calibrations, training in electrical engineering, as well as development and maintenance of electronic circuits. The precise adjustability in decimal steps enables flexible use in various technical environments.

Functions and Equipment in Detail
The 11-digit rotary contact switch offers simple and secure operation. Each position corresponds to a predefined resistance value, with the zero position representing a short circuit. The switch is equipped with a stop to prevent accidental over-rotation. The three safety sockets with a diameter of 4 mm ensure a reliable and safe connection. The sockets are male-coded, enabling a unique earthing terminal.

Technology Explained Simply
The decade operates on the principle of decimal resistance adjustment, where the resistance value is increased in steps of 10 kΩ. The accuracy of 0.5 % means that the actual resistance value lies within a tolerance range of ±0.5 % of the set value. The maximum current of 7.5 mA is specified for the range of 10 to 100 kΩ; other resistance decade ranges have different current limits, such as 1 A for the range 0.1 to 1 Ω or 25 mA for 1 to 10 kΩ. The construction is designed to comply with applicable safety standards.

Compatibility and Accessories
The device is designed for use with standard measuring instruments and test equipment. The safety sockets with Ø 4 mm are compatible with common test leads and cables designed for this connection diameter. The decade can be used in electrical circuits as a substitute resistor or for simulating loads.

Mounting and Installation
The resistance decade is designed as a compact unit and can be directly installed in circuits or placed at a workstation. The connections are easily accessible, allowing for quick and secure connection. No special mounting aids or tools are required.

Operational Advantages
The combination of high accuracy, easy operation, and robust design makes the decade a reliable tool. The clear scaling and mechanical stop on the switch reduce errors during adjustment. The compact form factor allows flexible placement, and the safety sockets ensure a secure connection.

Scope of Delivery
The scope of delivery includes the resistance decade with three safety sockets Ø 4 mm and an operating manual. The manual contains information on operation and safe handling of the device.

General
DecadekΩ x 10
Range10 to 100 kΩ
Maximum current7,5 mA
Accuracy0,5 %
Selector switch11-digit
Connections3 safety sockets Ø 4 mm
Safety standardsComplies with applicable standards


Questions & answers

What is the delivery time of Chauvin Arnoux P03197526A Resistance decade 10...100 kΩ?

The article Chauvin Arnoux P03197526A Resistance decade 10...100 kΩ is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Chauvin Arnoux P03197526A to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Chauvin Arnoux P03197526A Resistance decade 10...100 kΩ always at the best possible price. We can give you a discount of 2% on Chauvin Arnoux P03197526A Resistance decade 10...100 kΩ if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Chauvin Arnoux P03197526A Resistance decade 10...100 kΩ we can offer you a price of 200,37 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
