Chauvin Arnoux P03197527A Resistance decade 100 kΩ…1 MΩ

Your rating:
Average rating
product review for Chauvin Arnoux P03197527A Resistance decade 100 kΩ…1 MΩ
( 4.8 / 5 ) 8 ratings

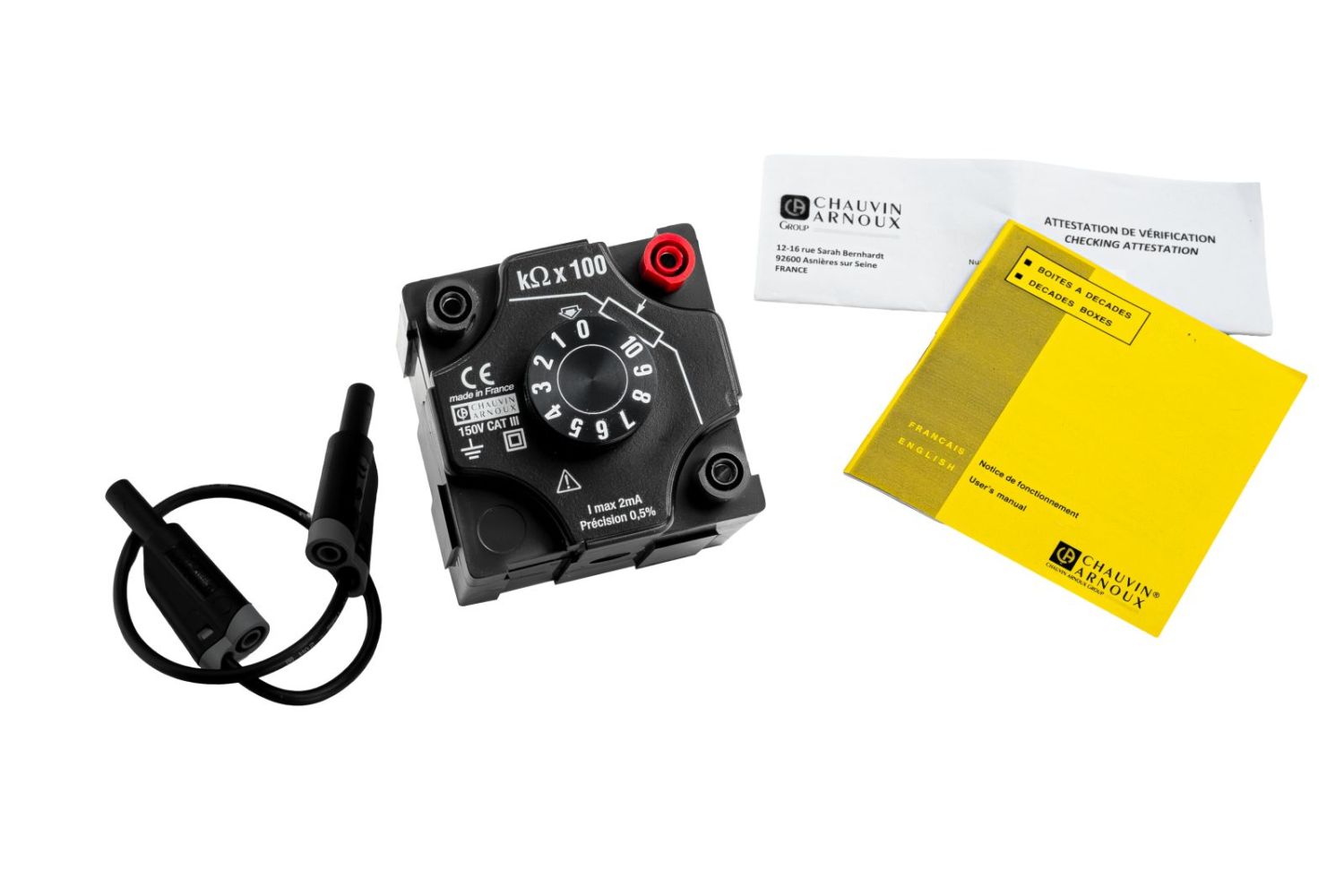

Chauvin Arnoux P03197527A
This image may differ from the desired article.
201,88 EUR
( 240,24 EUR incl. VAT )
≈ £168.17  |  ≈ $221.46
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x Chauvin Arnoux P03197527A Resistance decade 100 kΩ…1 MΩ
Lieske Part No.:732939
Mfg Part No: P03197527A
UPC/EAN: 3663653004350
Weight:0.2 kg
Graduated prices net
From piecesPrice per pieces
5200,37 EUR
10198,85 EUR
15197,34 EUR
20195,82 EUR

Product information for Chauvin Arnoux P03197527A:

The resistance decade from Chauvin Arnoux is a precise measuring instrument for setting defined resistance values in the range of 100 to 1000 kΩ. It serves as an aid in training, laboratory environments, research and development, as well as in maintenance work. The device enables the accurate simulation or setting of resistances, with values selected in steps of 100 kΩ via an 11-digit selector switch. Position 0 corresponds to a short circuit, supporting flexible use in various testing and inspection tasks. The decade is equipped with three safety sockets with a diameter of 4 mm, ensuring a secure and polarity-protected connection. The robust construction and compact dimensions of 72 x 72 x 90 mm make the device a convenient tool for mobile and stationary applications.

Applications

The resistance decade is designed for precise electrical measurements and mechanical and electrical setups. It is used in technical schools, universities, research laboratories, and industrial maintenance, where reproducible and accurate resistance settings are required. The maximum current is 2 mA, sufficient for use in low-power circuits. The accuracy of 0.5 % ensures reliable results in calibrated measurements.

Functions and equipment in detail

The device features a rotary contact switch with an integrated stop, preventing accidental rotation beyond the desired position. This protects against incorrect settings and enhances operational safety. The three safety sockets allow for secure connections with measuring and testing equipment. The decade is designed for use in environments requiring high safety and reliability. Operation is performed via the 11-digit selector switch, where each switch position represents a defined resistance value in the range of 100 to 1000 kΩ.

Technology explained simply

The resistance decade operates on the principle of a decade box, where the total resistance is set by selecting individual resistance steps in decimal increments (e.g., 100 kΩ, 200 kΩ, ..., 1000 kΩ). The accuracy of 0.5 % means that the actual resistance value lies within a tolerance range of ±0.5 % of the set value. The maximum current of 2 mA is the limit up to which the device can be safely operated without damaging internal components or compromising safety. The safety sockets with a 4 mm diameter are standardized and compatible with common test cables and probes.

Compatibility and accessories

The device is compatible with other resistance decades from the manufacturer, such as the decade in the range of 10 to 100 kΩ or 100 to 1 kΩ, which are also suitable for precise measurements. Combining different decades allows for an extension of the resistance range, while the respective current ratings and accuracies of individual modules must be taken into account. The safety sockets ensure universal connection with standard measuring instruments.

Mounting and installation

The resistance decade is operated as a freestanding device. Mounting on a wall or in an enclosure is not intended. Installation is performed by directly connecting the safety sockets to the corresponding measuring or testing equipment. The compact design allows flexible placement on workbenches, laboratory tables, or in mobile testing stations.

Advantages in operation

The resistance decade offers high precision, simple operation, and high safety. The integrated short-circuit position (0) and the stop on the rotary contact switch enhance operational safety. The robust construction ensures a long service life, even with frequent use. The compact design and low weight of 160 to 350 g facilitate transport and handling. The accuracy of 0.5 % and the maximum current of 2 mA make the device a reliable tool for precise measurement tasks.

Scope of delivery

The device is delivered with an operating manual. The manual contains information on operation, safety instructions, and technical data. The resistance decade itself is equipped with three safety sockets Ø 4 mm.

General
Range100 to 1000 kΩ
DecadekΩ x 100
Maximum current2 mA
Accuracy0,5 %
Selector switch11-digit
Connections3 safety sockets Ø 4 mm
Safety standardsComplies with applicable standards


Questions & answers

What is the delivery time of Chauvin Arnoux P03197527A Resistance decade 100 kΩ…1 MΩ?

The article Chauvin Arnoux P03197527A Resistance decade 100 kΩ…1 MΩ is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Chauvin Arnoux P03197527A to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Chauvin Arnoux P03197527A Resistance decade 100 kΩ…1 MΩ always at the best possible price. We can give you a discount of 2% on Chauvin Arnoux P03197527A Resistance decade 100 kΩ…1 MΩ if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Chauvin Arnoux P03197527A Resistance decade 100 kΩ…1 MΩ we can offer you a price of 200,37 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
