Chauvin Arnoux P03197524A Resistance decade 100...1 kOhm

Your rating:
Average rating
product review for Chauvin Arnoux P03197524A Resistance decade 100...1 kOhm
( 4.3 / 5 ) 11 ratings

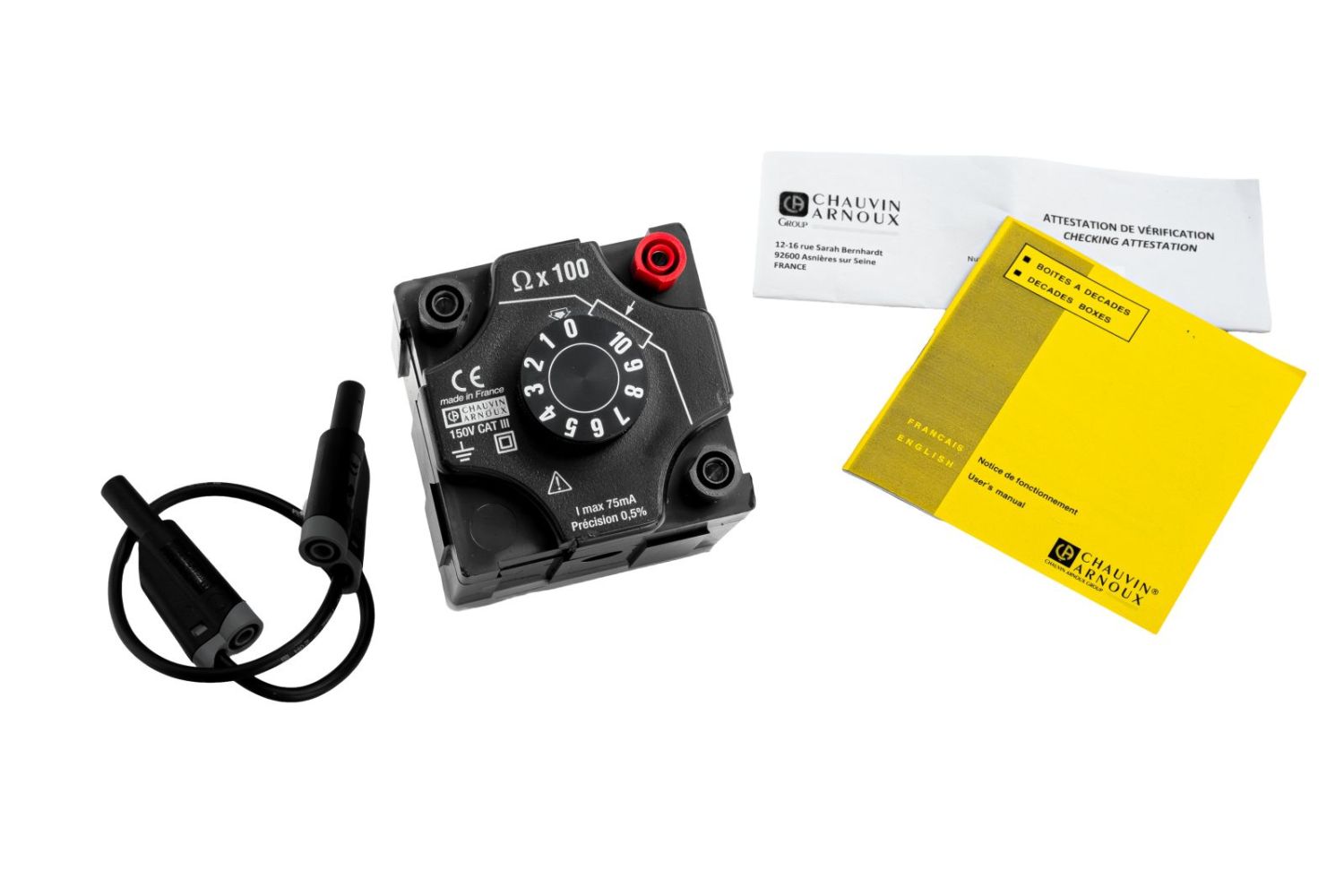

Chauvin Arnoux P03197524A
This image may differ from the desired article.
201,88 EUR
( 240,24 EUR incl. VAT )
≈ £168.17  |  ≈ $221.46
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x Chauvin Arnoux P03197524A Resistance decade 100...1 kOhm
Lieske Part No.:887460
Mfg Part No: P03197524A
UPC/EAN: 3663653004329
Weight:0.2 kg
Graduated prices net
From piecesPrice per pieces
5200,37 EUR
10198,85 EUR
15197,34 EUR
20195,82 EUR

Product information for Chauvin Arnoux P03197524A:

The resistance decade from Chauvin Arnoux is a precise measuring instrument for use in training, laboratory environments, research and development, as well as maintenance work. It enables accurate adjustment of resistances in the range of 100 to 1000 Ω, with the decade varying in steps of 100 Ω. The device is designed for electrical and mechanical assemblies and features a robust construction and an accuracy of 0.5 %. The maximum current is 75 mA, which is sufficient for use in demanding environments. The 11-digit selector switch allows selection of the desired resistance step, with position 0 representing a short circuit. The switch is equipped with a stop to prevent accidental over-rotation. The connections consist of three safety sockets with a diameter of 4 mm, ensuring safe and easy operation. The compact design with dimensions of 72 x 72 x 90 mm and a weight between 160 and 350 g makes the device portable and easy to handle. The decade complies with applicable safety standards, enabling safe use in technical applications.

Applications

The resistance decade is suitable for precise measurements in various technical fields. It is frequently used in training facilities to illustrate fundamentals of electrical engineering, and in laboratories for calibration or testing of electrical circuits. It is also useful in research and development, as well as for maintenance and repair work on electrical systems. The robust construction and high accuracy make it particularly suitable for mechanical and electrical assemblies.

Functions and Equipment in Detail

The device features an 11-digit rotary switch that allows resistance values to be set in 100-Ω steps from 100 to 1000 Ω. Position 0 represents a short circuit, which is useful for testing purposes. The three safety sockets with a diameter of 4 mm enable a secure and reliable connection to measuring instruments or circuits. The sockets are male-coded, ensuring a clear grounding terminal. The maximum current of 75 mA is sufficient for the intended application. The switch is equipped with a stop to prevent accidental over-rotation.

Technology Explained Simply

The resistance decade operates on the principle of a decade circuit, where resistance is adjusted in decimal steps (here: 100 Ω). An accuracy of 0.5 % means that the actual resistance value lies within ±0.5 % of the set value. This is sufficient for precise measurements in technical applications. The maximum current of 75 mA is the highest current the device can safely transmit without damage. The safety sockets with a 4 mm diameter are suitable for standard test cables and ensure a secure connection. The robust construction and compact design ensure long service life and easy handling.

Compatibility and Accessories

The resistance decade is designed for use with standard test cables and instruments compatible with 4 mm connectors. The male-coded grounding terminal enables a clear and secure earth connection. The device is suitable for use in laboratories, training facilities, and maintenance work. It is not specifically designed for particular devices or systems, but serves as a universal measuring aid.

Mounting and Installation

The resistance decade is directly integrated into the circuit, connecting the three safety sockets to the corresponding wires. No special mounting or installation is required; the device can be directly incorporated into the circuit. Operation is performed via the rotary switch, which sets the desired resistance step. The instruction manual, included in the delivery, provides further guidance on correct usage.

Operational Advantages

The resistance decade offers high accuracy of 0.5 % and a robust construction suitable for demanding environments. The simple operation via the 11-digit selector switch and the secure 4 mm connections facilitate work. The compact design and low weight make the device portable and easy to handle. Compliance with applicable safety standards ensures safe use.

Scope of Delivery

The scope of delivery includes the resistance decade with three safety sockets Ø 4 mm and an instruction manual.

General
DecadeΩ x 100
Range100 to 1000 Ω
Maximum current75 mA
Accuracy0,5 %
Selector switch11-digit
Connections3 safety sockets Ø 4 mm
Safety standardsComplies with applicable standards


Questions & answers

What is the delivery time of Chauvin Arnoux P03197524A Resistance decade 100...1 kOhm?

The article Chauvin Arnoux P03197524A Resistance decade 100...1 kOhm is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Chauvin Arnoux P03197524A to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Chauvin Arnoux P03197524A Resistance decade 100...1 kOhm always at the best possible price. We can give you a discount of 2% on Chauvin Arnoux P03197524A Resistance decade 100...1 kOhm if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Chauvin Arnoux P03197524A Resistance decade 100...1 kOhm we can offer you a price of 200,37 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
