Chauvin Arnoux P03197525A Resistance decade 1...10 kOhm

Your rating:
Average rating
product review for Chauvin Arnoux P03197525A Resistance decade 1...10 kOhm
( 4.6 / 5 ) 11 ratings

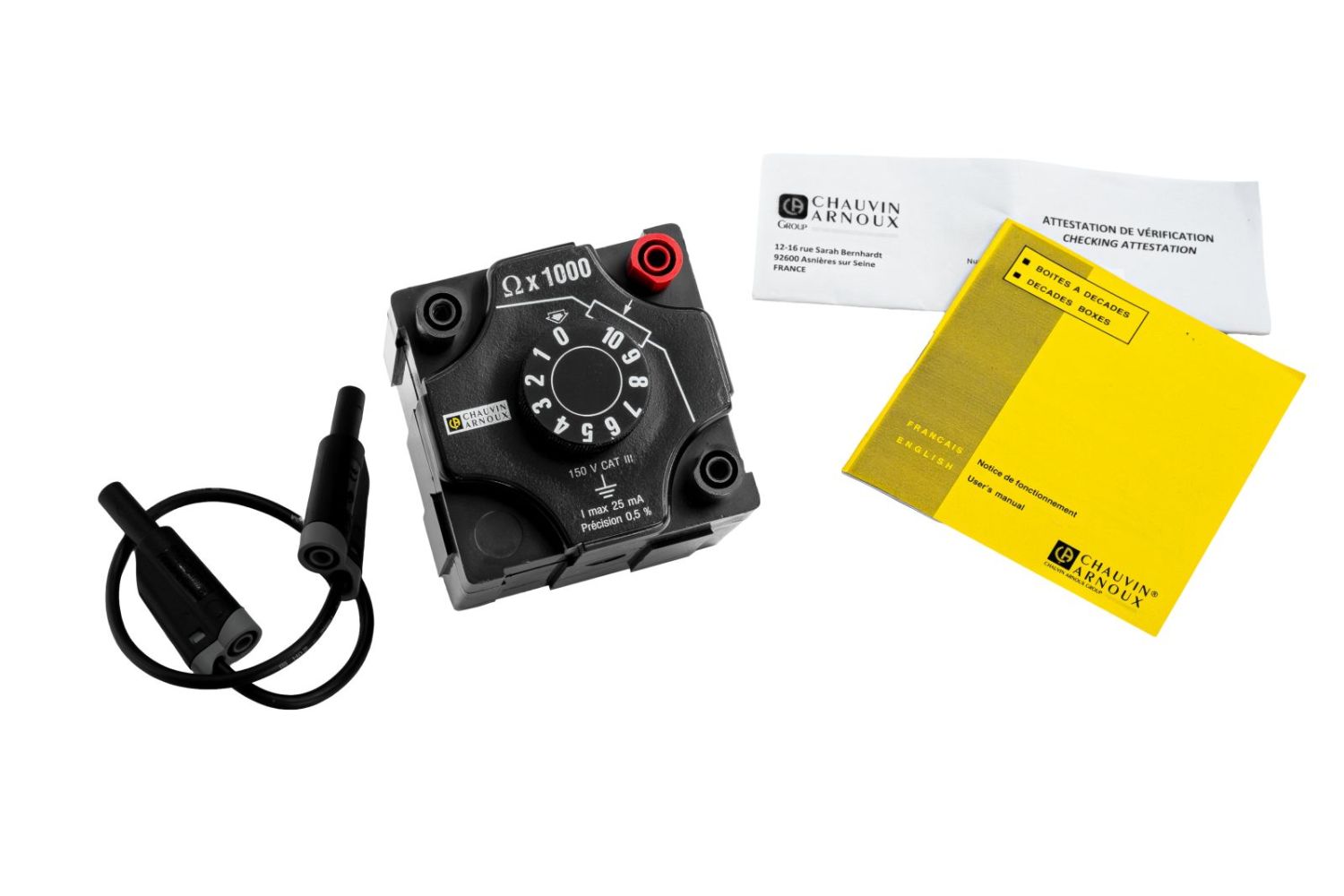

Chauvin Arnoux P03197525A
This image may differ from the desired article.
201,88 EUR
( 240,24 EUR incl. VAT )
≈ £168.17  |  ≈ $221.46
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x Chauvin Arnoux P03197525A Resistance decade 1...10 kOhm
Lieske Part No.:938370
Mfg Part No: P03197525A
UPC/EAN: 3663653004336
Weight:0.2 kg
Graduated prices net
From piecesPrice per pieces
5200,37 EUR
10198,85 EUR
15197,34 EUR
20195,82 EUR

Product information for Chauvin Arnoux P03197525A:

The resistance decade from Chauvin Arnoux is a precise measuring instrument for use in training, laboratory applications, research and development, as well as maintenance work. It enables accurate adjustment of resistance in the range from 1 to 10 kΩ and is specifically designed for electrical and mechanical setups. The device features an 11-position selector switch, where position 0 represents a short circuit, and three safety sockets with a diameter of 4 mm, ensuring secure and polarity-protected connections. The robust construction and high accuracy of 0.5 % ensure reliable measurement results.

Applications
The resistance decade is suitable for applications requiring precise and variable resistance adjustment. These include laboratory experiments, calibration of measuring instruments, testing of electrical circuits, and training in electrical engineering and measurement technology. The compact design with dimensions of 72 x 72 x 90 mm allows flexible placement on workstations, laboratory benches, or in mobile measurement setups.

Functions and Equipment in Detail
The rotary contact switch is equipped with a stop that prevents unintentional further rotation, especially when transitioning from the highest position (10 kΩ) to the zero position (short circuit). This avoids incorrect settings and protects the circuit. The three safety sockets with Ø 4 mm are designed for secure connection with standard measuring leads. The maximum current is 25 mA, which is sufficient for the intended application and ensures stable operational safety.

Technology Explained Simply
The decade is designed for the range Ω x 1000, meaning the selector switch displays values from 0 to 10 kΩ in steps of 1 kΩ. The accuracy of 0.5 % refers to the set resistance value and ensures high measurement accuracy. The safety sockets are male-coded, enabling polarity-protected grounding. The maximum current of 25 mA is specified for the range 1 to 10 kΩ; for other resistance ranges, different current limits apply, as listed in the product description.

Compatibility and Accessories
The device is compatible with standard measuring leads and cables connected to safety sockets with Ø 4 mm. Suitable accessories available in the range include additional resistance decades, such as models in the range 100 to 1 kΩ and 10 to 100 kΩ. These can be used additionally to cover a broader resistance range.

Mounting and Installation
The resistance decade is designed as a compact unit and requires no special mounting. It can be placed directly on a work surface. The connections are easily accessible, and operation is performed via the rotary contact switch. The instruction manual, included in the delivery, provides guidance on correct handling and use.

Advantages in Operation
The high accuracy of 0.5 % and robust construction ensure reliable results. Simple operation via the 11-position selector switch allows quick and precise adjustment. The safety sockets and switch stop enhance operational safety. The device is lightweight (weight 160 to 350 g) and compact, making it suitable for both mobile and stationary applications. Compliance with applicable safety standards ensures safe operation in laboratory and training environments.

The delivery includes the resistance decade with three safety sockets Ø 4 mm and an instruction manual.

General
DecadeΩ x 1000
Range1 to 10 kΩ
Maximum current25 mA
Accuracy0,5 %
Selector switch11-digit
Connections3 safety sockets Ø 4 mm
Safety standardsComplies with applicable standards
