Chauvin Arnoux P01197401 BR04: 4 resistance decades 1 Ohm to 10 kOhm

Your rating:
Average rating
product review for Chauvin Arnoux P01197401 BR04: 4 resistance decades 1 Ohm to 10 kOhm
( 4.6 / 5 ) 28 ratings
Chauvin Arnoux P01197401
This image may differ from the desired article.
151,90 EUR
( 180,76 EUR incl. VAT )
≈ £126.53  |  ≈ $166.63
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Chauvin Arnoux P01197401 BR04: 4 resistance decades 1 Ohm to 10 kOhm
Datasheet:file_download Download
Lieske Part No.:113045
Mfg Part No: P01197401
UPC/EAN: 3663653002424
Weight:0.2 kg
Graduated prices net
From piecesPrice per pieces
5150,76 EUR
10149,62 EUR
15148,48 EUR
20147,34 EUR

Product information for Chauvin Arnoux P01197401:

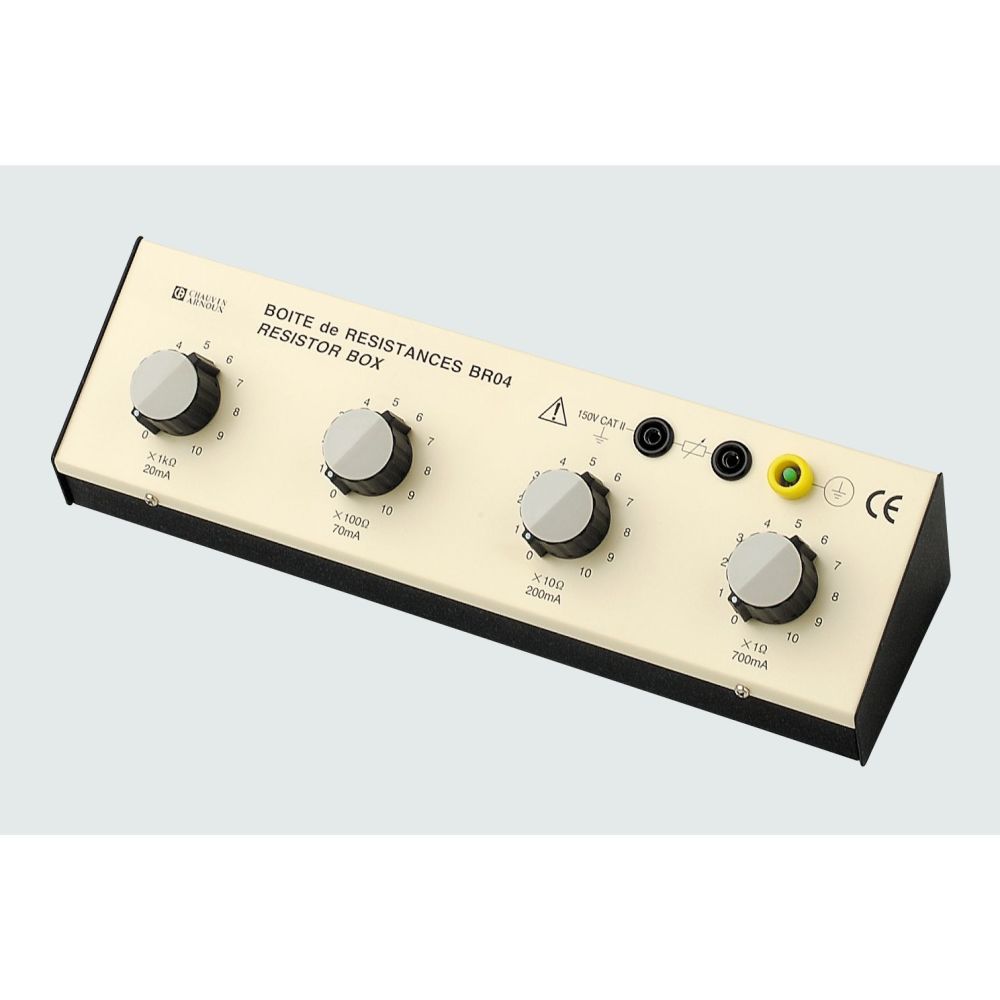

The BR04 resistance decade from Chauvin Arnoux is a precise measuring instrument for use in training environments, laboratories, research and development work, as well as in maintenance. The device features a robust bench housing integrating four separate resistance decades, enabling a variable resistance range from 1 Ω to 10 kΩ. The decades are selectable via an 11-position rotary switch, allowing precise adjustment of the desired resistance value. Outputs are provided via safety sockets with a diameter of 4 mm, ensuring a secure and polarity-protected connection. The front panel and metal housing are connected to a clearly identifiable earthing socket to ensure a safe electrical connection and protection against contact voltage.

Applications

The BR04 is specifically designed for applications requiring a variable, precise resistance. This includes, among other things, training in electrical engineering and measurement technology, calibration of measuring instruments, simulation of loads in electrical circuits, and testing of power supplies and electronic modules. The robust construction also makes the device suitable for use in industrial environments where high mechanical stability and durability are required.

Functions and Equipment in Detail

The device offers four independent decades, each covering a specific resistance and current range. Decade 1 enables resistances from 1 Ω to 10 Ω with a maximum current of 700 mA, suitable for applications with low resistances and high currents. Decade 2 covers the range from 10 Ω to 100 Ω and supports a maximum current of 200 mA. Decade 3 provides resistances from 100 Ω to 1 kΩ with a maximum current of 70 mA, while Decade 4 enables resistances from 1 kΩ to 10 kΩ with a maximum current of 20 mA. The total resistance capacity is 11.11 kΩ. The measurement accuracy of the device is 1 %, which is sufficient for many laboratory and testing applications.

Technology Explained Simply

The resistance decade operates by combining multiple resistance steps, which are activated via a rotary switch. Each decade represents a power of ten, so that by combining individual steps, a wide resistance and current range is covered. The safety sockets with 4 mm diameter are standardized and allow a secure connection with measuring leads and other devices. The clearly identifiable earthing socket ensures that earthing is correctly connected and not confused with other terminals, increasing safety.

Compatibility and Accessories

The BR04 is compatible with other resistance decades from the manufacturer, such as the decade 100...1 kΩ and the decade 10...100 kΩ, which are also suitable for laboratory and testing applications. These can be used additionally to cover an extended resistance and current range. Combining with other decades allows flexible adaptation to specific requirements in research, development, and maintenance.

Mounting and Installation

The device is designed as a bench instrument and requires no special mounting. It can be placed directly on a workbench or laboratory table. Connection to other devices is made via the safety sockets, ensuring a secure and polarity-protected connection. Earthing is achieved via the integrated earthing socket, which is connected to the front panel and housing.

Operational Advantages

The BR04 offers high mechanical stability and durability due to its robust metal housing. The clear operation via the 11-position rotary switch allows for quick and precise adjustment of the resistance value. The safety sockets and clearly identifiable earthing socket increase operational safety. The measurement accuracy of 1 % is sufficient for many applications, and the versatile range of uses makes the device a universal tool in measurement technology.

Resistance is the core function of the device, realized through the four decades. The decades enable selection of different resistance ranges, with each range supporting a specific maximum current. The safety sockets ensure a secure connection, and the earthing socket provides a clearly identifiable earthing point. The measurement accuracy of 1 % is sufficient for most applications.

General
Number of decades4
Resistance range decade 11 Ω to 10 Ω
Maximum current decade 1700 mA
Resistance range decade 210 Ω to 100 Ω
Maximum current decade 2200 mA
Resistance range decade 3100 Ω to 1 kΩ
Maximum current decade 370 mA
Resistance range decade 41 kΩ to 10 kΩ
Maximum current decade 420 mA
Total resistance11,11 kΩ
Accuracy of measurement1 %
Connector socketsØ 4 mm safety sockets
Grounding sockettamper-proof
Type of enclosureConsole enclosure
Selector switch11-digit


Product data sheet
Datasheet for Chauvin Arnoux P01197401, EAN: 3663653002424

Questions & answers

What is the delivery time of Chauvin Arnoux P01197401 BR04: 4 resistance decades 1 Ohm to 10 kOhm?

The article Chauvin Arnoux P01197401 BR04: 4 resistance decades 1 Ohm to 10 kOhm is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Chauvin Arnoux P01197401 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Chauvin Arnoux P01197401 BR04: 4 resistance decades 1 Ohm to 10 kOhm always at the best possible price. We can give you a discount of 2% on Chauvin Arnoux P01197401 BR04: 4 resistance decades 1 Ohm to 10 kOhm if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Chauvin Arnoux P01197401 BR04: 4 resistance decades 1 Ohm to 10 kOhm we can offer you a price of 150,76 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Chauvin Arnoux P01197401 BR04: 4 resistance decades 1 Ohm to 10 kOhm
