Chauvin Arnoux P03197528A Resistance decade 1...10 MΩ

Your rating:
Average rating
product review for Chauvin Arnoux P03197528A Resistance decade 1...10 MΩ
( 4.4 / 5 ) 11 ratings

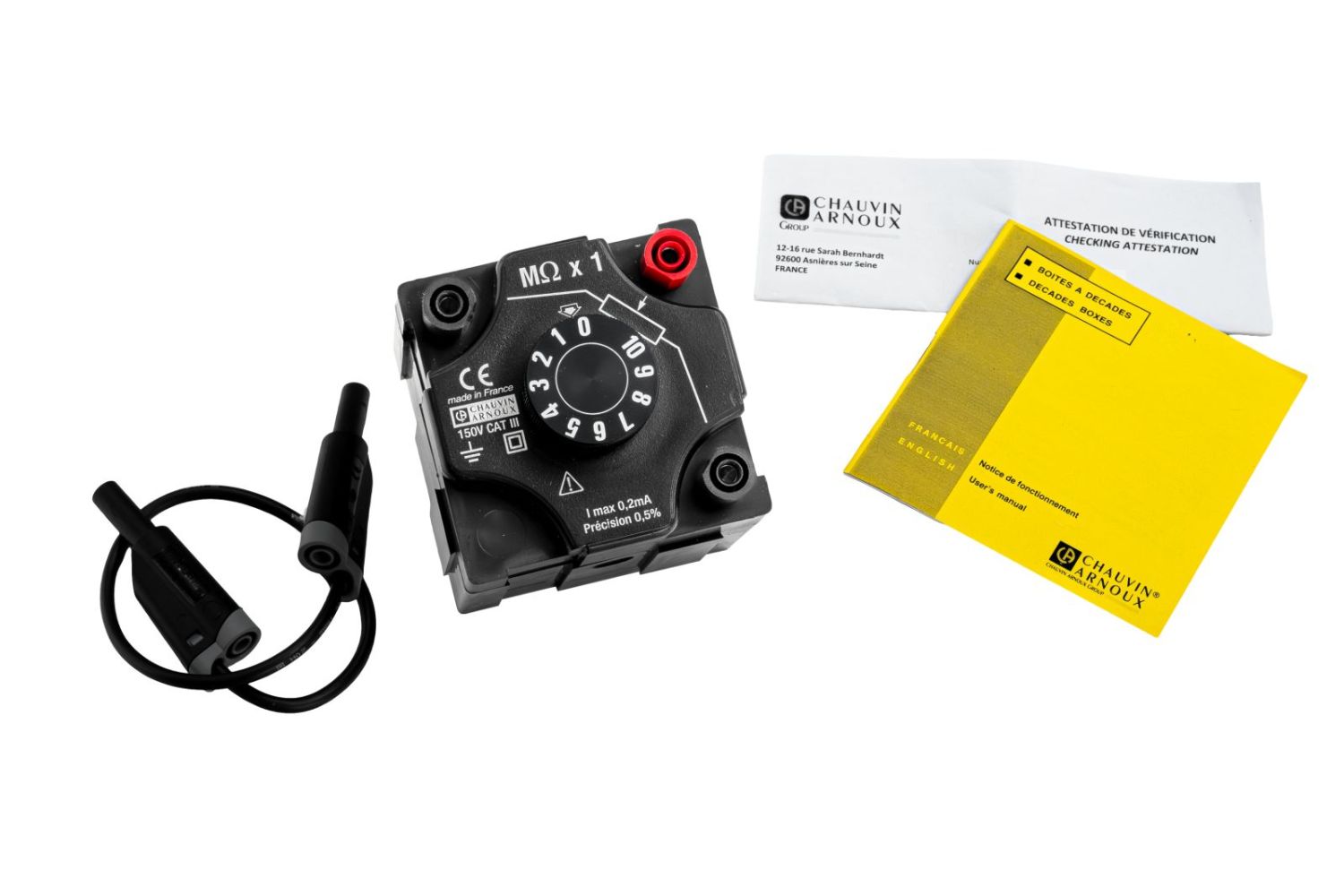

Chauvin Arnoux P03197528A
This image may differ from the desired article.
201,88 EUR
( 240,24 EUR incl. VAT )
≈ £168.17  |  ≈ $221.46
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x Chauvin Arnoux P03197528A Resistance decade 1...10 MΩ
Lieske Part No.:742061
Mfg Part No: P03197528A
UPC/EAN: 3663653004367
Weight:0.2 kg
Graduated prices net
From piecesPrice per pieces
5200,37 EUR
10198,85 EUR
15197,34 EUR
20195,82 EUR

Product information for Chauvin Arnoux P03197528A:

The resistance decade from Chauvin Arnoux is a precise measuring instrument for use in training, laboratories, research and development, as well as for maintenance work. It enables accurate setting of resistance in the range from 1 to 10 MΩ, making it suitable for applications in the high-resistance range. The device features an 11-digit selector switch, where position 0 represents a short circuit, allowing flexible use from zero to maximum resistance. The connections consist of three safety sockets with a diameter of 4 mm, ensuring a secure and polarity-protected connection. The design is compact and robust, with dimensions of 72 x 72 x 90 mm and a weight between 160 and 350 g, enabling easy handling and portability.

Applications

The resistance decade is designed for precise electrical and mechanical setups. It is used in technical laboratories, for calibration of measuring instruments, in training to teach fundamentals of electrical engineering, as well as in research and development. The high accuracy of 0.5 % and maximum current of 0.2 mA make it particularly suitable for applications requiring high measurement accuracy and low current loading. Compliance with applicable safety standards ensures safe operation.

Functions and Equipment in Detail

The rotary contact switch is equipped with a stop that prevents unintentional further rotation, especially when transitioning from position 10 to position 1. This avoids incorrect settings and increases operational safety. The three safety sockets with Ø 4 mm are designed for secure and reliable connections. The earthing terminal is male-coded, ensuring polarity-protected connection. Operation is performed via the selector switch, which displays resistance values in steps from 1 MΩ to 10 MΩ.

Technology Explained Simply

The decade operates in the range of 1 to 10 MΩ, where the resistance value is set by rotating the switch in individual steps. The accuracy of 0.5 % means that the actual resistance value lies within a tolerance range of ±0.5 % of the set value. The maximum current of 0.2 mA is typical for operation in the high-resistance range and protects the device from overload. The safety sockets with Ø 4 mm are designed for use with standard test leads and ensure safe current conduction.

Compatibility and Accessories

The device is compatible with other resistance decades from the manufacturer, particularly models for the range 100 to 1000 Ω and 10 to 100 kΩ. These can be used in combination with the 1 to 10 MΩ decade to cover a broader resistance range. Use in a laboratory or test environment requires no additional adapters, as the safety sockets are standardized.

Mounting and Installation

The resistance decade is designed as a handheld device and requires no mounting. It is directly connected to the measuring setup, with the safety sockets connected to the corresponding leads. The earthing terminal is male-coded and must be connected to a polarity-protected earthing point. The operating instructions, included in the delivery, provide guidance for correct handling.

Advantages in Operation

The combination of high accuracy, compact design, and secure connection options makes the resistance decade a reliable tool. The simple operation via the 11-digit selector switch enables quick and precise adjustment. Compliance with safety standards ensures risk-free operation. The robust construction ensures long service life even under frequent use.

The delivery includes the resistance decade with three safety sockets Ø 4 mm and an operating manual.

General
DecadeMΩ x 1
Range1 to 10 MΩ
Maximum current0,2 mA
Accuracy0,5 %
Selector switch11-digit
Connections3 safety sockets Ø 4 mm
Grounding terminalmale coded
Safety standardsComplies with applicable standards


Questions & answers

What is the delivery time of Chauvin Arnoux P03197528A Resistance decade 1...10 MΩ?

The article Chauvin Arnoux P03197528A Resistance decade 1...10 MΩ is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Chauvin Arnoux P03197528A to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Chauvin Arnoux P03197528A Resistance decade 1...10 MΩ always at the best possible price. We can give you a discount of 2% on Chauvin Arnoux P03197528A Resistance decade 1...10 MΩ if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Chauvin Arnoux P03197528A Resistance decade 1...10 MΩ we can offer you a price of 200,37 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
