Chauvin Arnoux P01197404 BR07: 7 resistance decades 1 Ohm to 10 MΩ

Your rating:
Average rating
product review for Chauvin Arnoux P01197404 BR07: 7 resistance decades 1 Ohm to 10 MΩ
( 4.7 / 5 ) 7 ratings

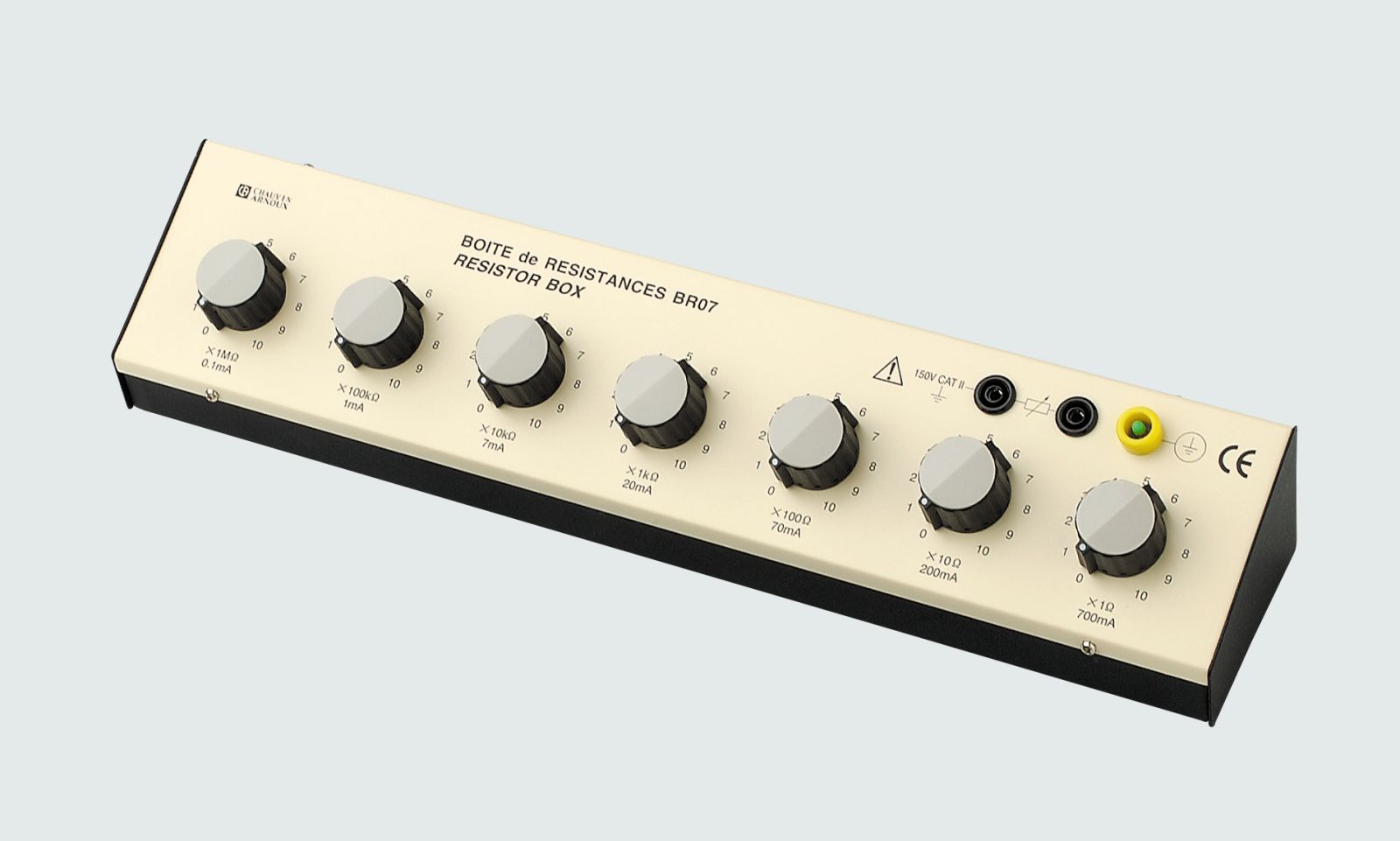

Chauvin Arnoux P01197404
This image may differ from the desired article.
227,36 EUR
( 270,56 EUR incl. VAT )
≈ £189.39  |  ≈ $249.41
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x Chauvin Arnoux P01197404 BR07: 7 resistance decades 1 Ohm to 10 MΩ
Datasheet:file_download Download
Lieske Part No.:187920
Mfg Part No: P01197404
UPC/EAN: 3760171417171
Weight:0.2 kg
Graduated prices net
From piecesPrice per pieces
5225,65 EUR
10223,95 EUR
15222,24 EUR
20220,54 EUR

Product information for Chauvin Arnoux P01197404:

The BR07 resistance decade from Chauvin Arnoux is a precise measuring instrument for use in training, laboratories, research and development, as well as in maintenance. It features a stable bench enclosure and enables the setting of resistances in the range of 1 Ω to 10 MΩ via seven independent decades. The setting is done using an 11-position selector switch, which allows accurate and reproducible selection of the desired resistance value. The outputs are implemented via safety sockets with a diameter of 4 mm, ensuring a secure and polarity-protected connection. The front panel and metal housing are connected to a clearly identifiable safety earthing socket to ensure secure earthing.

Applications

The BR07 is designed for applications requiring precise and variable resistance adjustment. These include laboratory environments, technical training, development tasks, as well as maintenance and testing processes in electrical engineering. The high accuracy of 1 % makes the device suitable for measurement tasks where reliable resistance values are essential.

Functions and equipment in detail

The device includes seven decades, with each decade covering a specific resistance range. Decade 1 allows resistances from 1 Ω to 10 Ω with a maximum current of 700 mA. Decade 2 covers 10 Ω to 100 Ω (max. 200 mA), Decade 3 from 100 Ω to 1 kΩ (max. 70 mA), Decade 4 from 1 kΩ to 10 kΩ (max. 20 mA), Decade 5 from 10 kΩ to 100 kΩ (max. 7 mA), Decade 6 from 100 kΩ to 1 MΩ (max. 1 mA), and Decade 7 from 1 MΩ to 10 MΩ (max. 0.1 mA). The maximum current capacity decreases with increasing resistance, which is typical for such decade boxes to avoid thermal stress and measurement value distortion.

Technology explained clearly

The resistance decade operates on the principle of decimal decomposition, where the total resistance is formed by the sum of the individual decade values. The setting is done via a rotary switch per decade, selecting individual resistance values (e.g. 1 Ω, 2 Ω, ..., 9 Ω). The total resistance setting can thus be adjusted in steps of 1 Ω up to 10 MΩ. The safety sockets with 4 mm diameter are designed for use with standard test leads and prevent accidental contact with conductive parts. The earthing socket ensures a secure electrical connection to the protective conductor, which is particularly important at high voltages or when working with sensitive equipment.

Compatibility and accessories

The device is compatible with standard test leads and probes designed for 4 mm safety sockets. Suitable accessories include resistance decades in the range of 100 Ω to 1 kΩ and 10 kΩ to 100 kΩ, which can be used additionally to meet specific requirements for the resistance range. These additional decades can be used in combination with the BR07 to create an extended application range.

Mounting and installation

The BR07 is operated as a bench instrument and requires no additional mounting effort. It is placed directly on a table or laboratory bench. Earthing is done via the integrated safety earthing socket, which is connected to the housing. No additional mounting accessories are required.

Advantages in operation

The BR07 offers high accuracy of 1 % and clear, intuitive operation via the 11-position selector switch. The stable metal construction ensures long service life and mechanical robustness. The integrated earthing socket increases safety when working with electrical equipment. The combination of high precision and user-friendliness makes the device a reliable tool in technical work environments.

General
Number of decades7
Resistance range1 Ω to 10 MΩ
Accuracy1 %
OutputSafety sockets Ø 4 mm
Maximum current decade 1700 mA
Maximum current decade 2200 mA
Maximum current decade 370 mA
Maximum current decade 420 mA
Maximum current decade 57 mA
Maximum current decade 61 mA
Maximum current decade 70.1 mA
Total resistance11,11111 MΩ


Product data sheet
Datasheet for Chauvin Arnoux P01197404, EAN: 3760171417171

Questions & answers

What is the delivery time of Chauvin Arnoux P01197404 BR07: 7 resistance decades 1 Ohm to 10 MΩ?

The article Chauvin Arnoux P01197404 BR07: 7 resistance decades 1 Ohm to 10 MΩ is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Chauvin Arnoux P01197404 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Chauvin Arnoux P01197404 BR07: 7 resistance decades 1 Ohm to 10 MΩ always at the best possible price. We can give you a discount of 2% on Chauvin Arnoux P01197404 BR07: 7 resistance decades 1 Ohm to 10 MΩ if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Chauvin Arnoux P01197404 BR07: 7 resistance decades 1 Ohm to 10 MΩ we can offer you a price of 225,65 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
