Chauvin Arnoux P03197521A Resistance decade 0.1...1 Ohm

Your rating:
Average rating
product review for Chauvin Arnoux P03197521A Resistance decade 0.1...1 Ohm
( 4.5 / 5 ) 8 ratings

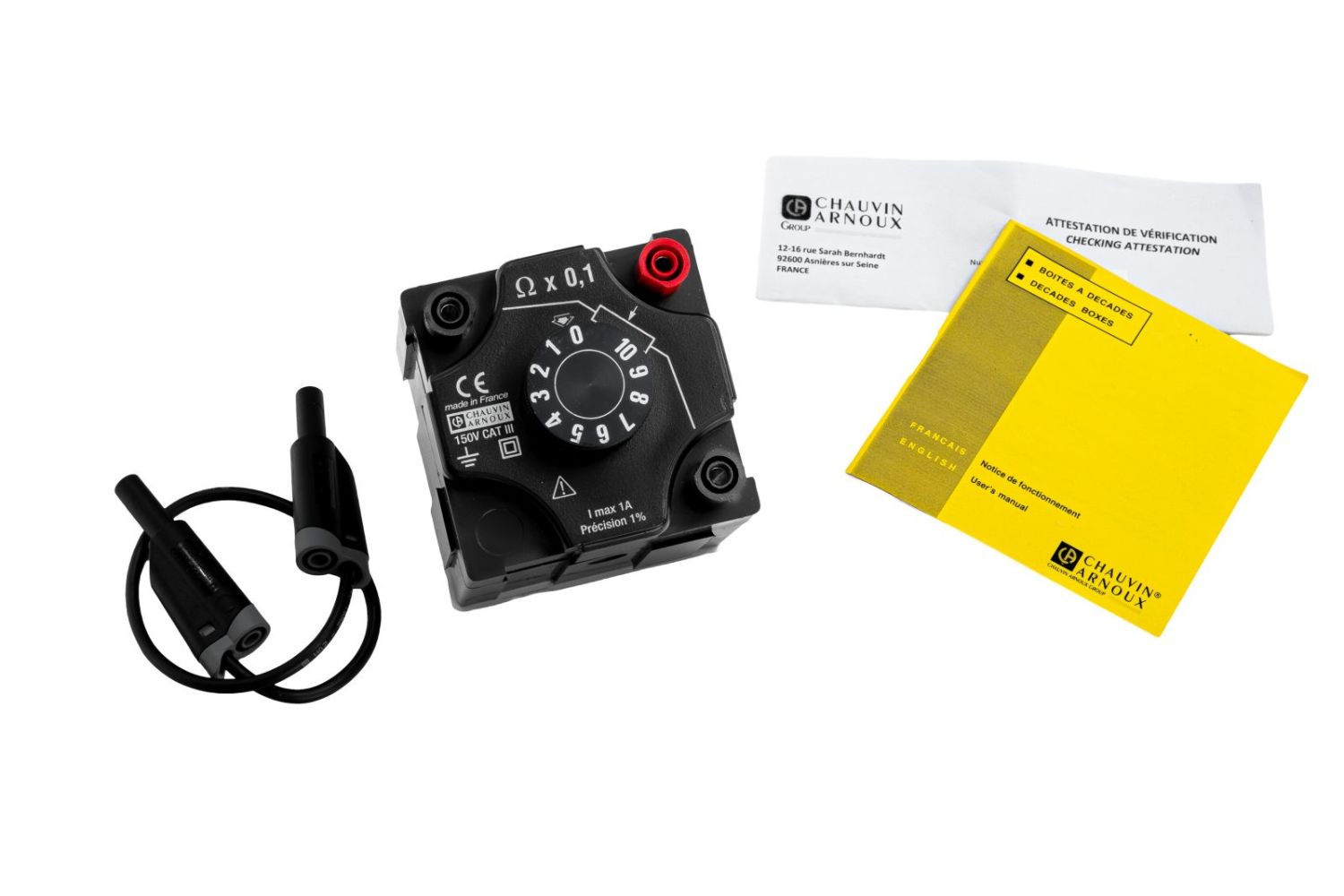

Chauvin Arnoux P03197521A
This image may differ from the desired article.
236,18 EUR
( 281,05 EUR incl. VAT )
≈ £196.74  |  ≈ $259.09
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x Chauvin Arnoux P03197521A Resistance decade 0.1...1 Ohm
Lieske Part No.:943458
Mfg Part No: P03197521A
UPC/EAN: 3663653004299
Weight:0.2 kg
Graduated prices net
From piecesPrice per pieces
5234,41 EUR
10232,64 EUR
15230,87 EUR
20229,09 EUR

Product information for Chauvin Arnoux P03197521A:

The resistance decade from Chauvin Arnoux is a precise measuring instrument for use in laboratory environments, training, research and development, as well as for maintenance work. The device features a single decade, which is set via an 11-position selector switch, with position 0 representing a short circuit. The decade allows setting resistances in the range of 0.1 to 1 Ω, with steps in 0.1-Ω increments. The maximum current is 1 A, which is sufficient for applications with low to medium current loads. The typical measurement accuracy is 0.5 %, with the specified accuracy in the datasheet being 1 % ± 5 mΩ. The resistance decade is therefore suitable for precise electrical measurements where high accuracy is required.

Applications

The resistance decade is suitable for a wide range of applications in the field of electrical engineering and measurement technology. It is frequently used in training and educational institutions to illustrate basic principles of electricity and resistance measurement. In laboratories, it is used for calibrating measuring instruments, simulating loads, or setting reference resistances. It is also used in research and development to test electrical circuits under defined conditions. The robust construction also makes it suitable for maintenance work in industrial environments.

Functions and Equipment in Detail

The device features an 11-position selector switch, enabling precise and reproducible resistance setting. The switch is equipped with a stop mechanism that prevents unintentional rotation from one position to the next, making operation safer and error-free. The connections consist of three safety sockets with a diameter of 4 mm, ensuring a secure and polarity-protected connection. A clearly identifiable earthing contact in the form of a male plug ensures reliable earthing and complies with applicable safety standards.

Technology Explained Simply

The resistance decade operates on the principle of a decade box, where the total resistance is set by selecting individual resistance steps in decimal increments (here in 0.1-Ω steps). The maximum current of 1 A is specified for the range of 0.1 to 1 Ω; for other resistance decades with different range coverage, other current values apply, which are however not relevant for this model. The accuracy of 0.5 % (typical) means that the set resistance value lies within a tolerance range of ±0.5 % of the nominal value, which is sufficient for precise measurements. The specification 1 % ± 5 mΩ describes an alternative accuracy indication, consisting of a percentage error and an absolute error.

Compatibility and Accessories

The resistance decade is compatible with other resistance decades from the same manufacturer, particularly with models for other resistance ranges such as 1 to 10 Ω, 10 to 100 Ω, 100 to 1000 Ω, 1 to 10 kΩ, 10 to 100 kΩ, 100 to 1000 kΩ, and 1 to 10 MΩ. These can be used in combination with the resistance decade described here to cover a broader resistance and current range. The connections in the form of 4-mm safety sockets allow easy connection to standard measuring cables and other devices equipped with 4-mm sockets.

Mounting and Installation

The resistance decade is designed as a compact device with dimensions of 72 x 72 x 90 mm and a weight between 160 and 350 g. It can be placed on a laboratory bench or mounted in an enclosure. The robust metal housing construction provides mechanical protection and ensures reliable earthing. Installation requires no special tools; connections are made via the 4-mm safety sockets and the earthing contact.

Operational Advantages

The resistance decade offers high precision in resistance setting, safe operation due to the latched selector switch, and reliable earthing. The compact design allows flexible placement in the laboratory or in an enclosure. The use of safety sockets and a polarity-protected earthing contact increases safety during operation. The operating manual, included in the delivery, supports correct use of the device.

Delivery Contents

The delivery contents include 1 x resistance decade with 4-mm safety sockets and 1 x operating manual.

General
DecadeΩ x 0,1
Range0.1 to 1 Ω
Maximum current1 A
Accuracy1 % ± 5 mΩ
Typical measurement accuracy0,5 %
Selector switch11-digit
Connections3 safety sockets Ø 4 mm
Safety standardsComplies with applicable standards
