Chauvin Arnoux P03197523A Resistance decade 10...100 Ohm

Your rating:
Average rating
product review for Chauvin Arnoux P03197523A Resistance decade 10...100 Ohm
( 4.5 / 5 ) 8 ratings

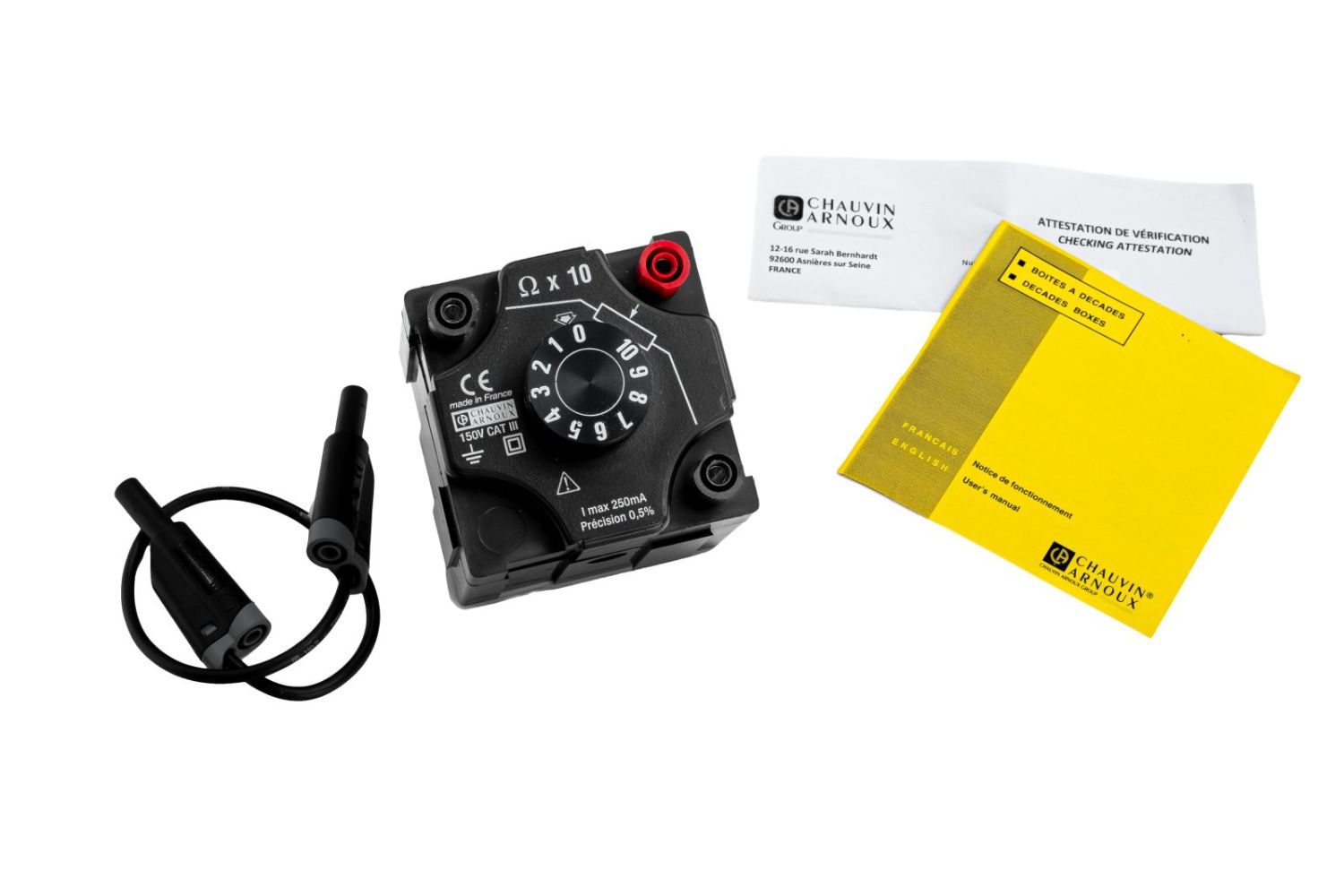

Chauvin Arnoux P03197523A
This image may differ from the desired article.
201,88 EUR
( 240,24 EUR incl. VAT )
≈ £168.17  |  ≈ $221.46
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x Chauvin Arnoux P03197523A Resistance decade 10...100 Ohm
Lieske Part No.:943526
Mfg Part No: P03197523A
UPC/EAN: 3663653004312
Weight:0.2 kg
Graduated prices net
From piecesPrice per pieces
5200,37 EUR
10198,85 EUR
15197,34 EUR
20195,82 EUR

Product information for Chauvin Arnoux P03197523A:

The resistance decade from Chauvin Arnoux is a precise measuring accessory for use in training, laboratories, research and development, as well as for maintenance work. It enables accurate adjustment of resistances in the range of 10 to 100 Ω and is designed for applications requiring high measurement accuracy and safe handling. The decade is equipped with an 11-position selector switch, where position 0 represents a short circuit. Connections are made via three safety sockets with a diameter of 4 mm, ensuring a polarity-protected connection. The rotary contact switch features a stop, preventing accidental over-rotation and thus minimizing incorrect operation.

Applications

The resistance decade is suitable for various applications in the field of electrical engineering and measurement technology. It is frequently used in training and practical exercises to simulate circuits with variable resistances. In laboratories and during the development of electronic devices, it serves for calibration, testing, and load simulation. It is also a useful tool for maintenance tasks, such as checking circuits or adjusting regulators. The compact design and robust construction make it suitable for mobile applications as well.

Functions and Equipment in Detail

The decade offers a maximum current of 250 mA in the range of 10 to 100 Ω. The accuracy is 0.5 %, which is sufficient for precise measurements and adjustments. The selector switch allows selection of resistances in steps of 10 Ω, starting at 0 Ω (short circuit) up to 100 Ω. The three safety sockets with Ø 4 mm are designed for secure and polarity-protected connections. The front panel is equipped with a male-coded earthing terminal, ensuring safe earthing.

Technology Explained Simply

The resistance decade operates on the principle of a decade box, where the total resistance is set by selecting individual decades (here: Ω x 10). Values are available in whole ten-step increments, enabling simple and quick adjustment. The safety sockets with Ø 4 mm conform to the standard for laboratory and measuring instruments, ensuring a secure connection. The maximum current of 250 mA is sufficient for the intended application area and protects the device from overload. The accuracy of 0.5 % is adequate for most applications in laboratory and training environments.

Compatibility and Accessories

The resistance decade is compatible with other decade boxes in the ranges of 100 to 1000 Ω, 1 to 10 kΩ, 10 to 100 kΩ, and 100 to 1000 kΩ. These can be used in combination with the 10–100 Ω decade to cover a wider resistance or current range. The current ratings for these ranges are 75 mA, 25 mA, 7.5 mA, and 2 mA respectively. The decade can be used in electrical circuits as a variable load or for simulating resistances.

Mounting and Installation

The resistance decade is designed as a compact device and can be directly installed in circuits. Connections are made via the three safety sockets, which can be connected to standard measuring cables or accessories. The robust construction allows use in both stationary and mobile operations. Dimensions are 72 x 72 x 90 mm, enabling placement in standard laboratory shelves or on workstations.

Operational Advantages

The resistance decade offers high precision and reliability in resistance adjustment. The safe operation provided by the stop on the rotary contact switch and the polarity-protected connections reduces the risk of incorrect operation. The compact design and low weight (160 to 350 g) enable flexible use. Compliance with applicable safety standards ensures safe operation in various environments.

Scope of Delivery

The scope of delivery includes 1 x resistance decade with safety sockets Ø 4 mm and 1 x operating instructions. The instructions contain information on handling, maintenance, and safety guidelines for operating the device.

General
DecadeΩ x 10
Range10 to 100 Ω
Maximum current250 mA
Accuracy0,5 %
Selector switch11-digit
Connections3 safety sockets Ø 4 mm
Safety standardsComplies with applicable standards
