Chauvin Arnoux P03197522A Resistance decade 1...10 Ohm

Your rating:
Average rating
product review for Chauvin Arnoux P03197522A Resistance decade 1...10 Ohm
( 4.3 / 5 ) 12 ratings

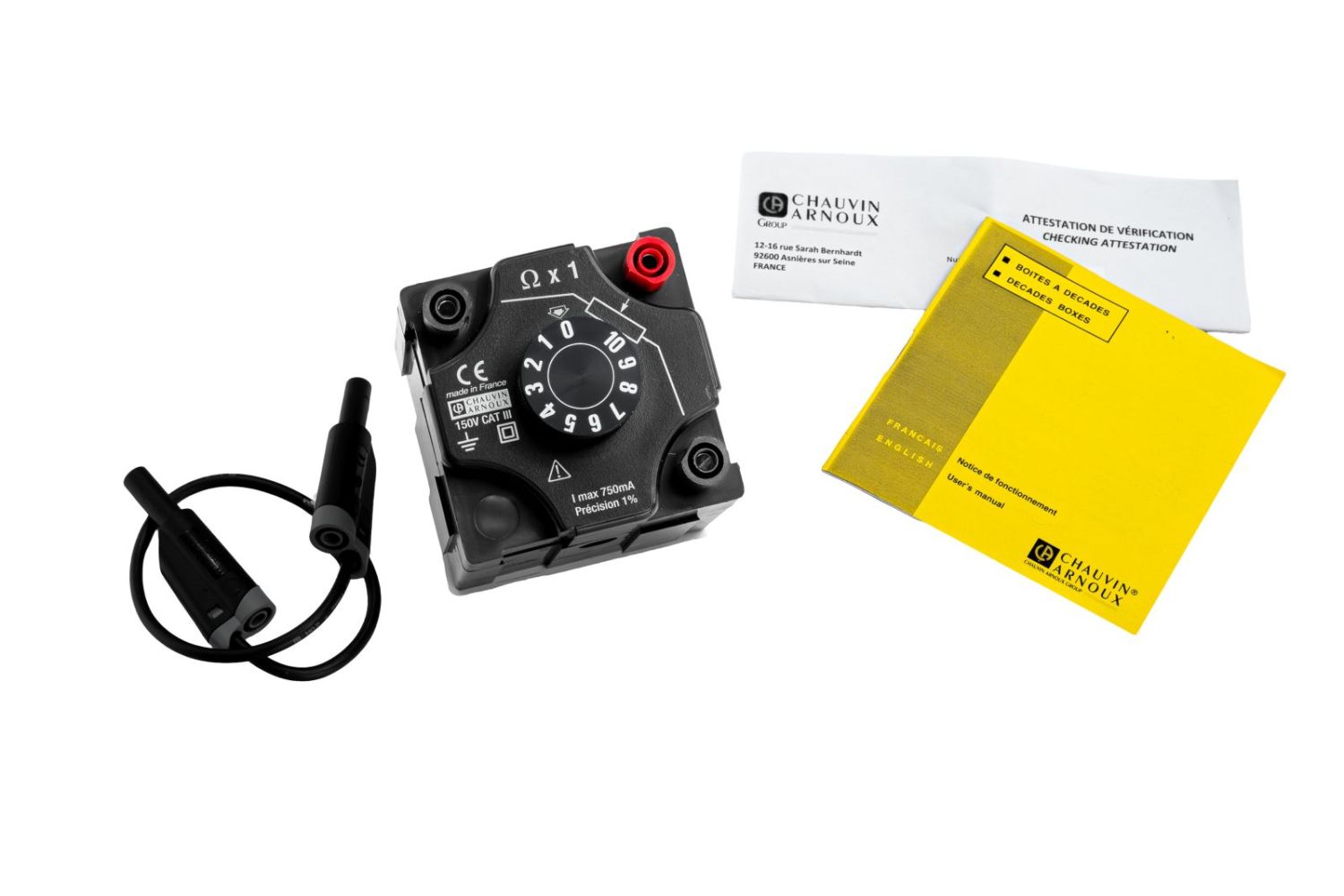

Chauvin Arnoux P03197522A
This image may differ from the desired article.
201,88 EUR
( 240,24 EUR incl. VAT )
≈ £168.17  |  ≈ $221.46
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x Chauvin Arnoux P03197522A Resistance decade 1...10 Ohm
Lieske Part No.:502092
Mfg Part No: P03197522A
UPC/EAN: 3663653004305
Weight:0.2 kg
Graduated prices net
From piecesPrice per pieces
5200,37 EUR
10198,85 EUR
15197,34 EUR
20195,82 EUR

Product information for Chauvin Arnoux P03197522A:

The resistance decade from Chauvin Arnoux is a precise measuring instrument for use in training, laboratories, research and development, as well as for maintenance work. It offers a resistance range from 1 to 10 Ω and is designed for a maximum current of 750 mA. The device features an 11-position selector switch, where position 0 represents a short circuit, and three safety sockets with a diameter of 4 mm. The rotary contact switch is equipped with a stop to prevent accidental over-rotation, making operation safe and easy. The typical measurement accuracy is 0.5 %, while the specified accuracy of 1 % ± 5 mΩ serves as an additional specification. The robust construction and compact dimensions of 72 x 72 x 90 mm allow for easy integration into mechanical and electrical assemblies. The weight ranges between 160 and 350 g, facilitating handling and installation. The resistance decade complies with applicable safety standards and is equipped with a reverse-polarity-protected earthing terminal.

Applications

The resistance decade is designed for applications in the field of electrical measurement technology, particularly for laboratory environments, technical training, and maintenance work. It is suitable for simulating resistances in circuits, calibrating measuring instruments, and testing electrical systems. The precise adjustability in the range of 1 to 10 Ω enables accurate replication of resistance values relevant in various technical applications.

Functions and Equipment in Detail

The device features an 11-position selector switch, enabling resistance values from 0 (short circuit) to 10 Ω in 1-Ω steps. The three safety sockets with Ø 4 mm ensure a secure connection for test leads. The earthing terminal is male-coded and reverse-polarity-protected, enhancing safety during use. The rotary contact switch is protected against accidental over-rotation, enabling precise and error-free adjustment.

Technology Explained Simply

The resistance decade operates as a fixed resistance that can be adjusted in defined steps via a rotary switch. Values are available in 1-Ω steps from 0 to 10 Ω, with 0 representing a short circuit. The maximum current of 750 mA is designed for the intended range of 1 to 10 Ω. The accuracy of 0.5 % is typical for the device, while the specified accuracy of 1 % ± 5 mΩ provides an additional indication of measurement uncertainty. The safety sockets with Ø 4 mm are designed for secure connection of test leads and comply with applicable standards.

Compatibility and Accessories

The device is compatible with other resistance decades from the manufacturer, particularly models for the ranges 10 to 100 kΩ and 100 to 1000 Ω. These can be used in combination with the 1- to 10-Ω decade to simulate a wider resistance range. Use in laboratory environments requires no additional components, as the device functions independently.

Mounting and Installation

The resistance decade can be directly installed in electrical circuits. The safety sockets allow for secure connection of wires. The compact dimensions and low weight facilitate installation in various assemblies. The earthing terminal is reverse-polarity-protected and must be connected according to electrical regulations.

Operational Advantages

The resistance decade offers high precision and reliability in simulating resistances. The simple operation via the 11-position selector switch, combined with safe handling due to the stop mechanism and reverse-polarity-protected earthing terminal, increases efficiency and safety during operation. The robust construction and low weight also make the device suitable for mobile applications. The device is delivered with an instruction manual explaining correct handling and installation.

Scope of Delivery

The scope of delivery includes 1 x resistance decade with safety sockets Ø 4 mm and 1 x instruction manual.

General
DecadeΩ x 1
Range1 to 10 Ω
Maximum current750 mA
Accuracy1 % ± 5 mΩ
Typical measurement accuracy0,5 %
Selector switch11-digit
Connections3 safety sockets Ø 4 mm
Safety standardsComplies with applicable standards
